Introduction
Thank you for choosing the PELONIS 16" Height Adjustable Silent Oscillating Pedestal Fan. This manual provides important information regarding the safe operation, assembly, maintenance, and troubleshooting of your fan. Please read it thoroughly before use and retain it for future reference.
Маанилүү коопсуздук нускамалары
Электр шаймандарын колдонууда өрт, электр тогуна урунуу жана адамдардын жаракат алуу коркунучун азайтуу үчүн негизги сактык чараларын дайыма сактоо керек, анын ичинде төмөнкүлөр:
- Бул желдеткичти колдонуудан мурун бардык көрсөтмөлөрдү окуп чыгыңыз.
- Бул желдеткичти ушул колдонмодо сүрөттөлгөндөй гана колдонуңуз. Сунуш кылынбаган башка колдонуулар өрт, электр шок же адамдардын жаракат алышы мүмкүн.
- To protect against electrical shock, do not place fan in window, immerse unit, plug or cord in water or spray with liquids.
- Кандайдыр бир шайманды балдар же алардын жанында колдонуп жатканда, катуу көзөмөл керек.
- Колдонулбаганда, желдеткичти бир жерден экинчи жерге көчүрүүдө жана тазалоодон мурун розеткадан ажыратыңыз.
- Зымы же сайы бузулган, же желдеткич иштебей калгандан же кулап түшкөндөн же кандайдыр бир түрдө бузулгандан кийин эч кандай желдеткичти иштетпеңиз.
- Шнурды килемдин астына өткөрбөңүз. Шымды килемдер, жөө күлүктөр же ушул сыяктуу жабуулар менен жаппаңыз. Шнурды эмеректердин же приборлордун астына өткөрбөңүз. Шнурды жол кыймылынан алыс жана ал чалынып кетпей турган жерге жайгаштырыңыз.
- Желдетүү же түтүн чыгаруучу тешиктерге бөтөн нерселерди киргизбеңиз же киргизбеңиз, анткени бул электр тогуна урунууга же өрткө алып келиши же желдеткичтин бузулушуна алып келиши мүмкүн.
- Эч кандай түрдө аба кирүүчүлөрдү же чыгарууну тоспоңуз. Тешиктери бүтөлүп калышы мүмкүн болгон керебет сыяктуу жумшак беттерде колдонбоңуз.
- Бул желдеткич үй тиричилигинде гана колдонууга арналган.
Продукт бүттүview
The PELONIS PSPF18AR40B fan is designed for efficient air circulation with multiple features for user convenience.
Негизги өзгөчөлүктөрү:
- 12-speed fan configuration for precise airflow control.
- Remote control included for convenient operation from a distance.
- Adjustable height settings: 28", 40", and 52" to suit various needs.
- Clear LED display on the fan for easy monitoring of settings.
- 12-Hour Programmable Timer for automatic shut-off.
- Oscillation function for wide area coverage or static adjustment for direct airflow.
- Power off memory function retains last settings upon restart.
- Easy to carry handle for portability.
Компоненттери:

Фронт view of the assembled PELONIS 16-inch Pedestal Fan, showcasing its sleek black design and stable round base.

Бурчтуу view of the PELONIS Pedestal Fan, highlighting its height-adjustable pole and the fan head's position.

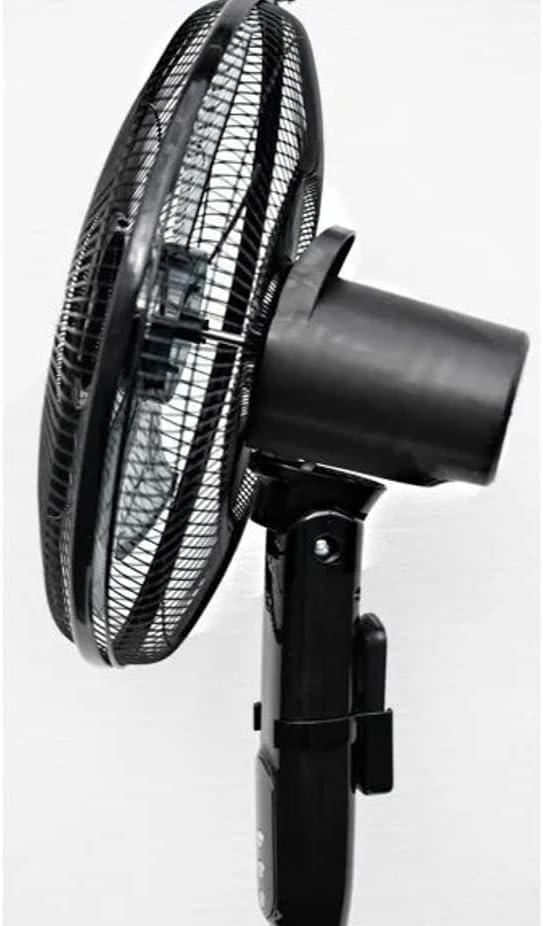

Side view of the fan head, demonstrating the adjustable tilt mechanism for directing airflow up or down.

Жакын план view of the fan's protective grill and internal blades, designed for silent and efficient air movement.

Деталдаштырылган view of the control panel on the fan's stand, showing the power, oscillation, and mode buttons.
Орнотуу жана чогултуу
Please follow these steps to assemble your PELONIS Pedestal Fan:
- Carefully unpack all components from the box and ensure all parts are present: fan head, front and rear grills, fan blade, motor shaft nut, grill retaining nut, stand pole, base, and remote control.
- Attach the stand pole to the base. Secure it firmly using the provided screws or locking mechanism.
- Mount the motor housing onto the top of the stand pole. Ensure it clicks securely into place.
- Remove the grill retaining nut and motor shaft nut from the motor shaft.
- Place the rear grill onto the motor housing, aligning the locating pins. Secure it with the grill retaining nut.
- Slide the fan blade onto the motor shaft, ensuring the notch on the blade aligns with the pin on the shaft. Secure it with the motor shaft nut, tightening it counter-clockwise.
- Attach the front grill to the rear grill, ensuring the clips snap together firmly around the edge. Secure with any provided screws or clips.
- Adjust the height of the fan by loosening the height adjustment collar on the stand pole, extending or retracting the pole, and then tightening the collar firmly.
- Желдеткичти катуу, тегиз жерге кой.
- Электр шнурын стандарттуу электр розеткасына сайыңыз.
Иштөө нускамалары
Башкаруу панели жана алыстан башкаруу:
The fan can be operated using the control buttons on the fan's stand or the included remote control. The LED display will show current settings.
- Кубат баскычы (ⓘ): Желдеткичти КҮЙГҮЗҮҮ же ӨЧҮРҮҮ үчүн басыңыз.
- Ылдамдык баскычы (✴): Press repeatedly to cycle through the 12 available fan speeds. The current speed will be indicated on the LED display.
- Термелүү баскычы (⌣): Press to activate or deactivate the oscillation function, which allows the fan head to sweep from side to side.
- Timer Button (on Remote): Press to set the auto-off timer in 1-hour increments, up to 12 hours. The fan will automatically turn off after the set time.
- Mode Button (on Remote): Cycles through different fan modes (e.g., Normal, Natural, Sleep, if available). Refer to the LED display for the active mode.
Adjusting Fan Height and Tilt:
- Бийиктигин тууралоо: Loosen the height adjustment collar on the main pole, extend or retract the inner pole to the desired height (28", 40", or 52"), and then firmly tighten the collar.
- Эңкейүүнү тууралоо: Gently push the fan head up or down to adjust the vertical angle of airflow. The fan head will hold its position once set.
Тейлөө жана тазалоо
Үзгүлтүксүз тазалоо желдеткичиңиздин иштешин сактап, анын иштөө мөөнөтүн узартууга жардам берет.
- Тазалоодон мурун ар дайым желдеткичти розеткадан сууруп алыңыз.
- жумшак колдонуу, damp вентилятордун сырткы беттерин сүртүүчү чүпүрөк. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- To clean the fan blades and inside the grills, you may need to disassemble the front grill. Refer to the assembly instructions in reverse. Use a soft cloth or a vacuum cleaner with a brush attachment to remove dust and debris.
- Ensure all parts are completely dry before reassembling and plugging the fan back in.
- Желдеткичти колдонбогондо салкын, кургак жерде, эң жакшысы баштапкы таңгагында сактаңыз.
Проблемаларды чечүү
If you experience issues with your fan, please consult the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Желдеткич күйбөйт. | Not plugged in; power outlet not working; fan not assembled correctly. | Ensure the power cord is securely plugged into a working outlet. Check circuit breaker. Verify all assembly steps are correct. |
| Желдетүүчү ызы-чуу. | Бош калган бөлүктөр; желдеткич тегиз жерде эмес; чаң топтолуп калган. | Check for any loose screws or components. Place fan on a stable, level surface. Clean fan blades and grills. |
| Термелүү иштебейт. | Термелүү функциясы иштетилген эмес; тоскоолдук. | Press the oscillation button. Ensure there are no obstructions preventing the fan head from turning. |
| Пульт иштебей жатат. | Batteries are dead or incorrectly inserted; remote out of range. | Replace batteries (ensure correct polarity). Point remote directly at the fan's receiver. Ensure you are within effective range. |
Техникалык шарттар
| Бренд | ПЕЛОНИС |
| Модель номери | PSPF18AR40B / VES760 |
| Түс | Кара |
| Продукциянын өлчөмдөрү | 38.1 x 12.7 x 88.9 см (15 x 5 x 35 дюйм) |
| Элемент Салмагы | 3.5 кг (7.7 фунт) |
| Ылдамдыктын саны | 12 |
| Өзгөчөлүктөр | Oscillating, Digital Display, Remote Control, 12-Hour Timer, Power Off Memory |
| Power Source | Электр зымдары |
Кепилдик жана колдоо
This PELONIS Pedestal Fan is an Amazon Renewed product and comes with a 90-day Amazon Renewed warranty. This warranty covers any defects in material or workmanship under normal use during the warranty period.
For warranty claims or technical support, please contact Amazon Renewed customer service directly through your Amazon purchase history. They will assist you with troubleshooting or arranging a replacement/refund as per the warranty terms.
