1. Киришүү
Сатып алганыңыз үчүн рахматasing the Donner DED-70 Electronic Drum Set. This manual provides essential information for the proper setup, operation, and maintenance of your new instrument. The DED-70 is designed to offer a realistic drumming experience with quiet mesh pads, making it ideal for home practice and learning. Its compact and adjustable design accommodates various users, including children and students.
Figure 1: Complete Donner DED-70 Electronic Drum Set
2. Орнотуу
2.1 Пакеттен чыгаруу жана компоненттерди текшерүү
Carefully unpack all components from the box. Verify that all parts listed below are present and undamaged:
- барабан модулу
- Mesh Drum Pads (4x 6-inch)
- Cymbals (3x 8-inch, 360° sensing)
- Барабан педалы
- Hi-Hat Педалы
- Drum Rack/Stand
- Drum Throne (Stool)
- Барабандар
- Наушник
- Кубаттуу адаптер
- Туташуу кабелдери
2.2 Кураштыруу боюнча нускамалар
- Барабан текчесин чогултуңуз: Connect the frame components as shown in the diagram. Ensure all joints are securely fastened.
- Төшөктөрдү жана Цимбалдарды тиркөө: Mount the mesh drum pads and cymbals onto the rack. The 360° sensing cymbals can be positioned for optimal playability.
- Педалдарды орнотуу: Place the kick drum pedal and hi-hat pedal on the floor in their respective positions. The kick pedal is designed for a realistic foot feel.
- Кабелдерди туташтыруу: Connect each pad, cymbal, and pedal to the drum module using the provided cables. Refer to the module's input labels for correct connections.
- Set up Drum Throne: Assemble the drum stool and adjust its height for comfortable playing posture.
Figure 2: Adjustable stand for ergonomic playing
2.3 Бийиктигин тууралоо
The drum frame and drum throne are adjustable to suit different user heights and playing preferences. Loosen the adjustment clamps, set to the desired height, and securely tighten the clamps. This flexibility ensures comfortable use for children and adults alike.
3. Иштөө нускамалары
3.1 Күйгүзүү/өчүрүү
- Күйгүзүү: Connect the power adapter to the drum module and a power outlet. Press the Power button on the module.
- Өчүрүү: Press and hold the Power button until the module shuts down. Disconnect the power adapter when not in use for extended periods.
- Mobile Power: The DED-70 can also be powered by a mobile battery (not included) for portable use. Connect the mobile battery to the designated power input on the module. Usage time varies with battery capacity.
Figure 3: Connecting a mobile power source
3.2 Үн модулунун функциялары
The drum module is the central control unit for your DED-70. It features:
- Барабан топтомдору: 12 preset drum kits offering a variety of sounds. Use the 'Kit' button to cycle through them.
- Обондор: 68 individual instrument tones. These can be assigned to different pads for customization.
- Ырлар: Built-in songs for practice. Use the 'Song' button to select and play along.
- Үндү көзөмөлдөө: Атайын баскычты колдонуп, негизги үн деңгээлин тууралаңыз.
- Метроном: A built-in metronome helps with rhythm training.
Figure 4: Drum module with various functions
3.3 Quiet Practice with Headphones
For silent practice, connect the included headphones to the headphone jack on the drum module. This allows you to practice without disturbing others, making it suitable for night practice or use in shared living spaces.
Figure 5: Practicing with headphones for quiet sessions
3.4 Pad and Cymbal Response
The DED-70 features high-density, two-layer mesh drum heads that provide a realistic rebound and quiet response. The 8-inch cymbals offer 360° sensing, ensuring consistent sound regardless of where or how they are struck. Integrated buzzers enhance the playing feel and prevent sound loss.
6-сүрөт: Детальдуу view of a mesh drum pad

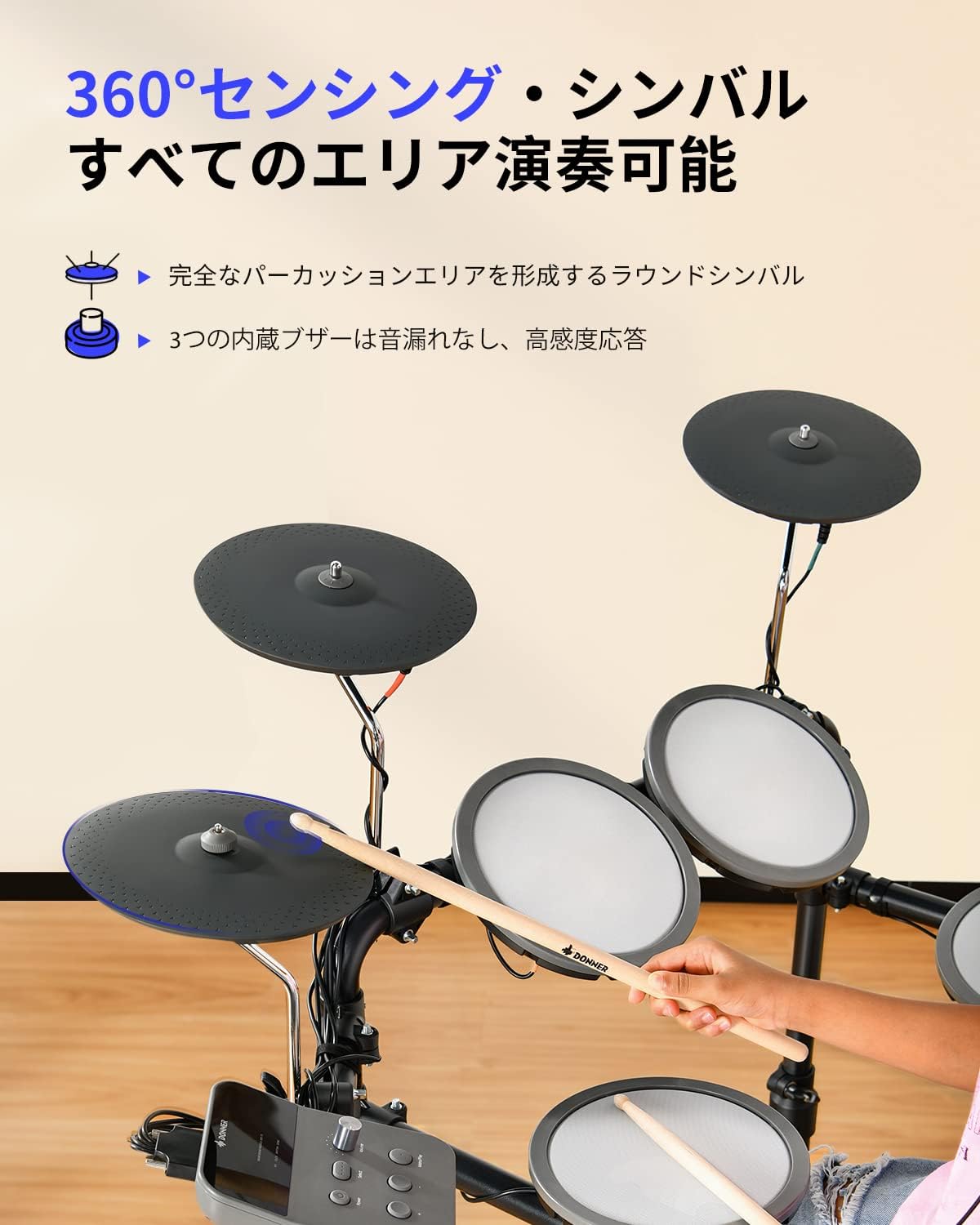

Figure 7: 360-degree sensing cymbal
4. Техникалык тейлөө
4.1 Тазалоо
- Use a soft, dry cloth to wipe down the drum module, pads, cymbals, and frame.
- өжөр кир үчүн, бир аз гampen the cloth with water. Avoid using abrasive cleaners, solvents, or waxes, as these can damage the surfaces.
- Do not spray cleaning liquids directly onto the drum module or any electronic components.
4.2 Сактоо
- Store the drum set in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity.
- If storing for an extended period, disconnect the power adapter and consider covering the drum set to protect it from dust.
- Бүктөлүүчү дизайн колдонулбаган учурда компакттуу сактоого мүмкүндүк берет.
4.3 Care for Mesh Pads and Cymbals
- Avoid striking the mesh pads or cymbals with excessive force, which can cause damage.
- Use only the provided or recommended drumsticks.
- Regularly check the tension of the mesh pads. If adjustable, ensure they are set to a comfortable playing tension.
5. Кыйынчылыктарды
If you encounter issues with your DED-70, please refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| No sound from headphones/output. | Volume too low; cables disconnected; headphones faulty. | Increase volume; check all cable connections; test with different headphones. |
| Pad/Cymbal unresponsive or inconsistent. | Cable loose; pad/cymbal damaged; module settings incorrect. | Check cable connections; ensure pads/cymbals are securely mounted; reset module to factory settings if necessary. |
| Drum module not powering on. | Power adapter not connected; power outlet faulty; mobile battery depleted. | Ensure power adapter is fully connected; try a different power outlet; charge or replace mobile battery. |
| Педаалдар жооп бербейт. | Pedal cable loose; pedal damaged. | Check pedal cable connection to the module; ensure pedal is placed on a stable surface. |
Бул чечимдерди колдонуп көргөндөн кийин көйгөй чечилбесе, Donner кардарларды колдоо бөлүмүнө кайрылыңыз.
6. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | ЖСК-70 |
| Бренд | Доннер |
| Барабандар | 4 x 6-inch Mesh Pads |
| Цимбалдар | 3 x 8-inch Cymbals (360° sensing) |
| Барабан топтомдору | 12 Алдын ала коюлган топтомдор |
| Обондор | 68 Tones |
| Ырлар | Built-in Practice Songs |
| Электр камсыздоо | 2-way (AC Adapter, Mobile Battery compatible) |
| Материал | Iron, Rubber |
| Продукциянын өлчөмдөрү (LxWxH) | 97 x 50 x 105 см |
| Камтылган компоненттер | Drumsticks, Headphones, Drum Throne, Power Adapter, Cables |
7. Кепилдик жана колдоо
7.1 Кепилдик маалыматы
Donner products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Donner webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
7.2 Кардарларды колдоо
If you have any questions, require technical assistance, or need to report an issue with your Donner DED-70 Electronic Drum Set, please contact Donner customer support through their official webсайт же продукт таңгагында көрсөтүлгөн байланыш маалыматы.
