Targus AKM619AMUS Multi-Device Bluetooth Keyboard and Mouse Bundle User Manual

1. Киришүү

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Targus AKM619AMUS Midsize Multi-Device Bluetooth Keyboard and Midsize Comfort Mouse Bundle. This wireless combo is designed for seamless connectivity across various operating systems, enhancing your productivity.

2. Эмнелер камтылган

• AKM619AMUS Keyboard
• AKM619AMUS Mouse
• 3 x AAA Batteries (for keyboard and mouse)

3. Орнотуу

3.1. Батареяны орнотуу

The keyboard and mouse require AAA batteries for operation. The bundle includes 3 AAA batteries. Locate the battery compartments on the underside of both the keyboard and the mouse. Insert the batteries, ensuring correct polarity (+/-) as indicated inside the compartment.

Figure 1: Underside of the keyboard with battery compartment.

3.2. Күйгүзүү

After installing batteries, locate the On/Off power button on the keyboard and mouse. Slide the switch to the 'On' position. A battery life indicator will illuminate briefly.

Figure 2: Keyboard and mouse highlighting the On/Off switch and battery indicator.

3.3. Bluetooth Жупташтыруу

The keyboard and mouse utilize Bluetooth 5.1 wireless technology. They can connect to up to three devices simultaneously. To pair:

1. Баскычтоп жана чычкан күйгүзүлгөнүн текшериңиз.
2. On the keyboard, press and hold one of the multi-device keys (1, 2, or 3) until the corresponding LED indicator starts blinking, indicating pairing mode.
3. On your device (computer, tablet, or phone), navigate to Bluetooth settings.
4. Select "Targus AKM619AMUS Keyboard" or "Targus AKM619AMUS Mouse" from the list of available devices.
5. Жупташтыруу процессин аяктоо үчүн экрандагы көрсөтмөлөрдү аткарыңыз.
6. Repeat for additional devices using different multi-device keys.

4. Иштөө нускамалары

4.1. Көп түзмөктү которуу

To switch between paired devices, simply press the corresponding multi-device key (1, 2, or 3) on the keyboard. The keyboard will quickly connect to the selected device.

4.2. Баскычтоптун функциялары

The keyboard features a standard QWERTY layout with a full numeric keypad. It includes function keys (F1-F12) that can be used for media control, volume adjustment, and other shortcuts, depending on your operating system. The keyboard is compatible with Chrome OS, Windows, macOS, iOS, and Android.

Figure 3: Operating system compatibility for the keyboard and mouse.

4.3. Чычкан операциясы

The Midsize Comfort Mouse features an adjustable DPI optical sensor, allowing you to customize sensitivity levels. To adjust the DPI, press the DPI button located on the top of the mouse. Available DPI settings are 800, 1200, 1600, and 2400.

4-сүрөт: Жогорку view of the mouse, highlighting the DPI adjustment button.

5. Техникалык тейлөө

5.1. DefenseGuard Antimicrobial Protection

The keyboard and mouse are infused with Targus DefenseGuard Protection, an antimicrobial coating that helps create a cleaner surface. This protection is designed to last the life of the product and does not wear off.

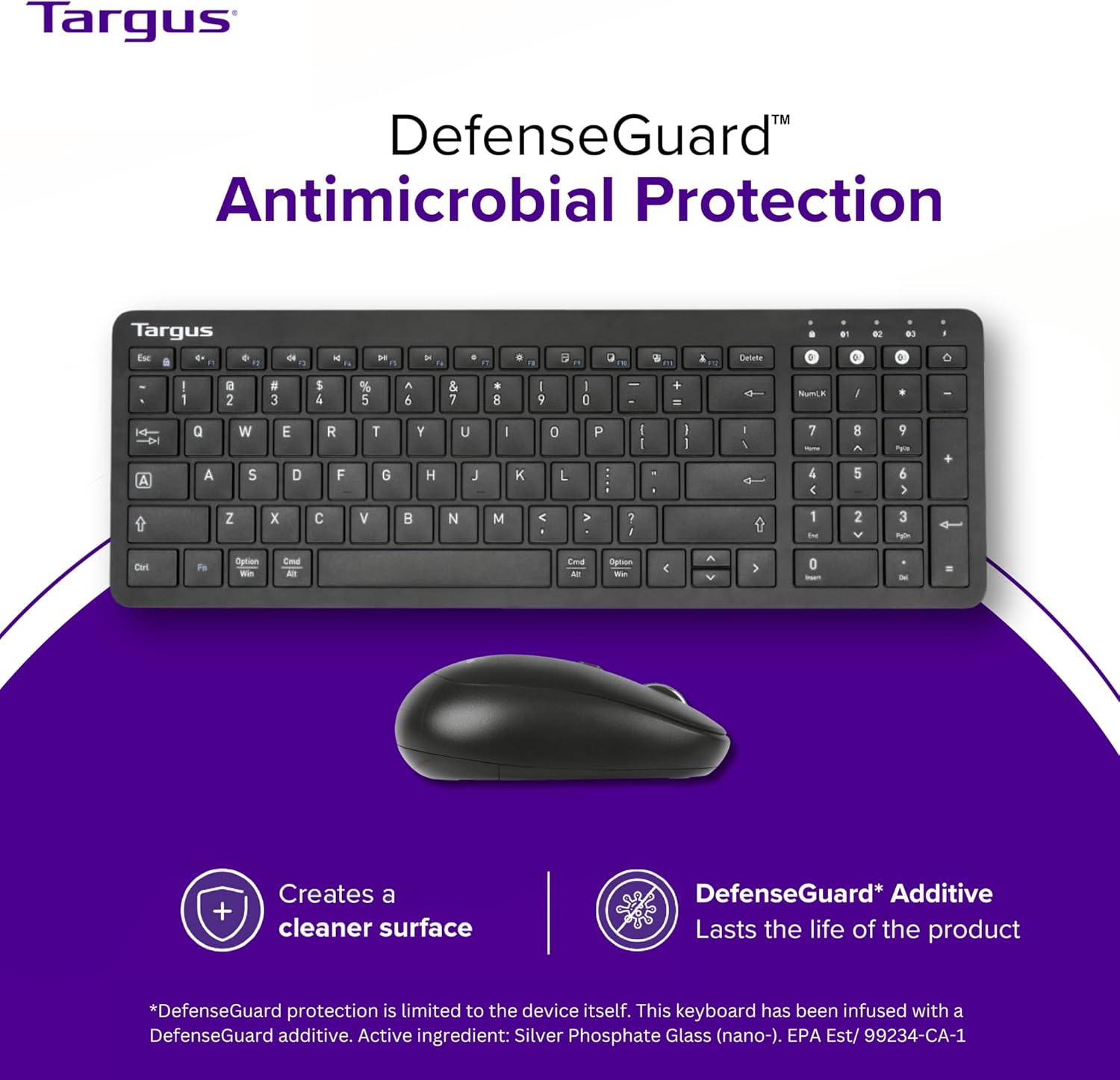

Figure 5: Information on DefenseGuard Antimicrobial Protection.

5.2. Тазалоо

To clean your keyboard and mouse, gently wipe surfaces with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these may damage the finish or the DefenseGuard coating.

5.3. Батареяны алмаштыруу

When the battery life indicator signals low power, replace the AAA batteries in both the keyboard and mouse to ensure continued performance.

6. Кыйынчылыктарды

• Түзмөк туташпай жатат: Ensure both the keyboard and mouse are powered on and within range of your device. Check your device's Bluetooth settings to confirm they are paired. If previously paired, try unpairing and re-pairing the devices.
• Unresponsive keys/mouse: Check battery levels. Replace batteries if low. Ensure no debris is obstructing the keys or mouse sensor.
• Difficulty switching between devices: Confirm that each device is paired to a unique multi-device key (1, 2, or 3) on the keyboard. Press the desired key firmly to switch.
• Чычкан курсору туруксуз: Adjust the DPI setting on the mouse. Ensure the mouse is used on a clean, non-reflective surface.

7. Техникалык шарттар

8. Кепилдик маалыматы

This Targus product comes with a 2 жылдык Чектелген Кепилдик. For detailed warranty terms and conditions, please refer to the official Targus webсайтка же кардарларды колдоо менен байланышыңыз.

9. Колдоо

Кошумча жардам, техникалык колдоо же үчүн view frequently asked questions, please visit the official Targus support website or contact their customer service department. Contact information can typically be found on the product packaging or the official Targus webсайт.
