1. Киришүү
The TACTACAM Reveal X Gen 2.0 LTE Cellular Trail Camera is designed for remote monitoring in various outdoor environments, including hunting, security, and surveillance applications. This camera captures high-definition photos and videos, transmitting them wirelessly via cellular networks. Its robust, weather-resistant design ensures reliable performance in diverse conditions.
Image 1.1: Two TACTACAM Reveal X Gen 2.0 Cellular Trail Cameras.
Негизги өзгөчөлүктөрү:
- Уюлдук байланыш: Operates on AT&T or Verizon LTE/4G networks for remote image and video transmission.
- Жогорку тактыктагы сүрөт: Captures HD photos and videos with excellent clarity.
- Low Glow IR Technology: Ensures discreet night illumination for capturing images without disturbing wildlife.
- Тез триггер ылдамдыгы: Sub 1/2-second trigger speed to capture fast-moving subjects.
- Узак жана аба ырайына туруктуу: IP66 waterproof certified, designed to withstand harsh outdoor conditions.
- Мобилдик колдонмо интеграциясы: Камера жөндөөлөрүн башкаруу, view galleries, and receive alerts via the TACTACAM REVEAL app.
2. Пакеттин мазмуну
Upon opening your TACTACAM Reveal X Gen 2.0 package, please verify that all the following components are present:
- TACTACAM Reveal X Gen 2.0 Cellular Trail Camera
- Жөнгө салынуучу монтаждоочу боо
- Уюлдук антенна
- Көрсөтмө (бул документ)

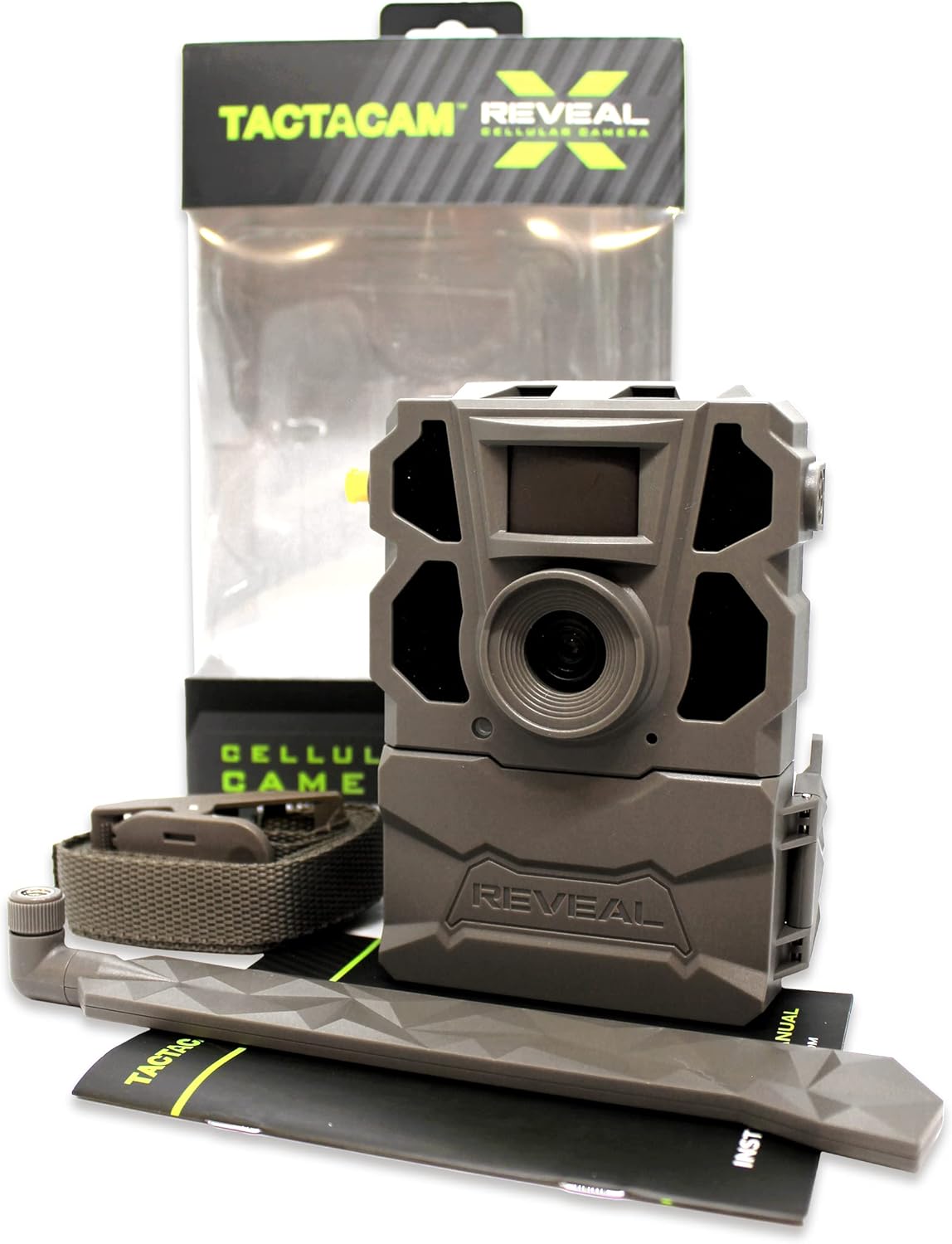

Image 2.1: TACTACAM Reveal X Gen 2.0 Package Contents.
Note: Batteries and SD card are not included and must be purchased separately.
3. Орнотуу колдонмосу
Follow these steps to set up your TACTACAM Reveal X Gen 2.0 camera for the first time.
3.1. Батарея жана SD карта орнотуу
- Open the Camera Housing: Locate the latch on the side or bottom of the camera and open the housing to access the battery compartment and SD card slot.
- Батареяларды салыңыз: The camera requires 12 AA batteries. Insert them according to the polarity indicators (+/-) inside the compartment. Ensure all batteries are new and correctly oriented for optimal performance.
- SD картаны салыңыз: Insert a compatible SD card (up to 64GB recommended) into the designated slot. Ensure the card is formatted before first use.
Image 3.1: Battery and SD Card Compartment.
3.2. Cellular Activation and App Setup
- Download the TACTACAM REVEAL App: Издөө "TACTACAM REVEAL" in your mobile device's app store (available for Android).
- Каттоо эсебин түзүү: Колдонмону ачып, жаңы колдонуучу аккаунтун түзүү же эгер сизде мурунтан эле бар болсо, кирүү үчүн көрсөтмөлөрдү аткарыңыз.
- Activate Cellular Service: Within the app, you will be guided through the process of activating your camera's cellular service. This typically involves selecting a data plan (month-to-month options available) and ensuring the correct SIM card is installed for your chosen carrier (AT&T or Verizon).
- Pair Camera with App: Follow the in-app instructions to pair your physical camera with your account. This may involve scanning a QR code on the camera or entering a serial number.
Image 3.2: TACTACAM REVEAL App Interface.
3.3. Камераны орнотуу
The TACTACAM Reveal X Gen 2.0 can be mounted using the included strap or a compatible wall mount.
- Жайгашкан жерди тандаңыз: Select a stable location, such as a tree or post, that provides a clear view of the area you wish to monitor. Ensure the camera is positioned at an appropriate height to capture desired subjects.
- Боо менен бекитиңиз: Thread the provided mounting strap through the slots on the back of the camera. Wrap the strap around the mounting surface and secure it tightly.
- Бурчту тууралоо: Adjust the camera's angle to optimize its field of view. Ensure the antenna is positioned for the best possible cellular signal.
Image 3.3: Mounting the Camera to a Tree.
4. Камераны иштетүү
Once set up, the TACTACAM Reveal X Gen 2.0 operates primarily through the TACTACAM REVEAL mobile application.
4.1. Using the TACTACAM REVEAL App
The app provides comprehensive control over your camera:
- Галерея: View all captured photos and videos. Images are transmitted to your app, allowing remote access to your camera's activity.
- Орнотуулар: Adjust camera parameters such as photo resolution, video length, trigger delay, and night illumination settings.
- Live View/Test Photos: Some models may offer a live view or the ability to request a test photo on demand to verify camera positioning and functionality.
- Статус мониторинги: Check battery life, cellular signal strength, and SD card memory directly from the app.
Image 4.1: Remote Monitoring via the REVEAL App.
4.2. Сүрөт жана видео тартуу
The camera is designed to automatically capture images and videos when motion is detected within its sensor range. The low glow IR LEDs activate automatically in low-light conditions to ensure clear night captures without startling wildlife.
5. Техникалык тейлөө
Proper maintenance ensures the longevity and optimal performance of your TACTACAM Reveal X Gen 2.0 camera.
- Батареяны алмаштыруу: Monitor battery levels via the app. Replace all 12 AA batteries when they are low to prevent interruption of service. Battery life varies based on usage, cellular signal strength, and environmental conditions.
- SD Card башкаруу: Regularly check the SD card's storage capacity through the app. Format or replace the SD card as needed to ensure continuous recording.
- Тазалоо: Periodically clean the camera lens and PIR sensor window with a soft, dry cloth to ensure clear images and accurate motion detection. Avoid abrasive materials or harsh chemicals.
- Аба ырайын коргоо: While the camera is IP66 waterproof certified, ensure the battery compartment door is securely latched at all times to prevent water ingress.
6. Кыйынчылыктарды
This section addresses common issues you might encounter with your TACTACAM Reveal X Gen 2.0 camera.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Camera not sending photos/videos |
|
|
| Сүрөт/видео сапаты начар |
|
|
| Камера кыймылды аныктабай жатат |
|
|
| Батареянын ашыкча түгөнүп калышы |
|
|
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модел | Reveal X Gen 2.0 (TA-TC-XG2) |
| Power Source | Батарея менен иштейт (12 AA батарейка, камтылган эмес) |
| Байланыш технологиясы | Wireless (LTE/4G Cellular, Wi-Fi for local connection) |
| Шайкеш тармактар | AT&T, Verizon |
| Видео тартуунун резолюциясы | 720p |
| Видео тартуу форматы | MPEG-4 |
| Триггер ылдамдыгы | Sub 1/2 second |
| Түнкү жарыктандыруу | Low Glow IR LED Flash (96+ ft range) |
| Тактоо диапазону | 96+ фут |
| Эл аралык коргоо рейтинги | IP66 (Waterproof Certified) |
| Сактагыч | SD карта (64 ГБ чейин сунушталат) |
| Иштөө температурасы | Designed for extreme outdoor weather |
| Элемент Салмагы | 3.83 фунт (болжол менен) |
| UPC | 850041893020 |
8. Кепилдик жана колдоо
8.1. Кепилдик маалыматы
The TACTACAM Reveal X Gen 2.0 comes with a бир жылдык комплекстүү кепилдик from the date of purchase. This warranty covers manufacturing defects and ensures the product performs as intended under normal use. Please retain your proof of purchase for warranty claims.
8.2. Кардарларды колдоо кызматы
For any questions, technical assistance, or warranty claims, please contact TACTACAM's in-house customer service. Detailed contact information can typically be found on the official TACTACAM website or within the REVEAL mobile application.
Онлайн ресурстар: Visit the official TACTACAM website for FAQs, updated manuals, and software/firmware downloads.
