Outsunny 2 орундуу Патио селкинчек отургучтары үчүн нускама

1. Киришүү

Thank you for choosing the Outsunny 2-Seat Patio Swing Chair. This manual provides important information for the safe assembly, operation, and maintenance of your new patio swing. Please read this manual thoroughly before assembly and retain it for future reference.

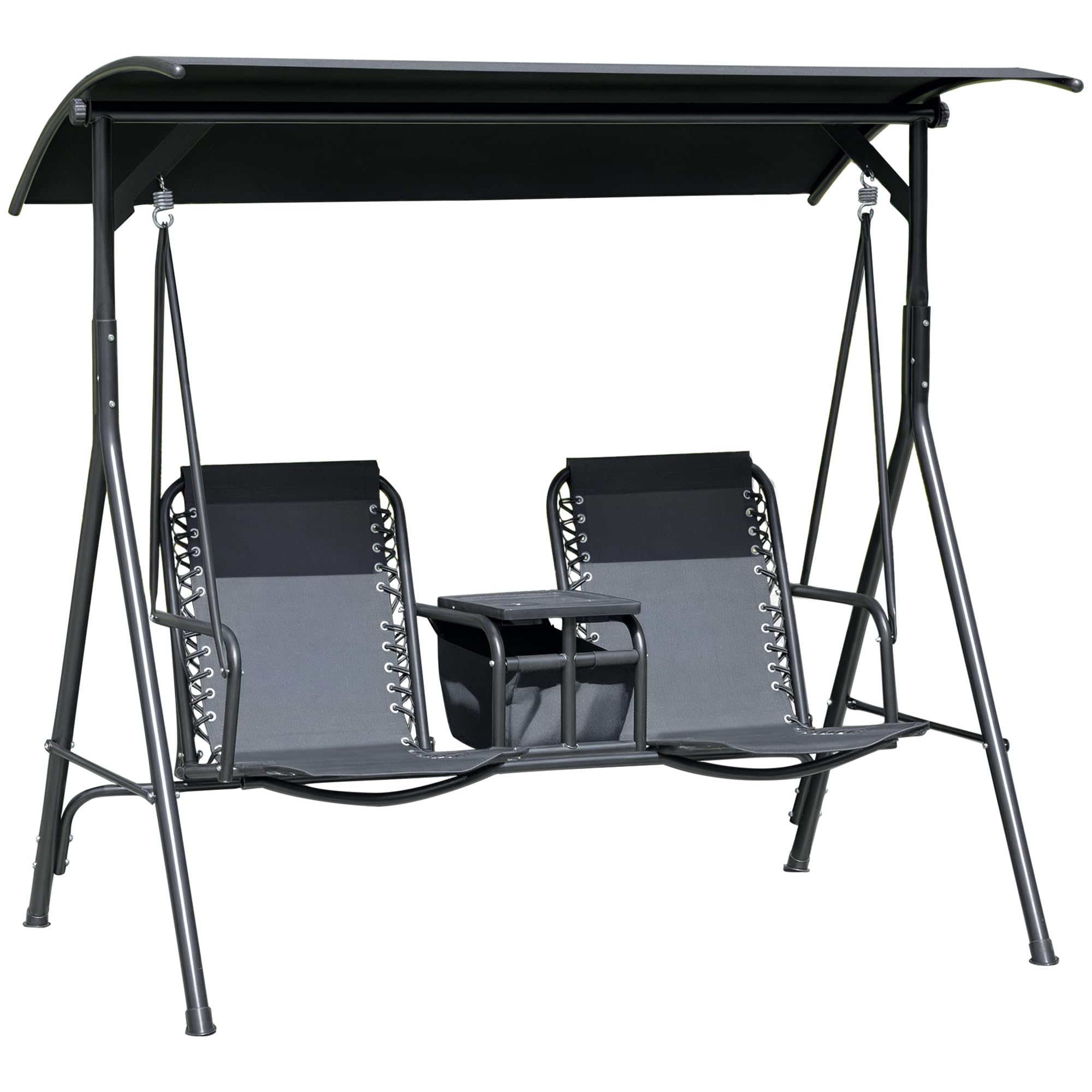

Image 1.1: The Outsunny 2-Seat Patio Swing Chair in a patio setting.

2. Коопсуздук маалыматы

To ensure safe use of this product, please observe the following precautions:

• Салмак сыйымдуулугу: Do not exceed the maximum weight capacity of 264 lbs (120 kg) per seat, or 528 lbs (240 kg) total. Overloading can cause structural failure and injury.
• Ассамблея: Assembly requires two adults. Ensure all parts are correctly installed and fasteners are tightened securely before use.
• Туруктуулук: Place the swing on a flat, level surface. Do not use on uneven ground.
• Аба ырайы шарттары: Do not use the swing during strong winds, heavy rain, or other severe weather conditions. The canopy should be lowered or removed in high winds to prevent damage.
• Балдар: Балдардын жанында же селкинчекти колдонуп жатканда ар дайым көзөмөлдө.
• Тейлөө: Regularly inspect the swing for loose bolts, damaged parts, or wear. Replace any damaged components immediately.
• Moving the Swing: Always lift the swing when moving it. Do not drag it, as this can damage the frame or footpads.

3. Пакеттин мазмуну

Монтаждоодон мурун, бардык компоненттер бар экенин жана бузулбаганын текшериңиз. Эгерде кандайдыр бир бөлүктөрү жок же бузулуп калса, кардарларды колдоо менен байланышыңыз.

• Негизги алкактын компоненттери (буттар, кайчылаш тилкелер)
• Swing Seats (2 units)
• Чатыр рамкасы жана кездеме
• Central Storage Table with Cup Holders
• Аппараттык пакет (болт, гайкалар, шайбалар, ачкычтар)
• Bungie Cords for Seat Suspension
• Anti-Slip Footpads
• Instruction Manual

4. Монтаждоо боюнча нускамалар

Assembly typically takes approximately 1 hour with two adults. It is recommended to have a second person assist, especially when attaching the main frame components.

1. Компоненттерди таңгактан чыгаруу: Таңгактан кылдаттык менен бардык бөлүктөрүн алып салыңыз жана чийилип калбаш үчүн таза, жумшак бетке жаткызыңыз.
2. Негизги кадрды чогултуу: Connect the leg sections and crossbars to form the A-frame structure. Secure all bolts loosely at first, then tighten once the frame is stable.
3. Attach Swing Seats: Hang the two swing seats onto the main frame using the provided hooks and bungie cords. Ensure the bungie cords are securely attached to the seat fabric and frame.
4. Install Central Storage Table: Position the central console area between the two seats. This includes the tabletop with cup holders and the hidden storage bag. Secure it according to the diagrams.
5. Assemble and Attach Canopy: Assemble the canopy frame and slide the fabric onto it. Attach the assembled canopy to the top of the main frame. Ensure it can tilt and lock into position.
6. Акыркы бекемдөө: Бардык тетиктер орнотулгандан кийин, берилген шаймандарды колдонуу менен бардык болтторду жана бекиткичтерди системалуу түрдө тартыңыз. Ашыкча катуулабаңыз.
7. Туруктуулукту текшерүү: Gently shake the assembled swing to ensure it is stable and all connections are secure.

Image 4.1: Detail of the robust frame connection, essential for stability.

5. Иштөө нускамалары

5.1 Свингди колдонуу

Gently sit on the swing seats. The bungie seat suspension provides a comfortable and gentle rocking motion. Avoid excessive force or standing on the seats.

5.2 Чатырды тууралоо

The swing features a tilting sun shade canopy. To adjust the angle, locate the controller mechanism on the side of the canopy frame. Rotate the controller to tilt the canopy to your desired position, blocking direct sunlight. Ensure it is securely locked in place after adjustment.

Image 5.1: The adjustable canopy can be tilted to block the sun.

5.3 Using the Pivot Storage Table

The central console includes a tabletop with two drink holders and a hidden storage space. The tabletop can be rotated outwards for easier access to the seats or to reveal the storage compartment. Use the drink holders for beverages and the hidden bag for small outdoor essentials.

Image 5.2: The central table offers convenient drink holders and hidden storage.

6. Техникалык тейлөө

6.1 Тазалоо

• кадр: Жарнама менен болот рамканы сүртүңүзamp cloth and mild soap. Rinse thoroughly and dry to prevent rust.
• Sling Fabric Seats: The mesh fabric seats are designed to be breathable and quick-drying. Clean with mild soap and water, then air dry. Avoid harsh chemicals.
• Чатыр: Clean the canopy fabric with a soft brush or cloth and mild soap. Rinse and allow to air dry completely before folding or storing.

Image 6.1: The sling fabric is designed for comfort and easy maintenance.

6.2 Текшерүү

Periodically check all bolts, nuts, and connections to ensure they remain tight. Inspect the bungie cords for any signs of fraying or damage. Check the frame for rust or structural integrity issues. Address any problems promptly.

6.3 Сактоо

During off-season or prolonged periods of non-use, it is recommended to store the swing in a dry, protected area. If storing outdoors, use a weather-resistant cover to protect it from elements.

7. Кыйынчылыктарды

• Свинг туруксуз сезилет: Ensure all bolts are fully tightened. Verify the swing is placed on a flat, level surface. Check for any damaged frame components.
• Canopy does not stay in position: Check the canopy adjustment mechanism. Ensure it is clean and free of debris, and that the locking knob is tightened.
• Squeaking noise during use: Apply a small amount of silicone-based lubricant to the pivot points and spring hooks. Avoid oil-based lubricants that can attract dirt.
• Монтаж учурунда жетишпеген бөлүктөрү: Refer to the package contents list. If parts are missing, contact Outsunny customer support with your model number and purchase information.

8. Техникалык шарттар

Image 8.1: Detailed dimensions of the swing chair.

9. Кепилдик жана колдоо

For warranty information, missing parts, or technical support, please contact Outsunny customer service directly. Keep your purchase receipt and model number (84A-141BK) handy for faster service.

Өндүрүүчүсү: Аосом ЖЧКсы
