Sun Joe SJG4100LP-TV1 Portable Propane Generator Instruction Manual

1. Коопсуздук боюнча маанилүү маалымат

Always read and understand this manual before operating the generator. Failure to follow instructions can result in serious injury or death.

• Көмүртек кычкылы коркунучу: Generators produce carbon monoxide, an odorless, colorless gas that can kill you. Operate the generator outdoors only and at least 20 feet away from windows, doors, and vents of any building.
• Өрт коркунучу: Propane is highly flammable. Do not smoke or use open flames near the generator or propane tank. Ensure all connections are secure and free of leaks.
• Электр шок коркунучу: Do not operate the generator in wet conditions. Ensure all electrical connections are dry and properly grounded.
• Ысык беттер: Генератордун кыймылдаткычы жана глушитель иштеп жатканда абдан ысып кетет жана өчүрүлгөндөн кийин бир аз убакытка чейин ысык бойдон калат. Ысык беттерге тийүүдөн алыс болуңуз.

2. Продукт бүтүп калдыview

The Sun Joe SJG4100LP-TV1 Portable Propane Generator is designed to provide reliable power with its 4100 starting watts and 3300 running watts. It features exclusive PRO POWER3X technology, including PowerSTART for instant electric starting, PowerCOOL for enhanced cooling, and PowerFUEL for cleaner propane operation.

Негизги өзгөчөлүктөрү:

• PRO POWER3X Technology: PowerSTART (24V iON+ battery), PowerCOOL (enhanced fan design), PowerFUEL (propane operation).
• Чыгуу кубаттуулугу: 4100 Starting Watts / 3300 Running Watts.
• Күйүүчү май түрү: Propane, offering up to 9 hours of continuous runtime on a 20 LB tank.
• Баштоо параметрлери: Push-button electric start with 24V 2.0-Ah iON+ lithium-ion battery, and recoil start.
• Соода түйүндөрү: Multiple options including two 120-volt outlets, USB-A and -C ports, a twist-lock receptacle, and an RV outlet.
• Көчүрүү мүмкүнчүлүгү: Collapsible transport handle and onboard tank storage for easy mobility.
• Мотор: 8 horsepower, 4-stroke OHV engine.
• Коопсуздук өзгөчөлүктөрү: Low-oil sensor with automatic shut-off, dual circuit breakers.

Figure 2.1: Sun Joe SJG4100LP-TV1 Portable Propane Generator. This image shows the overall design of the generator with its black frame and lime green engine components, featuring large wheels and a foldable handle.

Камтылган компоненттер:

• 24V 2.0-Ah iON+ Battery + Charger
• Генератор капкагы
• 25-Ft Extension Cord
• Magnetic Dipstick
• 5-Ft Propane Hose
• Мунай воронкасы
• Монтаждоо куралдарынын комплекти

Figure 2.2: Sun Joe SJG4100LP-TV1 Generator with Included Accessories. This image displays the generator alongside its various accessories, including the battery, charger, cover, extension cord, magnetic dipstick, propane hose, oil funnel, and assembly tools.

3. Орнотуу

3.1 Initial Placement and Safety Distance

Before operating, ensure the generator is placed on a firm, level surface outdoors. It must be at least 20 feet away from any windows, vents, or doors of your home or any other building to prevent carbon monoxide fumes from entering. Ensure adequate ventilation around the unit.

3.2 Checking Engine Oil Level

It is good practice to check the engine's oil level before each startup. The oil dipstick is located on the side of the engine.

1. Unscrew the green knob (oil dipstick) located on the side of the engine.
2. Чөйчөктү таза чүпүрөк менен кургатып сүртүңүз.
3. Without threading it in, insert the dipstick back into the oil port.
4. Pull the dipstick out and check the oil level. It should be between the high and low markings.
5. If the oil level is low, use the included oil funnel to add more oil (refer to specifications for oil type and capacity).
6. Once the oil level is correct, reinstall the dipstick and tighten the cap.

Figure 3.1: Checking Engine Oil. This image shows a person checking the oil level of the generator's engine using the yellow dipstick, highlighting the location of the oil fill port.

3.3 Propane Tank Inspection

Before connecting the propane tank, inspect it for leaks. This is a critical safety step.

1. Prepare a soapy mixture in a spray bottle (e.g., dish soap and water).
2. Spray the entire propane tank, especially around the valve and seams.
3. Watch for any bubbles to appear on the surface. Bubbles indicate a leak.
4. If you observe any leaks, do NOT use the tank. Replace it immediately.

Figure 3.2: Propane Tank Leak Check Diagram. This diagram illustrates the areas to check for leaks on a propane tank, including the valve, seams, and connections.

3.4 Attaching the Propane Tank

The generator is designed with an onboard storage area for a 20 LB propane tank.

1. Lower the gate on the back of the generator's propane tank holder.
2. Carefully place the propane tank into the designated space.
3. Secure the propane tank using the elastic strap provided. Hook one side of the strap, pull it tightly around the tank, and hook the other side.
4. With the propane tank valve closed, attach the regulator valve of the 5-ft propane hose to the tank. Ensure this connection is hand-tight and secure.
5. Attach the other end of the propane hose to the generator's inlet. Tighten this connection securely with a wrench.
6. Slowly open the valve on your propane tank all the way to allow gas flow to the generator.

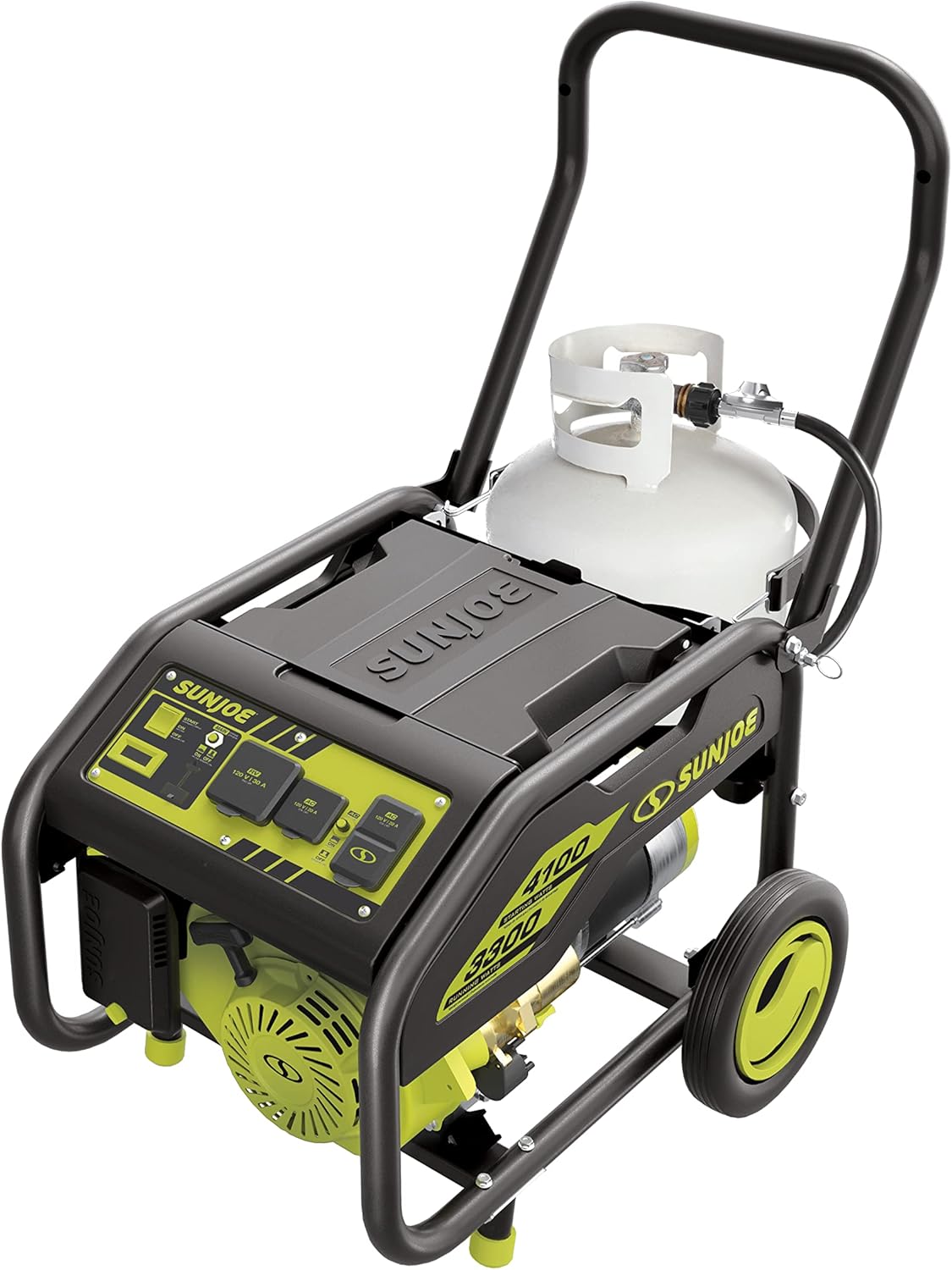

Figure 3.3: Sun Joe Generator with Propane Tank Attached. This image shows the generator with a propane tank securely placed in its onboard storage, ready for operation.

3.5 Installing the 24V iON+ Battery

The 24V iON+ battery powers the electric start feature (PowerSTART).

1. Open the top compartment on the generator's control panel.
2. Insert the fully charged 24V 2.0-Ah iON+ battery into the battery slot until it clicks into place.
3. Бөлүмдүн капкагын жабыңыз.

4. Иштөө нускамалары

It is recommended to fully test your generator when you first receive it. Set it up, turn it on, and run it for about 5 minutes to ensure everything is working perfectly before storing it away.

4.1 Electric Start (PowerSTART)

1. Ensure the propane tank is connected and its valve is fully open.
2. Locate the choke lever on the engine. Move the choke lever from the "Run" side to the "Start" side (typically to the left).
3. On the control panel, press and hold the "Start" button until the engine turns on.
4. Once the engine starts, immediately push the choke lever back to the "Run" side.

Figure 4.1: Push-Button Start. This image shows a hand pressing the green "Start" button on the generator's control panel, indicating the electric start option.

4.2 Manual Start (Recoil)

In case the electric start is not available or preferred, you can use the recoil start.

1. Ensure the propane tank is connected and its valve is fully open.
2. Move the choke lever to the "Start" position.
3. Set the main power switch on the control panel to the middle "ON" position.
4. Firmly grasp the recoil pull cord handle. Give the pull cord a swift, strong pull until the engine starts.
5. Once the engine starts, immediately push the choke lever back to the "Run" side.

4.3 Генераторду токтотуу

To turn off the generator, simply push the main power switch on the control panel to the "OFF" position.

4.2-сүрөт: Башкаруу панели. Бул сүрөттө жакындан тартылган сүрөт берилген view of the generator's control panel, showing the various outlets, the start/stop button, and the LCD display.

4.4 Розеткаларды колдонуу

The generator offers various outlets to power your devices:

• Two standard 120-volt outlets for general appliances.
• USB-A and USB-C ports for charging electronic devices.
• A twist-lock receptacle and an RV outlet for campers жана campсайттар.

Figure 4.3: Multiple Outlets. This image shows the generator in an outdoor setting with various devices plugged into its multiple outlets, demonstrating its versatility.

5. Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө генераторуңуздун узак иштөөсүн жана оптималдуу иштешин камсыз кылат.

• Мунай алмаштыруу: Refer to the full user manual for recommended oil change intervals. Regularly check oil levels as described in Section 3.2.
• Аба чыпкасы: Periodically inspect and clean the air filter to ensure proper engine function and prevent dirt/dust from entering.
• Свеча: Зарылчылыкка жараша от алдыргычты текшерип, тазалаңыз же алмаштырыңыз.
• Жалпы тазалоо: Keep the generator clean and free of debris. Use a damp беттерин сүртүүчү чүпүрөк.

6. Сактоо

Proper storage is essential to protect your generator when not in use.

1. After use, allow the generator to cool down for approximately 20 to 30 minutes.
2. Пропан резервуарындагы клапанды жабыңыз.
3. Detach the propane hose from both the tank and the generator.
4. Remove the 24V iON+ battery from its compartment. Store the battery and charger in a cool, dry place.
5. To make the generator more compact for storage, pull the pin on the handle and fold it down.
6. Cover the generator with the provided cover to protect it from dust and elements.
7. Store the generator in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.

7. Кыйынчылыктарды

This section provides general guidance for common issues. For detailed troubleshooting, please refer to the comprehensive user manual.

• Мотор иштебей жатат:
  • Check propane tank: Ensure it's full and valve is fully open.
  • Check oil level: Low oil will prevent starting due to the low-oil sensor.
  • Check battery: Ensure 24V iON+ battery is charged and properly installed for electric start.
  • Choke position: Verify choke is in "Start" position for initial ignition, then moved to "Run".
• Эч кандай кубаттуулугу жок:
  • Check circuit breakers: Ensure they are not tripped. Reset if necessary.
  • Overload: Reduce the load on the generator.
• Адаттан тыш үндөр/титирөөлөр:
  • Ensure generator is on a level surface.
  • Бош калган компоненттерди текшериңиз.

8. Техникалык шарттар

9. Расмий продукт видео көрсөтмөсү

For a visual guide on setting up, operating, and storing your Sun Joe SJG4100LP-TV1 Portable Propane Generator, please watch the official product video below.

10. Кепилдик жана колдоо

The Sun Joe SJG4100LP-TV1 Portable Propane Generator comes with a 3 жылдык кепилдик.

For warranty claims, technical support, or any questions not covered in this manual, please contact Sun Joe customer support. Refer to the product packaging or the official Sun Joe webакыркы байланыш маалыматы үчүн сайт.
