MEEPO Voyager X Electric Longboard Skateboard

Introduction

Welcome to the MEEPO Voyager X Electric Longboard Skateboard user manual. This guide provides comprehensive instructions for the safe and effective use, setup, operation, and maintenance of your new electric longboard. The MEEPO Voyager X is engineered for performance, featuring powerful dual 2800W motors, a long-range battery, and a durable bamboo and fiberglass deck, designed to provide an exhilarating and reliable riding experience.

Коопсуздук маалыматы

Your safety is paramount. Please read and understand all safety warnings and instructions before operating the MEEPO Voyager X. Failure to follow these instructions may result in serious injury or property damage.

• Always wear a helmet and appropriate protective gear, including knee pads, elbow pads, and wrist guards, when riding.
• Ride within your skill level and always be aware of your surroundings.
• Do not ride in traffic, on wet surfaces, or in adverse weather conditions.
• Ensure the board is fully charged and the remote is paired before each ride.
• The battery module is UL2272 certified, ensuring hardware and software protections. Follow all battery use and charging guidelines.
• Avoid sudden acceleration or braking, especially at high speeds, as this can lead to loss of control.

Коопсуздук боюнча толук көрсөтмөлөрдү алуу үчүн расмий өкүлдөн кайрылыңыз Коопсуздук жөнүндө маалымат PDF форматында.

Эмне камтылган

Upon unboxing your MEEPO Voyager X, please verify that all the following components are present:

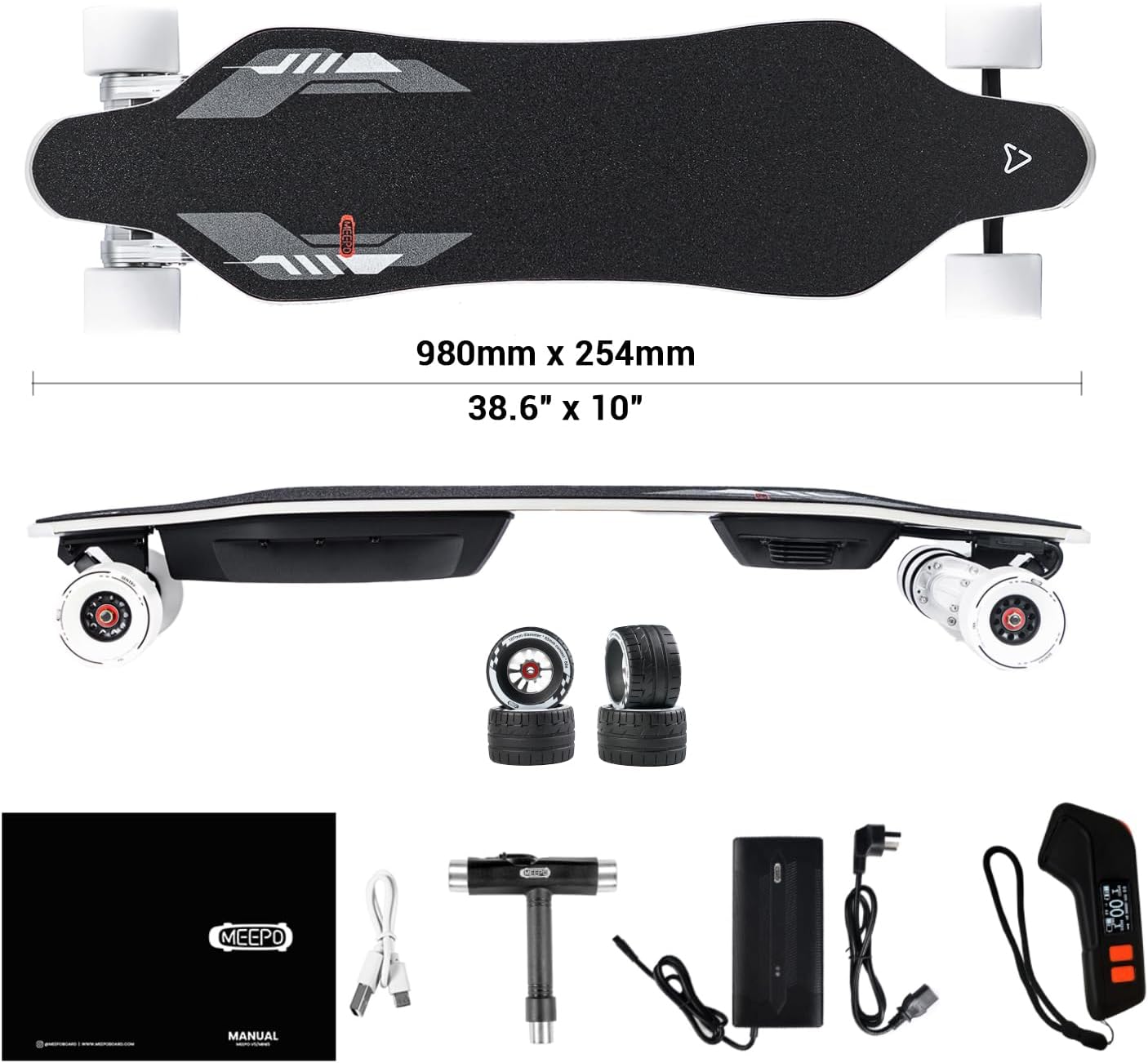

Image: MEEPO Voyager X Electric Longboard with its accessories, including the remote, charger, tools, and extra belts.

• MEEPO Voyager X Electric Longboard
• M4S or M5S Remote Control
• Заряддоочу (4.5A)
• 32T Pulley and 245-5M Belt (set)
• 36T Pulley and 255-5M Belt (set)
• Cyclone 105mm wheel set (optional, may vary by package)
• User Manual
• T-tool for adjustments
• USB charging cable for remote

Жайгашуу

Follow these steps to prepare your MEEPO Voyager X for its first ride:

1. Пакеттен чыгаруу жана текшерүү: Carefully remove all components from the packaging. Inspect the board for any visible damage.
2. Баштапкы төлөм: Before first use, fully charge the longboard's battery. Connect the charger to the charging port on the board and then to a power outlet. The charging indicator will show the charging status. A full charge takes approximately 3 hours.
3. Алыстан заряддоо: Ensure your remote control is also fully charged using the provided USB cable.
4. Алыстан башкаруу: Turn on the board and the remote. Follow the instructions in the remote's specific manual (M4S or M5S) to pair it with the board. This usually involves holding a button on both devices until they connect.
5. Wheel Installation/Adjustment: The board comes with 90mm shockproof polyurethane road wheels installed. The design allows for wheel diameters ranging from 80mm to 120mm. If you wish to change wheels or adjust truck tightness, use the provided T-tool.

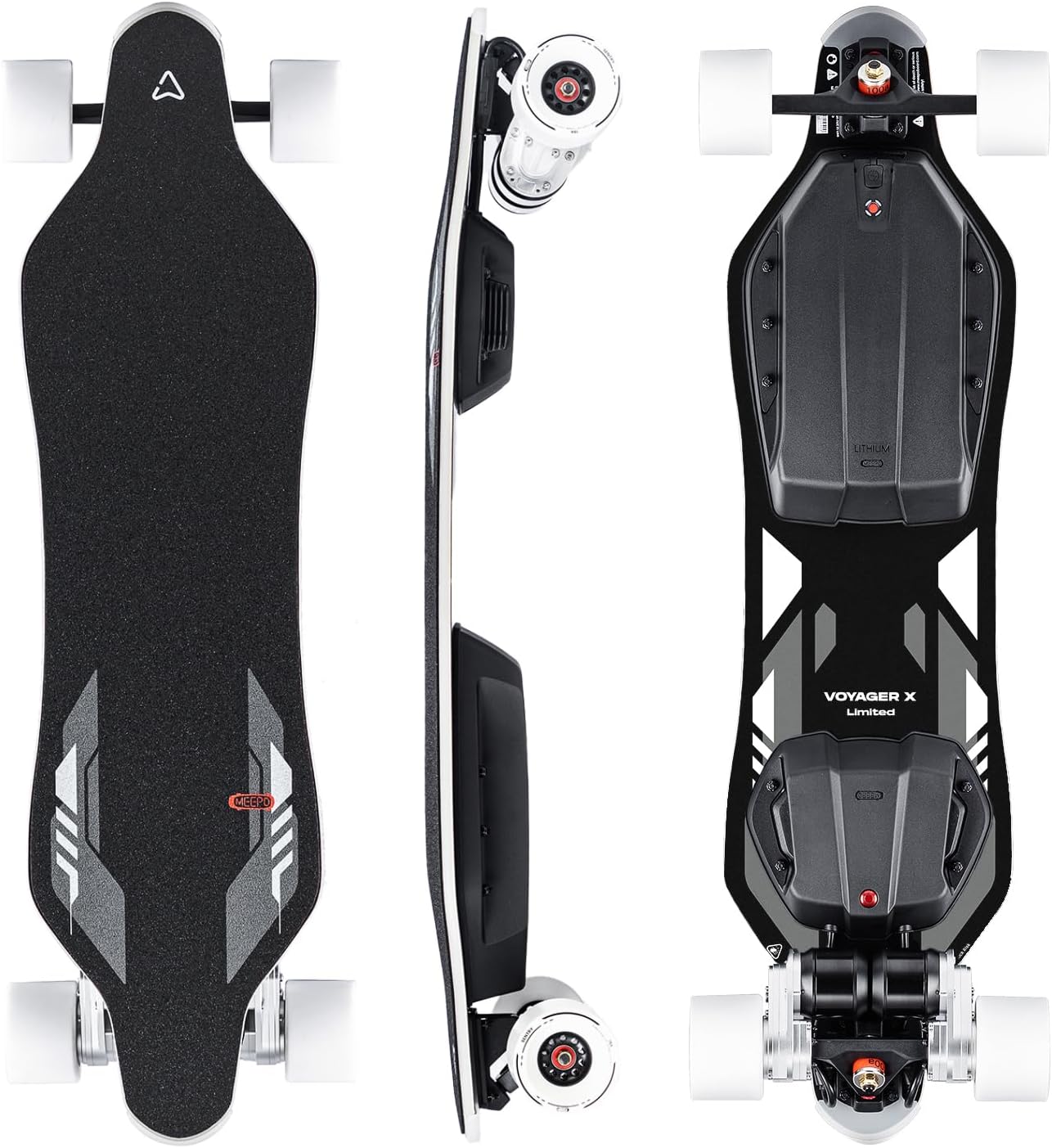

Сүрөт: Үч views of the MEEPO Voyager X Electric Longboard, showcasing its design from the top, side, and bottom.

Operating Your MEEPO Voyager X

Алыстан башкаруу функциялары

The MEEPO Voyager X comes with an advanced remote control (M4S or M5S) that displays essential information and allows you to manage your ride. Key features include:

• Спидометр: Учурдагы ылдамдыкты көрсөтөт.
• Odometer & Trip Meter: Tracks total distance and per-trip distance.
• Батарея көрсөткүчтөрү: Shows battery levels for both the board and the remote.
• Wheel Size Input: Allows calibration for accurate speed and distance readings.
• Speed & Brake Settings: Adjust riding modes and braking intensity.

Айдоо режимдери

The MEEPO Voyager X offers multiple riding modes to suit different skill levels and preferences:

• Ылдамдык 1: Up to 6 MPH (Beginner)
• Ылдамдык 2: Up to 11 MPH (Intermediate)
• Ылдамдык 3: Up to 21 MPH (Advanced)
• Ылдамдык 4: Max speed (Expert)

You can also engage reverse mode for maneuvering.

Image: A rider on the MEEPO Voyager X, illustrating its capabilities including 40 MPH top speed, 31 miles long range, 46% hill grade climbing, and 4 riding modes.

Ылдамдануу жана тормоздоо

The MEEPO Voyager X features next-level riding control for smooth acceleration and precise braking. Be mindful that braking performance can be affected by a fully charged battery; it is advisable to ride for a short distance before relying on full braking power on steep descents immediately after a full charge.

Заряддоо

To charge your MEEPO Voyager X, use the provided 50.4V UL fast charger. The charging port is located on the board. A full charge from empty takes approximately 3 hours. Always ensure the charging environment is dry and well-ventilated.

Сүрөт: Жакын план view of the MEEPO Voyager X's charging port and power button, indicating a 2-hour fast charge capability.

Техникалык тейлөө

Regular maintenance will extend the life and performance of your MEEPO Voyager X:

• Тазалоо: Тактаны жарнама менен сүртүңүзamp cloth after each ride. Avoid using excessive water or harsh chemicals.
• Белдик текшерүү: Regularly check the drive belts for wear, tears, or lodged debris. Replace belts if necessary (extra belts are included).
• Wheel & Bearing Check: Inspect wheels for damage and ensure bearings spin freely. Clean or replace bearings if they become gritty.
• Truck & Bushing Inspection: Check trucks for tightness and ensure bushings are not cracked or worn. Adjust truck tightness to your riding preference.
• Батареяга кам көрүү: Store the board in a cool, dry place. If storing for extended periods, charge the battery to approximately 50-60% to maintain its health. Avoid fully discharging the battery.
• Мотор инспекциясы: Periodically check the motors for any unusual noises or vibrations.

Проблемаларды чечүү

Бул жерде кээ бир жалпы маселелер жана алардын мүмкүн болуучу чечимдери:

If you encounter issues not listed here or require further assistance, please contact MEEPO customer support.

Техникалык мүнөздөмөлөр

Below are the key specifications for the MEEPO Voyager X Electric Longboard:

Сүрөт: Side profile of the MEEPO Voyager X, highlighting key components and specifications such as motor power, battery capacity, max load, and fast charging.

Кепилдик жана колдоо

MEEPO provides a 6-month warranty service for your Voyager X electric longboard from the day you receive it. This warranty covers manufacturing defects and ensures strict quality inspection procedures. For any questions or support needs, please do not hesitate to contact MEEPO customer service.

Байланыш маалыматы:

• Электрондук почта: info@meepoboard.com
• Webсайт: meepoboard.com

MEEPO is committed to providing high-quality products and excellent customer support. We are here to assist you with any inquiries or concerns regarding your electric longboard.
