1. Киришүү
This manual provides detailed instructions for the Metapen A14 iPad Pencil 2nd Generation. Please read thoroughly to ensure optimal use and longevity of your device.
Image: The Metapen A14 iPad Pencil, a white stylus with a sleek design.
2. Шайкештик
The Metapen A14 Pencil is designed for specific iPad models. Please verify your iPad model before use to ensure full functionality, including wireless charging.
- iPad Pro 12.9 дюймдук: 6th, 5th, 4th, 3rd generation
- iPad Pro 11 дюймдук: 4th, 3rd, 2nd, 1st generation
- iPad Air: 4-муун
- iPad Mini: 6-муун
To find your iPad model: Go to Орнотуулар > Генерал > Жөнүндө > Модель аты.

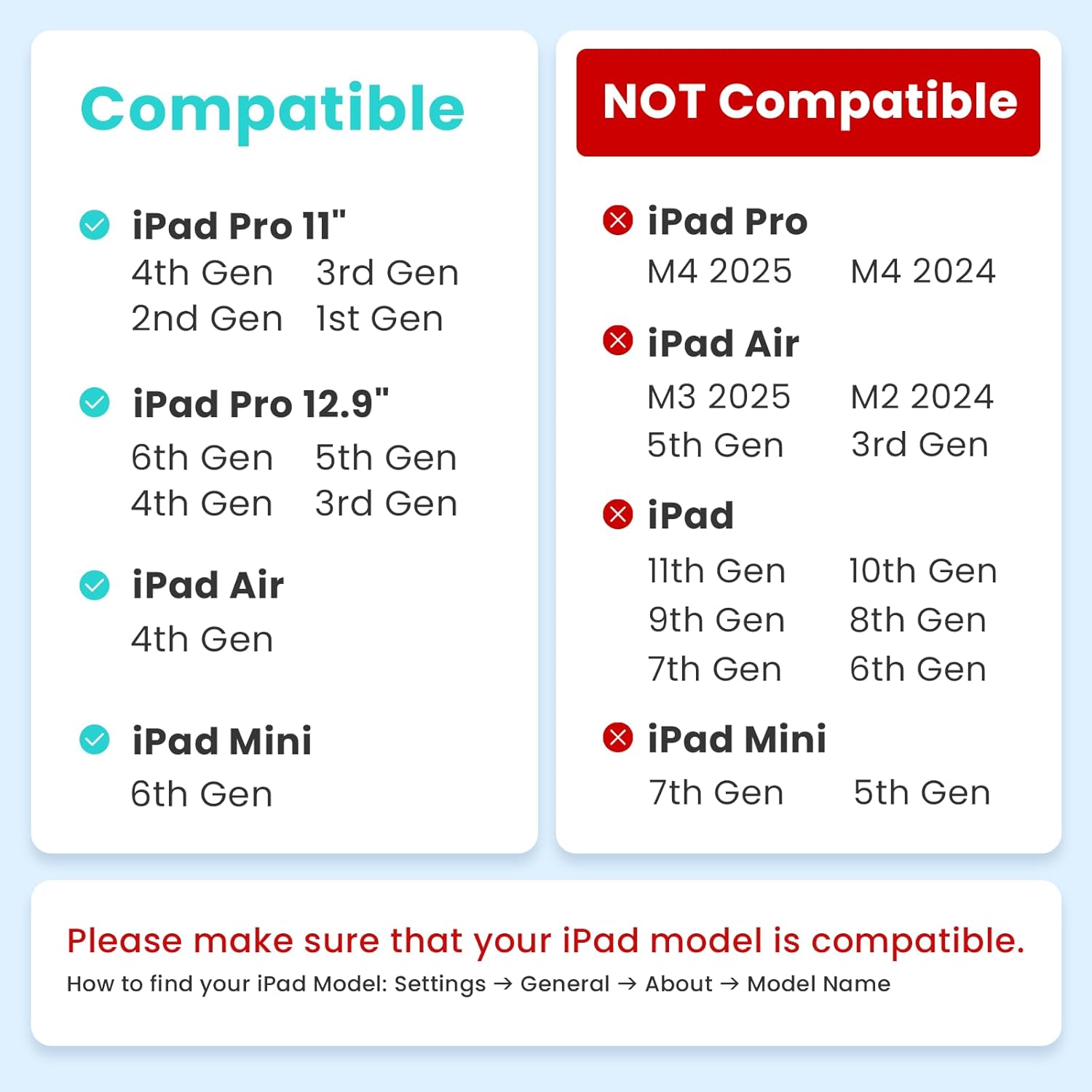

Image: A chart detailing compatible and non-compatible iPad models for the Metapen A14.
3. Кутуда эмне бар
The Metapen A14 package includes the following items:
- Metapen A14 iPad Pencil
- Алмаштыруучу учтар (2 кошулган)
- User Manual
Video: This video demonstrates the unboxing of the Metapen A14, showing the pencil, replacement tips, and manual. It also highlights the wireless magnetic charging feature and battery widget display on the iPad.
4. Орнотуу жана алгачкы колдонуу
4.1. Заряддоо
The Metapen A14 supports wireless magnetic charging. Attach the pencil to the magnetic side of your compatible iPad. A full charge takes approximately 90 minutes and provides up to 8 hours of continuous use.
Image: The Metapen A14 pencil magnetically attached to the side of an iPad, indicating wireless charging.
Battery Widget Display
To monitor the battery level of your Metapen A14 on your iPad:
- Long-press any app icon on your home screen.
- "Башкы бетти түзөтүү" баскычын таптаңыз.
- Tap the '+' icon to add a widget.
- Select the 'Batteries' widget.
Image: A visual guide demonstrating how to add the battery widget to an iPad home screen.
4.2. Bluetooth туташуусу
For full functionality, including hotkey shortcuts and battery display, connect the Metapen A14 via Bluetooth.
- Ensure Bluetooth is enabled on your iPad (Орнотуулар > Bluetooth).
- Press the top button of the A14 once to turn it on.
- On your iPad, look for "Pencil A14" in the Bluetooth devices list and tap to pair.
Image: A step-by-step visual guide for connecting the Metapen A14 to an iPad via Bluetooth.
5. Иштөө нускамалары
5.1. Writing and Drawing
The Metapen A14 offers 0.1mm pixel precision, quick responsiveness, and no lag or breakpoints for a smooth writing and drawing experience.
Image: Close-up of the Metapen A14 tip on an iPad screen, illustrating pixel precision, no lag, and no breakpoints.
5.2. Алаканды четке кагуу
Rest your hand comfortably on the iPad screen while writing or drawing. The palm rejection feature prevents unintended marks.
Image: An illustration showing a hand resting on an iPad screen while using the Metapen A14, highlighting palm rejection.
5.3. Ыкчам баскычтардын кыска жолдору
Utilize the integrated hotkey shortcuts for efficient multitasking:
- Бир жолу таптоо: Press the top button once to return to the home screen.
- Эки жолу таптоо: Double-tap the top button to access the app switcher for quick navigation between applications.
Image: A visual guide demonstrating the single-tap and double-tap hotkey functions of the Metapen A14.
5.4. Эңкейиш сезгичтиги
The Metapen A14 supports tilt sensitivity, allowing you to vary line thickness and shading by adjusting the angle of the pen, similar to a traditional pencil.
Image: An illustration showing how different tilt angles of the Metapen A14 produce varying line thicknesses and shading effects.
6. Техникалык тейлөө
6.1. Учтарды алмаштыруу
The Metapen A14 uses tips similar to the Apple Pencil. To replace a tip, gently twist the old tip counter-clockwise to remove it, then twist a new tip clockwise until secure.
Image: A close-up of the Metapen A14 tip and two replacement tips, illustrating the easy replacement process.
6.2. Тазалоо
The pencil features a moisture-proof paint coating. Wipe the pencil with a soft, dry cloth to clean it. Avoid harsh chemicals or abrasive materials.
7. Кыйынчылыктарды
7.1. Pencil Not Responding
- Ensure the pencil is charged. Attach it to your iPad to check the battery status via the widget.
- Verify Bluetooth connection in iPad settings. If not connected, try re-pairing.
- Restart your iPad and the Metapen A14.
7.2. Заряддоо маселелери
- Confirm your iPad model is compatible with wireless magnetic charging.
- Ensure the pencil is correctly aligned and securely attached to the magnetic charging area of your iPad.
- Check if the iPad screen is on during charging, as some users report charging pauses when the screen is off.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Продукциянын өлчөмдөрү | 6.53 x 0.35 x 0.35 дюйм |
| Элемент Салмагы | 0.529 унция (15 грамм) |
| Материал | Алюминий |
| Заряддоо убактысы | 90 мүнөт |
| Батареянын иштөө мөөнөтү | 8 саатка чейин (үзгүлтүксүз колдонуу) |
| Шайкеш түзмөктөр | iPad Pro 12.9-inch (3rd, 4th, 5th and 6th generation), iPad Pro 11-inch (1st, 2nd, 3rd and 4th generation), iPad Air 4th generation, iPad mini 6th generation |
Video: This video showcases various reliability tests performed on the Metapen A14, including drop tests, continuous writing tests, and temperature storage tests, demonstrating its durability and quality.
9. Кепилдик жана колдоо
Metapen offers a 12-month troubleshooting period and 24-hour customer support for the A14 iPad Pencil. For assistance, please contact Metapen Official support.
For more information or to explore other products, please visit the Metapen Store.
