Kidzone Ride On Truck 12V Battery Powered Electric Kids Car Vehicle Toy

1. Киришүү

Thank you for choosing the Kidzone Ride On Truck. This 12V battery-powered electric vehicle is designed to provide an exciting and safe driving experience for children aged 37-95 months. It features LED headlights, stimulating engine acceleration sounds, a horn, and various entertainment options. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure safe and enjoyable use of your new ride-on truck.

Figure 1.1: Kidzone Ride On Truck, White Model.

This image displays the Kidzone Ride On Truck in white, showcasing its robust design, large wheels, and front grille. The vehicle is ready for adventure, highlighting its realistic appearance.

2. Коопсуздук боюнча маанилүү маалымат

WARNING: To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water. Always wear shoes, and never allow more than one rider.

• This product is intended for children aged 37-95 months.
• Максималдуу салмагы: 66 фунт (30 кг).
• Always ensure the child is securely fastened with the built-in seatbelt before operation.
• Operate the vehicle only on flat, dry surfaces. Avoid sand, loose dirt, gravel, or wet areas.
• Do not allow children to operate the vehicle near streets, swimming pools, or other hazardous areas.
• The remote control feature allows parents to override child control for added safety.
• Regularly inspect the vehicle for any loose parts, damaged wiring, or worn components before each use.
• Charging should only be performed by an adult.

Figure 2.1: Buckle Up For Safety.

This image emphasizes the importance of safety by showing a child securing their seatbelt in the ride-on truck, accompanied by a graphic of a shield with the word "Safety" on it.

3. Кутуда эмне бар

Please check the contents of the package to ensure all items are present and undamaged:

• Kids Ride On Truck (main vehicle body and components)
• Алыстан башкаруу
• Заряддагыч
• Stickers (for DIY License Plate)
• Колдонуучунун Колдонмосу (бул документ)

4. Орнотуу жана чогултуу

Assembly of the Kidzone Ride On Truck is required before first use. Please follow these steps carefully. Adult assembly is required.

1. Пакеттен чыгаруу: Таңгактан бардык компоненттерди этияттык менен алып салыңыз. Таңгактоочу материалдарды балдардан алыс кармаңыз.
2. Дөңгөлөктү орнотуу: Attach the four wear-resistant wheels to the vehicle chassis. Ensure they are securely fastened according to the diagrams in the separate assembly guide (if provided).
3. Руль дөңгөлөгү: Connect the steering wheel to the steering column. Ensure all connections are firm.
4. Батарея туташуу: Connect the battery terminals. Refer to the battery compartment for specific instructions. Ensure the battery is fully charged before first use (see Charging section).
5. Аксессуар Тиркеме: Install any additional accessories such as mirrors, roll bars, or decorative elements as per the assembly diagrams.
6. DIY License Plate: Use the included stickers (numbers, alphabets, and symbols) to customize the license plate.


   Figure 4.1: DIY License Plate Customization.

   This image shows the Kidzone Ride On Truck alongside sheets of alphabet and number stickers, illustrating the DIY license plate feature that allows children to personalize their vehicle.

5. Иштөө нускамалары

5.1. Vehicle Controls

The vehicle is equipped with intuitive controls for both child and parent operation.

• Кубат баскычы: Press to turn the vehicle on/off.
• Бут педалы: Ылдамдатуу үчүн басыңыз. Тормоздоо үчүн коё бериңиз.
• Руль: Унааны башкаруу үчүн солго же оңго бурулуңуз.
• Vites алмаштыруу: Select Forward (D) or Reverse (R) mode.
• Ылдамдык тандоо: Choose between High and Low speeds for varied driving experiences.
• Мүйүз/Музыка баскычтары: Activate the horn or play pre-loaded music/sounds.

Figure 5.1: Dashboard Controls.

Бул сүрөт майда-чүйдөсүнө чейин камсыз кылат view of the Kidzone Ride On Truck's dashboard, showing the power button, gear shift, speed selection, and multimedia controls including MP3, Bluetooth, Radio, LED, and USB functions.

Figure 5.2: Easy Controls For Kids.

This image highlights the user-friendly controls of the Kidzone Ride On Truck, showing a child's hand interacting with the dashboard buttons, making it easy for young drivers to operate.

5.2. Алыстан башкаруу операциясы

The included 2.4G remote control allows parents to safely guide the vehicle, especially for younger children. Ensure AAA batteries are installed (not included).

• Жупташтыруу: Turn on the vehicle. Press and hold the pairing button on the remote until the indicator light flashes, then release. The light will become solid when paired.
• Алдыга артка: Use the joystick or directional buttons to move the vehicle forward or backward.
• Сол оң: Use the joystick or directional buttons to steer left or right.
• Тормоз баскычы: Press to stop the vehicle immediately.
• Ылдамдык тандоо: Adjust the speed settings (low, medium, high) directly from the remote.

Figure 5.3: Parental Remote Control.

This image shows a parent holding the white remote control for the Kidzone Ride On Truck, with a child seated in the green version of the truck in the background, demonstrating the parental control feature.

5.3. Мультимедиа функциялары

The truck includes an MP3 player, Bluetooth wireless technology, and a flash drive port for entertainment.

• MP3/USB: MP3 аудиосу бар USB флеш-дискти салыңыз files into the USB port on the dashboard. Use the dashboard controls to play, pause, and skip tracks.
• Bluetooth: Activate Bluetooth on the vehicle's dashboard. Издөө the device name (e.g., "Kidzone Car") on your smartphone or other Bluetooth-enabled device and pair. You can then stream audio wirelessly.

5.4-сүрөт: Негизги өзгөчөлүктөр бүттүview.

Бул сүрөттө кошумча адис көрсөтүлгөнfile of the white Kidzone Ride On Truck, emphasizing its "Premium Version 12V" badge, "Gift for any Occasion" suitability, "Accelerated Speed Setting," and "Bluetooth Speaker" capabilities, indicating its advanced features.

6. Техникалык тейлөө жана кам көрүү

6.1. Батареяны заряддоо

• Use only the charger provided with the vehicle.
• Plug the charger into the charging port on the vehicle.
• Заряддагычты стандарттуу розеткага сайыңыз.
• Charge the battery for 8-12 hours before first use, and for 8-12 hours after each use. Do not charge for more than 18 hours.
• The battery should be charged at least once a month, even if the vehicle is not in use, to prolong battery life.

6.2. Жалпы кам көрүү

• Унааны жумшак менен тазалаңыз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• Store the vehicle indoors in a dry area when not in use.
• Protect the vehicle from direct sunlight and rain.
• Бардык бурамалар, гайкалар жана болттор бекем экенин текшерүү үчүн аларды үзгүлтүксүз текшерип туруңуз.

7. Кыйынчылыктарды

8. Продукттун спецификациялары

• Модел: Kidzone Ride On Truck
• Батарея: 12V Lead-acid rechargeable
• Сунушталган жаш: 3 - 8 years (37-95 months)
• Максималдуу Салмак сыйымдуулугу: 66 фунт (30 кг)
• Продукциянын өлчөмдөрү (L x W x Y): 39.4 x 25.6 x 28.4 дюйм
• Элемент Салмагы: 31 фунт
• Өзгөчөлүктөрү: LED Headlights, Engine Sounds, Horn, MP3 Player, Bluetooth, USB Port, Parent Remote Control, DIY License Plate

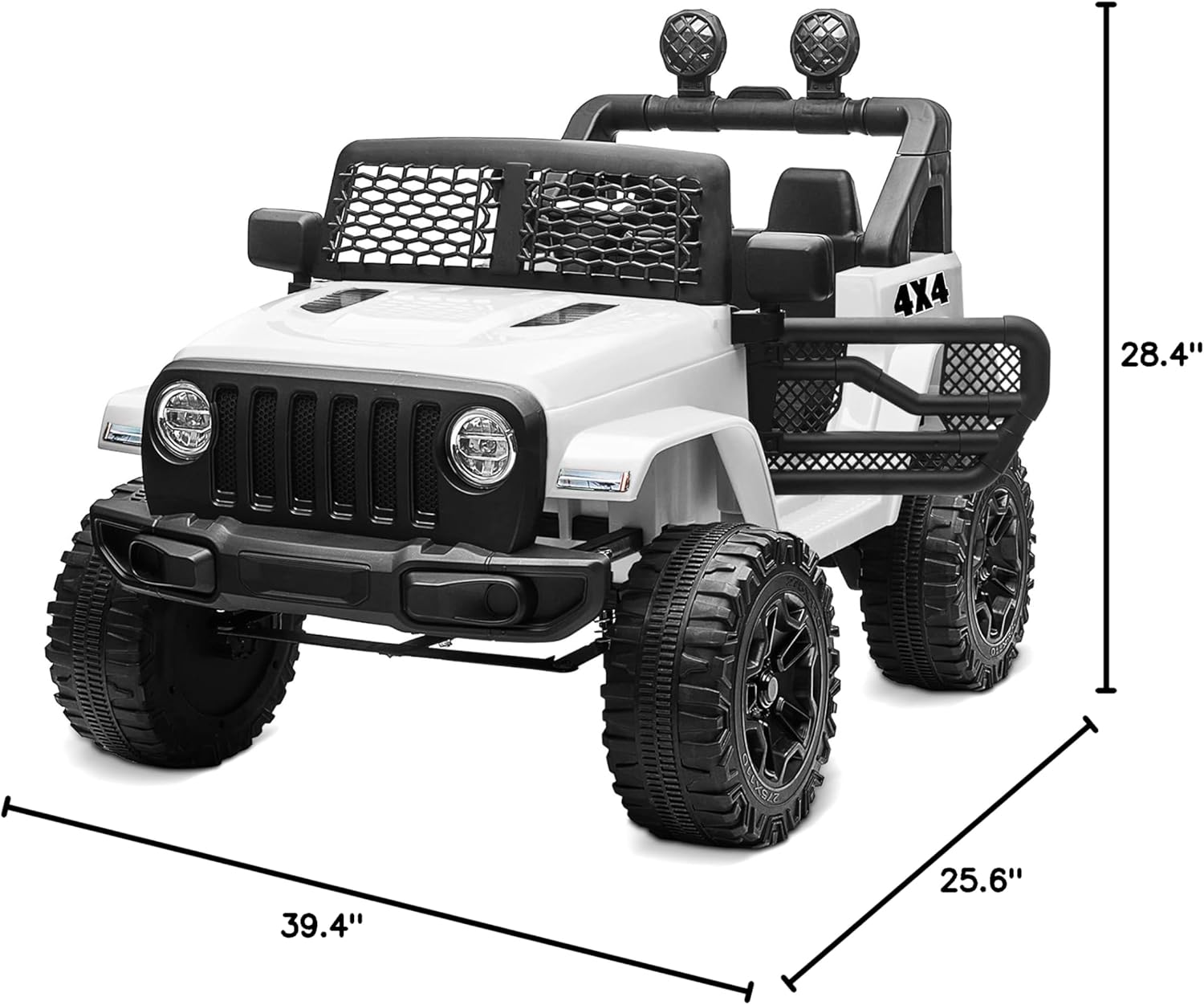

Сүрөт 8.1: Продукциянын өлчөмдөрү.

This image illustrates the key dimensions of the Kidzone Ride On Truck, showing its length (39.4 inches), width (25.6 inches), and height (28.4 inches), providing a clear understanding of its size.

Figure 8.2: Recommended Age and Weight Capacity.

This image features a child happily seated on a green Kidzone Ride On Truck, with overlaid text indicating it's designed for ages 37 months & up to 8 years old, with a model age of 3, height 42", weight 41 lbs, and a weight capacity of 66 lbs.

9. Кепилдик жана колдоо

Kidzone products are manufactured with high-quality materials and undergo strict quality control. For warranty information, please refer to the warranty card included with your product or visit the official Kidzone website. For technical support, replacement parts, or any inquiries, please contact Kidzone customer service through the contact information provided on the product packaging or their official webсайт.

Сиз да зыярат кылсаңыз болот Kidzone Store on Amazon көбүрөөк маалымат жана продуктулар үчүн.
