OnePlus SUPERVOOC 80W Car Charger Instruction Manual

Продукт бүттүview

The OnePlus SUPERVOOC 80W Car Charger is designed to provide rapid and efficient charging for your devices while on the go. Featuring dual USB-A and USB-C ports, it supports various fast-charging protocols to ensure compatibility and optimal performance for mobile phones, laptops, and tablets.

Сүрөт: алдыңкы view of the OnePlus SUPERVOOC 80W Car Charger, showcasing its compact design and the OnePlus logo.

Негизги өзгөчөлүктөрү:

• Кош порт кубаттоо: USB-A and USB-C ports allow simultaneous charging for two devices.
• Жогорку ылдамдыктагы чыгаруу: USB-A port supports 80W MAX output for SUPERVOOC compatible devices (e.g., OnePlus 10 Pro to 100% in approximately 37 minutes). USB-C port supports 30W MAX output via PD protocol.
• Кеңири шайкештик: Intelligent chip adjusts current for devices supporting SUPERVOOC/VOOC, PD, QC, and other protocols.
• Өркүндөтүлгөн коопсуздук: Built-in protections against short-circuit, over-current, over-voltage, томдун астындаtage, and static.
• Туруктуу дизайн: Compact and robust construction for reliable use in vehicles.

Орнотуу жана орнотуу

1. Унаанын кубат розеткасын табыңыз: Identify the 12V or 24V auxiliary power outlet (cigarette lighter socket) in your vehicle.
2. Унаа заряддагычты салыңыз: Firmly insert the OnePlus SUPERVOOC 80W Car Charger into the vehicle's power outlet. Ensure it is securely seated.

Image: The car charger plugged into a vehicle's power outlet, with charging cables connected to devices.
3. Заряддоо кабелин туташтыруу: Plug a compatible USB-A or USB-C charging cable (not included) into the corresponding port on the car charger. For optimal SUPERVOOC charging, use a genuine OnePlus SUPERVOOC compatible cable.


Сүрөт: Жогорку view of the car charger showing the USB-A and USB-C charging ports.

4. Түзмөктү туташтыруу: Connect the other end of the charging cable to your mobile phone, tablet, or other compatible device.

Иштөө нускамалары

Once installed, the car charger operates automatically. It will detect the connected device and deliver the appropriate charging current based on the device's capabilities and supported protocols.

• Бир убакта заряддоо: You can charge one device via the USB-A port and another via the USB-C port concurrently.
• Тез кубаттоо: For devices supporting SUPERVOOC (USB-A) or Power Delivery (USB-C), the charger will automatically engage fast charging modes. Ensure your device and cable are compatible with these protocols for maximum speed.
• Индикатор жарыгы: The charger may feature an indicator light (e.g., a ring light) to confirm it is powered and ready for use. This light also aids in locating the charger in low-light conditions.


Image: The car charger illuminated by its ring light, visible in a car's interior at night.

Коопсуздук маалыматы

The OnePlus SUPERVOOC 80W Car Charger incorporates multiple safety features to protect your devices and vehicle. Adhere to the following guidelines for safe operation:

• Заряддоочу түзүлүштү ажыратпаңыз же өзгөртпөңүз.
• Avoid exposing the charger to extreme temperatures, direct sunlight, or moisture.
• Ensure the charger is securely plugged into the power outlet to prevent intermittent connections.
• Use only compatible and certified charging cables.
• The charger is equipped with:
  • Кыска туташуулардан коргоо
  • Ашыкча ток коргоо
  • Көлөмүtagд коргоо
  • Көлөмдүн астындаtagд коргоо
  • Static protection

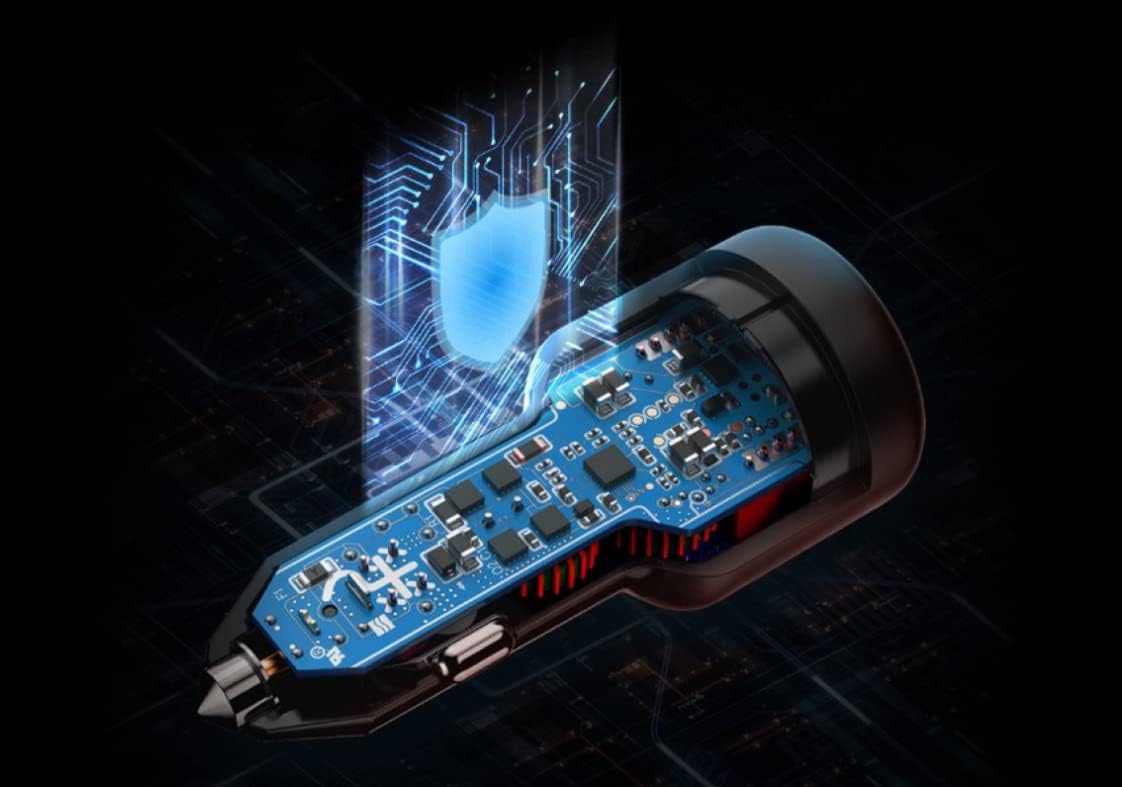

Image: Diagram illustrating the internal smart processing chip and safety features of the car charger.

Проблемаларды чечүү

Көйгөй: Түзмөк кубатталбай жатат же жай кубатталууда.

• Байланышты текшерүү: Ensure the car charger is firmly seated in the vehicle's power outlet and the charging cable is securely connected to both the charger and your device.
• Кабелди текшерүү: Confirm that the charging cable is not damaged and is compatible with your device and the charger's fast-charging protocols (e.g., SUPERVOOC cable for SUPERVOOC charging).
• Унаанын күчү: Ensure your vehicle's engine is running or the power outlet is active. Some vehicle outlets only provide power when the ignition is on.
• Түзмөктүн шайкештиги: Confirm your device supports the fast-charging protocols offered by the charger (SUPERVOOC/VOOC, PD, QC).
• Башка порт/кабелди байкап көрүңүз: Test with a different port on the charger or a different known-good cable to isolate the issue.

Issue: Charger feels warm during use.

• It is normal for the charger to become warm during high-power charging. If it becomes excessively hot or emits smoke/odor, immediately disconnect it from the power outlet and discontinue use.

Техникалык шарттар

Кепилдик жана колдоо

This OnePlus SUPERVOOC 80W Car Charger comes with a 1 жылдык өндүрүүчүнүн кепилдиги.

For warranty claims, technical support, or further assistance, please contact OnePlus customer service through their official webпродукт сатылып алынган сайт же сатуучу.

Кепилдикти жарактуулук мөөнөтү үчүн сатып алуу квитанцияңызды же сатып алуу документиңизди сактап коюңуз.
