Vivi электр велосипедин колдонуучунун колдонмосу

Коопсуздук маалыматы

Before operating your Vivi Electric Bike, please read and understand all safety instructions. Failure to follow these guidelines may result in injury or damage to the bicycle.

Жалпы коопсуздук эрежелери

• Ар дайым коопсуздук стандарттарына жооп берген туулга кийиңиз.
• Бардык жергиликтүү жол мыйзамдарына жана эрежелерине баш ийиңиз.
• Perform a pre-ride inspection before each use, checking brakes, tire pressure, and all fasteners.
• Ичкиликтин же баңгизаттын мас абалында минүүгө болбойт.
• Айланаңыздан кабардар болуп, коргонууга өтүңүз.

Батареянын коопсуздугу

• Use only the charger provided by Vivi.
• Батареяны экстремалдык температурага же түз күндүн нуруна калтырбаңыз.
• Avoid puncturing, dropping, or disassembling the battery pack.
• Батареяны балдардан жана үй жаныбарларынан алыс кармаңыз.

UL 2849 Certification

All Vivi e-bikes, including this model, have passed the UL 2849 standard and obtained certification from SGS, ensuring electrical and mechanical safety. This includes testing and verification of batteries, charging systems, motor controllers, and other electrical components.

Image: UL 2849 Certificate of Compliance from SGS. For verification, visit the official SGS webсайт: SGS сертификатынын шилтемеси

Продукт бүттүview

The Vivi Electric Bike Model F26F is a robust electric mountain bike designed for various terrains. It features a powerful motor, long-lasting battery, and professional-grade components for a reliable riding experience.

Негизги өзгөчөлүктөрү

• 500 Вт щеткасыз мотор: Provides strong power and efficient performance.
• 48V 13Ah Removable Lithium-Ion Battery: Offers extended range and can be fast-charged in approximately 4 hours.
• 26" x 4.0 Майлуу шиналар: Designed for superior traction and stability across snow, mountain roads, sand, and city streets.
• Professional 7-Speed Shifter: Allows for smooth and precise gear changes.
• Кош диск тормоздору: Front and rear mechanical disc brakes for reliable stopping power.
• Front Fork Suspension: Absorbs shocks for a smoother ride on uneven terrain.
• Санариптик дисплей: Provides real-time information on battery level, speed, pedal assist mode, and mileage.

Image: The Vivi Electric Bike Model F26F, showcasing its fat tires, sturdy frame, and integrated battery.

Компоненттин чоо-жайы

Сүрөт: деталдуу view of the 48V 13Ah removable lithium battery, highlighting its 4-hour fast charging capability and estimated range (34-50 miles in PAS mode, 28-34 miles in electric mode).

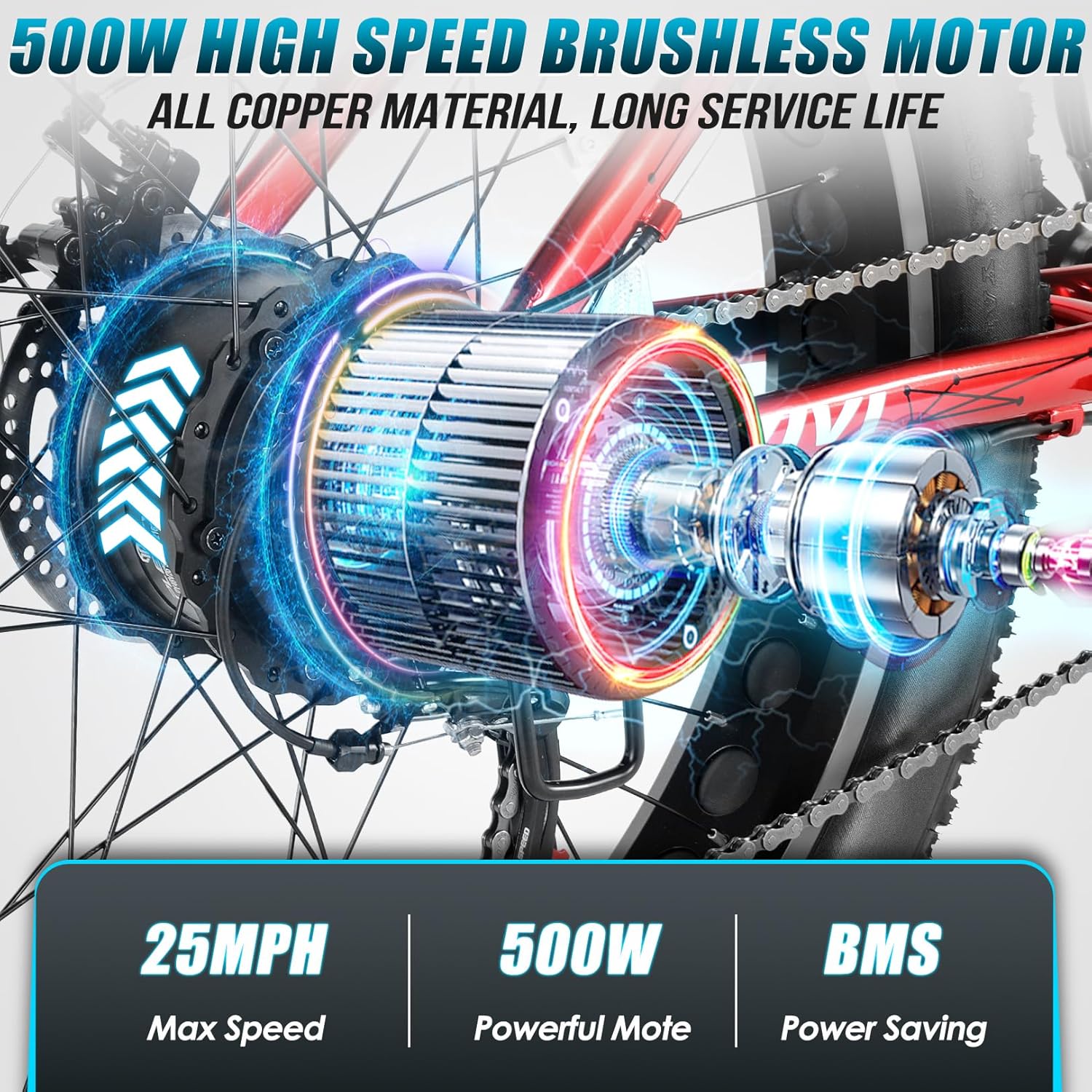

Image: Illustration of the 500W high-speed brushless motor, emphasizing its all-copper material for long service life, 25MPH max speed, and power-saving BMS.

Image: Close-up of the 26"x4.0 fat tire, illustrating its adaptability to various terrains including snow, mountain roads, sand, and city roads.

Сүрөт: View of the handlebars showing the LCD meter, professional 7-speed shifter, and throttle, indicating battery, speed, pedal assist, and mileage information.

Image: Close-up of the front and rear disc brakes, highlighting their robust design for effective stopping.

Image: Illustration of the front fork suspension, designed to absorb impacts and provide a smoother ride on uneven surfaces.

Орнотуу жана чогултуу

Your Vivi Electric Bike comes partially assembled. Follow these steps carefully to complete the assembly process. A tool kit is included for your convenience.

Видеону чогултуу боюнча колдонмо

Кадамдык Ассамблея

1. Рулду орнотуу: Attach the handlebar to the stem. Ensure all bolts are securely tightened.
2. Алдыңкы дөңгөлөктү бекитүү: Carefully align the front wheel with the fork. Secure the wheel using the provided nuts and ensure the disc brake rotor is correctly seated in the caliper.
3. Фараны орнотуу: Mount the headlight to the front fork and connect its power cable.
4. Орундук жыйын: Attach the seat to the seat post. Insert the seat post into the frame and adjust to a comfortable height, then secure with the quick-release clamp.
5. Rear Fender Installation: Attach the rear fender to the seat post or frame as indicated.
6. Батареяны салуу: Slide the battery into its designated slot on the frame. Lock it in place with the key.
7. Педаль тиркемеси: Identify the 'R' (right) and 'L' (left) pedals. Screw the right pedal clockwise into the right crank arm and the left pedal counter-clockwise into the left crank arm. Tighten securely with a wrench.

Иштөө нускамалары

Familiarize yourself with the controls and functions of your Vivi Electric Bike for a safe and enjoyable ride.

Күйгүзүү/өчүрүү

• To power on the bike, press and hold the power button on the digital display.
• Өчүрүү үчүн кубат баскычын кайра басып, дисплей өчмөйүнчө кармап туруңуз.

Pedal Assist Modes (PAS)

The bike offers multiple levels of pedal assist. Use the '+' and '-' buttons on the handlebar control to cycle through the assist levels. Higher levels provide more motor assistance as you pedal.

Дроссель операциясы

The throttle provides power on demand without pedaling. Gently twist the throttle grip to engage the motor. Release the throttle to disengage. Use the throttle responsibly and be mindful of your speed.

Жылдыруу

The 7-speed shifter allows you to adjust your pedaling effort to match terrain and speed. Shift gears smoothly by pedaling lightly while operating the shifter. Avoid shifting under heavy load.

Тормоздоо

Apply both front and rear brakes simultaneously for effective and controlled stopping. Avoid sudden, hard braking, especially with the front brake, to prevent skidding.

Battery Information and Charging

Your Vivi Electric Bike is equipped with a high-capacity 48V 13Ah Lithium-Ion battery, providing reliable power for your rides.

Заряддоо процедурасы

1. Ensure the bike is powered off before charging.
2. Locate the charging port on the battery. It may be on the battery itself or on the bike frame.
3. Заряддагычты заряддоо портуна туташтырыңыз, андан кийин заряддагычты стандарттуу розеткага сайыңыз.
4. Заряддоочу түзүлүштүн индикатору, адатта, заряддоо учурунда кызыл түстө, ал эми толук заряддалганда жашыл түстө күйөт.
5. Толук кубаттоо үчүн заряддоо убактысы болжол менен 4 саатты түзөт.
6. Once fully charged, disconnect the charger from the outlet first, then from the battery.

Батареяга кам көрүү

• Charge the battery regularly, even if the bike is not used frequently.
• Батареяны салкын, кургак жерде, тике күн нурунан жана экстремалдык температурадан алыс сактаңыз.
• Заряддоодон мурун батарейканы толугу менен түгөтүп жибербеңиз.

Техникалык тейлөө

Regular maintenance ensures the longevity and safe operation of your Vivi Electric Bike.

Pre-Ride Checks

• Шиналар: Check tire pressure before each ride. Refer to the tire sidewall for recommended PSI.
• Тормоздор: Ensure both front and rear brakes are functioning correctly and that brake levers are firm.
• Болттор жана бекиткичтер: Verify that all bolts, nuts, and quick-release levers are securely tightened.
• чынжыр: Check for proper tension and lubrication.

Тазалоо жана майлоо

• Велосипедди жарнама менен үзгүлтүксүз тазалаңызamp кездеме. Жогорку басымдагы шайбаларды түздөн-түз электрдик тетиктерге колдонуудан алыс болуңуз.
• Lubricate the chain periodically with bicycle-specific chain lubricant to ensure smooth operation and prevent rust.

Проблемаларды чечүү

This section addresses common issues you might encounter with your Vivi Electric Bike.

Техникалык шарттар

Detailed technical specifications for the Vivi Electric Bike Model F26F.

Кепилдик жана колдоо

Vivi is committed to providing reliable products and excellent customer service.

Кепилдик маалымат

Your Vivi Electric Bike comes with a 1 жылдык чектелген кепилдик from the date of purchase. This warranty covers manufacturing defects in materials and workmanship. Please retain your proof of purchase for warranty claims.

Кардарларды колдоо

Суроолоруңуз, кооптонууларыңыз же техникалык жардамыңыз болсо, Vivi кардарларды тейлөө кызматына кайрылыңыз:

• Телефон: +1 888 639 8191
• Иш убактысы: 9:00 AM - 6:00 PM EST (Дүйшөмбү-Жума)

Image: Vivi customer service contact details, including phone number and working hours.
