Introduction
This manual provides instructions for the Angrox AN-MR21GA Magic Remote Control, designed as a replacement for compatible LG Smart TVs. This remote features pointer functionality, voice control, and dedicated shortcut buttons for enhanced navigation and user experience.
The remote is compatible with LG 2021, 2022, 2023, and 2024 OLED, QNED Mini-LED, NanoCell, and UHD TV series. It offers an ergonomic design with soft plastic buttons for comfortable use.
Шайкештик
The Angrox AN-MR21GA Magic Remote Control is compatible with the following LG Smart TV series from 2021, 2022, 2023, and 2024:
- OLED TV Series: G1, G2, G3, G4, C1, C2, C3, C4, A1, A2, A3, A4 series.
- QNED Mini-LED TV Series: QNED99, QNED90 series.
- NanoCell TV Series: NANO99, NANO90, NANO85, NANO80, NANO75 series.
- UHD TV Series: UP80, UP75 series.
Specific compatible model numbers include, but are not limited to: 43NANO75UPA, 43UP7100ZUF, 43UP7560AUD, 43UP7700PUB, 43UP8000PUA, 50NANO75UPA, 50NANO77ZPA, 50NANO80UPA, 50NANO85APA, 50UP7100ZUF, 50UP7560AUD, 50UP7700PUB, 50UP8000PUA, 55NANO75UPA, 55NANO77ZPA, 55NANO80UPA, 55NANO85APA, 55NANO90UPA, 55UP7100ZUF, 55UP7560AUD, 55UP7700PUB, 55UP8000PUA, 60UP7700PUB, 60UP8000PUA, 65NANO75UPA, 65NANO77ZPA, 65NANO80UPA, 65NANO85APA, 65NANO90UPA, 65UP7100ZUF, 65UP7560AUD, 65UP7700PUA, 65UP7700PUB, 65UP8000PUA, 70UP7170ZUC, 70UP7570AUD, 70UP7770PUB, 70UP8070PUA, 75NANO75UPA, 75NANO80UPA, 75NANO85APA, 75NANO90UPA, 75QNED90UPA, 75QNED99UPA, 75UP7170ZUC, 75UP7570AUE, 75UP7770PUB, 75UP8070PUA, 82UP8770PUA, 86NANO75UPA, 86NANO85APA, 86NANO90UPA, 86NANO99UPA, 86QNED90UPA, 86QNED99UPA, 86UP8770PUA, BEJMR21GA, OLED48A1AUA, OLED48A1PUA, OLED48C1AUB, OLED48C1PUB, OLED55A1AUA, OLED55A1PUA, OLED55B1PUA, OLED55C1AUB, OLED55C1PUA, OLED55C1PUB, OLED55G1PUA, OLED65A1AUA, OLED65A1PUA, OLED65B1PUA, OLED65C1AUA, OLED65C1AUB, OLED65C1PUB, OLED65G1PUA, OLED77A1AUA, OLED77A1PUA, OLED77B1PUA, OLED77C1AUA, OLED77C1AUB, OLED77C1PUB, OLED77G1PUA, OLED83C1AUA, OLED83C1PUA, RCLLGEMR21GA, R-C-LLGEMR21GA, 43UP7670PUC, 43UP8000PUR, 50NANO75PUA, 50NANO80P, 50UP7670PUC, 50UP8000PUR, 55NANO80P, 55NANO90P, 55UP7670PUC, 55UP8000PUR, 60UP7670PUB, 60UP8000PUR.
Орнотуу жана жупташтыруу
The Angrox AN-MR21GA remote control is designed for easy setup without complex programming.
1. Батареяны орнотуу
Insert two (2) AA batteries into the remote control. Ensure correct polarity (+/-) as indicated inside the battery compartment. Batteries are not included with the remote.
2. Сыналгы менен жупташтыруу
There are two methods for pairing the remote with your LG Smart TV:
- Method 1 (Automatic Pairing):
- LG Smart сыналгыңызды күйгүзүңүз.
- Insert 2*AA batteries into the remote.
- After approximately 20 seconds, point the remote control towards the TV.
- басыңыз Дөңгөлөк (ОК) баскычы.
- The remote control should register automatically, and a "Pairing Complete" message will appear on the TV screen.
- Method 2 (Manual Pairing):
- LG Smart сыналгыңызды күйгүзүңүз.
- Insert 2*AA batteries into the remote.
- басып, кармап туруңуз Үй (
) жана Артка () баскычтарын бир убакта 5 секунда басып туруңуз. - Андан кийин, басыңыз Дөңгөлөк (ОК) баскычы.
- A "Pairing Complete" message should appear on the TV screen.
Иштөө нускамалары
Basic Navigation and Pointer Function
The remote features a pointer function that allows you to navigate the TV screen by moving the remote. The Wheel (OK) button acts as a click function, and scrolling is also supported.
Үн менен башкаруу
The remote includes a voice function for issuing commands to your TV. Press and hold the voice button (microphone icon) while speaking your command. Examples include "Go back home," "Open P.Video," or "Play some music."

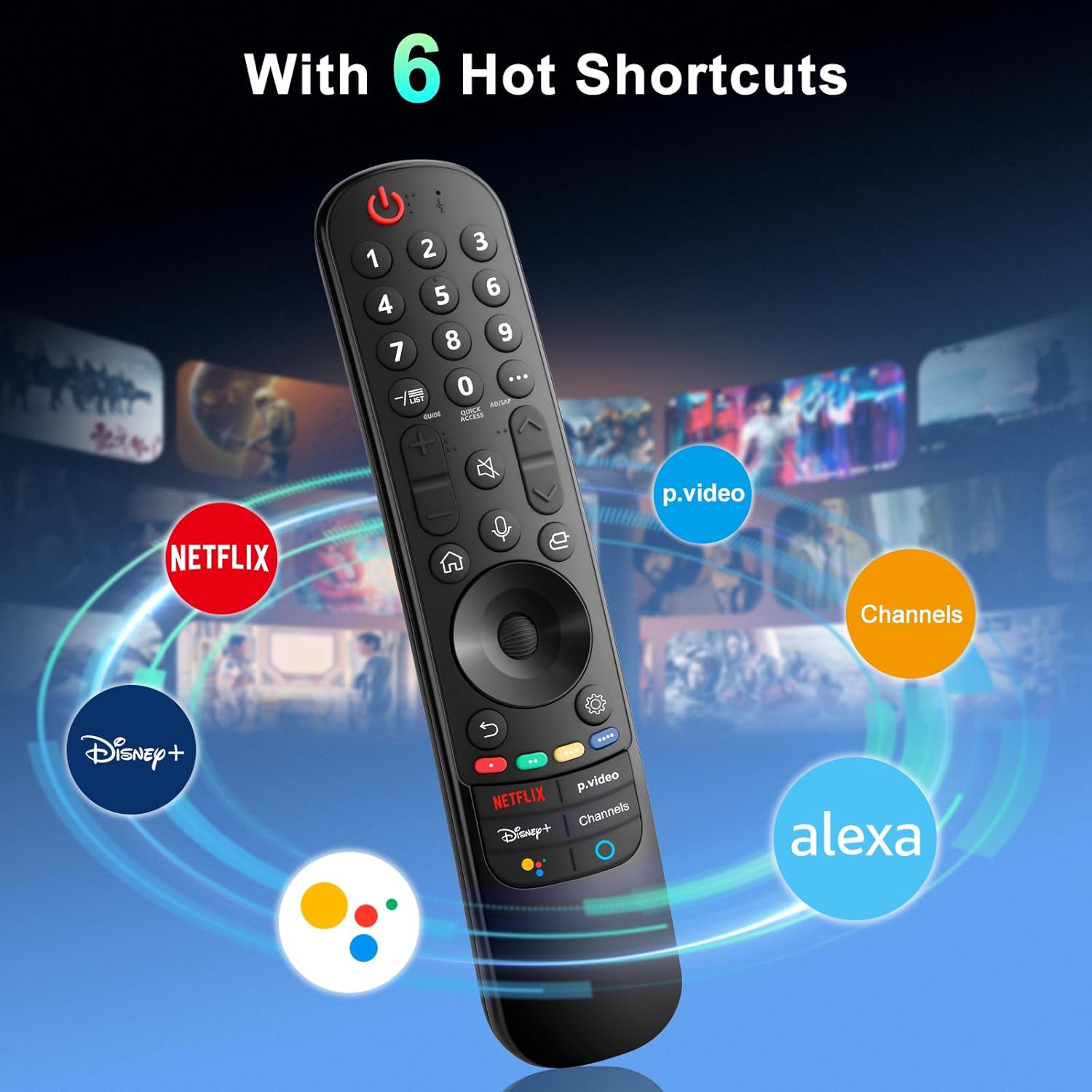

Жарлык баскычтары
The remote provides dedicated shortcut buttons for quick access to popular streaming services and functions:
- NETFLIX: Netflix тиркемесин ишке киргизет.
- P.Video: Prime Video тиркемесин ишке киргизет.
- Disney+: Disney+ тиркемесин ишке киргизет.
- Каналдар: Accesses TV channels.
- Google Жардамчысы: Activates Google Assistant for voice commands and searches.
- Alexa: Activates Amazon Alexa for voice commands and searches.
Detailed Button Functions
For buttons marked with a circle symbol (©), a long press (more than one second) may activate additional functions:
- 9©: Launch Quick Help.
- - / LIST©: Checking saved channels.
- GUIDE©: Launch Guide.
- 0©: QUICK ACCESS түзөтүү экраны пайда болот.
- ...©: Display additional buttons on the remote control.
- AD/SAP©: Configures SAP.
- Volume Up/Down©: Үн деңгээлин тууралаңыз.
- Channel Up/Down©: Каналды өзгөртө аласыз.
- Mute©: Select to turn off the sound from the TV.
- Accessibility©: Enter the Accessibility menu.
- Search©: Check out recommended contents. (Recommendation service may not be available depending on the countries you are in.)
- Voice Button (Microphone)©: Push and hold the button while speaking to use the voice recognition function.
- Home Button©: Башкы менюну көрсөтөт.
- Input Button©: Киргизүү булагын тандайт.
- Settings Button©: Entering into the Home Dashboard.
- Back Button©: Мурунку кадамга өтүңүз.
- Exit Button©: Менюну жабат.
- Quick Settings Button©: Ыкчам орнотуулар менюсуна кирет.
- All Settings Button©: Enters the All Settings menu.
- Launch Record Button©: Launch Record. (Some models may not be supported.)
Проблемаларды чечүү
- Алыстан жооп бербейт:
- Ensure batteries are correctly inserted and have sufficient charge. Replace with new AA batteries if necessary.
- Re-attempt the pairing process (see "Setup and Pairing" section).
- Ensure there are no obstructions between the remote and the TV's infrared receiver. This remote primarily operates via line-of-sight.
- Көрсөткүч функциясы иштебей жатат:
- Пульттун туура жупташтырылганын текшериңиз.
- Try re-pairing the remote using Method 2 (holding Home and Back buttons).
- Үн менен башкаруу иштебей жатат:
- Ensure the remote is properly paired and the TV supports voice control.
- Confirm that the voice button is being pressed and held while speaking.
- Check TV settings to ensure voice recognition is enabled.
- Buttons Feel Flimsy or Stick:
- This may indicate a manufacturing defect. Contact customer support for assistance.
Техникалык шарттар
| Бренд | Angrox |
| Модель номери | AN-MR21GA |
| Продукциянын өлчөмдөрү | 7.48 x 1.18 x 1.18 дюйм (18.54 x 4.06 x 1.77 см) |
| Элемент Салмагы | 3.2 унция |
| Батареялар талап кылынат | 2 AA батарейкалар (киргизилген эмес) |
| Өзгөчөлүктөр | Ergonomic design, No Programming Required, Universal compatibility (for specified LG models), Voice Search, Pointer Function |
| Колдоого алынган түзмөктөрдүн максималдуу саны | 1 |
| Шайкеш түзмөктөр | LG Smart Televisions (2021-2024 UHD, OLED, QNED, NanoCell series) |
Техникалык тейлөө
- Тазалоо: Пультту тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Суюк тазалоочу каражаттарды же абразивдүү материалдарды колдонбоңуз.
- Батареяны алмаштыруу: Пульттун иштеши начарлаганда батареяларды алмаштырыңыз. Эгерде пульт көпкө чейин колдонулбаса, агып кетүүнүн алдын алуу үчүн батареяларды алып салыңыз.
- Сактагыч: Пультту күн нурунан жана экстремалдык температурадан алыс, салкын, кургак жерде сактаңыз.
- Колдонуу: Avoid dropping the remote or subjecting it to strong impacts, as this can damage internal components.
Кепилдик жана колдоо
For warranty information or technical support, please contact the manufacturer, Angrox, directly through their official channels or the retailer where the product was purchased. Please retain your proof of purchase for warranty claims.
Manufacturer: Angror
Кошумча жардам алуу үчүн, сиз иш сапары менен болот Angrox Store on Amazon.
