Introduction
The Sofirn Q8 Plus is a high-performance, super bright rechargeable flashlight designed for various applications including camping, searching, survival, and emergency use. With a maximum output of 16000 lumens and a beam distance of 605 yards, it provides exceptional illumination. Its robust construction and advanced features ensure reliability and versatility.
Figure 1: Sofirn Q8 Plus Flashlight
Кутуда эмне бар
- Sofirn Q8 Plus Flashlight
- Батарея (алдын ала орнотулган)
- USB-C Charging Cable (not included in all kits, check packaging)
- User Manual
Жайгашуу
- Батарея орнотуу: The flashlight comes with batteries pre-installed. Before first use, remove the insulation paper from the battery compartment.
- Компоненттерди бекемдөө: Fully tighten the head and tailcap of the flashlight to ensure proper electrical contact and water resistance.
- Баштапкы төлөм: It is recommended to fully charge the flashlight before its first use. Connect the USB-C charging cable to the flashlight's port and a compatible power source. The indicator light will flash blue during charging and turn steady blue when fully charged.

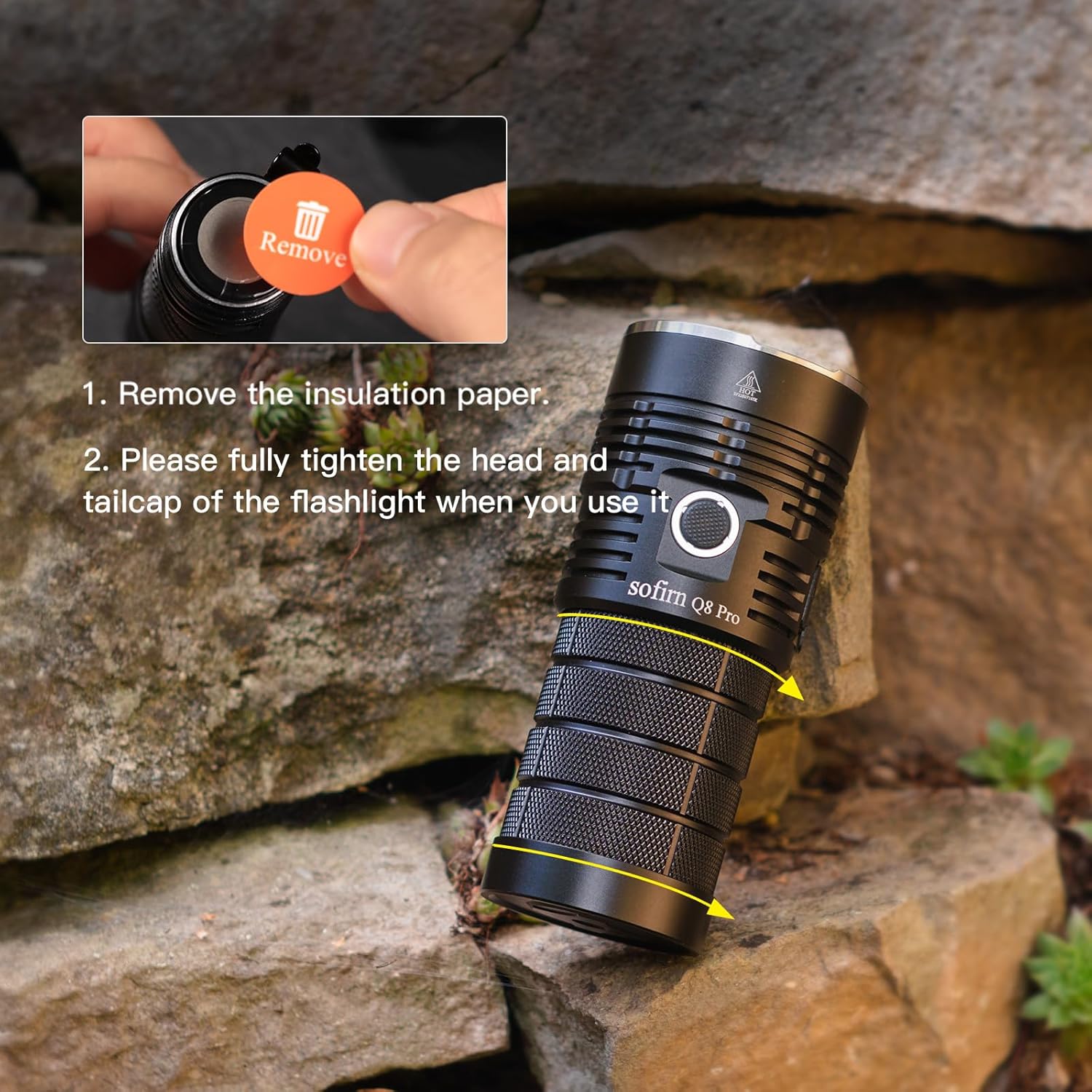

Figure 2: Initial Setup - Remove insulation paper and tighten components.
Figure 3: USB-C Charging and Discharging Indicator Status.
Иштөө нускамалары
The Sofirn Q8 Plus utilizes the versatile Anduril 2.0 User Interface (UI), offering both simple and advanced modes for various lighting needs.
Basic Lighting Modes
- Ай: Lowest brightness for subtle illumination.
- Төмөн: Suitable for close-range tasks.
- Орточо: Жалпы колдонуу үчүн тең салмактуу жарык.
- Жогорку: Powerful illumination for wider areas.
- Турбо: Maximum 16000 lumens for intense, short-duration lighting.
Figure 4: Approximate Runtime for Various Brightness Modes.
Anduril 2.0 UI Overview
Anduril 2.0 provides extensive control over the flashlight's functions. It includes features to control strobe speed and brightness, check battery voltage and temperature, and more. Refer to the detailed UI diagram for specific click sequences and functionalities.
Figure 5: Anduril 2.0 User Interface Flowchart.
Бөгөттөө режими
The side switch features a lockout mode to prevent accidental activation, which is useful when carrying the flashlight in a backpack or pocket.
Figure 6: Side Switch with Lockout Feature.
Расмий продукт Video
Watch the official Sofirn Q8 Plus rechargeable flashlight video for a visual guide on its features and operation.
Video 1: Sofirn Q8Plus rechargeable flashlight. This video demonstrates the flashlight's features and brightness in various settings.
Техникалык тейлөө
To ensure the longevity and optimal performance of your Sofirn Q8 Plus flashlight, follow these maintenance guidelines:
- Тазалоо: Фонарьды таза, жумшак чүпүрөк менен сүртүңүз. Абразивдүү материалдарды же катуу химиялык заттарды колдонуудан алыс болуңуз.
- Суу каршылык: The flashlight is IPX8 rated, meaning it can withstand harsh environments like heavy rains, storms, and hurricanes. However, ensure all caps and seals are tightly closed before exposure to water.
- Батареяга кам көрүү: Store the flashlight with partially charged batteries if not in use for extended periods. Avoid fully discharging batteries frequently.
- Майлоо: Суу өткөрбөй тургандыгын жана жылмакай иштешин сактоо үчүн О-шакектерге жана жиптерге мезгил-мезгили менен силикон майын сүйкөп туруңуз.
Figure 7: IPX8 Waterproof and Aerospace-grade Aluminum Construction.
Проблемаларды чечүү
If you encounter issues with your Sofirn Q8 Plus flashlight, try the following common troubleshooting steps:
- Кол чырак күйбөй жатат: Ensure batteries are correctly inserted and fully charged. Check that the head and tailcap are tightly screwed on.
- Күңүрт же бүлбүлдөгөн жарык: Recharge the batteries. Clean battery contacts and threads.
- Ашыкча ысып кетүү: In Turbo mode, the flashlight may get hot quickly. This is normal, and the flashlight has built-in thermal regulation to step down brightness to prevent damage.
- Заряддоо маселелери: Ensure the USB-C cable is properly connected. Try a different cable or power adapter. Check the indicator light status.
Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | софирн |
| Модел | Q8PlusKIT |
| Өзгөчө өзгөчөлүк | Зарядкалуу |
| Түс | Q8Plus-6500K |
| Power Source | Батарея менен иштейт |
| Жарык булагы түрү | LED |
| Материал | Алюминий |
| White Brightness | 16000 люмен (макс.) |
| Жарык жол аралык | 605 ярд |
| Батарея клеткасынын курамы | Литий ион |
| Элемент Салмагы | 2 фунт |
| Runtime | 10 hours (at 1800 lumens) |
| Сууга туруктуулук деңгээли | IPX8 |
| Продукциянын өлчөмдөрү | 4.7"D x 1.9"W x 2.3"H |
Кепилдик жана колдоо
Sofirn provides a perfect warranty with helpful customer service. For any product-related inquiries, technical support, or warranty claims, please contact Sofirn customer service directly through their official channels or the retailer where the product was purchased.
Кепилдикти текшерүү үчүн сатып алганыңыздын далилин сактап коюңуз.
