Introduction
Сатып алганыңыз үчүн рахматasing the OUTON Floor Lamp with Table. This integrated unit combines a functional floor lamp with a convenient side table, featuring charging ports and adjustable lighting. This manual provides essential information for safe assembly, operation, and maintenance of your new product. Please read it thoroughly before use and retain it for future reference.
Продукт өзгөчөлүктөрү
- Integrated Floor Lamp with Built-in Shelf: Combines lighting with a display area for small items. The lamp arm can rotate for adjustable illumination.
- 4 Color Temperature & Stepless Dimmable: Features a 9W (810LM) LED light with stepless brightness dimming (5%-100%) and four color temperature options (3000K/4000K/5000K/6000K).
- Side Table with Charging Ports: Includes 5V 2A USB and Type-C charging ports, accessible whether the lamp күйүк же өчүк.
- Includes Bulb and Remote Control: Comes with an energy-efficient LED bulb and a magnetic remote control with a 49-foot range.
- Rotatable Cloth Cover & Easy Assembly: лampshade can be rotated 180 degrees. Assembly is straightforward with included instructions and no extra tools required.
Орнотуу жана чогултуу
OUTON Floor Lamp with Table is designed for easy assembly. Follow the included assembly drawings. No additional tools are required.

Сүрөт: Components laid out for easy assembly, including shelves, poles, lamp head, and power unit.
Видео: Official OUTON video demonstrating the assembly process for the Floor Lamp with Table. This video shows how to connect the table shelves to the lamp's frame and attach the lampкөлөкө.
Видео: Official OUTON video showcasing the assembly of the Floor Lamp with Shelf, highlighting the ease of putting together the components.
Иштөө нускамалары
Light Control
лamp can be controlled using the included magnetic remote control or the foot pedal switch. The remote offers comprehensive control over brightness, color temperature, and special modes.

Сүрөт: Customizable light settings and dimming levels controlled by the remote.

Сүрөт: Dual control options: remote control and foot pedal switch.
- Күйгүзүү/өчүрүү: Use the power button on the remote or step on the foot pedal switch.
- Жарыктыкты жөндөө: Use the '+' and '-' buttons on the remote for stepless dimming (5%-100%).
- Түс температурасы: Use the 'K' button to cycle through 3000K (Warm White), 4000K (Daylight), 5000K (Cool White), and 6000K (Cool White).
- Алдын ала коюлган режимдер: The remote includes buttons for specific lighting modes such as Reading Mode (book icon), Working Mode (laptop icon), Breastfeeding Mode (bottle icon), and Night Light Mode (moon icon).
- Таймер функциясы: Set a 1-hour timer using the '1H' button on the remote.
- Эстутум функциясы: лamp remembers your last brightness and color temperature settings when turned off and on.
- Жөнгө салынуучу Лampкөлөкө: лampshade can be rotated 180 degrees to direct light as needed.

Сүрөт: Examples of different lighting modes for various activities.
Заряддоо порттору
The side table is equipped with convenient charging ports.

Сүрөт: Close-up of the 3-in-1 charging station on the side table.
- AC розетка: One 125V/12A AC outlet for standard electrical devices.
- USB A порту: One 5V/2A USB A charging port.
- USB C порту: One 5V/2A USB Type-C charging port.
- These ports are functional whether the lamp күйгүзүлгөн же өчүрүлгөн.
Видео: Official OUTON video demonstrating the use of the charging ports on the Floor Lamp with Table.
Техникалык тейлөө
To ensure the longevity and optimal performance of your OUTON Floor Lamp with Table, follow these maintenance guidelines:
- Тазалоо: л сүртamp and table surfaces with a soft, dry cloth. Avoid using abrasive cleaners or solvents that may damage the finish.
- Лампаны алмаштыруу: лamp uses a 9-watt E26 LED bulb. Ensure the lamp is unplugged before replacing the bulb. Use only compatible LED bulbs (maximum 60 Watts).
- Шнур кам көрүү: Regularly inspect the power cord for any damage. Keep the cord away from heat sources and sharp objects.
- Туруктуулук: Periodically check all connections and screws to ensure they are tight and secure.
Проблемаларды чечүү
If you encounter any issues with your OUTON Floor Lamp with Table, please refer to the following common solutions:
- Lamp Күйгүзүлбөйт:
- Электр шнурунун иштеген электр розеткасына бекем сайылганын текшериңиз.
- Check if the bulb is correctly installed and not burnt out.
- Verify that the foot pedal switch is pressed to the 'on' position.
- Confirm the remote control batteries are functional and the remote is within range.
- Заряддоо порттору иштебейт:
- Ensure the foot switch is kept on for the charging ports to function.
- Verify that the devices are connected with the correct charging cables.
- Check if the main power switch for the charging ports (if present) is in the 'on' position.
- Алыстан башкаруу жооп бербейт:
- Пульттун батарейкаларын алмаштырыңыз.
- Пульт менен l ортосунда эч кандай тоскоолдуктар жок экендигин текшериңизamp.
If the issue persists, please contact OUTON customer support for further assistance.
Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель номери | ZZZ01 |
| Бренд | ОУТОН |
| Продукциянын өлчөмдөрү | 16"D x 12"W x 62"H |
| Элемент Салмагы | 12.39 фунт (5.63 килограмм) |
| Материал | Linen (Shade), Wood (Base) |
| Аяктоо түрү | Лакталган |
| Жарык булагы түрү | LED |
| Ватtage | 9 watts (Max Compatible 60 Watts) |
| Жарыктык | 810 Lumens |
| Түс температурасы | 3000K/4000K/5000K/6000K (Adjustable) |
| Башкаруу ыкмасы | Алыстан башкаруу |
| Өзгөчөлүктөр | Adjustable Color Temperature, Dimmable, Memory Function, USB & Type-C Charging Ports, AC Outlet |
| Камтылган компоненттер | Bulb, Power Cable, Remote Control |

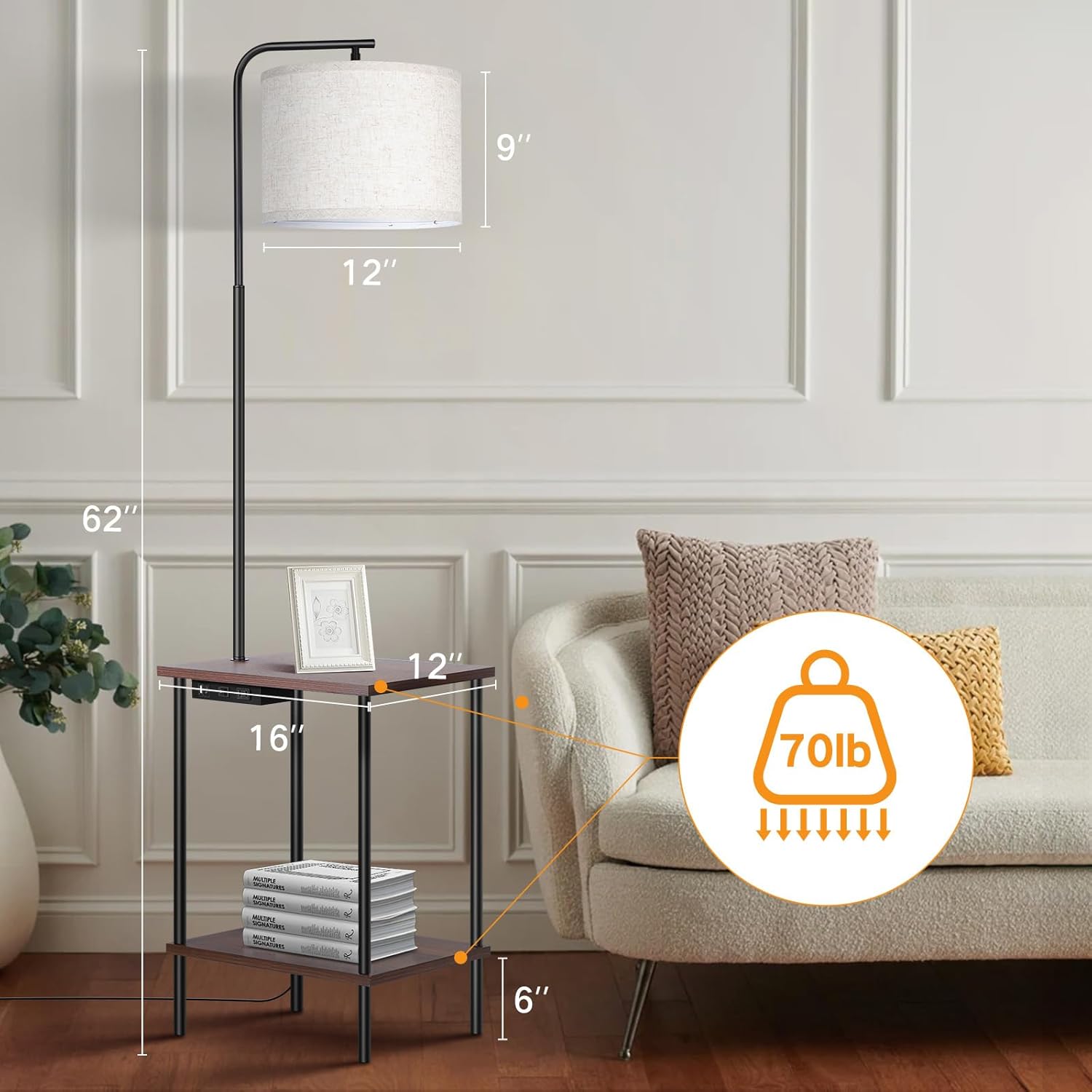

Сүрөт: Product dimensions for the OUTON Floor Lamp with Table.

Сүрөт: Energy efficiency label for the included LED bulb. For more details, visit EPREL маалымат базасы.
Кепилдик жана колдоо
OUTON products are designed for quality and durability. For any warranty claims, technical support, or questions not covered in this manual, please contact OUTON customer service directly. Refer to your purchase documentation for specific warranty terms and contact information.
