Introduction
This manual provides essential instructions for the safe and efficient use of your VOLANTEXRC 1S 3.7V Lithium Battery USB Charger. This charger is designed for specific VOLANTEXRC remote control airplane lithium batteries.
Продукт бүттүview
The VOLANTEXRC 1S 3.7V Lithium Battery USB Charger (Model PC3201X2) is a compact and portable charging solution for your RC airplane batteries. It features a standard USB plug for versatile power input and a dedicated connector for 1S 3.7V lithium batteries.
Image 1: Two VOLANTEXRC 1S 3.7V Lithium Battery USB Chargers. Each charger consists of a standard USB-A plug on one end and a small white battery connector on the other, connected by a black cable.
Кутуда эмне бар
- 2 x VOLANTEXRC 1S Lithium Battery USB Charger
Note: Batteries and airplanes are sold separately.
Жайгашуу
Before charging, ensure you have a compatible 1S 3.7V lithium battery and a suitable USB power source.
- Батареянын түрүн аныктоо: Confirm your battery is a 1S 3.7V lithium battery with the correct connector type for this charger.
- Кубат Булагына туташуу: Plug the USB-A end of the charger into a compatible USB power source. This can be a power bank, car charger, wall charger, AC adapter, laptop, or PC.
- Observe Indicator Light: The charger typically has an indicator light. Refer to the "Operating Instructions" section for details on light behavior.
Image 2: The VOLANTEXRC USB charger shown alongside two 1S 3.7V lithium batteries of different capacities (250mAh and 180mAh), illustrating the battery types it is designed to charge.
Иштөө нускамалары
Follow these steps to charge your 1S 3.7V lithium battery safely.
- Батареяны туташтыруу: Carefully connect your 1S 3.7V lithium battery to the small white connector on the charger. Ensure the polarity is correct to avoid damage.
- Заряддоо көрсөткүчү:
- When the battery is charging, the indicator light on the charger will typically be КЫЗЫЛ.
- When the battery is fully charged, the indicator light will typically turn ЖАШЫЛ же бурулуу ӨЧҮРҮҮ, depending on the charger version.
- Батареяны ажыратыңыз: Once the battery is fully charged (indicator light changes), disconnect the battery from the charger.
- Кубатты өчүрүү: Unplug the USB charger from the power source when not in use.
Маанилүү: Do not leave charging batteries unattended. Always charge in a fire-safe area.
Техникалык тейлөө
Proper care will extend the life of your charger.
- Кубаттоочу түзүлүштү таза жана кургак кармаңыз. Нымдуулукка же өтө жогорку температурага дуушар кылбаңыз.
- Заряддагычты ажыратууга же өзгөртүүгө аракет кылбаңыз.
- Заряддоо түзүлүштү колдонбогондо салкын, кургак жерде сактаңыз.
- Regularly inspect the cable and connectors for any signs of damage. Discontinue use if damage is observed.
Проблемаларды чечүү
Эгер көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү жана аларды чечүү жолдорун караңыз.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Charger light does not turn on. | No power from USB source, or faulty connection. | Ensure USB power source is active. Try a different USB port or power adapter. Check charger cable for damage. |
| Батарея заряддалбайт. | Incorrect battery type, poor connection, or faulty battery. | Verify battery is 1S 3.7V lithium. Reconnect battery firmly. Test with a different known-good battery. |
| Charging light remains RED (or charging state) for an extended period. | Battery is deeply discharged, or charger/battery fault. | Allow more time for charging. If it persists unusually long, disconnect and check battery health. Do not overcharge. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | PC3201X2 |
| Киргизүү көлөмүtage | 5 Вольт (USB) |
| Батарея түрү | 1S 3.7V Lithium Battery |
| Продукциянын өлчөмдөрү | Approximately 3 x 3 x 3 inches (packaging/overall item size) |
| Элемент Салмагы | 2.89 унция (0.08 килограмм) |
| Compatible RC Airplanes | VOLANTEXRC 761-1 Trainstar Mini, 761-2 Ranger600, 761-2W Ranger600 WIFI, 761-3 Super Cub 500, 761-4 Sport Cub 500, 761-5 P-51 Mustang, 761-6 Ranger400, 761-7 F-22 Raptor, 761-8 F4U Corsair, 761-9 T-28 Trojan, 761-10 F-16 Raptor, 762-2 Sport Cub S2 |
Image 3: The VOLANTEXRC USB charger displayed with a VOLANTEXRC 761-1 Trainstar Mini RC airplane and its remote control, illustrating a compatible product.
Image 4: The VOLANTEXRC USB charger displayed with a VOLANTEXRC 761-2 Ranger600 RC airplane and its remote control, illustrating another compatible product.
Image 5: The VOLANTEXRC USB charger displayed with a VOLANTEXRC 761-5 P-51 Mustang and a 761-7 F-22 Raptor RC airplane, along with their remote controls, showcasing compatible models.
Image 6: The VOLANTEXRC USB charger displayed with a VOLANTEXRC 761-8 F4U Corsair and a 761-4 Sport Cub RC airplane, along with their remote controls, showcasing compatible models.

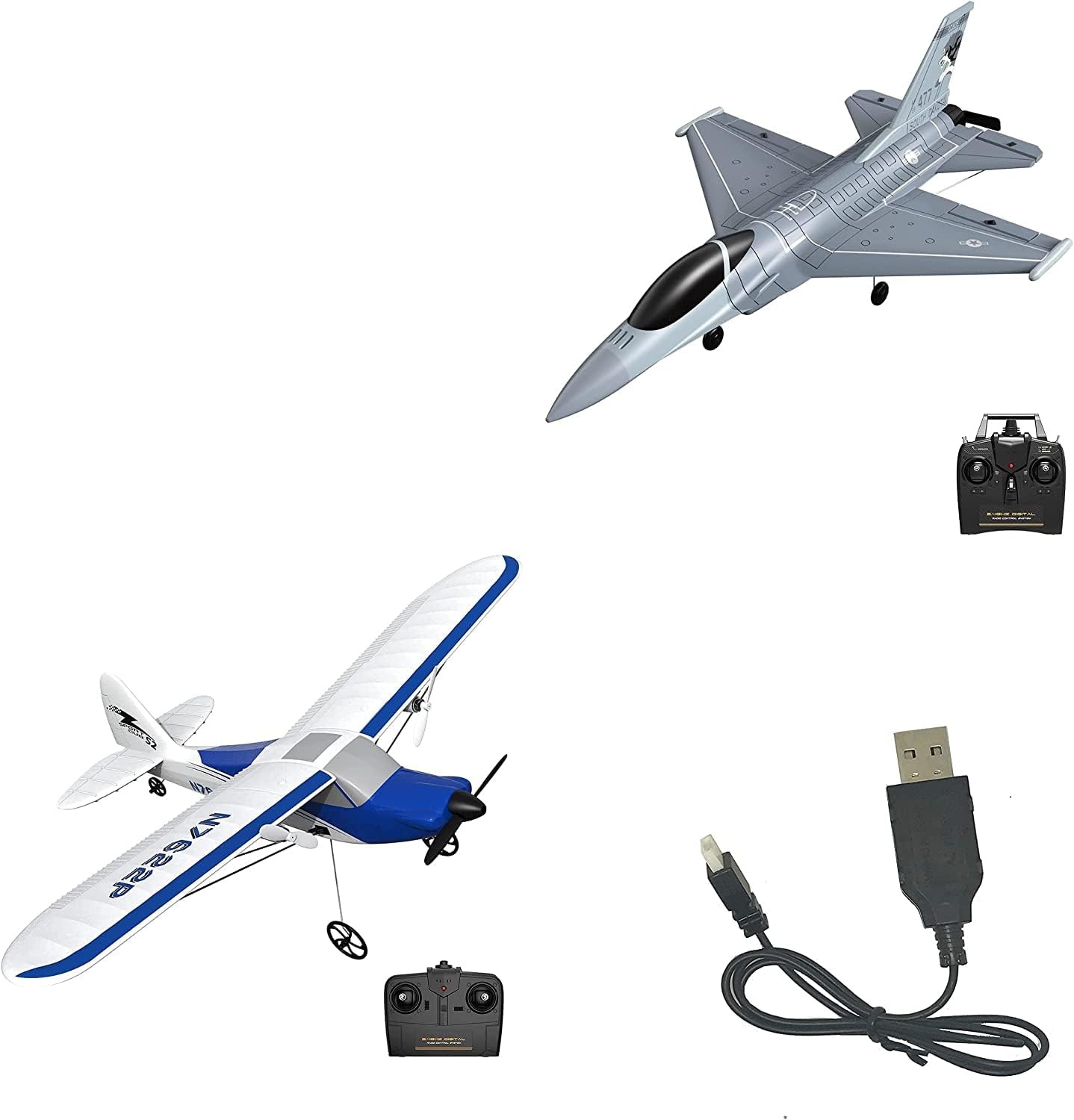

Image 7: The VOLANTEXRC USB charger displayed with a VOLANTEXRC 761-10 F-16 Raptor and a 762-2 Sport Cub S2 RC airplane, along with their remote controls, showcasing compatible models.
Кепилдик жана колдоо
For warranty information or technical support, please refer to the official VOLANTEXRC webсайтка же сатуучуга кайрылыңыз. Кепилдик дооматтар үчүн сатып алуу дүмүрчөгүңүздү сактаңыз.
Manufacturer: EXHOBBY
Date First Available: August 29, 2022
