LifePlus Commercial Ice Maker Machine

Продукт бүттүview

The LifePlus DBJ32 Commercial Ice Maker Machine is designed for efficient and reliable ice production, suitable for both commercial and large household use. It features a high ice-making capacity, adjustable ice thickness, and convenient self-cleaning functions. This manual provides detailed instructions for safe and optimal operation.

Figure 1: LifePlus Commercial Ice Maker Machine (Model DBJ32)

This image displays the overall appearance of the LifePlus DBJ32 ice maker, showcasing its compact design and front control panel.

Орнотуу жана орнотуу

Before initial use, allow the ice maker to stand upright for at least 24 hours. This allows the refrigerant to settle, ensuring proper operation and longevity of the unit.

Камтылган аксессуарлар

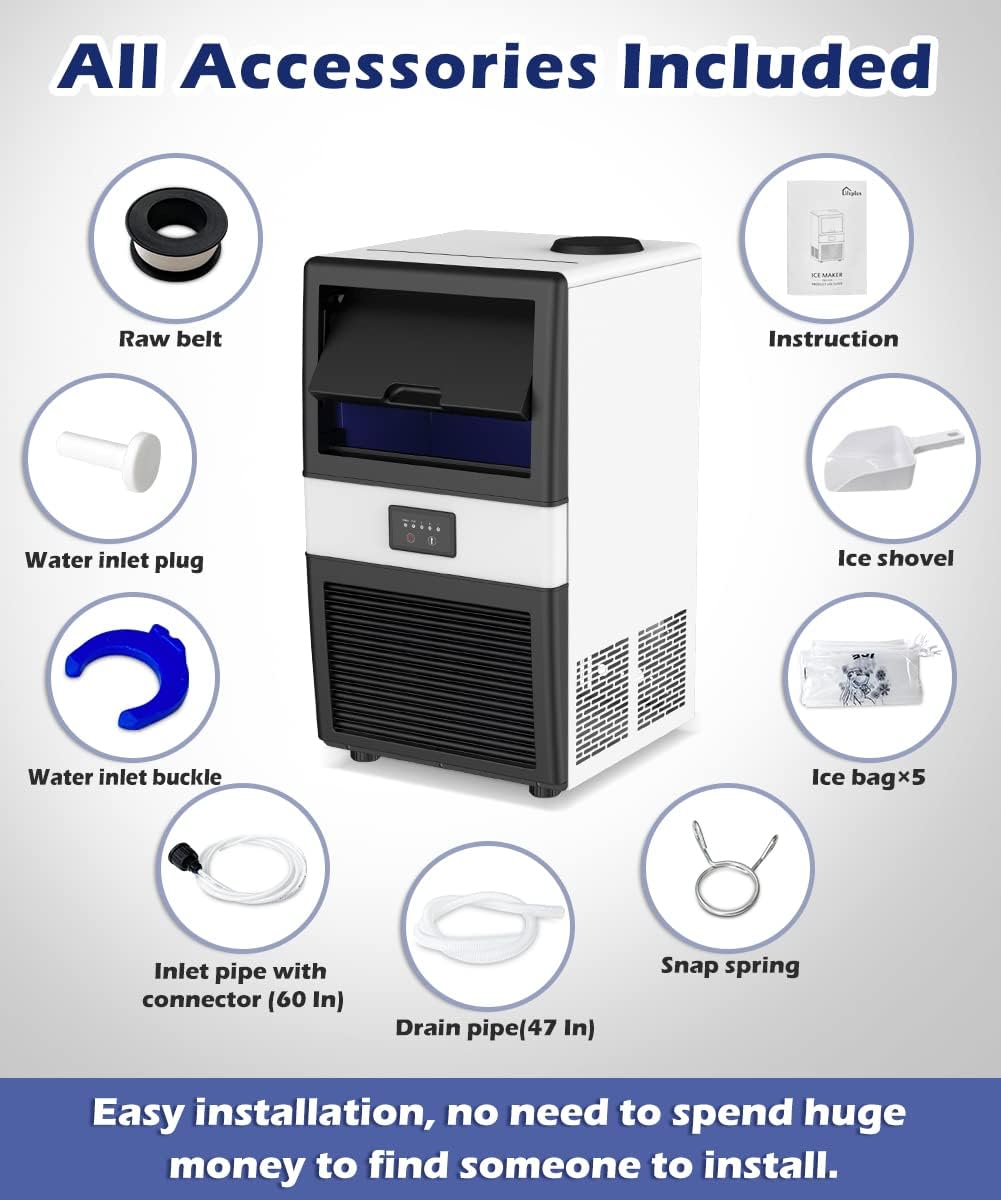

Сүрөт 2: Камтылган аксессуарлар

This image shows all components supplied with the ice maker, including the raw belt, water inlet plug, water inlet buckle, inlet pipe with connector (60 In), drain pipe (47 In), snap spring, instruction manual, ice shovel, and five ice bags.

Жайгаштыруу

The LifePlus DBJ32 ice maker is designed for versatile placement, functioning as an under-counter or freestanding unit. Ensure adequate ventilation around the machine.

Figure 3: Compact Size and Placement Options

This image illustrates the compact dimensions of the ice maker (13.8"D x 14.1"W x 24.8"H), demonstrating its suitability for both under-counter and freestanding installations in various settings like homes, offices, bars, and restaurants.

Суу киргизүү режимдери

The ice maker supports two water inlet modes: direct tap water connection or using a water jug (e.g., 5-gallon water bottles).

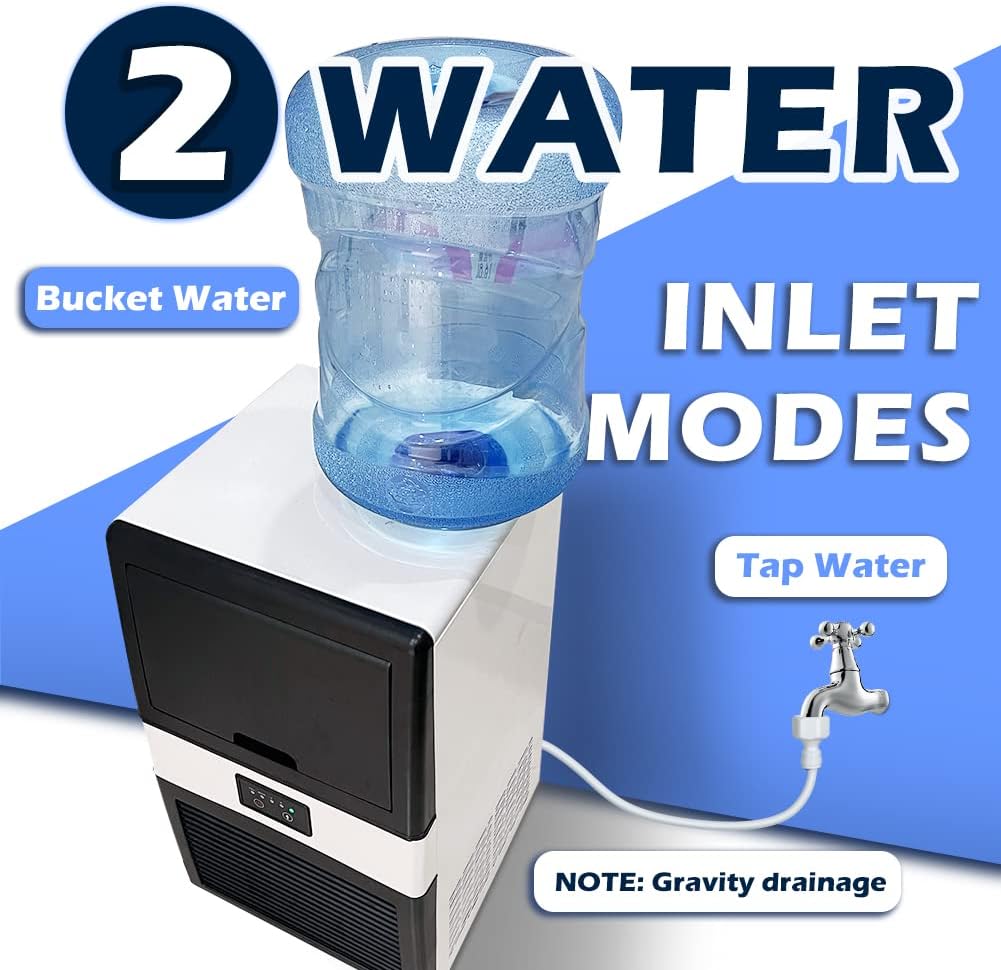

Figure 4: Two Water Inlet Modes

This image highlights the two water inlet options: direct tap water connection and the use of a bucket or water jug. It also notes that the system uses gravity drainage.

Дренаждык шлангдын туташуусу

Regardless of the water inlet mode, the drain hose must be connected before use. The ice maker utilizes gravity drainage, so a water container needs to be prepared in advance to collect the drained water.

1. Hook up the water drain hose to the water outlet (not the sewage outlet).
2. Fix the drain hose with the provided snap spring.
3. Ensure the drain hose is positioned to allow gravity drainage into a suitable container.

Tap Water Inlet Mode

1. Adjust the water inlet valve to the tap water inlet mode.
2. Insert the water inlet hose and fix it with the blue buckle.
3. Hook up the tap water connection. Use sealing tape to strengthen the sealing and prevent leaks.

Bucket Water Inlet Mode

1. Adjust the water inlet valve to the bucket water inlet mode.
2. Open the top cover and place a water jug (e.g., 5-gallon bottle) into the designated opening.

Initial Water Filling

After connecting the water supply, wait for the 'Water Shortage' indicator light to go out before proceeding with ice making.

Иштөө нускамалары

The LifePlus DBJ32 ice maker can produce up to 70 pounds of ice in 24 hours, with 32 ice cubes per cycle, taking approximately 11-20 minutes per cycle.

Figure 5: Super Fast Ice Making Speed

This image highlights the ice maker's performance, stating it produces 70 LBS of ice per 24 hours, 32 ice cubes per cycle, and has a 10 LBS ice bin. It clarifies that the ice bin is not a refrigerator.

Жөнгө салынуучу муздун калыңдыгы

You can select from three ice cube thicknesses (S/M/L) according to your preference using the control panel.

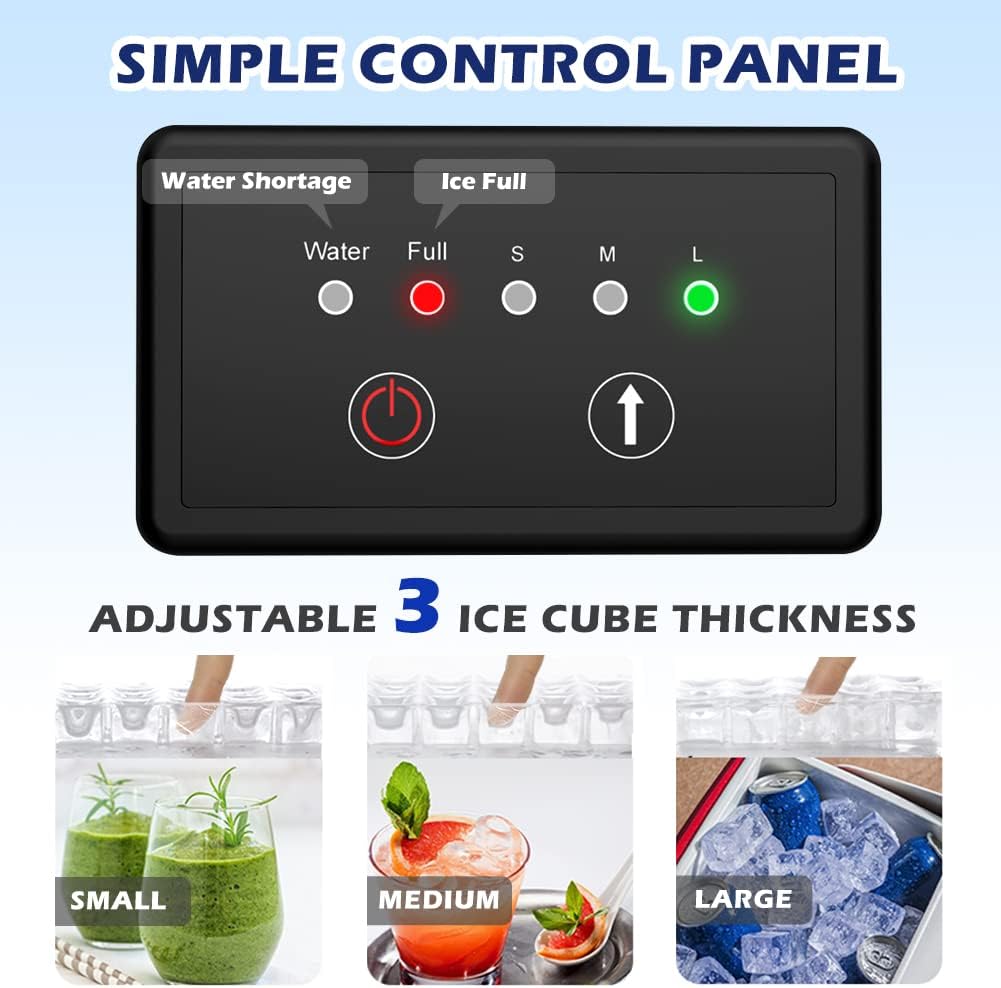

Figure 6: Simple Control Panel and Adjustable Ice Thickness

This image shows the ice maker's control panel with indicators for 'Water Shortage' and 'Ice Full', along with buttons to select small (S), medium (M), or large (L) ice cube thickness. Examples of small, medium, and large ice cubes are also shown.

Муз өндүрүшүн баштоо

1. Click the arrow button on the control panel to select your desired ice thickness (S, M, or L).
2. Then, click the power button to start the ice making process.
3. The ice maker will automatically produce ice.

Муз сактагыч

The ice bin has a capacity of 0.22 Cu.Ft. (approximately 10 LBS). It features overflow protection, which automatically stops ice production when the bin is full.

Маанилүү эскертүү:

The ice bin does not have a freezing function. Ice will melt over time. It is recommended to take out the ice in time to prevent excessive melting. If the ice is thick, it may not separate easily after falling into the bin. It is suggested to use the provided ice shovel to separate the ice, which also allows the bin to hold more ice.

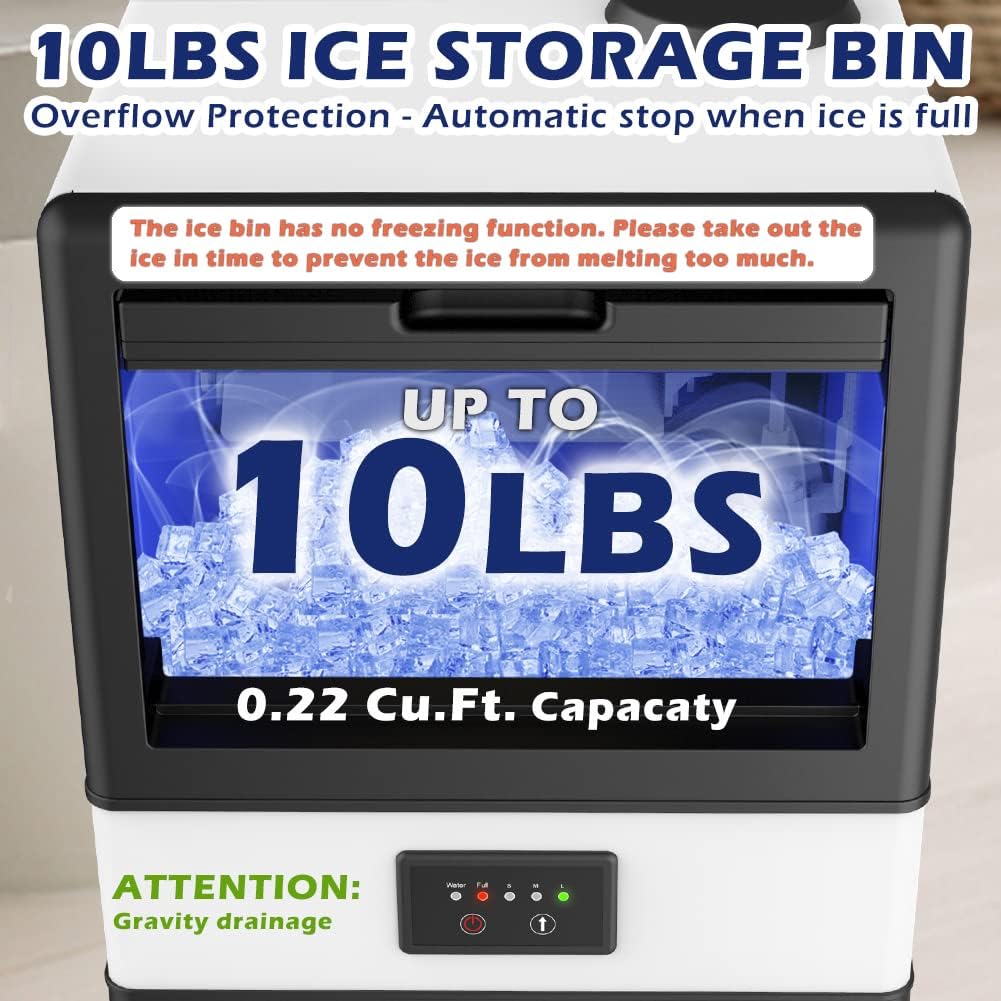

Figure 7: 10LBS Ice Storage Bin

This image shows the ice storage bin with a capacity of up to 10 LBS and highlights the overflow protection feature. A crucial note reminds users that the bin has no freezing function and ice should be removed promptly to prevent melting.

Figure 8: Excellent Thermal Insulation

This image illustrates the internal thermal insulation foam layer, which helps to slow down the melting speed of the ice within the storage bin.

Техникалык тейлөө

Өзүн-өзү тазалоо функциясы

The ice maker is equipped with a self-cleaning function to simplify maintenance. It is recommended to perform self-cleaning regularly, especially after prolonged use.

1. In the off state, press and hold the arrow button for 5 seconds to initiate the self-cleaning cycle.
2. The machine will begin the cleaning process.
3. After cleaning is complete, pull out the sewage outlet plug (located at the back/bottom of the machine) and empty the sewage from the ice maker.

Figure 9: Self-Cleaning Function

This diagram illustrates the self-cleaning process, showing how clean water enters the system and sewage is discharged, simplifying the maintenance routine.

Проблемаларды чечүү

Техникалык шарттар

• Бренд: LifePlus
• Модель аты: Commercial Ice Maker, Countertop Ice Maker
• Продукциянын өлчөмдөрү: 13.8"D x 14.1"W x 24.8"H
• Муз кутусунун сыйымдуулугу: 10 Pounds (0.22 Cubic Feet)
• Ватtage: 280 ватт
• Тtage: 110 вольт
• Хладагент: R600a
• Элемент Салмагы: 55 фунт
• Модель номери: DBJ32
• Орнотуу түрү: Countertop, Freestanding, Undercounter
• Түсү: Ак
• Сертификаттар: ETL, FDA
• Камтылган компоненттер: Water Line Connection Kits

Кепилдик жана колдоо

For warranty information and customer support, please refer to the documentation included with your product or contact LifePlus customer service directly. Details can often be found on the manufacturer's official webсайт же сатып алуу пункту аркылуу.
