1. Киришүү
Thank you for choosing the EverBrite Solar Outdoor Lights. This manual provides essential information for the proper installation, operation, and maintenance of your new solar motion sensor light. Please read it thoroughly before use and retain it for future reference.
Image: The EverBrite Solar Outdoor Light, showcasing its three adjustable LED heads and integrated solar panel.
2. Продукциянын өзгөчөлүктөрү
- Solar Motion Sensor Lights: Equipped with a 120-degree angle and sensitive motion sensor for wide and immediate illumination. Provides 30 seconds of light upon motion detection, automatically turning off if no motion is detected.
- Wide Angle Illumination: Features 128 super bright LED beads, producing up to 7000K high brightness output. Three adjustable heads can move upwards, downwards, and horizontally, offering a 270° wide lighting angle and 26 feet sensing distance.
- Switch Control and Longer Lasted Battery: Controlled by an ON/OFF switch. Includes an 1800 mAh rechargeable lithium-ion battery for brighter and longer-term operation. Charges automatically during the day and activates in darkness.
- IP65 Суу өткөрбөйт: Constructed from durable ABS material, ensuring resilience against elements and bad weather. Suitable for outdoor patios, gardens, lawns, decks, yards, drives, outside walls, fences, etc.
- Оңой орнотуу: Comes with a fixed buckle for hanging, allowing easy installation wherever desired. The solar panel and spotlights can be rotated to any angle.
Image: The EverBrite light is designed for all seasons, showcasing its IP65 waterproof rating and resistance to cold, heat, and frost.
3. Пакеттин мазмуну
Сураныч, бардык компоненттер бар экенин текшерүү үчүн пакетти текшериңиз:
- EverBrite Solar Outdoor Light Unit (with integrated solar panel, PIR Motion Sensor, and Lamp баштары)
- Кронштейн орнотуу
- Mounting Hardware (M4x35mm screws and 6x30mm wall plugs)
Image: A detailed breakdown of the product accessories included in the package.
4. Орнотуу жана орнотуу
Оптималдуу аткаруу үчүн бул кадамдарды аткарыңыз:
- Жайгашкан жерди тандаңыз: Select a location that receives direct sunlight for at least 6-8 hours a day to ensure effective battery charging. The recommended mounting height is 5-8 feet (1.5-2.4 meters) from the ground.
- Монтаждык кронштейнди орнотуу: Use the provided screws and wall plugs to securely attach the mounting bracket to the desired surface (e.g., wall, fence).
- Buckle the Light: Carefully slide the EverBrite light unit onto the installed mounting bracket until it clicks securely into place.
- Күн панелин тууралоо: Ensure the solar panel is facing upwards towards the sun to maximize charging efficiency.
- жөндөө Lamp Жетекчилер: Rotate the three lamp heads individually to cover the desired lighting area.
- Жарыкты иштетүү: Locate the ON/OFF switch on the back of the solar panel and turn it to the 'ON' position before initial use.
Image: Step-by-step visual guide for installing the EverBrite Solar Outdoor Light.

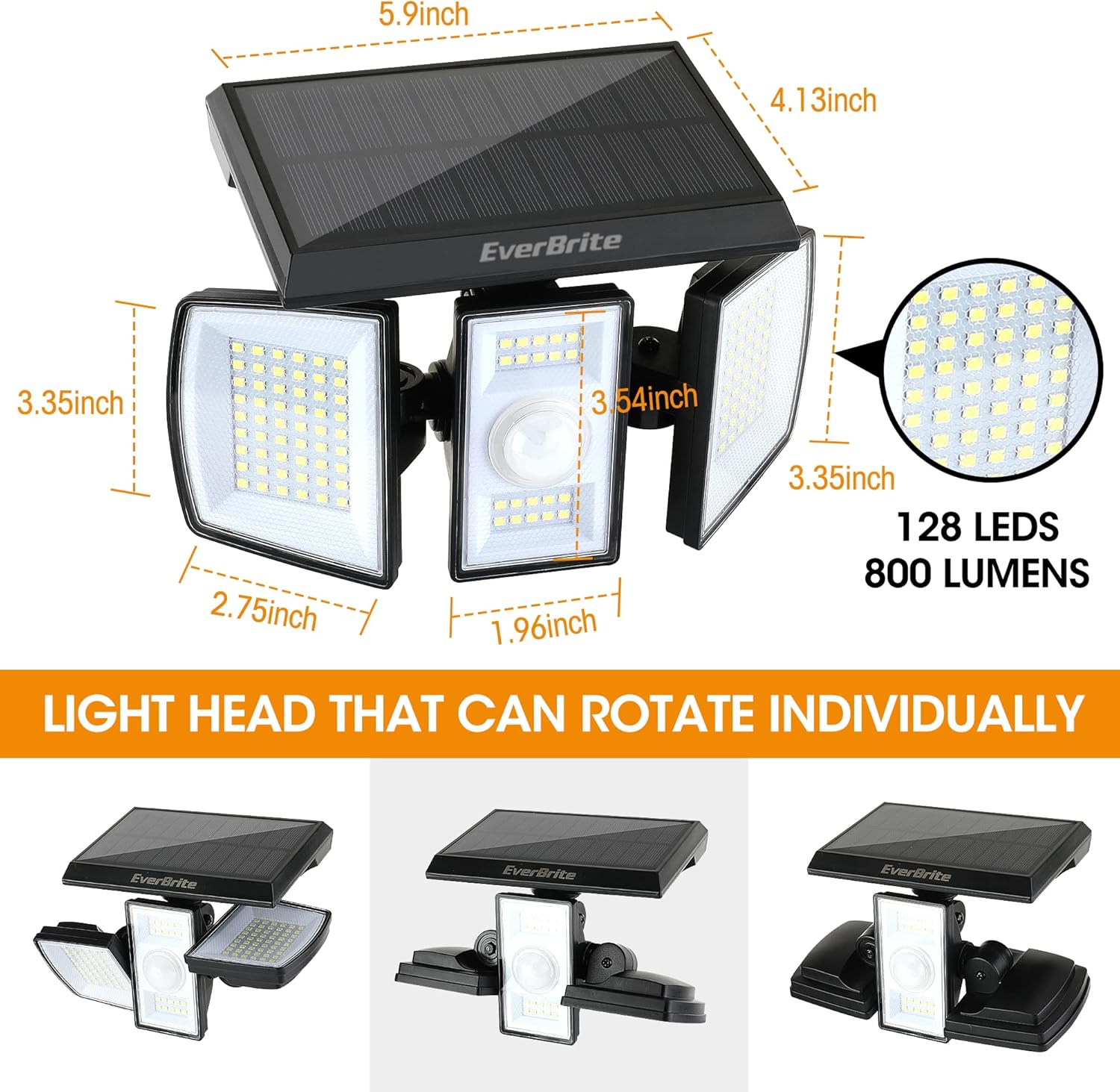

Image: Illustration of the light's dimensions and the individual rotation capability of each lamp баш.
5. Иштөө нускамалары
The EverBrite Solar Outdoor Light operates automatically based on light conditions and motion detection.
Автоматтык иштетүү:
- During the day, the solar panel converts sunlight into electricity and stores it in the internal rechargeable battery. The light will remain off.
- At night or in dark conditions, the light will automatically enter standby mode.
- When motion is detected within the 26-foot sensing distance and 120-degree sensing angle, the light will turn on at full brightness for approximately 30 seconds.
- If no further motion is detected, the light will automatically turn off after 30 seconds to conserve battery power.
Image: The light charges during the day and illuminates automatically at night.
Image: Explanation of the light's induction modes, showing how it responds to motion.
Image: Visual representation of the light's wide irradiation range and motion sensing capabilities.
Расмий продукт Video:
Video: An official demonstration of the EverBrite Solar Motion Sensor Light in action, highlighting its features and performance.
6. Техникалык тейлөө
To ensure the longevity and optimal performance of your EverBrite Solar Outdoor Light, consider the following maintenance tips:
- Күн панелин тазалоо: Дайыма күн панелин жумшак менен сүртүп, гamp чаңды, кирди, жалбырактарды же карды кетирүү үчүн кездеме. Таза панель күн нурун максималдуу сиңирүүнү жана заряддоонун натыйжалуулугун камсыз кылат.
- Тоскоолдуктарды текшерүү: Periodically check that no trees, bushes, or other objects are blocking direct sunlight from reaching the solar panel.
- Байланыштарды текшерүү: Ensure all mounting hardware remains secure and the light unit is firmly attached to the bracket.
- Батареяга кам көрүү: The integrated lithium-ion battery is designed for long life. Avoid prolonged storage in a completely discharged state. If storing for an extended period, fully charge the light and then store it in a cool, dry place.
7. Кыйынчылыктарды
If you encounter issues with your EverBrite Solar Outdoor Light, please refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түнкүсүн жарык күйбөйт. | Battery not charged; ON/OFF switch is off; Solar panel is dirty or obstructed; Insufficient sunlight. | Ensure switch is ON. Clean solar panel. Relocate light to an area with more direct sunlight. Allow 1-2 sunny days for full charge. |
| Жарык күндүзү күйүп турат. | Light sensor is obstructed or in a dark area. | Ensure the solar panel and light sensor are exposed to ambient light during the day. Move light to a brighter location. |
| Жарык күңүрт же кыска убакытка гана күйүп турат. | Insufficient charging; Battery capacity reduced due to age or extreme temperatures. | Ensure solar panel is clean and receives maximum direct sunlight. Allow several sunny days for full charge. Performance may be reduced in winter or cloudy weather. |
| Кыймыл сенсору аныкталбай жатат. | Sensor is obstructed; Object is outside sensing range/angle; Extreme temperatures affecting sensor. | Clear any obstructions from the sensor. Ensure movement is within 26 feet and 120-degree angle. |
8. Техникалык шарттар
| Спецификация | Деталь |
|---|---|
| Бренд | EverBrite |
| Модель номери | E021039 |
| Түс | Ак |
| Материал | Акрилонитрил бутадиен стирол (ABS) |
| Жарык берүүчү форма | Спутник |
| Продукциянын өлчөмдөрү | 5"L x 4.5"W x 6.3"H (12.7 x 11.4 x 16 см) |
| Элемент Салмагы | 1.12 фунт (0.51 кг) |
| Ички/тышкы колдонуу | Сыртта |
| Power Source | Күн энергиясы |
| Орнотуу түрү | Дубалга орнотуу |
| Өзгөчө өзгөчөлүк | Motion Sensor |
| Жарык булагы түрү | LED |
| Жарык булактарынын саны | 128 |
| Тtage | 3.7 вольт |
| Ачык түс | Ак (7000K) |
| Ватtage | 6.4 ватт |
| Жарыктык | 800 Lumen |
| Сууга туруктуулук деңгээли | IP65 суу өткөрбөйт |
| Батарея | 1 Lithium Ion battery (included, 1800 mAh) |
| UPC | 820909981664 |
9. Кепилдик жана колдоо
EverBrite products are manufactured with high-quality standards. For any questions, concerns, or warranty claims, please contact our customer support team through the retailer's platform or the official EverBrite website. Please have your model number (E021039) and purchase information ready when contacting support.
