Introduction
The Protmex HT609 is a versatile 3-in-1 portable gas leak detector designed to identify combustible gas leaks, measure ambient temperature, and relative humidity. This device provides audible, visual, and screen-based alarms to ensure safety and assist in pinpointing potential leak sources in various environments. Its compact design and multiple sensitivity modes make it a valuable tool for both household and professional use.
Figure 1: Protmex HT609 Gas Leak Detector and accessories.
Коопсуздук маалыматы
WARNING: Always prioritize safety when dealing with gas leaks. This device is a detection tool and should not replace professional inspection or emergency procedures. Evacuate the area immediately if a strong gas odor is detected and contact emergency services.
- Ensure proper ventilation when testing for gas leaks.
- Do not use the device in environments with extremely high concentrations of gas, which could pose an explosion risk.
- Аппаратты суудан жана экстремалдык температурадан алыс кармаңыз.
- Аппаратты ажыратууга же өзгөртүүгө аракет кылбаңыз.
- Always allow the device to warm up fully before use to ensure accurate readings.
Продукт бүттүview
Негизги өзгөчөлүктөрү:
- 3-ин-1 Функциясы: Combines gas leak detection with temperature and humidity measurement. Temperature units are switchable between Fahrenheit (℉) and Celsius (℃).
- Жөнгө салынуучу сезгичтик: Features High, Medium, and Low sensitivity settings to adapt to different leak sizes and environments.
- Triple Alarm System: Provides visual (green, orange, red display), audible (buzzer), and screen-based alarms. Alarm frequency and bar graph increase with gas concentration.
- Компакт жана көчмө: Ergonomic design with a 2.24-inch LCD display for easy one-handed operation and clear visibility in various lighting conditions.
- Кеңири колдонуу: Detects various combustible gases including LPG, methane, ethane, propane, butane, natural gas, coal gas, fuel gas, sewer gas, and liquefied natural gas.
- Автоматтык түрдө өчүрүү (APO): Includes an APO function for battery saving, which can be disabled.
Компоненттери:
Figure 2: Key components and dimensions of the HT609.
- Сенсор: Located at the top, protected by a cap.
- Дисплей экраны: 2.24-inch LCD for readings and indicators.
- Кубат баскычы: Аппаратты күйгүзүү/өчүрүү үчүн.
- SENS Button: To adjust sensitivity (Low, Medium, High).
- ℃/℉ баскычы: To switch temperature units.
- APO баскычы: To cancel or enable Automatic Power Off.
- Buzzer On/Off Button: To control the audible alarm.
- Батарея бөлүмү: Located at the rear, for 3 AAA batteries.
Жайгашуу
- Батарея орнотуу:
Locate the battery compartment on the back of the device. Use the provided screwdriver to open the compartment. Insert 3 AAA batteries, ensuring correct polarity. Close the compartment and secure it with the screws.
- Баштапкы күйгүзүү:
Кубат баскычын басып, кармап туруңуз (⏻) to turn on the device. The device will display "WAIT" and undergo a warm-up period of approximately 30 seconds. During this time, ensure the device is in a clean air environment, free from any gas sources, to allow for proper calibration. The device will emit two "Beeps" when warm-up is complete and it is ready for use.
Figure 3: Sensor warm-up and response time.
Операция
Газ агып кетүүсүн аныктоо:
- Кызытуу: After powering on, wait for the 30-second warm-up period to complete.
- Сезимталдуулукту тандоо:
басыңыз SENS button to cycle through the sensitivity modes: High (H), Medium (M), and Low (L). The selected mode will be indicated on the display.
- Жогорку сезгичтик (H): Ideal for detecting small gas leaks or pinpointing the exact source. The buzzer activates when the signal reaches the second grid.
- Medium Sensitivity (M): A balanced setting for general detection. The buzzer activates when the signal reaches the fifth grid.
- Төмөн сезгичтик (л): Suitable for detecting larger gas leaks. The buzzer activates when the signal reaches the eighth grid.

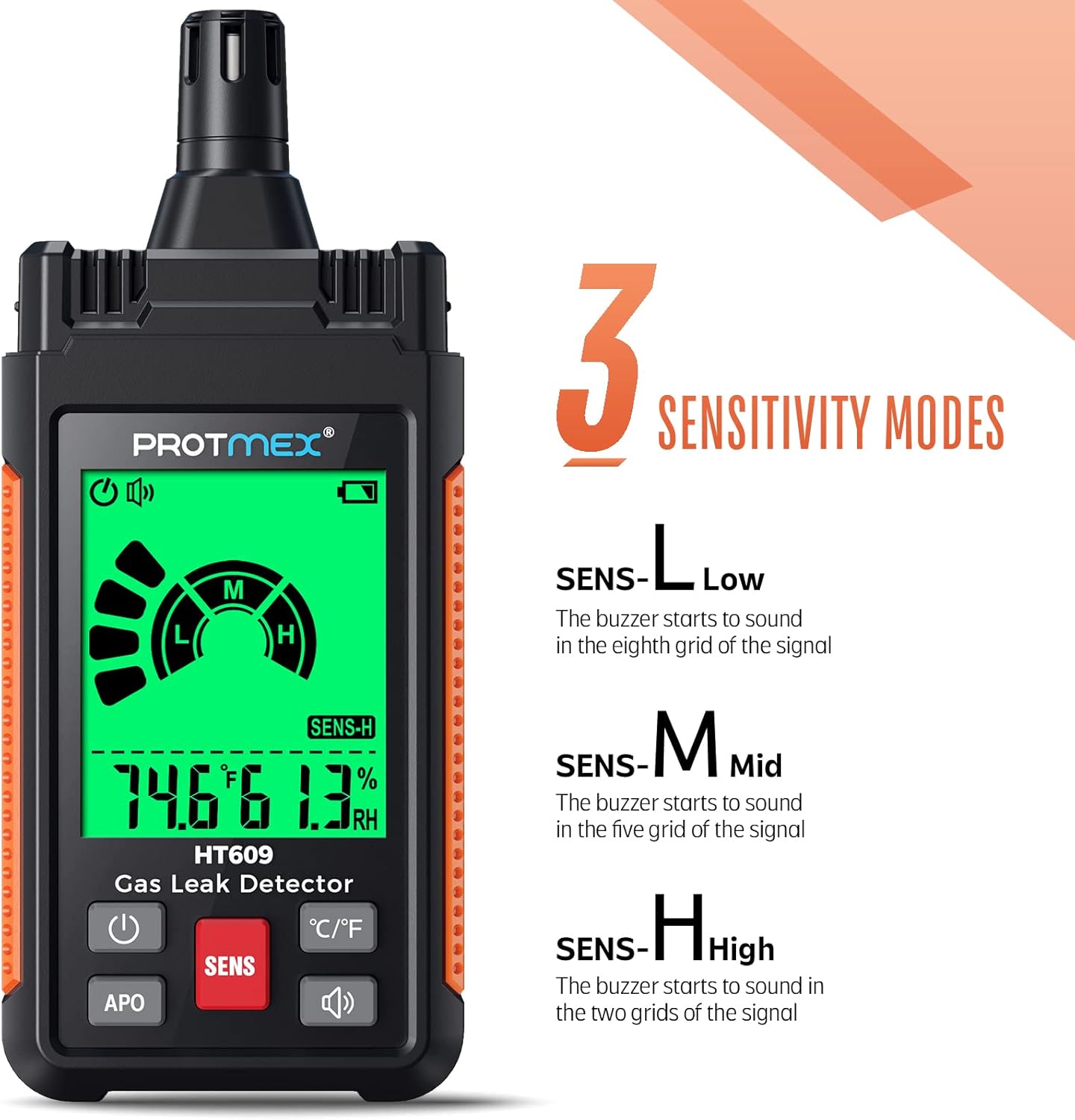

Figure 4: Sensitivity modes and alarm thresholds.
- Scanning for Leaks:
Slowly move the sensor tip close to potential leak sources (e.g., gas pipes, appliance connections, valves). Maintain a consistent distance for accurate readings. The device will respond to the presence of combustible gases.
Video 1: Demonstration of the HT609 Gas Leak Detector in use, showing how to scan for leaks near a gas stove and a water heater. The device's display changes from green to red and the alarm sounds when gas is detected.
- Interpreting Alarms:
The HT609 provides a triple alarm system:
- Визуалдык ойготкуч: The screen backlight changes color (Green: Safe, Orange: Low concentration, Red: High concentration).
- Үн сигнализациясы: A buzzer will sound, increasing in frequency as gas concentration rises.
- Экрандагы дисплей: The bar graph on the screen will increase, and the numerical reading will change, indicating higher gas levels.

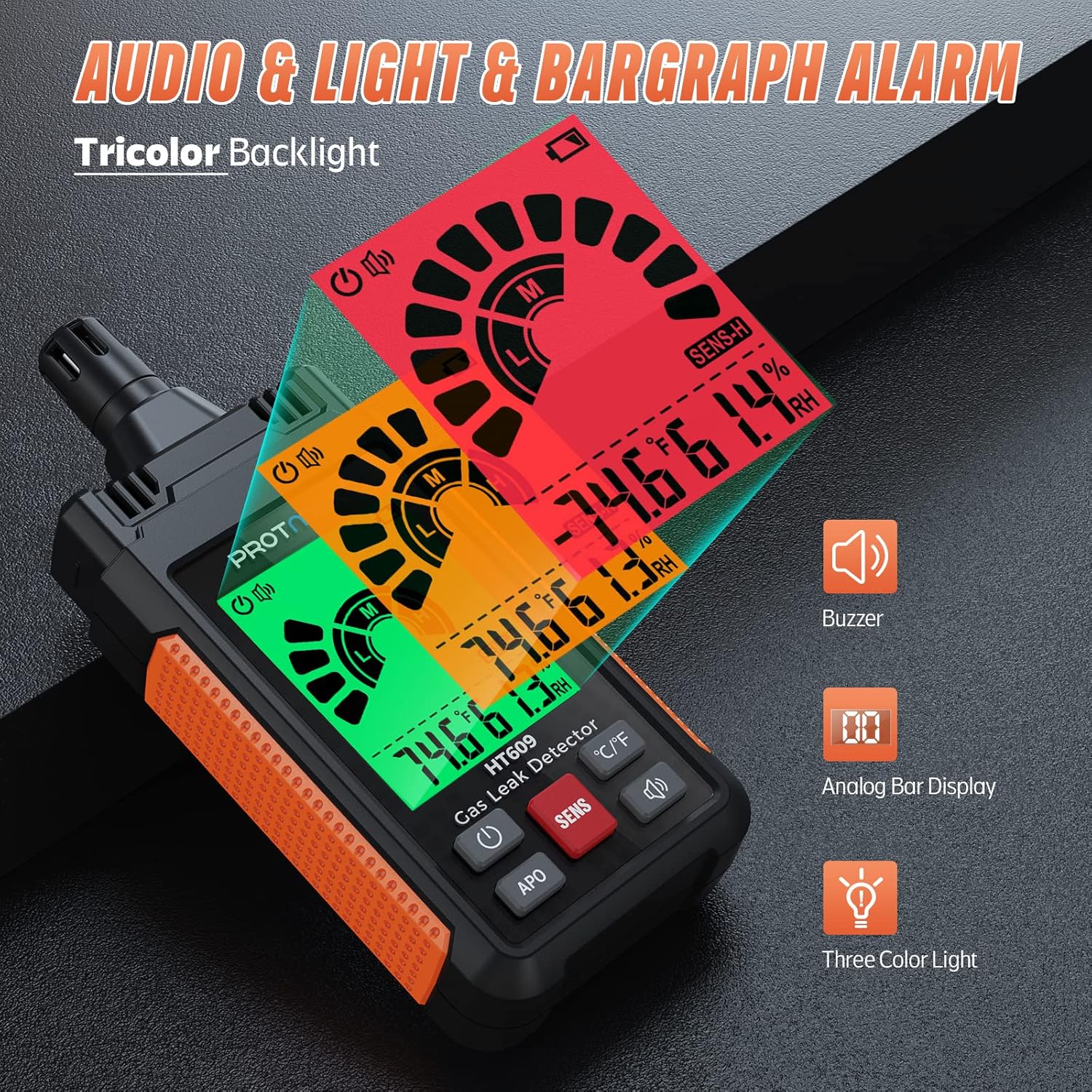

Figure 5: Audio, light, and bar graph alarm indicators.
Temperature and Humidity Measurement:
The device continuously displays ambient temperature and relative humidity on the screen. Press the ℃/℉ Цельсий жана Фаренгейт температура бирдиктеринин ортосунда которулуу үчүн баскыч.

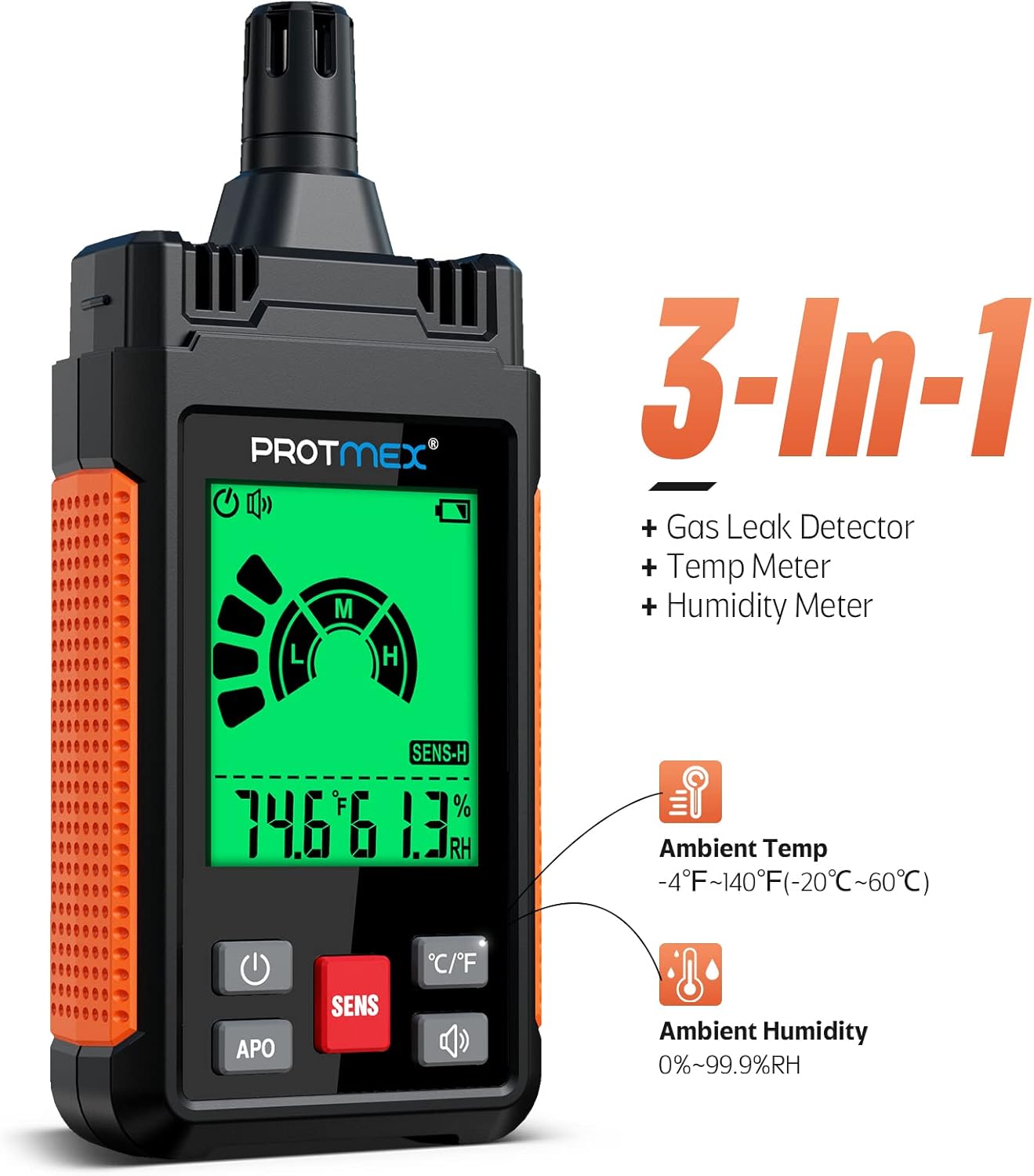

Figure 6: 3-in-1 functionality for gas, temperature, and humidity.
Automatic Power Off (APO) Function:
The HT609 features an automatic power-off function to conserve battery life. To disable or enable this function, press the APO button. When APO is active, the device will automatically shut down after a period of inactivity.
Тиркемелер
The Protmex HT609 is suitable for a wide range of applications where combustible gas detection is necessary:
- Residential homes: Checking gas stoves, water heaters, furnaces, and gas lines.
- RV жана camping: Inspecting gas connections in recreational vehicles and portable gas appliances.
- Industrial settings: Locating leaks in gas pipelines, storage tanks, and industrial equipment.
- Commercial kitchens: Ensuring safety around commercial cooking equipment.
- Anywhere combustible gases like methane, propane, natural gas, LPG, LNG, or fuel gas might be present.
Figure 7: Wide range of applications for the HT609.
Техникалык тейлөө
- Тазалоо: Аппаратты жумшак, кургак чүпүрөк менен сүртүңүз. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Сенсорго кам көрүү: Keep the sensor tip clean and free from dust or debris. Avoid touching the sensor directly.
- Сактагыч: Аппаратты түз күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз. Узак мөөнөткө сактасаңыз, акып кетпеш үчүн батарейкаларды алып салыңыз.
- Батареяны алмаштыруу: Replace batteries when the low battery indicator appears on the display to ensure optimal performance.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | Өлүк же туура эмес орнотулган батарейкалар. | Батареянын полярдуулугун текшериңиз. Жаңы AAA батарейкалары менен алмаштырыңыз. |
| Inaccurate or inconsistent gas readings. | Insufficient warm-up time; sensor contamination; device not calibrated properly. | Ensure device completes 30-second warm-up in clean air. Clean sensor tip. If issues persist, contact support. |
| Үн сигналы жок. | Buzzer function is turned off. | Press the buzzer on/off button to activate the audible alarm. |
| Temperature/Humidity readings seem off. | Environmental factors; sensor issue. | Ensure the device has stabilized in the environment. If readings are consistently inaccurate, contact support. |
Техникалык шарттар
| Параметр | Нарк |
|---|---|
| Модель номери | HT609 |
| Газдарды аныктоо | Combustible gases (Methane, LPG, LNG, Fuel Gas, etc.) |
| Жооп диапазону | 50-1000 промилле |
| Жылытуу убактысы | Болжол менен 30 секунд |
| Жооп убактысы | 2-5 seconds (varies with gas concentration) |
| Температураны өлчөө диапазону | -4 ° F ~ 140 ° F (-20 ° C ~ 60 ° C) |
| Нымдуулукту өлчөө диапазону | 0% ~ 99.9% RH |
| Ойготкуч түрү | Audible, Visual (3-color backlight), Bar Graph |
| Power Source | 3 x 1.5V AAA батареялары |
| Элемент Салмагы | 7.8 унция |
| Продукциянын өлчөмдөрү | 7.09 x 3.82 x 2.13 дюйм |
Кепилдик жана колдоо
Protmex is committed to providing quality products and customer satisfaction. For any inquiries, technical support, or warranty claims, please contact Protmex customer service. They offer 24/7 online friendly support.
Refer to the official Protmex webкепилдиктин белгилүү бир шарттары жана байланыш маалыматы үчүн сайтка же сатып алуу документтерине кайрылыңыз.
