Gotrax 16 дюймдук бүктөлүүчү электр велосипедин колдонуучунун колдонмосу

1. Киришүү

Thank you for choosing the Gotrax 16" Folding Electric Bike. This manual provides essential information for the safe operation, assembly, and maintenance of your new electric bicycle. Please read it thoroughly before your first ride to ensure optimal performance and safety. This electric bike is designed for comfortable and efficient commuting, featuring a powerful motor, long-lasting battery, and a convenient foldable design.

Figure 1.1: Gotrax 16" Folding Electric Bike (EBE1 Black) in its operational and folded states.

2. Коопсуздук маалыматы

Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations. This electric bike complies with UL-2849 standards for electrical safety.

• Always inspect the bike before each ride, checking brakes, tire pressure, and battery level.
• Ичкиликтин же баңгизаттын мас абалында минүүгө болбойт.
• Avoid riding in heavy rain or extreme weather conditions.
• Айдоо алдында батареянын бекем бекитилип турганын текшериңиз.
• Айланаңыздагыларга жана башка жол колдонуучуларына көңүл буруңуз.

3. Пакеттин мазмуну

Кутучаны ачканда, бардык компоненттердин бар экенин жана бузулбаганын текшериңиз:

• Gotrax 16" Folding Electric Bike (90% pre-assembled)
• Батарея заряддагыч
• Keys for Battery Lock (2 sets)
• Колдонуучунун Колдонмосу (бул документ)
• Basic Assembly Tools

4. Ассамблея

The Gotrax electric bike arrives approximately 90% pre-assembled. Follow these steps for final assembly:

1. Unfold the Bike: Carefully unfold the frame and secure the folding mechanisms.
2. Руткаларды орнотуу: Insert the handlebar stem into the frame and tighten the quick-release lever. Adjust the handlebar height to your preference and secure it.
3. Install Seat Post: Insert the seat post into the frame. Adjust the seat height for comfortable pedaling and secure with the quick-release lever.
4. Педальдарды бекитүү: Identify the left (L) and right (R) pedals. The left pedal screws counter-clockwise, and the right pedal screws clockwise. Tighten securely with a wrench.
5. Шинанын басымын текшерүү: Дөңгөлөктөрдү дөңгөлөк капталында көрсөтүлгөн сунушталган басымга чейин үйлөтүңүз.

5. Components Overview

Familiarize yourself with the key components of your Gotrax electric bike:

• Арткы суспензия: Effectively reduces road vibration for a comfortable ride.
• Dual Mechanical Disc Brakes: Provide reliable stopping power for enhanced safety.
• LED фара: Illuminates the road for safe night riding.
• Adjustable Handlebar & Seat: Allows customization for rider comfort and different sizes.
• 36V 7.8Ah Removable Lithium Battery: Powers the motor and offers convenient recharging.
• Peak 500W Motor: Delivers powerful performance for speeds up to 25 km/h (15.5 mph).
• Dual Mudguards: Protect the rider from splashes and mud, keeping the bike cleaner.

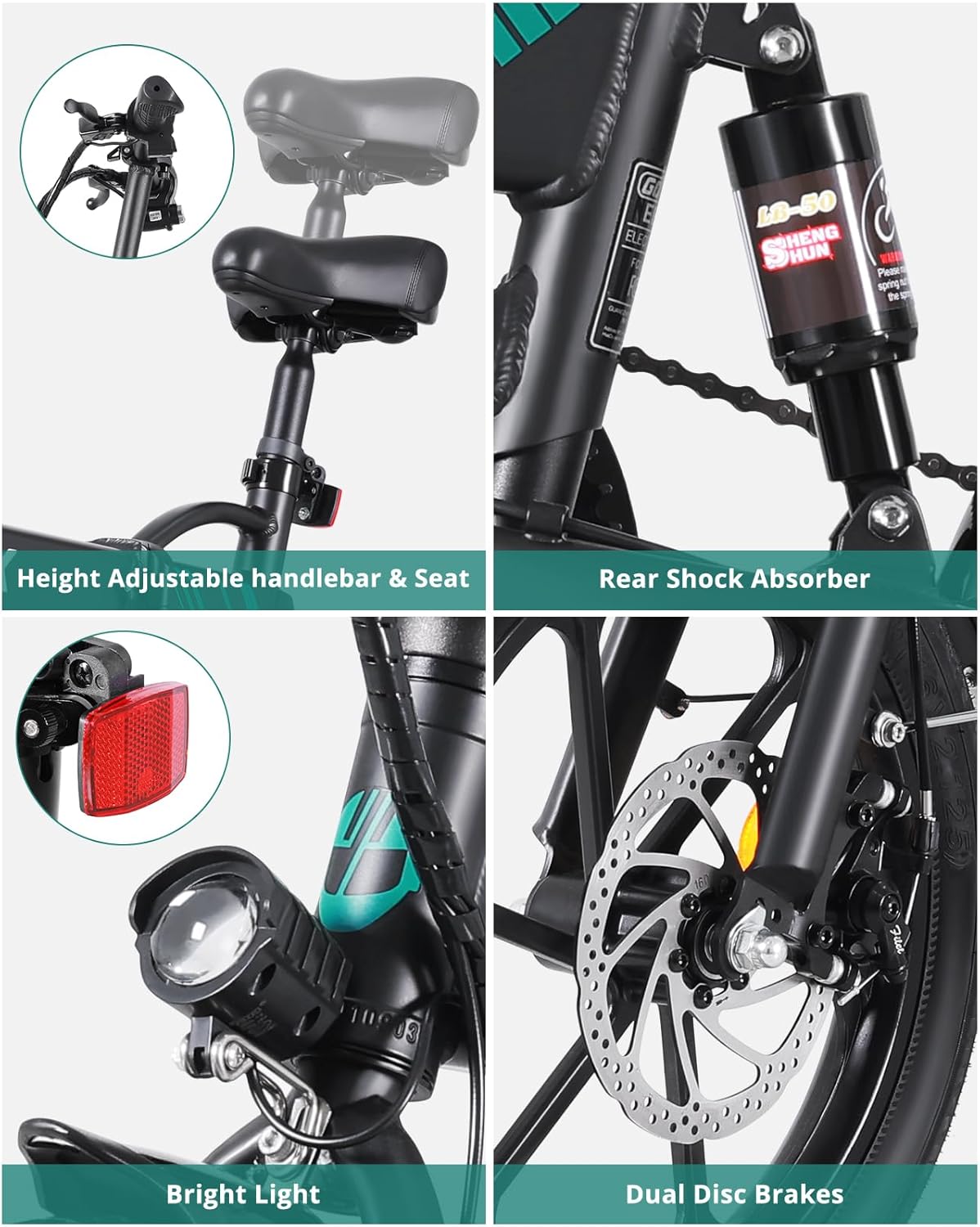

Figure 5.1: Key features including adjustable components, suspension, lighting, and braking system.

Figure 5.2: The removable 36V 7.8Ah lithium battery.

Figure 5.3: Handlebar controls for easy operation.

6. Орнотуу

1. Баштапкы төлөм: Before first use, fully charge the battery. Connect the charger to the bike's charging port or remove the battery to charge it separately. The charging indicator on the charger will change when fully charged (typically 4-5 hours).
2. Battery Safety Lock: Ensure the battery safety pin is inserted out of the frame and the battery is locked in the frame using the provided key. This prevents theft and ensures secure operation.

7. Иштөө нускамалары

Operating your Gotrax electric bike is straightforward with controls conveniently located on the handlebars.

1. Күйгүзүү/өчүрүү: Insert the key into the ignition and turn it to the ON position to power on the bike and activate the display screen. Turn the key to OFF to power down.
2. Батарея деңгээли: The display panel shows the current remaining battery charge. Monitor this to plan your rides accordingly.
3. Throttle Acceleration: Once switched on, turn the throttle on the right handlebar to accelerate forward. This bike operates with a single gear.
4. Фара: Push the ON button on the handlebar to turn on the LED headlight. Push the OFF button to turn off the headlight.
5. Мүйүз: Press the horn button on the handlebar to alert others.
6. Тормоздоо: Squeeze the brake levers on both handlebars to engage the dual mechanical disc brakes for effective stopping.

8. Folding and Portability

The Gotrax electric bike features a foldable design for easy transportation and compact storage.

• Бүктөө процесси: Locate the folding latches on the frame and handlebar stem. Release them and carefully fold the bike. Ensure all latches are securely fastened when unfolded for riding.
• Компакт өлчөмү: When folded, the bike measures approximately 32.6in x 14.1in x 23.6in (83cm x 36cm x 60cm).
• Жеңил салмак: Weighing only 45lbs (20kg), it is convenient to carry and store.

Figure 8.1: The Gotrax electric bike in its folded state, highlighting its compact dimensions.

9. Батарея маалыматы

The bike is equipped with a removable built-in 36V 7.8Ah lithium battery.

• Диапазон: Approximately 25KM (15.5 Miles) in pure electric mode and 45KM (27.9 Miles) in pedal-assist mode.
• Заряддоо: Use only the provided charger. Charging time is typically 4-5 hours for a full charge.
• Кам көрүү: Store the battery in a cool, dry place. Avoid extreme temperatures. Do not attempt to open or modify the battery pack.

10. Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө сиздин электр велосипедиңиздин узак мөөнөттүү жана коопсуз иштешин камсыздайт.

• Тазалоо: Велосипедди жарнама менен сүртүңүзamp cloth. Do not use high-pressure water jets directly on electrical components.
• Тормоздор: Periodically check brake pads for wear and ensure proper brake lever tension. Adjust as needed.
• Шиналар: Maintain recommended tire pressure. Inspect tires for wear or damage.
• Майлоо: Lubricate the chain and other moving parts regularly.
• бекиткичтер: Бардык болтторду жана бекиткичтерди бекем бекитип, мезгил-мезгили менен текшерип туруңуз.

11. Кыйынчылыктарды

If you encounter issues with your Gotrax electric bike, refer to the following common problems and solutions:

• Велосипед күйбөй жатат: Ensure the battery is fully charged and securely locked in place. Check that the key is turned to the ON position.
• Мотор иштебей жатат: Verify the battery level. Ensure the throttle is engaged correctly.
• Кыскартылган диапазон: This can be due to low tire pressure, riding uphill frequently, or carrying heavy loads. Ensure proper tire inflation and consider pedal-assist mode for longer distances.
• Тормоздордун чырылдаганы: This may indicate dirty brake pads or rotors. Clean them or have them inspected by a professional.

For persistent issues or problems not listed here, please contact Gotrax customer service.

12. Техникалык шарттар

Figure 12.1: Detailed dimensions of the electric bike.

13. Кепилдик жана колдоо

Gotrax provides a SIX-month Assurance for this product. If you experience any issues with your electric bike, please do not hesitate to contact our customer service team. We are committed to providing 100% satisfactory after-sales service and aim to respond within 24 hours.

For support, please visit the official Gotrax webсайтка же сатып алуу документтериңиз менен берилген байланыш маалыматына кайрылыңыз.
