VONROC телескопиялык чынжырлуу араа 20V (CS504DC модели) колдонуу боюнча колдонмо

Introduction

This manual provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your VONROC 20V Telescopic Chainsaw, model CS504DC. Please read these instructions carefully before using the product and keep them for future reference.

Коопсуздук нускамалары

Электр шаймандарын иштетүүдө ар дайым коопсуздукка артыкчылык бериңиз. Коопсуздук нускамаларын аткарбоо олуттуу жаракатка же мүлккө зыян келтириши мүмкүн.

Жалпы коопсуздук эрежелери:

• Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, hearing protection, and sturdy footwear.
• Жумушчу аймактын бөтөн адамдардан, балдардан жана үй жаныбарларынан таза экенине ынаныңыз.
• Inspect the chainsaw for damage before each use. Do not operate if damaged.
• Колдорду жана буттарды кесүүчү чынжырдан алыс кармаңыз.
• Do not operate the chainsaw in wet conditions or near flammable liquids or gases.
• Always maintain a firm grip with both hands on the tool.
• Кандайдыр бир жөндөө, тазалоо же техникалык тейлөө иштерин жүргүзүүдөн мурун батареяны сууруп алыңыз.

Продукт бүттүview

Familiarize yourself with the components of your VONROC Telescopic Chainsaw.

Сүрөт 1: The VONROC Telescopic Chainsaw, showing the main unit, telescopic pole, battery, and charger. This image provides a complete view продукт компоненттеринин.

Сүрөт 2: А деталдуу view of the chainsaw head, highlighting the chain, bar, and VONROC branding. This shows the cutting mechanism.

Сүрөт 3: A close-up of the ergonomic handle and the battery compartment, showing the 20V 2.0Ah battery attached. This illustrates the power source connection.

Негизги компоненттер:

• Chainsaw Head: Contains the motor, chain, and guide bar.
• Телескопиялык уюл: Allows for extension to reach higher branches.
• туткасы: Башкаруу үчүн эргономикалык кармагыч.
• Батарея бөлүмү: For inserting the 20V battery.
• Мунай багы: For automatic chain lubrication.
• Погон: For comfortable operation and weight distribution.

Орнотуу жана чогултуу

Follow these steps to assemble and prepare your telescopic chainsaw for use.

1. Attaching the Chainsaw Head to the Pole:

• Align the chainsaw head with the top end of the telescopic pole.
• Башын берилген бекитүүчү механизмди же бурамаларды колдонуп, бекем бекитиңиз, анын бекем бекитилгенин жана чайпалбаганын текшериңиз.

2. Батареяны орнотуу:

• Ensure the battery is fully charged using the VONROC quick charger.
• Slide the charged 20V battery into the battery compartment at the base of the pole until it clicks into place.
• Батареяны алып салуу үчүн, аны ачуу баскычын басып, сыртка жылдырыңыз.

3. Filling the Oil Tank:

• Locate the oil tank cap on the chainsaw head.
• Unscrew the cap and fill the tank with appropriate chain lubricant oil. Do not overfill.
• Securely replace the cap. The chainsaw features self-lubrication.

4. Adjusting the Telescopic Pole:

Сүрөт 4: An illustration demonstrating the telescopic pole's adjustable length, ranging from 200 cm to 260 cm, allowing users to extend the reach for high branches.

• Loosen the locking collar(s) on the telescopic pole.
• Extend the pole to the desired length (up to 260 cm).
• Tighten the locking collar(s) firmly to secure the pole at the chosen length.

5. Attaching the Shoulder Strap:

• Attach the shoulder strap to the designated attachment points on the pole.
• Adjust the strap length for comfortable and balanced operation, distributing the tool's weight.

Иштөө нускамалары

Иштөөдөн мурун, бардык коопсуздук чараларын түшүнүп, сакталганыңызды текшериңиз.

Chainsaw баштоо:

• Ensure the battery is inserted and fully charged.
• Press and hold the safety lock-off button.
• Squeeze the trigger switch to start the chain. Release the safety button once the chain is running.
• Токтотуу үчүн триггерди которгучту бошотуңуз.

Кесүү техникасы:

Сүрөт 5: A user demonstrating the VONROC telescopic chainsaw in action, pruning a high branch from a tree while standing safely on the ground. This illustrates proper usage.

• Балансты сактоо: Always stand on a stable surface and maintain good footing. Use the shoulder strap for better control.
• Филиалды колдоо: When cutting branches, ensure they are supported to prevent them from falling unexpectedly or pinching the chain.
• Кесүү бурчу: The angled head allows for versatile cutting. Position the chainsaw head to achieve the most effective and safest cutting angle for the branch.
• Кайрадан качуу: Be aware of the kickback zone at the tip of the guide bar. Avoid cutting with this area.
• Эки-С.tage Cut: For larger branches, make an undercut first (about 1/3 of the way through) to prevent bark stripping, then complete the cut from the top.
• Overhead Work: Be cautious of falling debris. Never cut directly overhead.

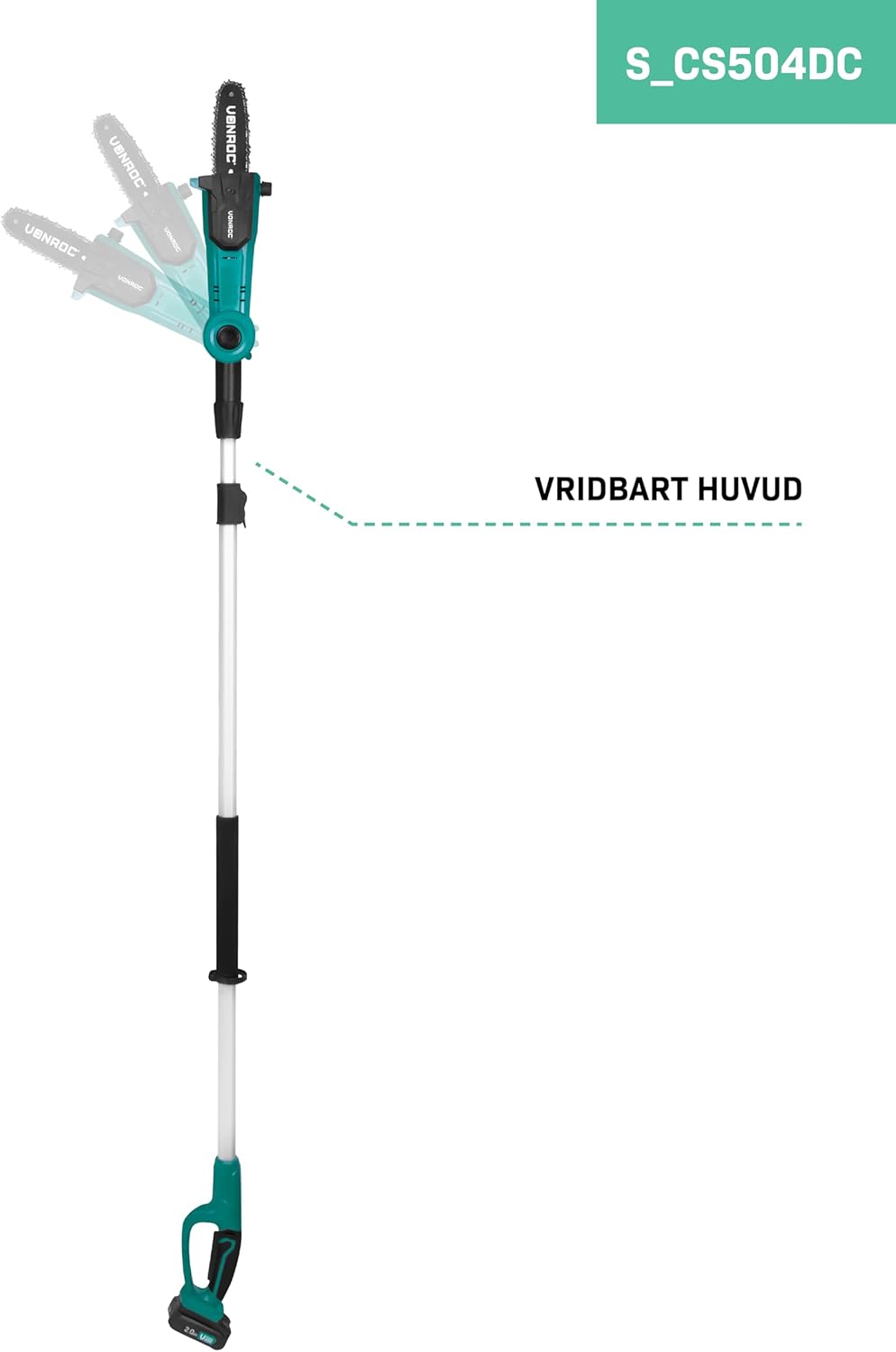

Сүрөт 6: A diagram illustrating the adjustable head angle of the chainsaw, allowing for flexible positioning to cut branches at various orientations. This highlights a key feature for usability.

Техникалык тейлөө

Regular maintenance ensures optimal performance and extends the lifespan of your chainsaw.

Жалпы тейлөө:

• Тазалоо: After each use, remove the battery and clean the chainsaw head, guide bar, and chain with a brush and damp cloth. Remove any sawdust or debris.
• чынжырды майлоо: The chainsaw has a self-lubricating system. Regularly check the oil level in the tank and refill with appropriate chain oil as needed.
• чынжыр курчутуу: A dull chain reduces cutting efficiency and increases kickback risk. Sharpen the chain regularly or replace it when necessary. Refer to the chain manufacturer's instructions for sharpening.
• чынжыр чыңалуу: Check chain tension before each use. The chain should be snug but still able to be pulled freely around the guide bar by hand. Adjust as per instructions in the full manual.
• Гид тилкесин тейлөө: Flip the guide bar periodically to ensure even wear. Clean the guide bar groove to remove debris.

Сактагыч:

• Сактоодон мурун батареяны алып салыңыз.
• Куралды кылдат тазалаңыз.
• Store the chainsaw in a dry, secure place, out of reach of children and away from direct sunlight or extreme temperatures.
• Use the chain cover to protect the chain and prevent accidental contact.

Проблемаларды чечүү

This section addresses common issues you might encounter with your chainsaw.

If you encounter problems not listed here or if solutions do not resolve the issue, please contact VONROC customer support.

Техникалык шарттар

Technical details for the VONROC Telescopic Chainsaw Model CS504DC.

Кепилдик жана колдоо

VONROC products are manufactured to high-quality standards. For information regarding warranty terms and conditions, or for technical support, please refer to the warranty card included with your product or visit the official VONROC webсайт.

For customer service inquiries, please contact your retailer or VONROC directly.
