1. Киришүү
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Ideal Standard Wall-Mounted Toilet Bowl, Model T459201. Please read these instructions carefully before installation and retain them for future reference.
The Ideal Standard T459201 is a compact, wall-mounted toilet bowl designed to optimize space in modern bathrooms. It features RimLS+ technology for enhanced hygiene and ease of cleaning. This product is manufactured from high-quality ceramic, ensuring durability and compliance with British and European standards.

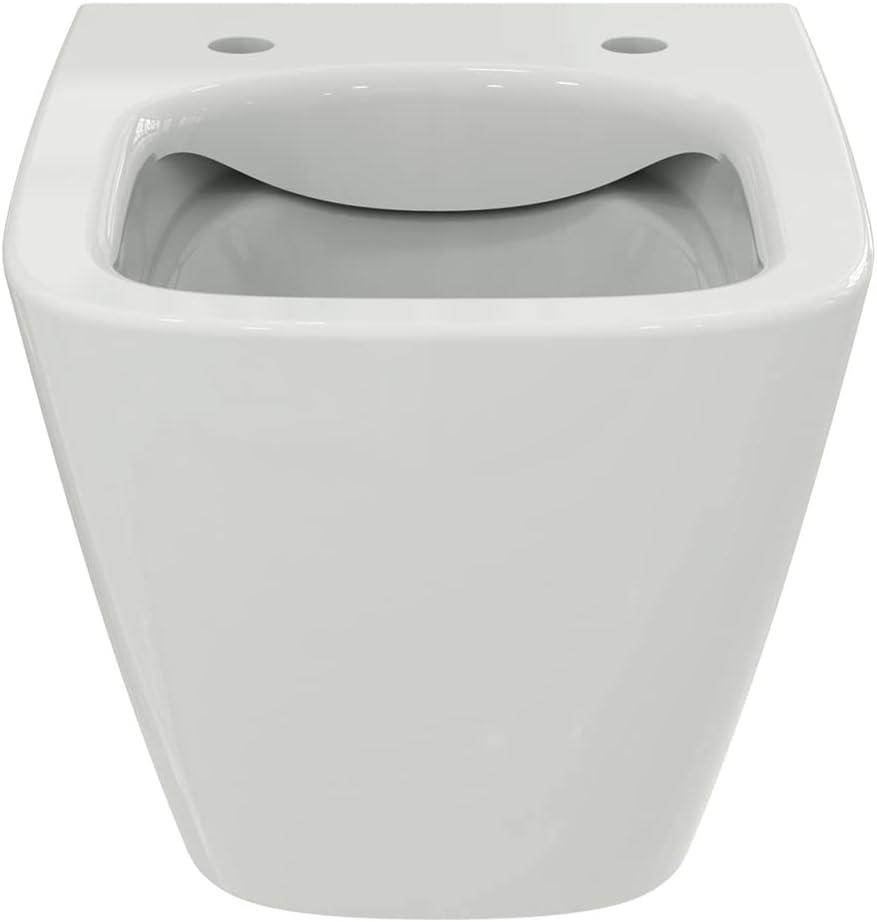

Сүрөт 1: Алдыңкы view of the Ideal Standard T459201 wall-mounted toilet bowl, showcasing анын компакттуу жана заманбап дизайны.
2. Коопсуздук маалыматы
ЭСКЕРТҮҮ: Installation should only be performed by a qualified professional plumber or installer. Improper installation can lead to water damage, product failure, or injury.
- Орнотуу же техникалык тейлөө иштерин баштоодон мурун ар дайым негизги суу менен камсыздоону өчүрүңүз.
- Орнотуу учурунда кол кап жана көздү коргоо сыяктуу тиешелүү жеке коргонуу шаймандарын (ЖКК) кийиңиз.
- Керамикалык бөлүктөрүн сындырып же чирип кетпеши үчүн этияттык менен кармаңыз.
- Суу агып кетпеши үчүн бардык байланыштар суу өткөрбөй турганын текшериңиз.
- Do not use abrasive cleaners or tools that could damage the ceramic surface.
3. Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экенин жана бузулбаганын текшериңиз.
- Ideal Standard Wall-Mounted Toilet Bowl (Model T459201)
- Hidden Fixing Kit for wall mounting
Note: Toilet seat, cistern, and flush plate are sold separately and are not included with this toilet bowl.
4. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Идеалдуу стандарт |
| Модель номери | T459201 |
| Материал | Керамикалык |
| Түс | Ак |
| Монтаж түрү | Дубалга орнотулган |
| Форма | D-форма |
| Продукциянын өлчөмдөрү (L x W x Y) | 48 см х 35.5 см х 33.5 см |
| Элемент Салмагы | 21.1 килограмм |
| Flush Technology | RimLS+ |
Figure 2: Technical drawing showing detailed dimensions and mounting points for the T459201 toilet bowl.
5. Орнотуу жана орнотуу
This wall-mounted toilet bowl requires a compatible concealed cistern and a robust wall-mounting frame (not included). Refer to the installation instructions provided with your chosen cistern and frame for specific details.
5.1 Орнотууга чейинки текшерүүлөр
- Ensure the wall-mounting frame is securely installed and level according to the manufacturer's instructions.
- Verify that the water supply and waste connections are correctly positioned and accessible.
- Check that the included hidden fixing kit components are all present.
5.2 Орнотуу кадамдары (Жалпы колдонмо)
- Байланыштарды даярдоо: Attach the waste pipe and water inlet pipe to the corresponding outlets on the concealed cistern/frame, ensuring a secure and watertight seal.
- Чөйчөктү орнотуу: Carefully lift the toilet bowl and align it with the threaded rods protruding from the wall-mounting frame. Slide the bowl onto the rods.
- Secure the Bowl: Use the hidden fixing kit to secure the toilet bowl to the threaded rods. Tighten the nuts evenly until the bowl is firmly in place, but do not overtighten to avoid cracking the ceramic.
- Суу менен камсыздоону туташтыруу: Connect the flexible water supply hose from the cistern to the toilet bowl's inlet, ensuring a watertight connection.
- Даараткананын отургучун орнотуу: Тандалган унитаз отургучун орнотуу үчүн өндүрүүчүнүн көрсөтмөлөрүн аткарыңыз (өзүнчө сатылат).
- Агышуу үчүн сыноо: Turn on the main water supply and flush the toilet several times. Inspect all connections for any signs of leaks.
3-сүрөт: Каптал view of the T459201 toilet bowl, illustrating its wall-mounted profile.
6. Иштөө нускамалары
The Ideal Standard T459201 toilet bowl operates in conjunction with a dual-flush concealed cistern (not included). The flush mechanism is activated via a flush plate (not included) mounted on the wall.
- Толук жууш: Press the larger button on your flush plate for a full flush (typically 6 liters) for solid waste.
- Жарым төгүү: Press the smaller button on your flush plate for a reduced flush (typically 3 liters) for liquid waste, conserving water.
The RimLS+ technology ensures a powerful and thorough cleaning of the entire bowl with each flush, preventing bacteria buildup and maintaining hygiene.
Figure 4: Diagram explaining the RimLS+ technology, showing how water is directed for a comprehensive bowl clean.
7. Техникалык тейлөө жана тазалоо
Regular cleaning will help maintain the appearance and hygiene of your toilet bowl.
7.1 Күнүмдүк тазалоо
- Wipe the exterior and interior surfaces of the bowl with a soft cloth and a mild, non-abrasive bathroom cleaner.
- Таза суу менен жакшылап жууп, суу тактарын болтурбоо үчүн жумшак чүпүрөк менен кургатуу керек.
7.2 Deep Cleaning (as needed)
- For stubborn stains, use a ceramic-safe toilet bowl cleaner. Apply the cleaner, allow it to sit for the recommended time, then scrub with a toilet brush.
- Flush thoroughly to rinse the bowl.
7.3 Тазалоо боюнча маанилүү эскертүүлөр
- ЖОК use abrasive powders, scouring pads, or harsh chemical cleaners (e.g., bleach, acid-based cleaners) as these can damage the ceramic glaze.
- The RimLS+ design makes the bowl easier to clean as there is no traditional rim for dirt and bacteria to hide.
8. Кыйынчылыктарды
If you encounter issues, refer to the following common problems and solutions. For complex issues, contact a qualified plumber.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Алсыз агызуу | Low water pressure, partial blockage in waste pipe, cistern issue. | Check water supply valve. Inspect waste pipe for obstructions. Consult cistern manual for troubleshooting. |
| Байланыштардан суу агып жатат | Бошоң байланыштар, бузулган пломбалар. | Turn off water supply. Tighten connections. Replace worn or damaged seals. |
| Stains in bowl | Hard water deposits, insufficient cleaning. | Use a ceramic-safe toilet bowl cleaner and brush. Regular cleaning helps prevent buildup. |
9. Кепилдик жана колдоо
Ideal Standard offers a lifetime warranty on all ceramic products, including this toilet bowl, against manufacturing defects. This product has been extensively tested and complies with BS EN 997 and BS EN 33 standards.
For warranty claims or technical support, please contact Ideal Standard customer service through their official website or your local distributor. Keep your proof of purchase for warranty validation.
Байланыш маалыматы:
- Webсайт: www.idealstandard.com (Аймагыңызды текшериңиз webсайт)
- Кардарларды тейлөө: Refer to the contact section on the Ideal Standard webсиздин аймагыңызга тиешелүү телефон номерлери жана электрондук почта даректери үчүн сайт.
