ANCEL AJ400 GDI Injector Cleaning Machine User Manual

1. Коопсуздук чаралары

Always prioritize safety when operating the ANCEL AJ400 GDI Injector Cleaning Machine. Failure to follow these guidelines may result in injury or damage to the equipment.

• No Naked Flame: Ensure there are no naked flames or ignition sources within 2 meters (approximately 6.5 feet) of the machine during operation.
• Көздү коргоо: Always wear appropriate eye protection, such as safety goggles, to prevent contact with cleaning solutions or fuel.
• Колду коргоо: Wear chemical-resistant gloves to protect your hands from cleaning agents and fuel.
• Электр коопсуздугу: Ensure the machine is properly grounded and connected to a stable power supply (110V as specified). Avoid operating with wet hands or in damp чөйрөлөр.
• Вентиляция: Operate the machine in a well-ventilated area to prevent the buildup of hazardous fumes.
• Шашылыш өчүрүү: Familiarize yourself with the power switch location for quick shutdown in emergencies. The fuel circuit depressurization technology automatically depressurizes the machine in case of sudden shutdown.

2. Пакеттин мазмуну

Before beginning, verify that all components are present in your package. If any items are missing or damaged, please contact customer support.

• ANCEL AJ400 GDI Injector Cleaning Machine (Main Unit)
• Main Pulse Cable
• Fuel Separator Assembly
• Extended Pole
• Импульстук сигнал кабели
• Электр кабели
• Resistance Test Cable
• Vice Adaptor
• Fuel Separator Stopper
• Universal GDI Adaptor
• Негизги адаптер
• Lock Handwheel
• GM GDI Adaptor
• Thread GDI Adaptor
• User's Manual (PDF version available online)
• Injector Shims
• O-ring assortment

3. Орнотуу колдонмосу

3.1 Кутудан чыгаруу жана баштапкы чогултуу

Carefully unbox the ANCEL AJ400 GDI machine and its components. The main unit is securely packed with protective foam. Remove all packaging materials.

3.2 Installing Glass Tubes and Fuel Outlet Pipe

Install the glass tubes onto the main unit. Ensure they are securely seated. Connect the fuel outlet pipe to the designated port on the machine.

4. Иштөө нускамалары

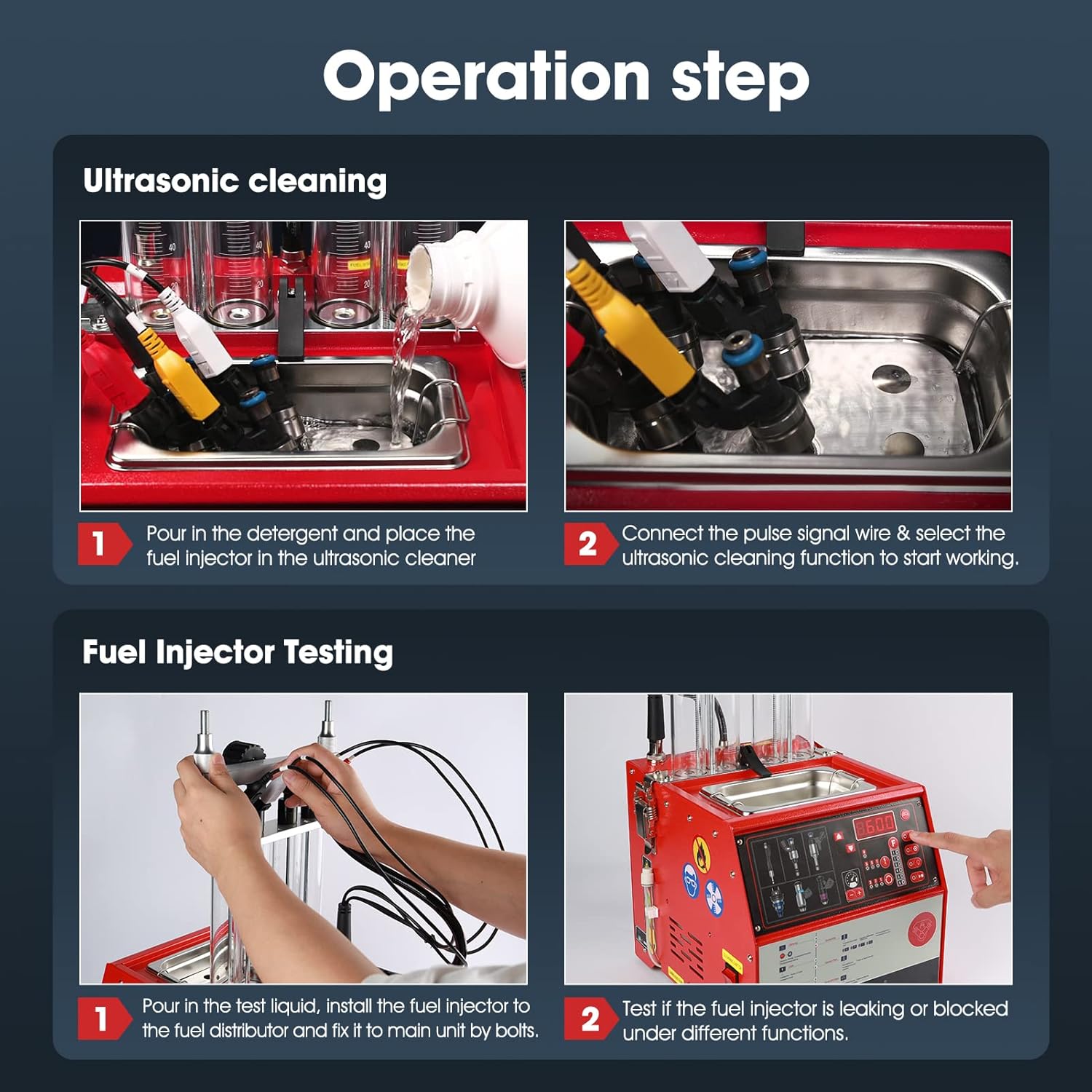

4.1 Connecting Injectors

Connect the fuel injectors to the fuel distributor assembly. Ensure a secure connection to prevent leaks during testing. Use the appropriate adaptors for different injector types (standard, GDI, etc.).

4.2 Күйүүчү май инжекторун сыноо

The ANCEL AJ400 GDI supports various testing functions to assess injector performance.

Каршылык сыноо

This test measures the electrical resistance of each injector to identify potential electrical faults. Connect the resistance test cable to the injector and observe the reading on the display.

Uniformity / Sprayability Test

This test evaluates the consistency of fuel injection quantity and the atomization pattern of each injector. Observe the spray pattern and the liquid levels in the glass tubes.

Leakage Test

This test checks for any leakage from the injector nozzle when under pressure, ensuring proper sealing performance.

Injecting Flow Test

Measures the amount of fuel injected over a specific time period to determine the injector's flow rate and identify any blockages.

Working Modes Test

Simulates various engine working conditions (e.g., acceleration, deceleration) to comprehensively test injector performance under different loads.

4.3 УЗИ тазалоо

The ultrasonic cleaning function uses high-frequency sound waves to effectively remove carbon deposits and impurities from the injectors. The AJ400 GDI also features a heating function to improve cleaning efficiency.

5. Техникалык тейлөө

5.1 Motherboard Replacement

In the event of a motherboard issue, it can be replaced. This procedure should only be performed by qualified personnel. Ensure the machine is unplugged and all safety precautions are followed.

5.2 Cleaning Solution Discharge and Recycle

After cleaning and testing, the used solution can be discharged and recycled through the designated drain port. The built-in slope design helps filter impurities, promoting environmental friendliness and cost savings.

6. Кыйынчылыктарды

If you encounter any issues with your ANCEL AJ400 GDI Injector Cleaning Machine, please refer to the following general troubleshooting steps:

• Кубат маселеси: Ensure the power cable is securely connected and the power switch is in the 'ON' position. Verify the power outlet is functional.
• Дисплей иштебейт: Электр байланыштарын текшериңиз. Эгер маселе чечилбесе, кардарларды колдоо менен байланышыңыз.
• No Spray/Uneven Spray: Verify injectors are correctly installed and connected. Ensure sufficient cleaning solution/test fluid. Check for blockages in the injectors or fluid lines.
• Pressure Irregularities: Check the fuel pressure gauge. Ensure all connections are tight and there are no leaks.
• Ката коддору: If an error code appears on the LED display, consult the detailed user manual (PDF) for specific code meanings and resolutions.

For complex issues or problems not covered here, please contact ANCEL customer service for expert assistance.

7. Техникалык шарттар

Below are the key technical specifications for the ANCEL AJ400 GDI Injector Cleaning Machine:

8. Кепилдик жана Кардарларды колдоо

The ANCEL AJ400 GDI fuel injector cleaner and tester comes with a 24 айлык кепилдик to ensure your peace of mind. ANCEL is committed to providing excellent customer service.

• Кардарларды тейлөө: ANCEL offers 7x24 hour friendly customer service. If you have any questions or require assistance, please do not hesitate to contact us.
• Кепилдик дооматтары: No additional fees are required for warranty services.
