1. Киришүү
The Electrolux WellQ7 Cordless 2-in-1 Vacuum is designed for efficient cleaning of various floor types. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your vacuum cleaner.
Key features include high suction performance, a 5-step filtration system, a versatile 2-in-1 design with an integrated handheld unit, and a long-lasting battery.
2. Кутуда эмне бар
Бардык компоненттерди кылдаттык менен таңгактан чыгарып, төмөнкү нерселерди алганыңызды текшериңиз:
- 1 x Electrolux WellQ7 cordless 2-in-1 vacuum with multi-surface bristle nozzle
- 1 x Telescoping reach tool
- 1 x Small dusting brush
- 1 x E10 filter (pre-installed)
- 1 x Charging stand
3. Орнотуу
3.1 Ассамблея
- Insert the main body of the vacuum into the multi-surface bristle nozzle until it clicks securely into place.
- Place the charging stand in a convenient location near a power outlet.
- Connect the charging cable to the charging stand and plug it into a wall outlet.
3.2 Алгачкы заряддоо
Before first use, fully charge the vacuum. Place the assembled vacuum onto the charging stand. The LED charge indicator lights on the vacuum will illuminate to show charging status. A full charge provides up to 50 minutes of run time (when using the bristle nozzle in minimum mode on hard floor).
3.3 Video Guide: WellQ7 Vacuum Standard
Video: An official Electrolux video demonstrating the standard features and operation of the WellQ7 vacuum, including its 2-in-1 functionality and charging.
4. Иштөө нускамалары
4.1 Powering On/Off and Power Modes
Press the power button located on the handle to turn the vacuum on or off. The WellQ7 features 2 power modes. Press the mode selection button to switch between standard and high power settings, optimizing for different cleaning tasks and battery life.
4.2 2-in-1 Design: Stick and Handheld Modes
The WellQ7 offers versatile cleaning with its integrated handheld unit. To detach the handheld unit, press the release button and pull the unit away from the main stick. Attach the telescoping reach tool or small dusting brush directly to the handheld unit for above-floor cleaning, car interiors, or hard-to-reach areas.

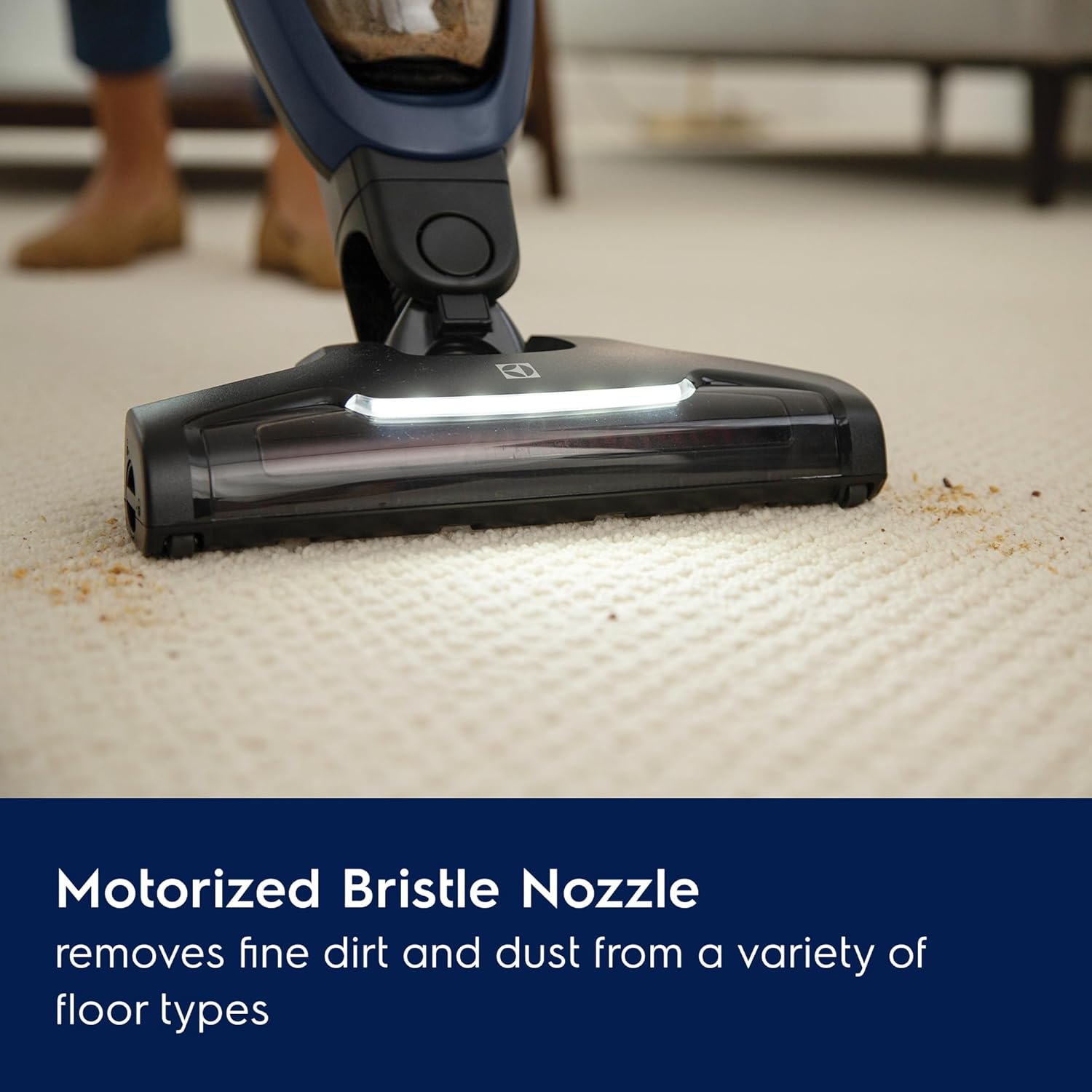

4.3 LED Nozzle Lights
The motorized nozzle is equipped with bright LED lights that illuminate the cleaning path, making dirt and dust visible even in dimly lit areas or under furniture.
4.4 BrushRoll Clean Technology
To remove tangled hair and fibers from the brush roll, simply press the BrushRoll Clean button located at the top of the nozzle with your foot. This feature automatically cuts and suctions away debris, maintaining optimal cleaning performance.
4.5 Self-Standing Design
The vacuum features a convenient self-standing design, allowing you to pause mid-clean without needing to lean it against a wall or return it to the charging station.
5. Техникалык тейлөө
5.1 Чаң урнасын бошотуу
The dust bin should be emptied regularly to maintain suction power. The axial cyclonic technology efficiently separates dirt and dust. To empty, detach the handheld unit, locate the release button for the dust bin, and empty contents into a trash receptacle.
5.2 Cleaning the 5-Step Filtration System
The 5-step filtration system, including the E10 filter and 2-layer foam filter, captures allergens and fine dust. Filters should be rinsed as needed and replaced approximately every 12 months for optimal air quality and performance. Refer to the included quick start guide for detailed filter removal and cleaning instructions.
5.3 Щетка роликтерин тейлөө
Regularly inspect the brush roll for any debris or tangled hair. Utilize the BrushRoll Clean Technology as described in section 4.4. For deeper cleaning or replacement, the brush roll can be removed according to the detailed instructions in the full user manual.
6. Кыйынчылыктарды
If you experience issues with your Electrolux WellQ7 vacuum, consider the following common solutions:
- Кубат жок: Ensure the battery is fully charged. Check that the vacuum is correctly seated on the charging stand and the charger is plugged in.
- Азайтылган соргуч: Empty the dust bin. Clean or replace the filters. Check the nozzle and hose for blockages.
- Щетка түрмөгү айланбайт: Check for tangled hair or debris on the brush roll and use the BrushRoll Clean function. Ensure the nozzle is properly attached.
- Ашыкча ысып кетүү: If the vacuum shuts off unexpectedly, it may be due to overheating. This can be caused by a full dust bin, clogged filters, or a jammed brush roll. Address these issues and allow the vacuum to cool down before resuming use.
For more detailed troubleshooting, please refer to the complete user manual or contact Electrolux customer support.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Electrolux |
| Модель аты | WellQ7 |
| Элемент моделинин номери | EHVS35S2AD |
| Түс | Denim Blue |
| Форма фактору | Stick (2-in-1) |
| Зымсызбы? | Ооба |
| Power Source | Батарея менен иштейт |
| Батарея түрү | Литий-ион |
| Батареянын иштөө мөөнөтү | 50 мүнөткө чейин |
| Кубат деңгээли саны | 2 |
| Кубаттуулугу | 0.3 литр |
| Чыпка түрү | Foam, E10 |
| Ызы-чуу деңгээли | 78 децибел |
| Элемент Салмагы | 6 фунт |
| Продукциянын өлчөмдөрү | 10.04"L x 5.5"W x 43.3"H |
| Сунушталган Колдонуулар | Килемдер жана катуу полдор |
8. Кепилдик жана колдоо
8.1 Кепилдик маалыматы
The Electrolux WellQ7 Cordless 2-in-1 Vacuum comes with a 2 жылдык өндүрүүчүнүн кепилдиги. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
8.2 Кардарларды колдоо
For further assistance, product registration, or to purchase replacement parts and accessories, please visit the official Electrolux webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз. Сиз да зыярат кылсаңыз болот Amazonдагы Electrolux дүкөнү.
