Introduction
Welcome to the user manual for your boAt Airdopes 173 True Wireless Earbuds. These earbuds are designed to provide an immersive audio experience with seamless connectivity and robust features. This manual will guide you through the setup, operation, maintenance, and troubleshooting of your device, ensuring you get the most out of your Airdopes 173.
Пакеттин мазмуну
Сиздин пакетиңизде төмөнкү нерселердин бардыгы камтылганын текшериңиз:
- boAt Airdopes 173 Earbuds (Left and Right)
- Заряддоо кутусу
- USB Type-C кубаттоочу кабель
- Additional Ear Cushions (various sizes)
Продукт бүттүview
Image: The boAt Airdopes 173 earbuds, one removed from the open charging case, showcasing their compact design and the charging case's interior.
The boAt Airdopes 173 consists of two true wireless earbuds and a portable charging case. Each earbud is equipped with a 6mm dynamic driver for powerful sound, a microphone for calls, and a multifunction button for controls. The charging case features a 380mAh battery and a Type-C port for convenient charging, providing extended playtime for your earbuds.
Жайгашуу
Баштапкы заряд

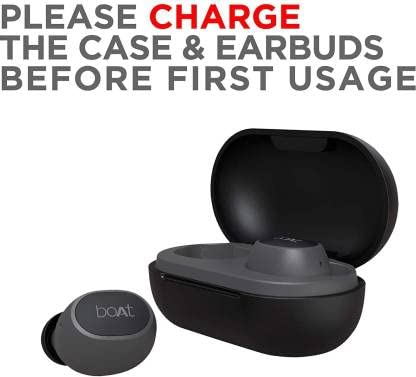

Image: A visual reminder to fully charge the earbuds and charging case before the first use, showing the earbuds and case.
Before using your boAt Airdopes 173 for the first time, it is recommended to fully charge both the earbuds and the charging case. Place the earbuds into their respective slots in the charging case. Connect the provided Type-C charging cable to the charging case and then to a USB power source. The indicator lights on the case will show the charging status. Ensure the earbuds are properly seated to initiate charging.
Аспабыңыз менен жупташуу
Image: A close-up of a single boAt Airdopes 173 earbud, highlighting its sleek design and the Bluetooth 5.0 connectivity feature.
- Заряддоо кутусунун капкагын ачыңыз. Кулакчындар автоматтык түрдө күйүп, жупташтыруу режимине өтөт.
- Смартфонуңузда же Bluetooth иштетилген түзмөгүңүздө Bluetooth жөндөөлөрүнө өтүңүз.
- Издөө available devices and select 'Airdopes 173' from the list.
- Туташкандан кийин үн билдирүүсү ийгиликтүү жупташтырууну ырастайт.
The earbuds will automatically connect to the last paired device when removed from the case, provided Bluetooth is enabled on the device.
Иштөө нускамалары
Күйгүзүү/өчүрүү
- Күйгүзүү: The earbuds power on automatically when removed from the charging case. Alternatively, long-press the multifunction button on both earbuds for 3 seconds.
- Өчүрүү: Place the earbuds back into the charging case and close the lid. They will power off automatically. Alternatively, long-press the multifunction button on both earbuds for 5 seconds.
Музыканы ойнотуу
- Ойнотуу/тындыруу: Single tap the multifunction button on either earbud.
- Кийинки трек: Оң кулакчындагы көп функциялуу баскычты эки жолу басыңыз.
- Мурунку трек: Сол кулакчындагы көп функциялуу баскычты эки жолу басыңыз.
Чалууларды башкаруу
- Чалууга жооп берүү/аяктоо: Single tap the multifunction button on either earbud.
- Чакырууну четке кагуу: Long-press the multifunction button on either earbud for 2 seconds.
Үн жардамчысы
- Үн Жардамчысын жандыруу: Single press the multifunction button on either earbud to activate your device's voice assistant (e.g., Google Assistant, Siri).
Кулакчын тагынуу
Image: A person wearing a boAt Airdopes 173 earbud, demonstrating its ergonomic fit and discreet profile when worn.
For optimal sound quality and comfort, insert the earbuds into your ears and gently twist them until they fit securely. Experiment with the different sizes of ear cushions provided to find the best fit for your ears. A proper seal is crucial for bass response and noise isolation.
Заряддоо

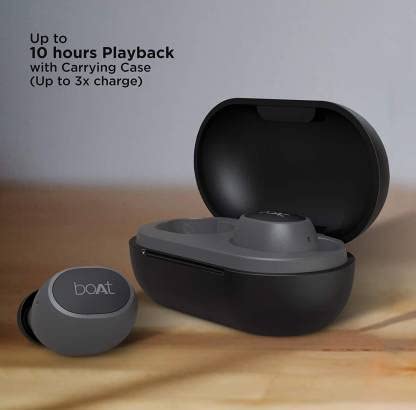

Image: The boAt Airdopes 173 earbuds and their open charging case, illustrating the extended playback time of up to 10 hours with the case.
Кулакчындарды заряддоо
Place the earbuds into their corresponding slots in the charging case. They will automatically begin charging. The earbuds provide up to 3 hours of playtime on a single charge.
Ишти заряддоо
Connect the Type-C charging cable to the charging port on the case and the other end to a USB power adapter or computer. The charging case has a 380mAh battery, providing up to 3 additional charges for the earbuds, extending the total playtime to 10 hours.
Техникалык тейлөө
Тазалоо
Regularly clean your earbuds and charging case with a soft, dry, lint-free cloth. Do not use abrasive cleaners, alcohol, or chemical solvents. Ensure the charging contacts on both the earbuds and the case are clean and free of debris.
Сактагыч
When not in use, store the earbuds in their charging case. Keep the device in a cool, dry place, away from direct sunlight, extreme temperatures, and humidity.
Суу каршылык
The boAt Airdopes 173 are rated IPX4, meaning they are resistant to sweat and light splashes of water. They are not waterproof and should not be submerged in water or exposed to heavy rain.
Проблемаларды чечүү
| Маселе | Чечим |
|---|---|
| Кулакчындар күйбөй жатат | Ensure the earbuds and charging case have sufficient battery. Place earbuds in case, close lid, then reopen. |
| Кулакчындар жупташкан жок | Ensure Bluetooth is enabled on your device. Forget 'Airdopes 173' from your device's Bluetooth list and re-pair. Ensure earbuds are in pairing mode. |
| Кулакчындардан үн чыкпайт | Check the volume level on your device. Ensure earbuds are properly connected. Try resetting the earbuds (refer to boAt support for specific reset instructions). |
| Бир гана кулакчын иштейт | Place both earbuds back into the charging case, close the lid for a few seconds, then reopen. This often re-syncs them. Re-pair if necessary. |
| Заряддоо маселелери | Verify the charging cable and power source are working correctly. Clean the charging contacts on both the earbuds and the case. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | Airdopes 173-cr |
| Байланыш | Bluetooth v5.0 |
| Айдоочунун өлчөмү | 6мм динамикалык айдоочулар |
| Earbud Playtime | Заряддоого 3 саатка чейин |
| Жалпы ойноо убактысы (капка менен) | 10 саатка чейин |
| Кулакчындын батареянын кубаттуулугу | 43 мАч (ар бири) |
| Заряддоо корпусунун батареясынын сыйымдуулугу | 380mAh |
| Сууга туруктуулук рейтинги | IPX4 (терге жана чачыратууга туруктуу) |
| Башкаруу түрү | Тийүү, Үн |
| Камтылган компоненттер | Earbuds, Charging Case, USB Type-C Cable, Ear Cushions |
| Элемент Салмагы | 35 грамм |
Кепилдик жана колдоо
The boAt Airdopes 173 comes with a 6 айлык кепилдик сатып алынган күндөн тартып. Бул кепилдик өндүрүштүк кемчиликтерди камтыйт жана сиздин продуктуңуздун кадимки колдонууда максаттуу түрдө иштешин камсыздайт.
For any technical assistance, warranty claims, or further inquiries, please visit the official boAt website or contact their customer support. Keep your purchase receipt as proof of purchase for warranty services.
