OLIGHT Perun 2 Mini Headlamp User Manual

1. Киришүү

The OLIGHT Perun 2 Mini Headlamp is a versatile and compact lighting solution designed for various activities including working, hiking, camping, and climbing. This manual provides comprehensive instructions for the safe and effective use of your Perun 2 Mini headlamp.

Figure 1: OLIGHT Perun 2 Mini Headlamp камтылган аксессуарлар менен.

2. Кутуда эмне бар

Кутудан чыгарууда бардык компоненттер бар экенин текшериңиз:

• OLIGHT Perun 2 Mini Headlamp (Black Cool White: 5700K~6700K)
• Battery (1 Lithium Metal battery, included)
• Charging Cable (MCC 1A Magnetic Charging Cable)
• Head Band
• Headlamp X 1 негизи
• Perun 2 Mini Pocket Clip x 1

Figure 2: All components included in the Perun 2 Mini package.

3. Орнотуу

3.1 Initial Battery Preparation

Before first use, ensure the insulating film is removed from the battery. Unscrew the tail cap of the headlamp, remove the yellow insulating film, and then re-tighten the tail cap securely.

3.2 Башты заряддооamp

The Perun 2 Mini uses a magnetic charging cable (MCC 1A). Attach the magnetic end of the charging cable to the tail cap of the headlamp. The indicator light on the charging cable will illuminate red during charging and turn green when fully charged.

Figure 3: Magnetic charging of the Perun 2 Mini headlamp.

3.3 Attaching to Headband or Clip

Башчыamp can be used handheld, attached to the included pocket clip, or mounted on the headband base for headlamp функционалдуулук.

• Headband Use: Башты салыңызamp into the silicone headlamp base. The base allows for 180-degree multi-angle lighting adjustment. Secure the base to the elastic headband.
• Pocket Clip Use: Attach the pocket clip to the body of the headlamp. This allows for attachment to backpacks, belts, or other gear.
• Магниттик тиркеме: The magnetic tail cap allows the headlamp to be securely attached to any iron surface for hands-free work light use.

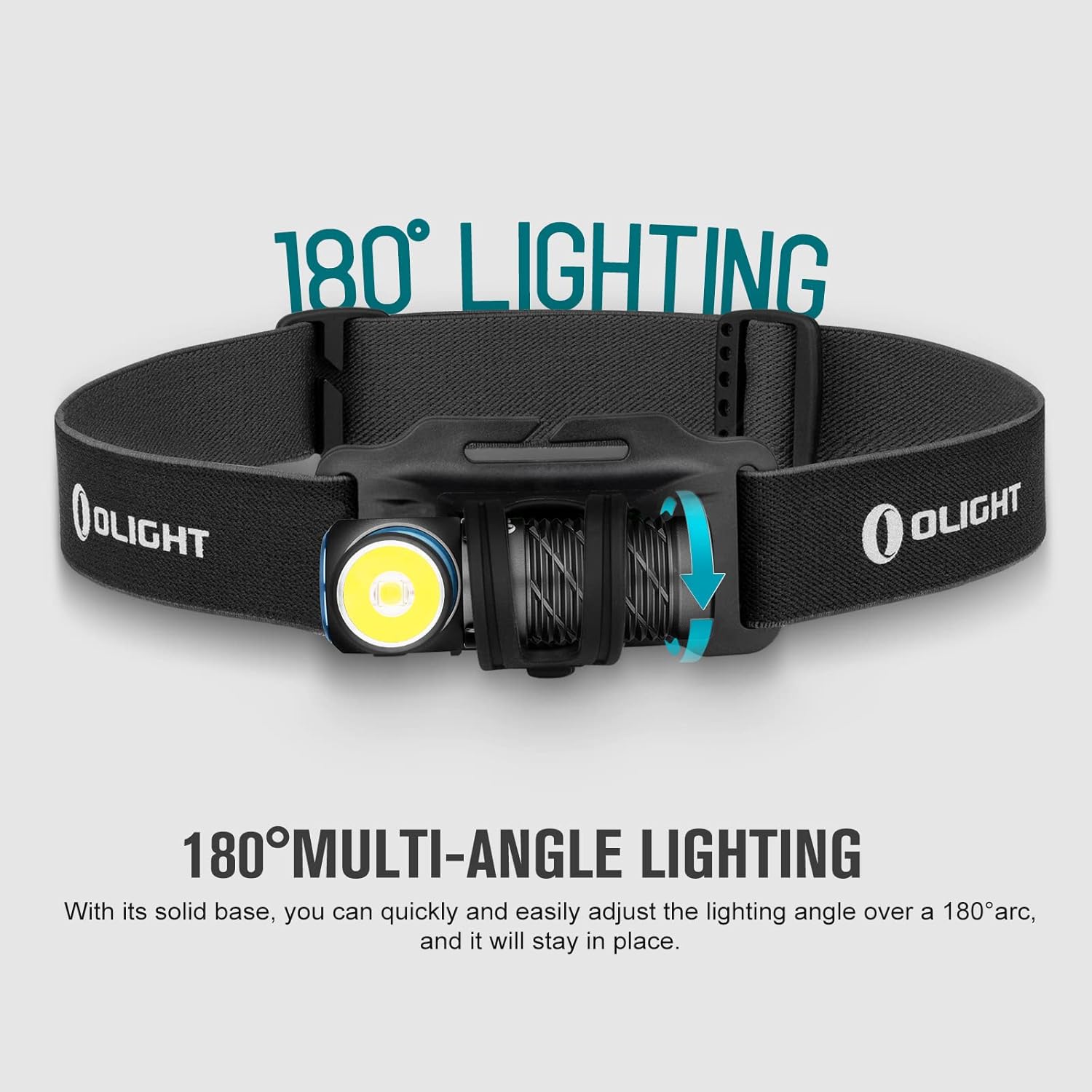

4-сүрөт: Башкы бетamp base allows for 180-degree lighting adjustment.

Figure 5: The pocket clip enables attachment to various items like backpack straps.

4. Иштөө нускамалары

4.1 Күйгүзүү/өчүрүү

Press the side switch once to turn the headlamp КҮЙГҮЗҮҮ/ӨЧҮРҮҮ.

4.2 Changing Brightness Levels (White Light)

Качан башamp is ON, press and hold the side switch to cycle through the brightness levels: Moonlight, Low, Medium, High. Release the switch to select the desired brightness.

• Ай жарыгы режими: Provides 2 lumens for up to 10 days, ideal for maintaining night vision.
• Турбо режими: Double-press the side switch quickly from any white light mode to activate Turbo mode (1,100 lumens). Double-press again to return to the previous mode.

4.3 Red Light Option

The Perun 2 Mini includes a red LED. This can be used to maintain night vision or as an emergency warning signal.

Figure 6: The red light feature is useful for maintaining night vision or emergency signaling.

4.4 Кубат көрсөткүчү

Башчыamp features a tri-color power indicator to display the remaining battery level:

• Жашыл: Батарея деңгээли > 60%
• Ачык күрөң: Батареянын деңгээли 60% - 10%
• Кызыл: Батареянын деңгээли 10% - 5%
• Жаркылдаган кызыл: Battery level < 5% (recharge immediately)

Figure 7: The tri-color indicator provides clear battery status at a glance.

5. Техникалык шарттар

Figure 8: Key performance specifications of the Perun 2 Mini.

6. Техникалык тейлөө

To ensure the longevity and optimal performance of your OLIGHT Perun 2 Mini Headlamp, бул тейлөө көрсөтмөлөрүн аткарыңыз:

• Тазалоо: Башын сүртүңүзamp with a clean, soft cloth. For stubborn dirt, use a damp кездеме жана жумшак самын. Абразивдүү тазалоочу каражаттардан же эриткичтерден алыс болуңуз.
• Батареяга кам көрүү: Recharge the battery regularly, even if not in frequent use, to maintain battery health. Store the headlamp узак убакыт бою пайдаланылбаганда салкын, кургак жерде.
• Thread Lubrication: Periodically apply a thin layer of silicone grease to the O-rings and threads to maintain waterproof sealing and smooth operation.
• Демонтаждоону болтурбоо: Do not attempt to disassemble the headlamp as this may void the warranty and cause damage.

7. Кыйынчылыктарды

If you encounter issues with your Perun 2 Mini Headlamp, төмөнкү жалпы көйгөйлөрдү чечүү кадамдарын караңыз:

• Headlamp Күйгүзүлбөйт:
  • Ensure the battery's insulating film has been removed.
  • Check if the tail cap is fully tightened. A loose tail cap can prevent electrical contact.
  • Verify the battery is charged. Connect the headlamp to the charging cable and check the indicator light.
• Light Output is Low or Flickering:
  • Батарея аз болушу мүмкүн. Башты кайра заряддаңызamp.
  • Clean the contact points on the battery and inside the headlamp таза, кургак чүпүрөк менен.
• Магниттик кубаттоо иштебей жатат:
  • Ensure the magnetic charging cable is properly aligned and securely attached to the tail cap.
  • Check if the charging cable is connected to a working USB power source.

If the issue persists after attempting these steps, please contact OLIGHT customer support for further assistance.

8. Кепилдик жана колдоо

OLIGHT offers a Өмүр бою кепилдик on the Perun 2 Mini Headlamp, ensuring long-term reliability and customer satisfaction. For detailed warranty information and support, please visit the official OLIGHT website or refer to the included user manual PDF.

You can also find more information and products at the official OLIGHT store:

Visit the OLIGHT Store

For a downloadable version of the user manual, please click the link below:

Колдонуучунун колдонмосун жүктөп алуу (PDF)
