1. Киришүү
This manual provides essential instructions for setting up, operating, and maintaining your Yealink VCM36-W Conference Microphone. Designed for clear audio conferencing, this device offers reliable performance for various communication needs.
2. Кутуда эмне бар
- Микрофон
3. Продукт бүтүп калдыview

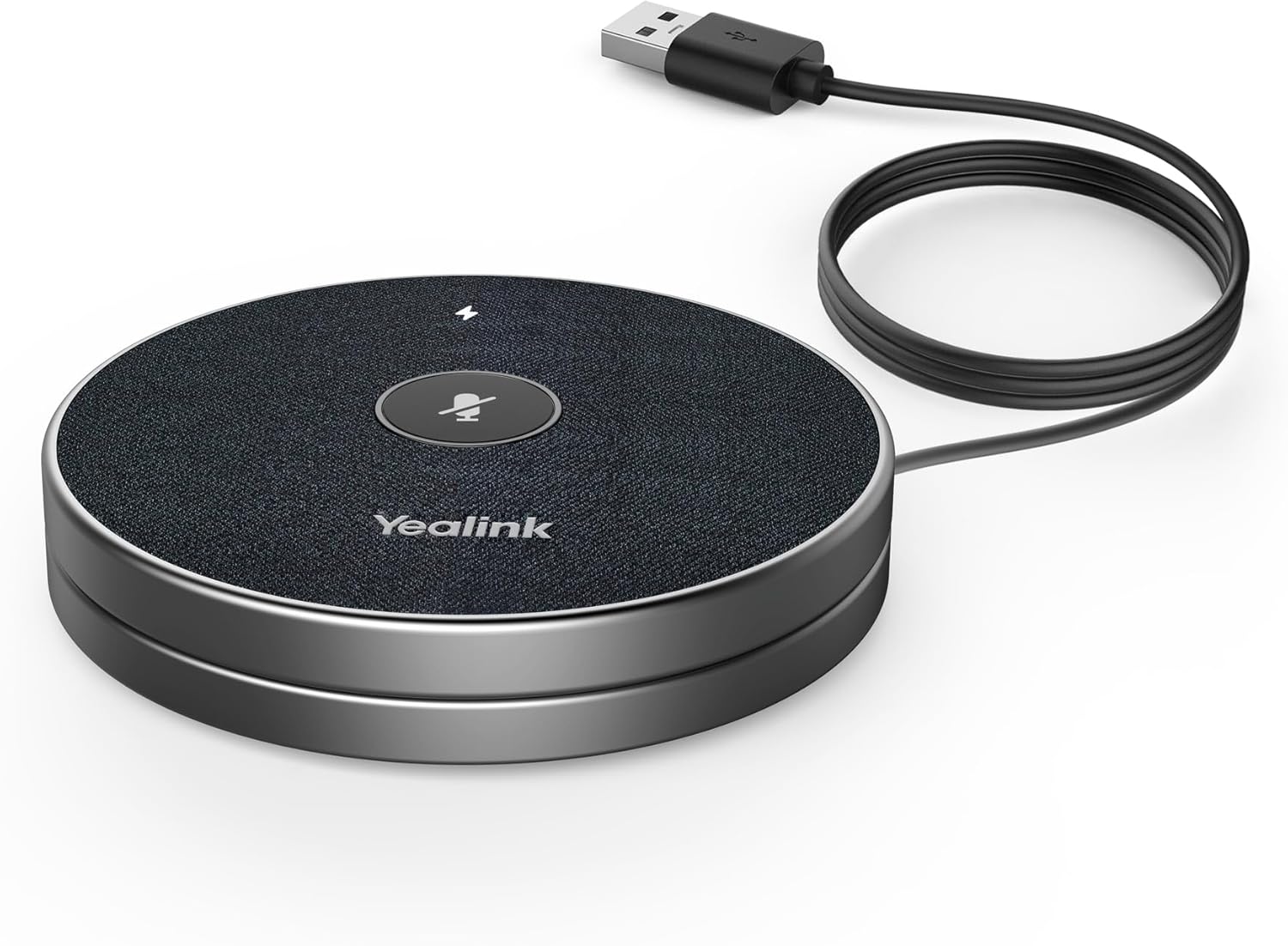

Figure 1: Yealink VCM36-W Conference Microphone connected via USB.
Figure 2: The VCM36-W microphone unit detached from its charging base.
Figure 3: Close-up of the VCM36-W's touch controls, including mute and volume.
4. Орнотуу
4.1 Кубат туташтыруу
Connect the microphone to a power source using the provided corded electric power supply. Ensure the device is adequately charged before initial use or firmware updates.
4.2 Аппараттын туташуу
The Yealink VCM36-W supports Wi-Fi connectivity. For wired connections, use the XLR connector type. Refer to your device's specific connection ports for compatibility.
4.3 Орнотуу боюнча көрсөтмө
For visual guidance on setting up a Yealink speakerphone, the following video demonstrates installation steps for similar models. While not specific to VCM36-W, the principles may apply.
Video 1: Yealink CP50/CPE40 Speakerphone Installation Description. This video provides general installation steps for Yealink speakerphones, which may be helpful for setting up the VCM36-W.
5. Операция
5.1 Негизги башкаруу каражаттары
The VCM36-W features intuitive touch controls for managing your conference calls. These include:
- Үнсүз баскычы: Микрофондун үнүн басуу же ачуу үчүн.
- Үнүн жогорулатуу/төмөндөтүү: Динамиктин үнүн жөндөө үчүн.
- Bluetooth баскычы: For pairing with mobile devices or a Bluetooth dongle.
5.2 Bluetooth байланышы
The VCM36-W supports Bluetooth for wireless connection to compatible devices. Press the Bluetooth button to initiate pairing mode. For a demonstration of Yealink Bluetooth speakerphone features, refer to the video below.
Video 2: Yealink Bluetooth Speakerphone Conference Microphone. This video highlights general features of Yealink Bluetooth speakerphones, including connectivity.
5.3 Аудио аткаруу
The VCM36-W is designed for clear audio pickup and output. The following videos provide audio tests for other Yealink speakerphone models, offering insight into the expected audio quality and range.
Video 3: Yealink CP700 Speakerphone Audio Test. This video demonstrates the audio performance of a similar Yealink speakerphone model.
Video 4: Yealink CP50 and CPE40 Speakerphone Audio Test. This video showcases the audio capabilities of other Yealink speakerphone models, including range tests.
6. Техникалык шарттар
| Өзгөчөлүк | Description |
|---|---|
| Модель аты | VCM36-W |
| Аудио сезгичтиги | 54 децибел |
| Импеданс | 16 Ом |
| Микрофон форма фактору | Таблица массив |
| Ызы-чуунун катышы | 36 дБ |
| Полярдык үлгү | Бир багыттуу |
| Байланыш технологиясы | Wi-Fi |
| Туташтыргыч түрү | XLR |
| Өзгөчө өзгөчөлүк | Touchpad, WiFi technology |
| Шайкеш түзмөктөр | Personal Computer, Laptop, Headset |
| Сунушталган Колдонуулар | Videokonferenz (Video Conferencing) |
| Power Source | Электр зымдары |
| Батареялар | 1 литий-иондук батарейкалар талап кылынат. |
| Материал | Металл |
| Продукциянын өлчөмдөрү | 5.91 x 3.15 x 1.97 дюйм |
| Элемент Салмагы | 15.1 унция |
7. Техникалык тейлөө
To ensure the longevity and optimal performance of your Yealink VCM36-W, follow these maintenance guidelines:
- Тазалоо: Түзмөктү тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз.
- Сактагыч: Микрофонду күндүн тике тийген нурунан жана экстремалдык температурадан алыс, салкын, кургак жерде сактаңыз.
- Кабелдик башкаруу: Utilize the integrated cord management feature to keep cables tidy and prevent damage.
8. Кыйынчылыктарды
If you encounter issues with your VCM36-W, consider the following basic troubleshooting steps:
- Кубат жок: Ensure the power cable is securely connected and the power source is active. Check battery level if operating wirelessly.
- Аудио жок/Начар аудио: Verify all connections (USB, Wi-Fi, Bluetooth). Check volume settings on both the microphone and your connected device. Ensure the microphone is not muted.
- Туташуу маселелери: For Wi-Fi, ensure the device is within range of your network. For Bluetooth, ensure the device is in pairing mode and your host device's Bluetooth is enabled.
- Орнотулган программаны жаңыртуу: Regularly check the Yealink support website for the latest firmware updates to improve performance and resolve potential issues.
9. Кепилдик жана колдоо
For warranty information, technical support, or service inquiries, please contact Yealink customer service or visit the official Yealink website. Keep your purchase receipt and product serial number handy for faster assistance.
Additional protection plans may be available from your retailer.
