SAMSON Q9x Broadcast Dynamic Microphone User Manual

Introduction

The Samson Q9x Broadcast Dynamic Microphone is engineered to deliver professional-grade audio for various applications including broadcasts, podcasts, live streams, and music recordings. Its design incorporates a highly directional capsule, optimized for vocal capture while effectively minimizing ambient background noise, making it suitable for environments such as untreated home studios. The microphone features an XLR output, ensuring seamless integration with most professional and home studio audio setups. Its robust aluminum body and integrated yoke mount provide durability and flexible mounting options for boom arms or desk stands.

Кутуда эмне бар

• Q9x Microphone
• Айнек

Жайгашуу

Proper setup of your SAMSON Q9x microphone ensures optimal audio performance. Follow these steps to integrate your microphone into your recording environment.

Микрофонду орнотуу

The Q9x features an integrated swivel yoke mount with a 5/8" thread adapter. This allows for direct attachment to any standard 5/8" mic stand or boom arm.

Сүрөттүн сүрөттөлүшү: Жакын план view of the bottom of the SAMSON Q9x microphone, highlighting the integrated swivel yoke mount and the XLR output port. The mount allows for secure attachment to various stands.

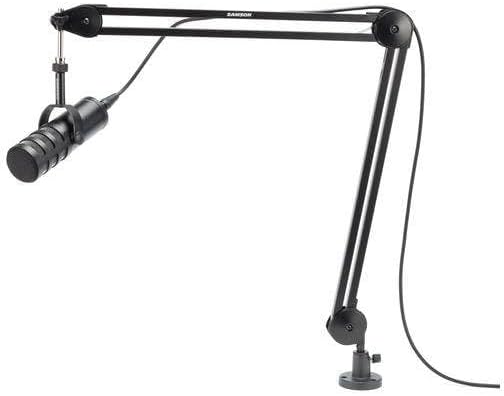

Сүрөттүн сүрөттөлүшү: The SAMSON Q9x microphone is shown mounted on a professional boom arm, demonstrating a typical setup for broadcasting or podcasting. The microphone is positioned for optimal vocal capture.

Connecting to an Audio Interface or Mixer

The Q9x is equipped with an XLR output. Use a standard XLR cable (not included) to connect the microphone to your audio interface, mixer, or preamp. Ensure the connection is secure.

Сүрөттүн сүрөттөлүшү: Деталдуу арткы бет view of the SAMSON Q9x microphone, clearly showing the XLR output port. This port is used for connecting the microphone to external audio equipment.

Иштөө нускамалары

The SAMSON Q9x is designed for ease of use while providing high-quality audio. Understanding its features will help you achieve the best results.

Polar Pattern and Vocal Capture

The microphone utilizes a cardioid polar pattern. This design focuses audio capture directly in front of the microphone, effectively minimizing ambient noise from the sides and rear. Position the microphone directly towards the sound source (e.g., your mouth) for optimal clarity and background noise rejection.

Presence Boost Feature

The Q9x includes a selectable presence boost. This feature brightens mid-range frequencies, enhancing vocal clarity and helping your voice cut through a mix without sounding harsh or brittle. Experiment with this setting to find the ideal tone for your voice or instrument.

Integrated Windscreen and Shockmount

The microphone is equipped with a dual-layer windscreen and includes a removable foam pop filter. These components work together to reduce plosives (harsh 'p' and 'b' sounds) and breath noises, ensuring a cleaner audio signal. The capsule shockmount isolates the microphone from mechanical noise and vibrations that can be transmitted through the mic stand or boom arm.

Сүрөттүн сүрөттөлүшү: Алдыңкы бети view of the SAMSON Q9x microphone, showcasing its robust design and the included foam windscreen. The microphone is black with a metallic grille.

Сүрөттүн сүрөттөлүшү: A woman is shown speaking into a SAMSON Q9x microphone, which is positioned on a boom arm. She is wearing headphones, indicating a typical recording or broadcasting setup where real-time monitoring is essential.

Расмий продукт Videos

Техникалык тейлөө

To ensure the longevity and optimal performance of your SAMSON Q9x microphone, follow these maintenance guidelines:

• Тазалоо: Use a soft, dry cloth to wipe down the microphone body. Avoid using liquid cleaners or solvents, as they may damage the finish or internal components.
• Алдын ала айнекти багуу: The included foam windscreen can be gently removed and cleaned with mild soap and water if necessary. Ensure it is completely dry before reattaching.
• Сактагыч: When not in use, store the microphone in a clean, dry place, ideally in its original packaging or a protective case, to prevent dust accumulation and physical damage.
• Кабелдик башкаруу: Avoid sharply bending or twisting XLR cables, as this can damage the internal wiring and affect signal quality.

Проблемаларды чечүү

If you encounter issues with your SAMSON Q9x microphone, consider the following common troubleshooting steps:

• Үн жок:
  • Бардык XLR кабелдери микрофонго жана аудио интерфейсине/миксерге ишенимдүү туташтырылганын текшериңиз.
  • Verify that your audio interface or mixer is powered on and configured correctly to receive input from the XLR channel.
  • Check the input gain level on your audio interface/mixer. It may be set too low.
• Poor Sound Quality (Distortion/Low Volume):
  • Adjust the input gain on your audio interface/mixer. If the sound is distorted, the gain might be too high. If the volume is too low, increase the gain.
  • Ensure the microphone is positioned correctly, pointing directly at the sound source.
  • Check for any damaged XLR cables, which can cause signal degradation.
  • If using the presence boost, try disengaging it to see if it improves the sound for your specific application.
• Ашыкча фон ызы-чуу:
  • The cardioid polar pattern is designed to reject off-axis sound. Ensure the microphone is positioned to minimize unwanted noise sources.
  • Check for environmental noise sources (e.g., fans, air conditioning) and try to reduce them or move the recording setup.
  • Ensure the capsule shockmount is properly installed to reduce mechanical vibrations.

Техникалык шарттар

Кепилдик жана колдоо

For warranty information and technical support regarding your SAMSON Q9x Broadcast Dynamic Microphone, please refer to the official Samson Technologies webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
