Walfront RS-550 Electric Gear Motor Instruction Manual

1. Киришүү

This manual provides essential information for the proper installation, operation, and maintenance of your Walfront RS-550 Electric Gear Motor. Please read these instructions carefully before use to ensure safe and efficient performance.

The Walfront RS-550 Electric Gear Motor is a robust DC brush motor designed for a wide range of applications. It serves as a reliable power source for various devices and systems, including:

• Audio and video equipment, where micro motors are critical components.
• Office automation equipment and computer peripheral devices.
• Industrial automation equipment, such as CNC machines and robots.
• Cordless electric hand drills and electric screwdrivers.

This motor is manufactured using precision machining, magnetic material treatment, and insulation treatment to ensure stable and reliable operation.

2. Техникалык шарттар

Refer to the following table for detailed technical specifications of the RS-550 Electric Gear Motor:

3. Орнотуу жана орнотуу

Моторду туура орнотуу анын иштеши жана узак мөөнөттүү иштеши үчүн абдан маанилүү. Төмөнкү жалпы көрсөтмөлөрдү аткарыңыз:

• Монтаждоо: Securely mount the motor using appropriate fasteners to prevent vibration and misalignment. Ensure the mounting surface is stable and flat.
• Электр байланыштары: Connect the motor to a power supply that matches the specified voltage range (12-24V DC). Observe correct polarity to ensure the motor rotates in the desired direction. Incorrect polarity will reverse rotation.
• Туташуу жүктөө: Ensure any connected load (e.g., gear, pulley) is properly aligned and balanced to avoid excessive stress on the motor shaft and bearings.
• Вентиляция: Allow adequate space around the motor for proper airflow to prevent overheating, especially during prolonged operation or under heavy loads.

Сүрөт 1: Алдыңкы view of the Walfront RS-550 Electric Gear Motor, showing the shaft and mounting points.

4. Иштөө нускамалары

To operate the RS-550 Electric Gear Motor effectively and safely:

• Электр камсыздоо: Always use a stable DC power supply within the 12-24V range. Fluctuations outside this range can damage the motor.
• Алгачкы ишке киргизүү: Before connecting to a critical load, perform a brief test run to confirm proper rotation and absence of unusual noises or vibrations.
• Жүктөрдү башкаруу: Avoid exceeding the motor's rated torque and power. Overloading can lead to reduced efficiency, overheating, and premature failure.
• Мониторинг: During operation, periodically check the motor for excessive heat, unusual sounds, or vibrations. Address any anomalies promptly.

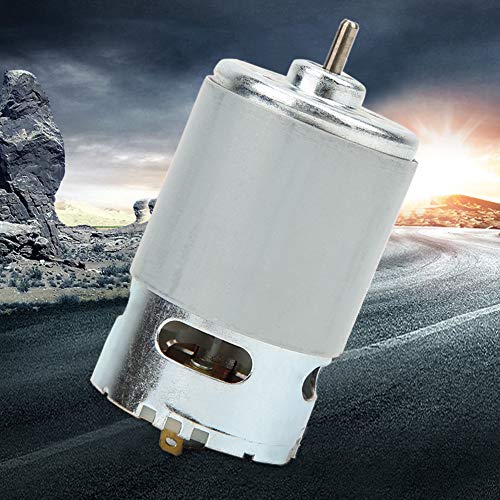

Figure 2: The Walfront RS-550 Electric Gear Motor shown against a dynamic background, illustrating its compact form factor.

5. Техникалык тейлөө

Regular maintenance helps extend the lifespan and maintain the performance of your motor:

• Тазалоо: Keep the motor free from dust, dirt, and debris. Use a soft, dry cloth or compressed air for cleaning. Avoid using liquids that could enter the motor housing.
• Туташуу текшерүүлөрү: Periodically inspect all electrical connections for tightness and corrosion. Loose connections can cause intermittent operation or arcing.
• Вал жана подшипниктер: Ensure the motor shaft rotates freely. If any resistance or grinding is detected, inspect the bearings for wear. Lubrication may be required for specific applications, consult a specialist if unsure.
• Экологиялык шарттар: Operate and store the motor in a dry, clean environment, away from extreme temperatures, humidity, and corrosive substances.

Figure 3: The Walfront RS-550 Electric Gear Motor presented with a stylized background, emphasizing its metallic construction.

6. Кыйынчылыктарды

If you encounter issues with your RS-550 Electric Gear Motor, consider the following common problems and solutions:

• Мотор иштебей жатат:
  • Check power supply connections and ensure they are secure and correctly polarized.
  • Электр менен камсыздоо туура көлөмдү камсыз кылып жатканын текшериңизtage (12-24V DC).
  • Ensure there is no mechanical obstruction preventing the shaft from rotating.
• Reduced Performance/Speed:
  • Check if the motor is overloaded. Reduce the load if necessary.
  • Inspect for any friction or binding in the connected mechanism.
  • Кубат менен камсыздоо туруктуу жана жетиштүү ток менен камсыз кылууну текшериңиз.
• Өзгөчө ызы-чуу же титирөө:
  • Check for loose mounting screws or misaligned components.
  • Inspect the motor shaft and bearings for damage or wear.
  • Ensure the connected load is balanced.
• Ашыкча ысып кетүү:
  • Мотордун айланасында жетиштүү желдетүүнү камсыз кылыңыз.
  • Check for prolonged operation under heavy load. Consider duty cycle adjustments.
  • Verify the motor is not overloaded.

If problems persist after attempting these troubleshooting steps, contact customer support for further assistance.

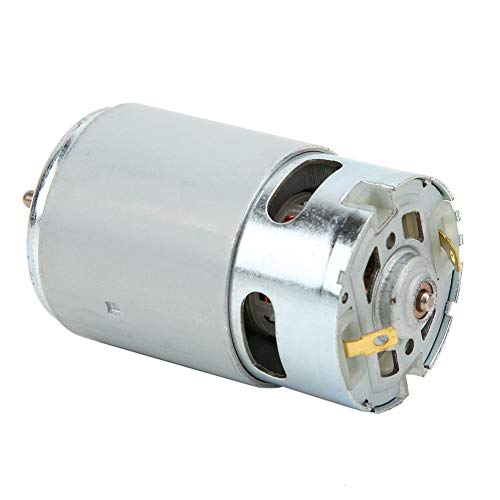

4-сүрөт: Каптал view of the Walfront RS-550 Electric Gear Motor, highlighting its cylindrical body and electrical terminals.

7. Коопсуздук маалыматы

Always adhere to the following safety precautions when handling, installing, or operating the motor:

• Электр коопсуздугу: Disconnect power before making any connections or performing maintenance. Ensure all wiring is correctly insulated and protected.
• Кыймылдуу бөлүктөр: Keep hands, clothing, and tools clear of rotating parts during operation.
• Жылуулук: The motor may become hot during operation. Avoid direct contact with the motor housing to prevent burns.
• Курчап турган чөйрө: Do not operate the motor in explosive atmospheres or where flammable gases or liquids are present.
• Балдар: Keep the motor and associated components out of reach of children.

8. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries regarding your Walfront RS-550 Electric Gear Motor, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.
