LIDER LTS-30M-WWP 30-Minute Countdown Timer Switch Instruction Manual

Продукт бүттүview

The LIDER LTS-30M-WWP Countdown Timer Switch is designed to provide convenient and energy-saving control for lighting fixtures and appliances. It features a manual ON/OFF button and six preset timer options, automatically turning off connected loads after the selected time expires.

Сүрөттүн сүрөттөлүшү: Жакын план view of the LIDER Countdown Timer Switch, highlighting its six preset timer buttons (1 Min, 5 Min, 10 Min, 15 Min, 20 Min, 30 Min) and the manual ON/OFF button. It also shows the LED indicator progress bar and instructions for switching LED modes and overriding the timer.

Негизги өзгөчөлүктөрү:

• Автоматтык өчүрүү: Automatically turns off connected loads after a preset time, preventing accidental energy waste.
• Бир нече таймер параметрлери: Six preset countdown times: 1, 5, 10, 15, 20, and 30 minutes.
• Кол менен башкаруу: A dedicated ON/OFF button allows for manual override of the timer function.
• LED көрсөткүчтөрү: Blue LED lights indicate the remaining countdown time and can be configured in two modes (flashing or always ON).
• Энергияны үнөмдөө: Ideal for controlling lights, ceiling fans, bathroom fans, and heaters to reduce energy consumption.
• Толук комплект: Includes the timer switch and a matching wall plate (LWP-31M-W) for a cohesive aesthetic.

Орнотуу нускамалары

ЭСКЕРТҮҮ: Installation should only be performed by a qualified electrician. Ensure power is OFF at the circuit breaker before beginning installation. This device requires a neutral wire and a ground wire for proper operation.

Керектүү материалдар:

• Филлипс бурагыч
• Тtage Tester
• Wire Stripper
• Электр лентасы (милдеттүү эмес)

Кадам-кадам колдонмо:

1. Кубатты өчүрүү: Алмаштырып жаткан өчүргүчтү башкарган автоматтык өчүргүчтү таап, аны ӨЧҮРҮҢҮЗ. Үн күчөткүчтү колдонуп, кубат өчүк экенин текшериңиз.tage сыноочу.
2. Учурдагы которгучту алып салуу: Carefully remove the existing wall plate and unscrew the old switch from the electrical box. Gently pull the switch out to expose the wiring.
3. Зымдарды аныктоо: Төмөнкү зымдарды аныктаңыз:
   • Hot Wire: Typically black.
   • Жүктөө зымы: Connects to the light or appliance.
   • Нейтралдуу зым: Typically white (REQUIRED for this switch).
   • Жер зымы: Адатта жылаңач жез же жашыл.
4. Эски которгучту ажыратыңыз: Disconnect the wires from the old switch. If wires are in poor condition, cut and strip insulation for new wiring.
5. Жаңы которгучту туташтыруу: Connect the LIDER LTS-30M-WWP timer switch wires to your household wires using wire nuts:
   • туташтыруу кара зым таймер которгучунан Hot Wire.
   • туташтыруу ак зым таймер которгучунан Нейтралдуу зым.
   • туташтыруу кызыл зым таймер которгучунан Wire жүктөө.
   • туташтыруу жашыл зым таймер которгучунан Жер зымы.
6. Которгучту орнотуу: Carefully push all connected wires back into the electrical box. Secure the timer switch to the electrical box using the provided screws.
7. Дубал плитасын орнотуу: Attach the included LIDER wall plate (LWP-31M-W) over the installed timer switch.
8. Күчтү калыбына келтирүү: Автоматтык өчүргүчтү кайра күйгүзүңүз.

Сүрөттүн сүрөттөлүшү: A detailed diagram showing the wiring connections for the LIDER Countdown Timer Switch. It clearly labels the Hot, Load, Neutral, and Ground terminals, emphasizing the requirement for a neutral wire. The image also shows the back of the switch with screw terminals.

Орнотуу видеосу:

Иштөө нускамалары

Артка санак таймерин орнотуу:

1. Ensure the connected load (light/fan) is OFF.
2. Press any of the six preset timer buttons (1, 5, 10, 15, 20, or 30 minutes) to activate the countdown.
3. The blue LED indicator next to the selected time will illuminate, and the connected load will turn ON.
4. The load will automatically turn OFF once the selected time expires.

Кол менен күйгүзүү/өчүрүү функциясын өзгөртүү:

• To Turn ON Manually: If the load is OFF, press the large manual ON/OFF button once. The load will turn ON and operate for the last selected timer preset.
• To Turn OFF Manually: If the load is ON, press the large manual ON/OFF button once to immediately turn the load OFF, overriding any active countdown.
• To Keep Load ON Indefinitely: While the load is OFF, press and hold the manual ON/OFF button for 8 seconds. The load will turn ON and remain ON until manually turned OFF.

LED Indicator Modes:

The blue LED indicators have two modes:

• 1-режим (демейки): The LED flashes every couple of seconds to display the remaining countdown time.
• 2-режим: The LED stays ON during the selected time delay and then shuts OFF.

To Switch LED Modes: Press and hold the top two timer buttons (1 Min and 5 Min) simultaneously for 7 seconds while the switch is ON. The LED indicator will flash three times to confirm the mode change.

Сүрөттүн сүрөттөлүшү: A visual representation of the LED progress bar on the LIDER Countdown Timer Switch. It shows how the LEDs illuminate to indicate the remaining time during a countdown, transitioning from a longer duration to a shorter one.

Операция видеосу:

Ар тараптуу колдонмолор

The LIDER LTS-30M-WWP Countdown Timer Switch is suitable for a wide range of residential and commercial applications, enhancing convenience and promoting energy efficiency.

• Жарыкты башкаруу: Ideal for closets, pantries, garages, and outdoor patio lighting to ensure lights are not left on unnecessarily.
• Желдетүүчү башкаруу: Perfect for bathroom fans and ceiling fans to prevent continuous operation and save energy.
• Жылыткычтар: Can be used with space heaters to provide timed operation, reducing the risk of overheating and energy waste.
• Other Appliances: Suitable for any appliance that benefits from timed automatic shut-off.

Сүрөттүн сүрөттөлүшү: Two images side-by-side. The left image shows the timer switch installed in a modern bathroom setting. The right image shows the timer switch installed in a laundromat or utility room, demonstrating its suitability for various environments.

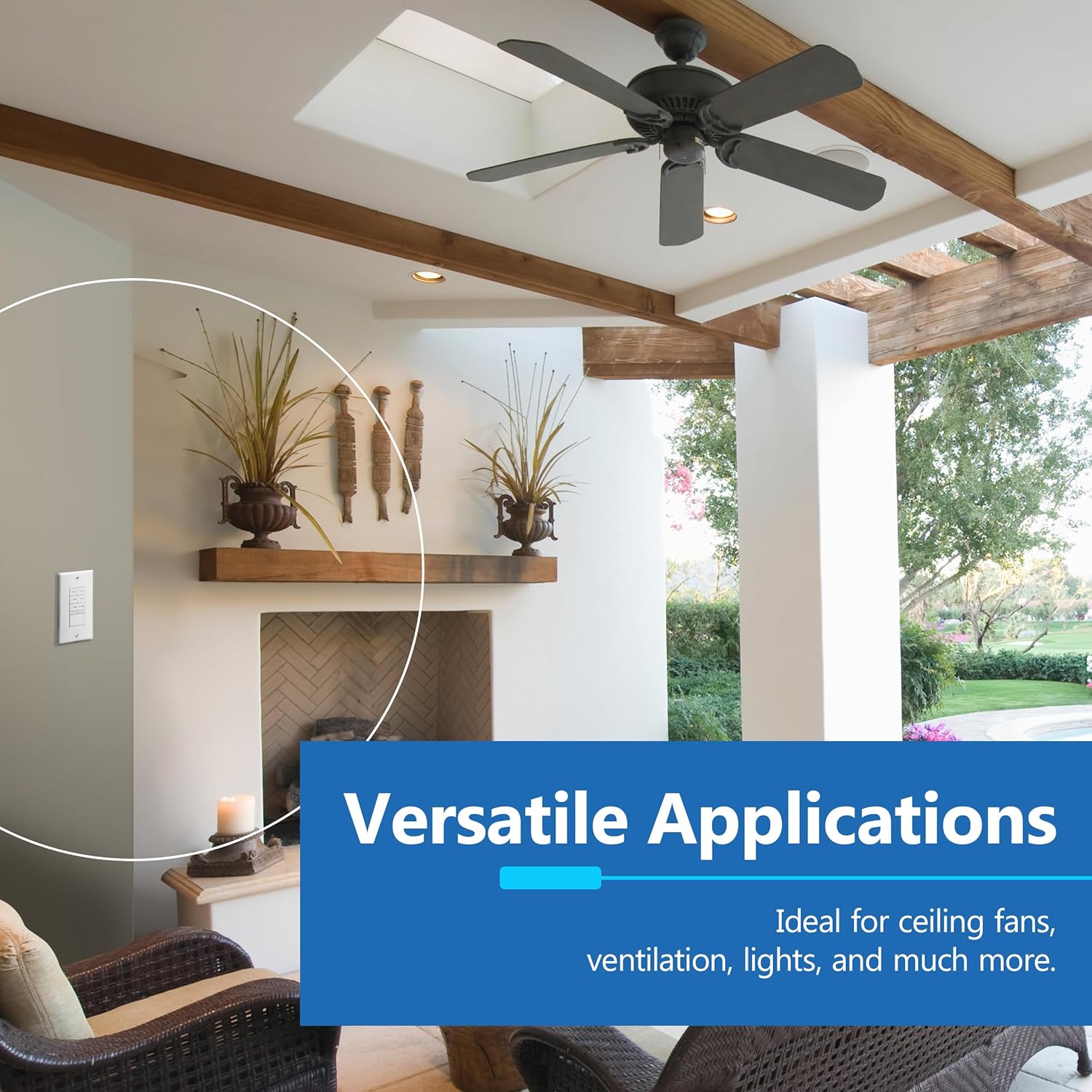

Сүрөттүн сүрөттөлүшү: The LIDER Countdown Timer Switch installed on a wall in an outdoor patio setting, suggesting its use for controlling outdoor lighting or fans. The image highlights its versatile application in different areas of a home.

Сүрөттүн сүрөттөлүшү: The LIDER Countdown Timer Switch installed on a wall inside a walk-in closet, illustrating its use for automatically turning off closet lights to conserve energy.

Продукт спецификациялары

Проблемаларды чечүү

If you encounter issues with your LIDER Countdown Timer Switch, please refer to the common problems and solutions below. For complex issues, consult a qualified electrician.

Жалпы маселелер жана чечимдер:

• Switch Not Responding / No Power:
  • Электр кубаты КҮЙҮК экенин текшерүү үчүн автоматтык өчүргүчтү текшериңиз.
  • Verify all wiring connections are secure and correct (Hot, Load, Neutral, Ground). Ensure the neutral wire is properly connected.
  • Томду колдонуңузtage tester to confirm power is reaching the switch.
• Load Does Not Turn OFF After Countdown:
  • Ensure a specific countdown time was selected and not the "Always ON" manual override mode.
  • If in "Always ON" mode, press the manual ON/OFF button to turn the load OFF.
• LED Indicators Not Functioning as Expected:
  • Check the LED mode setting. To switch between flashing and always ON modes, press and hold the top two timer buttons (1 Min and 5 Min) for 7 seconds while the switch is ON.

Troubleshooting Video:

Кепилдик жана колдоо

The LIDER LTS-30M-WWP Countdown Timer Switch comes with a 1 жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт.

For technical assistance, troubleshooting, or warranty claims, please contact LIDER customer support. Refer to the product packaging or the official LIDER webакыркы байланыш маалыматы үчүн сайт.
