1. Киришүү
Thank you for choosing the MEIKEE 50W LED Flood Light with Motion Sensor. This manual provides essential information for the safe installation, operation, and maintenance of your new floodlight. Please read these instructions carefully before use and retain them for future reference.
Image 1.1: Two MEIKEE 50W LED Flood Lights with Motion Sensors. Each unit features a black housing, a white LED panel, and an adjustable motion sensor unit below the light.
2. Коопсуздук нускамалары
- Орнотуудан, тейлөөдөн же тазалоодон мурун ар дайым электр энергиясын өчүрүңүз.
- Орнотуу жергиликтүү электр зымдарынын эрежелерине ылайык квалификациялуу электрик тарабынан аткарылышы керек.
- электр менен жабдууну камсыз кылуу voltage matches the product's requirements (85-265V AC).
- Do not look directly into the LED light when it is illuminated, as it may cause eye strain or damage.
- Продукцияны эч кандай өзгөртүүгө болбойт. Уруксатсыз өзгөртүүлөр кепилдикти жокко чыгарып, коопсуздукка коркунуч келтириши мүмкүн.
- Продукциянын кулап түшпөшү үчүн бекем орнотулганын текшериңиз.
- Keep children away from the product during installation and operation.
3. Пакеттин мазмуну
Бардык компоненттердин бар экенин жана бузулбаганын текшерүү үчүн пакетти текшериңиз:
- MEIKEE 50W LED Flood Light with Motion Sensor (2 units)
- Монтаждоо бурамалар жана дубал сайгычтар
- User Manual

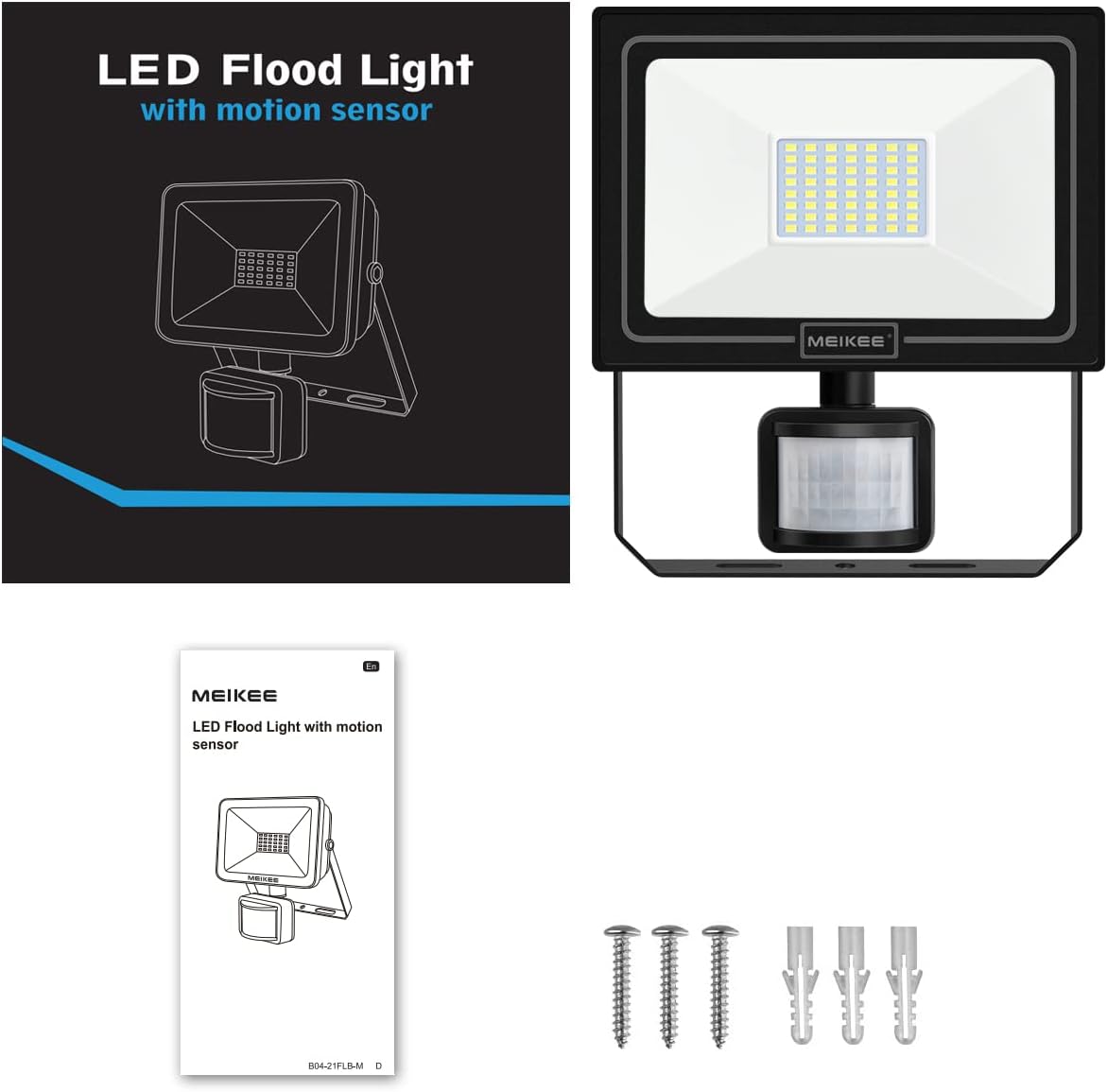

Image 3.1: The image displays the cover of the MEIKEE LED Flood Light user manual and the included mounting hardware, consisting of screws and wall plugs.
4. Продукт бүтүп калдыview
The MEIKEE 50W LED Flood Light is designed for outdoor security and illumination, featuring a high-brightness LED array and an adjustable motion sensor.
Негизги өзгөчөлүктөрү:
- Жакшыртылган кыймыл сенсору: The sensor head can be rotated horizontally and vertically (180° detection angle) to cover a detection range of up to 12 meters.
- Super Bright & Energy Saving: Equipped with 56 high-quality LEDs, providing 5000LM luminous flux at 6500K cool white light, replacing traditional 500W incandescent lamps and saving over 85% energy.
- IP66 Суу өткөрбөйт: Бышык алюминий сasing provides IP66 protection against moisture and dust, suitable for various outdoor environments.
- Натыйжалуу жылуулук диссипациясы: Features a profiled radiator and ultra-thin body for strong weather resistance and extended lifespan.
- Жөнгө салынуучу кашаа: Comes with an adjustable metal bracket for easy installation on ceilings and walls.
Image 4.1: This image highlights various features of the MEIKEE LED Flood Light, including its 50W power, IP66 waterproof rating, 360° rotatable light body, 180° adjustable sensor, enlarged and thickened steel bracket, aluminum reflector for impact resistance, stainless steel screws for corrosion resistance, and improved LED beads for 5000LM brightness.
Image 4.2: This diagram illustrates the internal and external features of the floodlight, including fast heat dissipation fins, impact-resistant nano cover, super bright LED chip, 180-degree rotation bracket, outdoor standard aging-resistant rubber cable (1.5m), waterproof sealing protecting internal parts, and wiring diagram (N-Neutral, L-Phase, E-Ground).
5. Орнотуу жана орнотуу
Коопсуз жана туура орнотуу үчүн бул кадамдарды аткарыңыз:
- Жайгашкан жерди тандаңыз: Select a suitable mounting location, ideally between 3-4 meters high, to ensure optimal detection range and illumination coverage.
- Бургулоо пункттарын белгилөө: Use the adjustable metal bracket as a template to mark the drilling points on the wall or ceiling.
- Бургулоо тешиктери: Drill holes at the marked points. Insert the wall plugs into the drilled holes.
- Кронштейнди орнотуу: Берилген бурамалар менен кронштейнди дубалга бекитиңиз.
- Жарык бурчту тууралоо: Once mounted, adjust the angle of the floodlight and the motion sensor to cover the desired area. The motion sensor head can be rotated horizontally and vertically.
- Зымдар: Connect the floodlight to your main power supply. Ensure correct wiring: Brown wire to Live (L), Blue wire to Neutral (N), and Yellow/Green wire to Earth (E). The cable length is 1 meter.
- Сыноо: Restore power and test the floodlight's functionality.

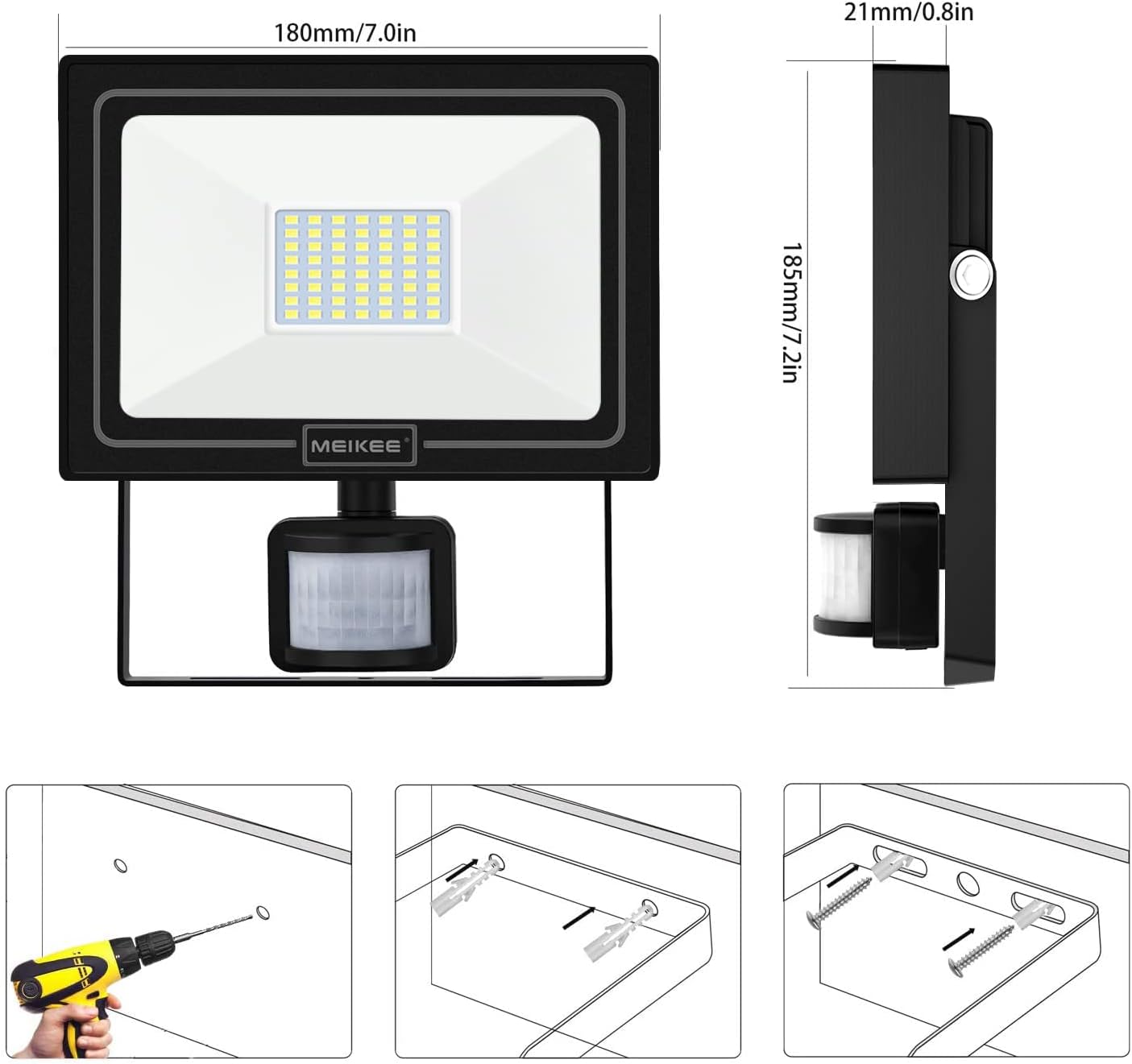

Image 5.1: This image illustrates the dimensions of the floodlight (180mm/7.0in width, 185mm/7.2in height, 21mm/0.8in depth) and provides a three-step visual guide for installation: 1. Drilling holes, 2. Inserting wall plugs, 3. Securing the light with screws.
Image 5.2: This diagram shows the optimal installation parameters: a beam angle of 120°, a detection range of 180° and 12 meters, an ideal mounting height of 3-4 meters, and an optimal illumination area of over 10x10 square meters. It also highlights the 56 super bright LED lamp шурулар.
6. Иштөө нускамалары
The MEIKEE LED Flood Light features an adjustable motion sensor with two main settings: TIME and LUX.
Кыймыл сенсорунун жөндөөлөрү:
- TIME (Lighting Duration): This knob adjusts how long the light stays on after motion is detected. You can set the duration from 10 seconds to 600 seconds (10 minutes).
- LUX (Айланадагы жарыкка сезгичтик): This knob determines the ambient light level at which the sensor becomes active.
- Set to the 'sun' icon for all-day operation (light activates with motion regardless of ambient light).
- Set to the 'moon' icon for night-only operation (light activates with motion only when it's dark).

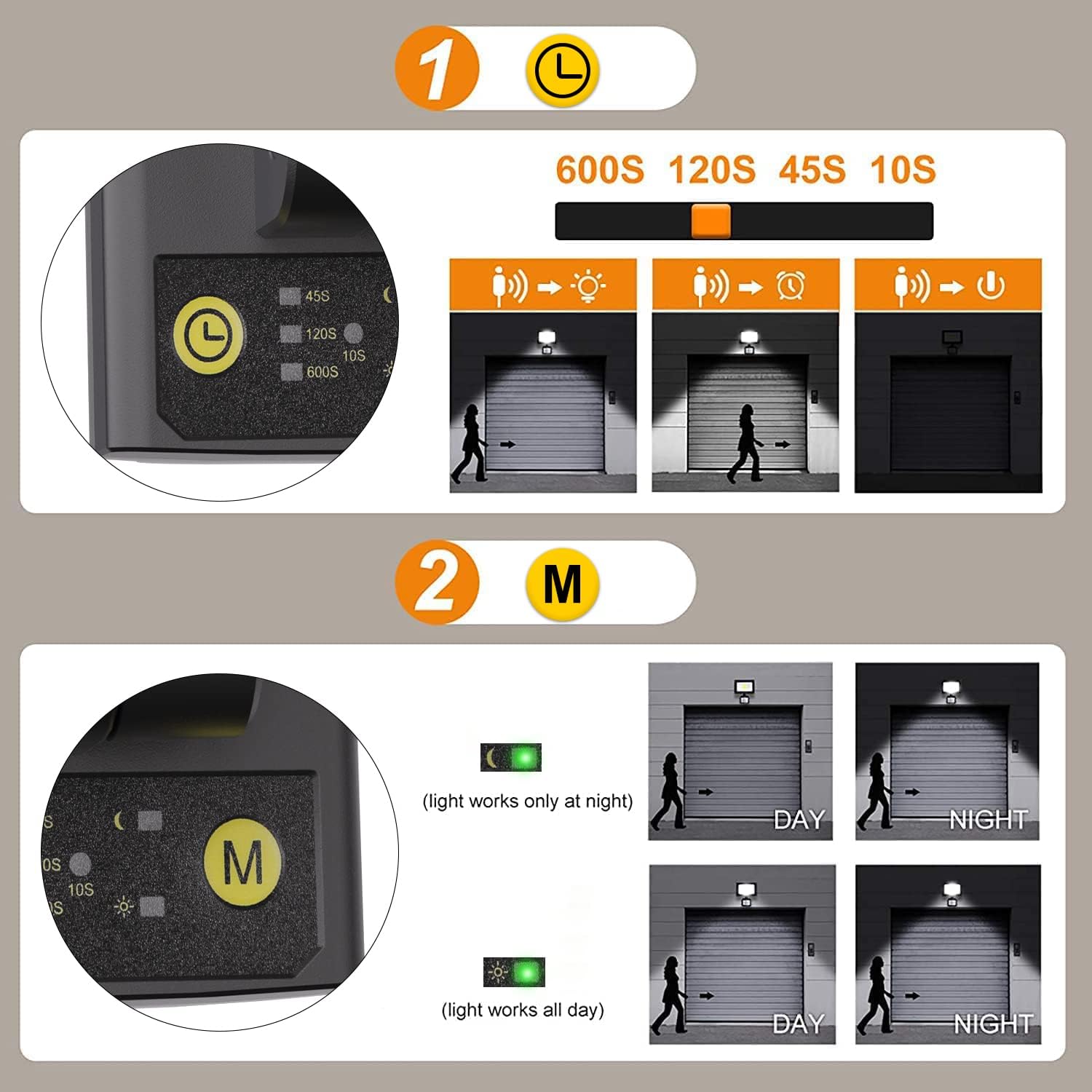

Image 6.1: This image illustrates the two adjustment knobs on the motion sensor. Knob 1 (labeled with a clock icon) controls the 'TIME' setting, allowing adjustment of lighting duration from 10s to 600s. Knob 2 (labeled with an 'M' and sun/moon icons) controls the 'LUX' setting, enabling selection between all-day operation (sun icon) or night-only operation (moon icon).
7. Техникалык тейлөө
Үзгүлтүксүз тейлөө прожекторуңуздун оптималдуу иштешин жана узак иштөөсүн камсыздайт.
- Тазалоо: Periodically clean the surface of the floodlight and the motion sensor lens with a soft, damp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Текшерүү: Regularly inspect the power cable for any signs of damage. Check mounting screws for tightness.
- Курчап турган чөйрөнү коргоо: The IP66 rating ensures resistance to water and dust. However, avoid submerging the unit in water or exposing it to high-pressure water jets.
Image 7.1: This image visually confirms the IP66 waterproof rating of the MEIKEE LED Flood Light, showing it being splashed with water. It also highlights its resistance to heat (sun icon) and cold (snowflake icon), indicating its suitability for various weather conditions.
8. Кыйынчылыктарды
If you encounter issues with your MEIKEE LED Flood Light, refer to the following table:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | Электр энергиясы жок. Туура эмес зымдар. LUX setting too low (for daytime). | Электр байланышын жана өчүргүчтү текшериңиз. Verify wiring connections (L, N, E). Adjust LUX knob towards 'sun' icon. |
| Жарык тынымсыз күйүп турат. | Үзгүлтүксүз кыймыл аныкталды. УБАКЫТ жөндөөсү өтө узун. LUX setting too high (for night). | Детектордук аймакта тынымсыз кыймыл болбошун камсыз кылыңыз. Adjust TIME knob to a shorter duration. Adjust LUX knob towards 'moon' icon. |
| Жарык жаркылдайт же жарк этет. | Туруксуз электр энергиясы. Бошогон зымдар байланышы. | Кубат булагынын туруктуулугун текшерүү. Бардык зым туташууларын бекитиңиз. |
| Кыймыл сенсору аныкталбай жатат. | Sensor blocked. Incorrect sensor angle. LUX setting too high (for night). | Clear any obstructions from sensor. Adjust sensor head angle. Adjust LUX knob towards 'sun' icon or ensure it's dark enough for 'moon' setting. |
9. Техникалык шарттар
| Параметр | Нарк |
|---|---|
| Модель номери | FLB050 |
| Күч | 50 Вт |
| Жарык агымы | 5000LM |
| Түс температурасы | 6500K муздак ак |
| Киргизүү көлөмүtage | 85-265В AC |
| Материал | Алюминий эритмеси |
| Коргоо рейтинги | IP66 |
| Motion Sensor Angle | 180° |
| Motion Sensor Distance | 12 метрге чейин |
| Lighting Duration (TIME) | 10s - 600s (adjustable) |
| Иштөө температурасы | -25 градустан 40 градуска чейин |
| Кабелдин узундугу | 1 метр |
| Түстөрдү көрсөтүү индекси (CRI) | >75 |
| Продукциянын өлчөмдөрү (болжол менен) | 180мм (W) x 185mm (H) x 21mm (D) |
| Салмагы (бирдик үчүн) | Approx. 0.72 kg (1.44 kg for 2 units) |
10. Кепилдик жана колдоо
MEIKEE provides a 2 жылдык кепилдик for this product, along with a 60 күндүк кайтаруу саясаты. If you have any questions or require assistance, please do not hesitate to contact our customer support team. We are available 24 hours a day to help you.
For support, please refer to the contact information provided with your purchase or visit the official MEIKEE webсайт.
11. Колдонуу сценарийлери
The MEIKEE 50W LED Flood Light with Motion Sensor is versatile and suitable for various outdoor and indoor applications where motion-activated lighting is beneficial.
- Yards and Gardens
- Stairways and Pathways
- Гараждар жана жертөлөлөр
- Doorways and Entrances
- Basketball Courts and Football Fields
- Commercial Properties and Hotels
Image 11.1: This collage shows the MEIKEE LED Flood Light installed in various settings, including a yard, a stairway, a garage, and a doorway, demonstrating its versatility for outdoor and security lighting.
