Café Couture Countertop Oven User Manual

1. Киришүү

The Café Couture Countertop Oven is designed to flawlessly prepare a wide range of recipes, from snacks to elaborate meals. It features 14 essential cooking modes, including Air Fry, CrispFinish, Bake, Broil, Roast, Toast, Bagel, Pizza, Cookies, Proof, Dehydrate, Slow Cook, Reheat, and Keep Warm. This manual provides detailed instructions for safe and efficient operation of your new appliance.

Фронт view of the Café Couture Countertop Oven in Matte White, showcasing a roasted chicken on a baking tray inside the illuminated oven cavity.

2. Коопсуздук боюнча маанилүү маалымат

Always read all instructions before using this appliance. Basic safety precautions should be followed, including:

• ысык беттерге тийбеңиз. Туткаларды же туткаларды колдонуңуз.
• Электрдик шоктон коргоо үчүн шнурду, сайгычты же шайманды сууга же башка суюктукка салбаңыз.
• Кандайдыр бир шайманды балдар же алардын жанында колдонуп жатканда, катуу көзөмөл керек.
• Колдонбогондо жана тазалоодон мурун розеткадан ажыратыңыз. Бөлүктөрүн кийүүдөн же чечүүдөн мурун муздатыңыз.
• Эч бир шайманды зымы же сайы бузулган же шайман иштебей калгандан кийин же кандайдыр бир түрдө бузулгандан кийин иштетпеңиз.
• Шаймандын өндүрүүчүсү сунуш кылбаган кошумча тиркемелерди колдонуу жаракатка алып келиши мүмкүн.
• Сыртта колдонбоңуз.
• Шнур столдун же столдун четине илинип калышына же ысык беттерге тийбеңиз.
• Ыстык газ же электр мешине же ысытылган мештин жанына коюуга болбойт.
• Курамында ысык май же башка ысык суюктуктар бар шайманды жылдырууда өтө этияттык керек.
• Ар дайым алгач сайгычка сайыңыз, андан кийин шнурду розеткага сайыңыз. Өчүрүү үчүн каалаган башкарууну "өчүрүү" абалына буруңуз, андан кийин розеткадан сайгычты чыгарыңыз.
• Шайманды максаттуу колдонуудан башка максатта колдонбоңуз.

3. Кутуда эмне бар

Your Café Couture Countertop Oven comes with the following accessories:

• Heavy-Duty Wire Rack
• Бышыруучу табак
• 12" Pizza Pan
• Аба кууруу/Суусуздандыруу корзинасы
• Crumb науасы

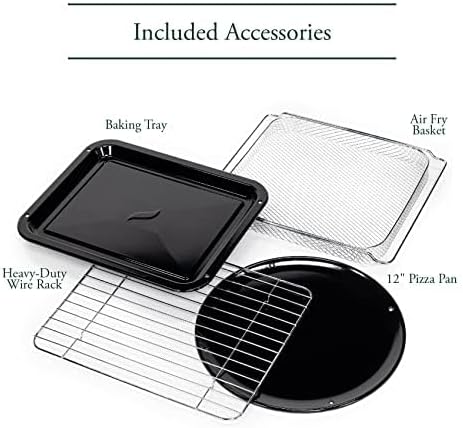

A collection of accessories included with the oven: a heavy-duty wire rack, a baking tray, a 12-inch pizza pan, and an air fry/dehydrate basket.

This video showcases the various accessories included with the Café Couture Oven, such as the heavy-duty wire rack, pizza pan, baking pan, and air fry basket, demonstrating their use with different foods like bagels, pizza, and avocado fries.

4. Орнотуу

4.1 Алгачкы даярдоо

1. Before first use, wipe the interior walls of the oven with a damp губка.
2. Accessories may be cleaned in the dishwasher, but hand washing with warm, soapy water is recommended for longevity.

4.2 Орнотуу

• Place the oven on a level, heat-resistant surface.
• Ensure at least 4 inches of clearance on all sides for proper ventilation.
• Мештин үстүнө камтылган аксессуарлардан башка эч кандай нерселерди койбоңуз же сактабаңыз.

4.3 First Use Operation

1. Plug in the oven. The appliance alarm will sound, and the control display will illuminate.
2. It is recommended to operate the oven empty on Air Fry mode for 20 minutes at 400°F (205°C) before cooking for the first time. This helps to eliminate any manufacturing odors.
3. During this initial operation, the unit may emit visible vapors and a slight odor. This is normal, safe, and not detrimental to the oven.

This video provides initial setup instructions for the Café Couture Oven, including wiping the interior, cleaning accessories, proper placement on a heat-resistant surface, and the recommended first-time operation on Air Fry mode to eliminate manufacturing odors.

5. Иштөө нускамалары

5.1 Selecting a Cooking Mode

1. Rotate the 'Cook Mode' knob until your desired cooking mode is shown on the control display.
2. When using the oven for the first time, default cooking settings will be displayed. Otherwise, the oven will always store the last used settings for any given cooking mode.

5.2 Adjusting Cooking Mode Settings

1. The settings for each cooking mode can be adjusted using the 'Temp/Time/Slices/Shade' knob.
2. Rotate the knob clockwise to increase the temperature or time.
3. Rotate the knob counter-clockwise to decrease the temperature or time.
4. The 'Temp/Time/Slices/Shade' knob also functions as a button. Pushing the button toggles the setting being adjusted (e.g., between temperature and time).

5.3 Starting the Oven

1. After selecting your desired cooking mode and adjusting the settings, place the food in the oven.
2. Даярдоону баштоо үчүн "Старт" баскычын басыңыз.
3. For Bake, Roast, and Cookies modes, the 'Preheating' indicator will illuminate on the control display, and the oven will begin heating to the set temperature.
4. When the oven has reached the set temperature, the oven alarm will sound, and the 'Preheating' indicator will disappear. The 'Press Start' reminder will illuminate. If the 'Start' button is not pressed within 10 minutes, the oven will automatically turn off.
5. The preheat mode may be skipped manually by pressing the 'Start' button a second time. The cooking timer will begin counting down immediately.
6. All other cooking modes do not require preheating. When starting one of these modes, the cooking timer will begin counting down immediately.

5.4 Cancelling a Cooking Mode

• When the oven has finished cooking, it will shut off automatically, and the oven alarm will sound to indicate that the cooking cycle is complete.
• The cooking cycle can also be ended manually by pressing the 'Cancel' button.

5.5 Turning on the Oven Light

• To turn on the oven light, press the 'Light' button to the left of the control display.
• To turn off the light, press the 'Light' button again.
• The oven light will also automatically turn on whenever the oven door is opened.

5.6 Activating the Convection Fan

• Some cooking modes offer an optional convection feature.
• To manually activate the convection fan for these cooking modes, press the 'Conv.' button to the right of the control display.

The Café Couture Countertop Oven's control panel showing 'ROAST' mode, alongside a comprehensive list of its 14 cooking modes: Air Fry, Crisp Finish, Bake, Broil, Roast, Toast, Bagel, Pizza, Cookies, Proof, Dehydrate, Slow Cook, Reheat, and Keep Warm.

This video demonstrates the CrispFinish feature of the Café Couture Oven, showing how it can be used to brown, caramelize, melt, or crisp dishes like crème brûlée.

This video provides a guide on how to use the Café Couture Oven, covering selection of cooking modes, adjusting settings, starting the oven, and cancelling a cooking cycle. It also shows how to turn the oven light on/off and activate the convection fan.

This video highlights the large capacity of the Café Couture Oven, demonstrating how it can accommodate various dishes like a whole roasted chicken, lasagna, and pizza.

6. Тазалоо жана тейлөө

6.1 Интерьерди тазалоо

• Тазалоодон мурун ар дайым мешти розеткадан сууруп, аны толугу менен муздатыңыз.
• Жарнама менен ички дубалдарды сүртүңүзamp sponge and mild detergent. Avoid abrasive cleaners or scouring pads.
• For stubborn stains, a paste of baking soda and water can be applied, left for a few minutes, then wiped clean.

6.2 Тазалоочу аксессуарлар

• All included accessories (wire rack, baking tray, pizza pan, air fry/dehydrate basket, crumb tray) can be washed by hand with warm, soapy water.
• Most accessories are dishwasher safe, but hand washing is recommended to preserve their finish and extend their lifespan.
• Куурулган лотокту идиш жуугучка салбаңыз.

6.3 Сырты тазалоо

• Сырткы беттерин жумшак менен сүртүңүз, гamp кездеме.
• Финишке зыян келтирүүчү катаал химиялык заттарды же абразивдүү материалдарды колдонуудан алыс болуңуз.

7. Кыйынчылыктарды

8. Техникалык шарттар

• Бренд: Кафе
• Модель аты: Café™ Couture™ Oven with Air Fry
• Модель номери: C9OAAAS4RW3
• Түсү: Matte White
• Продукциянын өлчөмдөрү: 17"D x 18.6"W x 14"H
• Элемент Салмагы: 28 фунт
• Сыйымдуулугу: 0.8 куб. фут.
• Башкаруу түрү: баскыч
• эшик стили: Ашылма эшик
• эшик материал түрү: Температуралуу айнек
• Кубат булагы: AC
• Температура диапазону: 80 - 450 градус Фаренгейт
• Текчелердин саны: 1
• Өзгөчө өзгөчөлүгү: CrispFinish™ - Use CrispFinish at the end of any standard cooking mode to melt, caramelize, brown or crisp, and put the perfect finishing touch on any of your signature dishes.
• Байланыш: WiFi & Smart Connected, Voice Control (via SmartHQ app, Echo, or Google Home devices)
• UPC: 084691857563

Side view of the Café Couture Countertop Oven in Matte White, illustrating its dimensions: 18.6 inches width, 14 inches height, and 17 inches depth. An air fry basket is visible inside.

A hand interacting with the SmartHQ app on a smartphone, demonstrating remote control capabilities for the Café Couture Countertop Oven. The oven's display shows 'AIR FRY' mode.

9. Кепилдик жана колдоо

For detailed warranty information, please refer to the warranty card included with your product packaging or visit the official Café Appliances website. For customer support, technical assistance, or to register your product, please visit the Café Appliances support page or contact their customer service line.

You can also connect your Café Smart Appliance by downloading the free SmartHQ app from your Apple or Android smartphone. Open the app, sign in or create an account, and follow the instructions to connect your appliance.

• Онлайн колдоо: зыярат кылыңыз Café Store on Amazon продукт маалымат жана ресурстар үчүн.
• SmartHQ App: Available on Apple App Store and Google Play Store.
