Oraimo Cordless Stick Vacuum OSV-103 User Manual

Introduction

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Oraimo Cordless Stick Vacuum, Model OSV-103. Please read this manual thoroughly before first use and retain it for future reference.

Продукт бүттүview

The Oraimo Cordless Stick Vacuum OSV-103 is a versatile 3-in-1 cleaning device designed for various surfaces. It features powerful suction, a lightweight and maneuverable design, and convenient features for an optimal cleaning experience.

Сүрөт: Main unit of the Oraimo Cordless Stick Vacuum OSV-103.

Пакеттин мазмуну

Пакетте бардык компоненттер бар экенин текшериңиз:

• Motorized Brush x 1
• Upholstery Brush x 1
• 2-in-1 Brush x 1
• Узун соргуч х 1
• Дубалга орнотуу x 1
• MIF Filter x 2 (one pre-installed, one spare)
• Кубат адаптери x 1
• Тазалоочу щетка x 1
• Колдонуучунун Колдонмосу (бул документ)

Сүрөт: All components included with the Oraimo Cordless Stick Vacuum OSV-103.

Жайгашуу

1. Ассамблея

1. Attach the desired cleaning head (e.g., Motorized Brush) to the main vacuum body. Ensure it clicks securely into place.
2. For stick vacuum use, connect the extension tube between the main body and the cleaning head.
3. For handheld use, attach accessories directly to the main body.

Сүрөт: The Oraimo Cordless Stick Vacuum fully assembled for floor cleaning.

2. Батареяны заряддоо

The vacuum features 2500mAh detachable batteries. The battery can be charged in two ways:

• Directly on the vacuum: Plug the power adapter into the charging port located on the main unit.
• Detached battery: Remove the battery by pressing the release button. Plug the power adapter directly into the battery pack.
• Дубалга орнотулган кубаттоо: The included wall mount also functions as a charging station. Mount the vacuum on the wall bracket, and connect the power adapter to the designated port on the bracket. This allows for convenient storage and charging simultaneously.

Сүрөт: Detaching the battery from the Oraimo Cordless Stick Vacuum.

Сүрөт: The Oraimo Cordless Stick Vacuum stored and charging on its wall mount.

Иштөө нускамалары

1. Күйгүзүү/өчүрүү жана соргуч режимдери

• Press the power trigger once to turn the vacuum on.
• Use the touch control buttons (+/-) on the main unit to cycle through three suction modes: Eco, Standard, and Turbo.
• The intelligent LED display shows the current suction mode and remaining battery percentage.
• An "Auto" mode is available, which automatically adjusts suction power based on the detected debris level, optimizing battery life and cleaning efficiency.

Сүрөт: Close-up of the Oraimo Cordless Stick Vacuum's touch control panel and LED display.

2. Ийкемдүү тазалоо

• The foldable tube allows the vacuum to bend, making it easy to clean under furniture without excessive bending.
• The motorized brush head includes bright LED lights to illuminate dust and debris in dark areas.
• The vacuum can be used as a stick vacuum for floors, a handheld vacuum for upholstery and cars, or a stair vacuum with appropriate attachments.

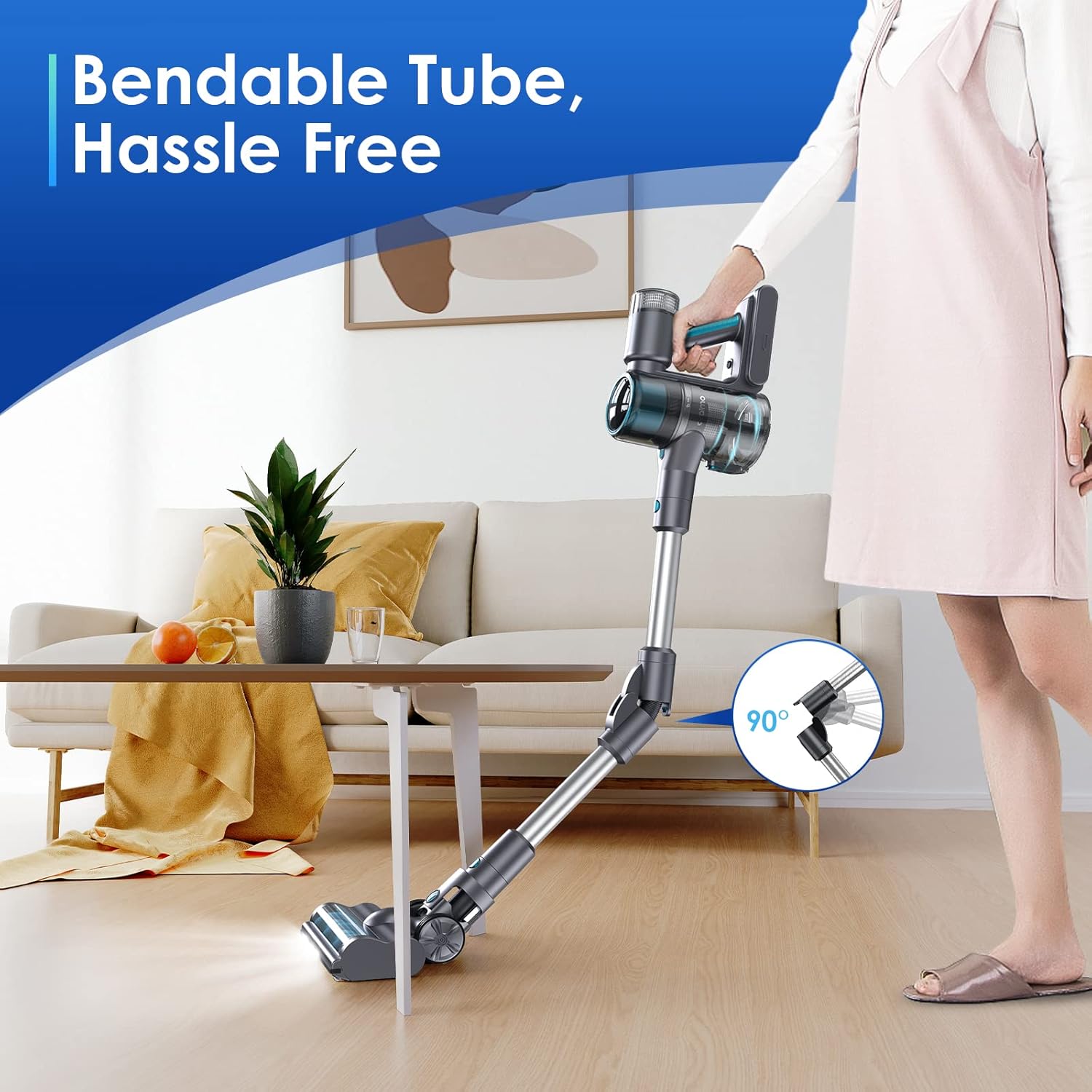

Сүрөт: The Oraimo Cordless Stick Vacuum demonstrating its bendable tube feature.

Сүрөт: The Oraimo Cordless Stick Vacuum configured for home, stair, and car cleaning.

Сүрөт: The Oraimo Cordless Stick Vacuum cleaning under a bed, highlighting its flexible rotation and LED lights.

Техникалык тейлөө

1. Таштанды кутусун бошотуу

To empty the dustbin, hold the vacuum over a trash receptacle and press the release button on the side of the dustbin. The bottom flap will open, allowing debris to fall out. Close the flap securely after emptying.

Сүрөт: The Oraimo Cordless Stick Vacuum's one-press dustbin emptying mechanism.

2. Чыпкаларды тазалоо

The vacuum uses MIF and HEPA filters, both of which are washable. Regular cleaning ensures optimal suction performance.

1. To access the filters, detach the dustbin from the main unit by pressing the release button and rotating.
2. Twist the filter assembly to separate the components.
3. Remove the MIF and HEPA filters.
4. Rinse the filters under running water until clean. Ensure they are completely dry before reassembling and reinserting into the vacuum.

Сүрөт: Diagram illustrating the multi-layer filtration system of the Oraimo Cordless Stick Vacuum.

3. Cleaning the Brush Head

The motorized brush head can accumulate hair and debris. Use the included cleaning brush with a cutter to remove tangled hair from the roller. The roller can also be removed for deeper cleaning if necessary.

Техникалык шарттар

Проблемаларды чечүү

If you encounter issues with your Oraimo Cordless Stick Vacuum, please refer to the following common solutions:

• Кубат жок: Ensure the battery is fully charged and correctly installed. Check the power adapter connection if charging.
• Азайтылган соргуч: Empty the dustbin if it's full. Clean or replace the MIF and HEPA filters. Check the brush head for any blockages or tangled hair.
• Unusual Noise/Smell: Immediately turn off the vacuum. Check for any blockages in the air ducts, brush head, or filters. If the issue persists, contact customer service.

The intelligent LED display may also show alerts for brush stuck or suction blockage, guiding you to resolve specific issues.

Кепилдик жана колдоо

Oraimo provides a 1-year warranty for this product. For any inquiries or assistance, please contact Oraimo customer service, available 7 days a week, 24 hours a day.
