Scosche FMT7-SP1 Tune-Tone FM стерео өткөргүч колдонуучунун колдонмосу

Introduction

The Scosche FMT7-SP1 Tune-Tone FM Stereo Transmitter allows you to broadcast audio from your portable device, such as a smartphone, MP3 player, or iPod, to your car's FM radio. This device is ideal for vehicles without built-in Bluetooth or auxiliary input ports. It features 20 selectable transmitting frequencies to ensure clear audio reception.

Сүрөт 1: Алдыңкы view of the Scosche FMT7-SP1 FM Stereo Transmitter, showing the frequency display and control button.

Пакеттин мазмуну

• One Scosche FMT7-SP1 Tune-Tone FM Stereo Transmitter
• (Note: AAA batteries are not included and must be purchased separately)

Өзгөчөлүктөрү

• Multiple Channel Options: Offers 20 distinct transmitting frequencies (88.1-90.9 MHz and 106.1-107.9 MHz) for optimal audio quality and signal selection.
• Төмөн Проfile AUX кабели: Features a slim 3.5mm AUX plug designed to fit into various devices, even with protective cases.
• Күйгүзүү/өчүрүү: Includes a dedicated power switch to conserve battery life when the device is not in use. The device also enters standby mode automatically.
• Жалпы шайкештик: Works with any audio device equipped with a standard 3.5mm AUX output, including smartphones, MP3 players, and iPods.
• Батарея менен иштейт: Operates on two AAA batteries (not included), providing approximately 15 hours of continuous use and up to 45 days in standby mode.

Орнотуу нускамалары

1. Батареяны орнотуңуз

1. Locate the battery compartment on the back of the FMT7-SP1 transmitter.
2. Батарея уясынын капкагын ачыңыз.
3. Туура полярдуулукту (+/-) камсыз кылып, эки (2) AAA батарейкасын салыңыз.
4. Батарея уясынын капкагын бекем жабыңыз.

2-сүрөт: Арткы view of the transmitter showing the battery compartment and the integrated 3.5mm AUX cable.

2. Өткөргүчтү күйгүзүү

Locate the ON/OFF switch on the side of the transmitter. Slide the switch to the "ON" position.

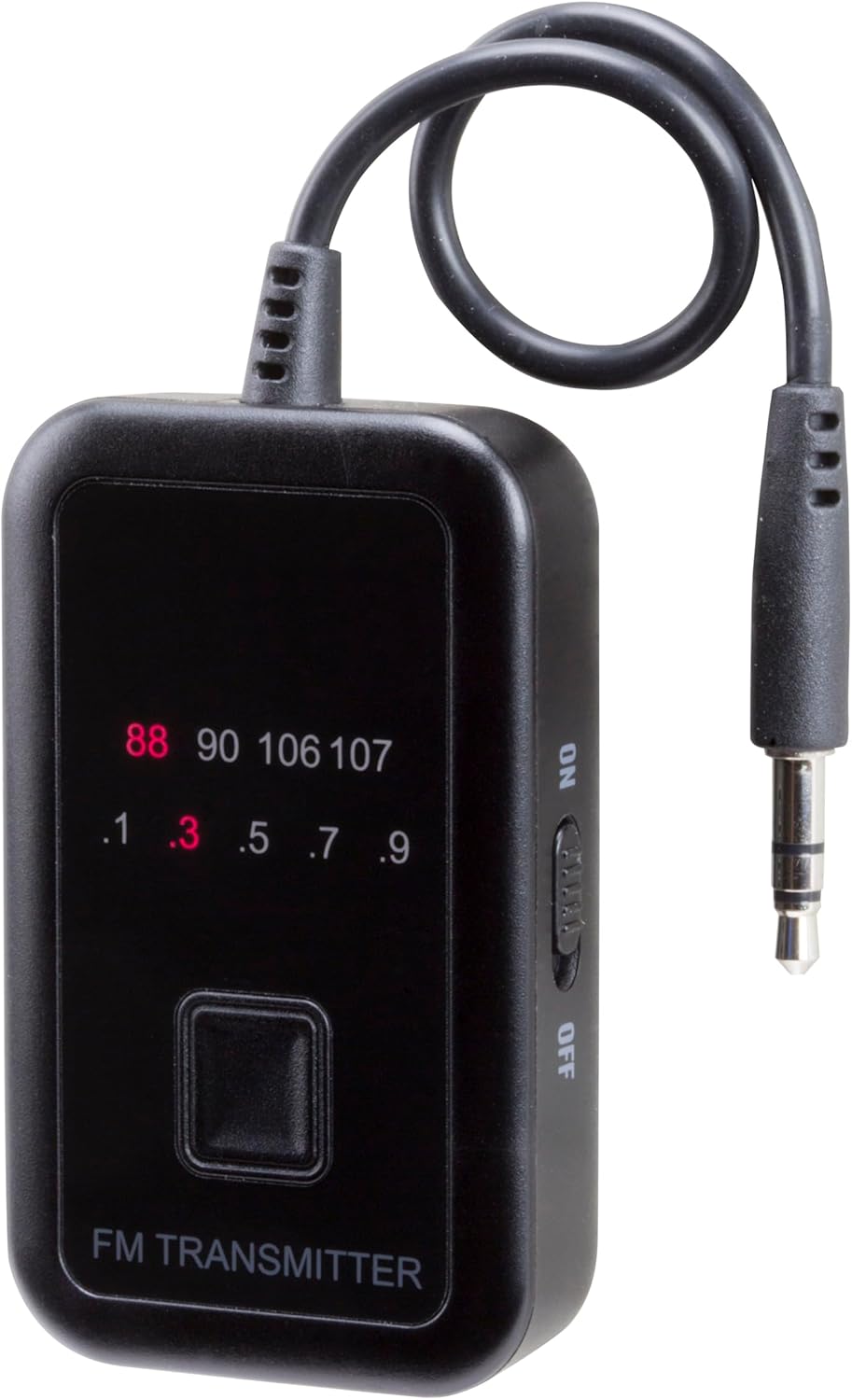

3-сүрөт: Каптал view of the transmitter highlighting the ON/OFF switch.

3. Connect to Audio Device

Plug the integrated 3.5mm AUX cable from the FMT7-SP1 into the headphone jack or AUX output of your smartphone, MP3 player, or other audio source.

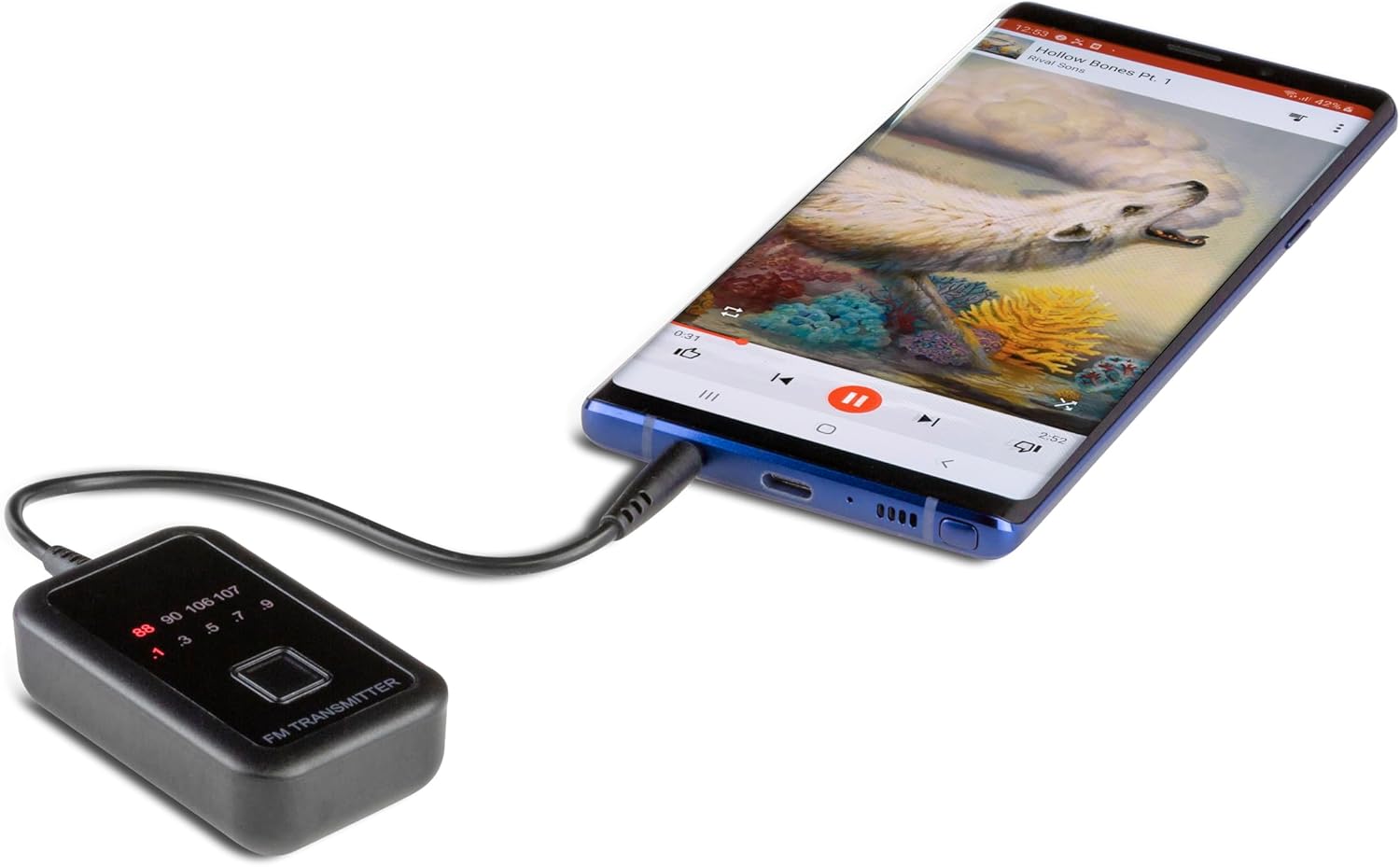

Figure 4: The transmitter connected to a smartphone via its 3.5mm AUX cable.

Иштөө нускамалары

1. Select a Transmitting Frequency

1. With the transmitter powered on, press the central button on the front of the FMT7-SP1 to cycle through the available FM frequencies.
2. Observe the digital display to select a frequency that is clear and not currently in use by a local radio station. Frequencies range from 88.1 MHz to 90.9 MHz and 106.1 MHz to 107.9 MHz.

Figure 5: The transmitter's display indicating the selected FM frequency.

2. Tune Your Car Radio

Tune your car's FM radio to the exact frequency displayed on the FMT7-SP1 transmitter. Ensure your car radio is set to FM mode.

3. Аудиону ойнотуу

Start playing music or audio from your connected portable device. The audio will now be transmitted wirelessly to your car's FM radio.

Figure 6: The transmitter in use within a car, connected to a smartphone and broadcasting audio.

Техникалык тейлөө

• Тазалоо: Түзмөктү жумшак, кургак чүпүрөк менен сүртүңүз. Катуу химиялык заттарды же абразивдүү тазалоочу каражаттарды колдонуудан алыс болуңуз.
• Батареяны алмаштыруу: Replace AAA batteries when the display dims or audio quality degrades. Always use fresh batteries.
• Сактагыч: When not in use for extended periods, remove the batteries to prevent leakage and store the device in a cool, dry place.

Проблемаларды чечүү

Техникалык шарттар

• Модел: FMT7-SP1
• Байланыш: 3.5 мм AUX
• Кубат булагы: 2 x AAA Батареялар (киргизилген эмес)
• Үзгүлтүксүз иштөө убактысы: Болжол менен 15 саат
• Күтүү убактысы: 45 күнгө чейин
• Transmitting Frequencies: 20 channels (88.1-90.9 MHz, 106.1-107.9 MHz)
• Өзгөчөлүктөр: Төмөн күтүү
• Материал: Пластик
• Элемент Салмагы: 2.08 унция (болжол менен 59 грамм)
• Өлчөмдөрү: 6.73 x 2.72 x 1.61 дюйм (Пакеттин өлчөмдөрү)

Кепилдик жана колдоо

For warranty information or technical support, please refer to the official Scosche website or contact Scosche customer service directly. Keep your purchase receipt for warranty claims.

Webсайт: www.scosche.com
