Introduction
This manual provides essential information for the Dell Latitude 9330 2-in-1 Multi-Touch Laptop. It covers initial setup, operational guidance, maintenance procedures, troubleshooting tips, and detailed product specifications. The Latitude 9330 is a versatile 13.3-inch device designed for flexible use, featuring a QHD+ touchscreen, a collaboration touchpad, and a fingerprint reader for enhanced security and productivity.
Жайгашуу
1. Кутудан чыгаруу жана алгачкы текшерүү
Carefully remove the laptop and its accessories from the packaging. Ensure all components are present:
- Dell Latitude 9330 2-in-1 Laptop
- Кубат адаптери (заряддагыч)
- Батарея (алдын ала орнотулган)
Улантуудан мурун ноутбуктун физикалык бузулууларын текшериңиз.
Сүрөт: алдыңкы view of the Dell Latitude 9330 2-in-1 Laptop, showcasing дисплей жана клавиатура.
2. Кубатка туташуу
Connect the power adapter to the laptop's USB-C Thunderbolt 4 port and then to a power outlet. The laptop is equipped with a 3-Cell, 50 WHr Lithium Ion Battery that supports Express Charge.
3. Баштапкы күйгүзүү жана Windows орнотуу
Press the power button, located on the palmrest with the fingerprint reader, to turn on the laptop. Follow the on-screen instructions to complete the Windows 11 Pro setup, including language selection, network connection, and user account creation.
Иштеп жатат
1. Негизги башкаруу элементтери
- Баскычтоп: The US English Single Pointing Backlit Keyboard provides standard input.
- Сенсордук такта: The palmrest features a Collaboration Touchpad for navigation and gesture control.
- Сенсордук экран: The 13.3-inch QHD+ display supports multi-touch input.

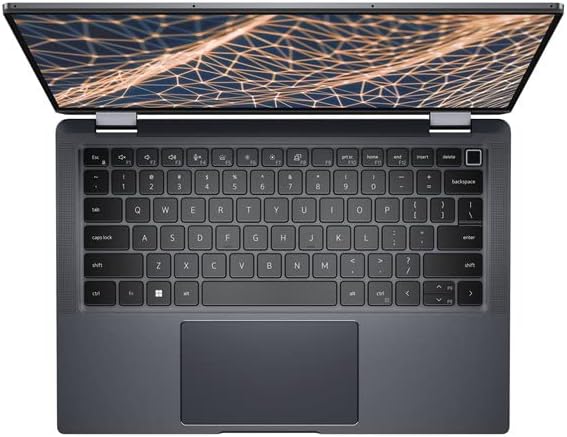

Сүрөт: жогорудан төмөнгө view of the laptop's keyboard and collaboration touchpad.
2. 2-in-1 Modes
The Latitude 9330 can be used in multiple configurations:
- Ноутбук режими: Standard clamshell configuration for typing and traditional use.
- Чатыр режими: Fold the display back to stand the laptop like a tent, ideal for presentations or media viewing.
- Туруу режими: Position the keyboard face down with the screen angled upwards, suitable for touch interaction.
- Планшет режими: Fold the display completely back against the base for a tablet-like experience.
Image: The Dell Latitude 9330 2-in-1 Laptop configured in tent mode, displaying content.
3. Коопсуздук өзгөчөлүктөрү
- Манжа изин окугуч: Integrated into the power button for secure login via Windows Hello.
- FHD IR Camera: Supports ExpressSign-In and Intelligent Privacy features. The camera includes a Safe Shutter for physical privacy.
4. Байланыш
- Зымсыз: Intel Wi-Fi 6E AX211 2x2 802.11ax 160MHz for high-speed internet access.
- Bluetooth: Зымсыз перифериялык түзүлүштөрдү туташтыруу үчүн Bluetooth 5.2.
- Порттор: Includes Thunderbolt 4 ports for high-speed data transfer, video output, and power delivery.
Техникалык тейлөө
1. Батареяга кам көрүү
To maximize battery life, avoid extreme temperatures and allow the battery to discharge partially before recharging. The Express Charge feature allows for rapid charging when needed.
2. Тазалоо
- Экран: Жумшак, түксүз кездемени жеңил колдонуңуз dampсуу же экран тазалоочу менен бүттү. Суюктукту экранга түз чачпаңыз.
- Шасси жана клавиатура: Жумшак, кургак чүпүрөктү колдонуңуз. өжөр кир үчүн, бир аз гamp кездеме колдонсо болот. Катуу химиялык заттардан алыс болуңуз.
3. Программалык камсыздоону жаңыртуу
Regularly check for and install operating system updates (Windows Update) and Dell driver updates to ensure optimal performance and security. These can typically be found in the Windows Settings or through the Dell SupportAssist application.
Проблемаларды чечүү
Жалпы маселелер жана чечимдер
- Ноутбук күйбөйт: Ensure the power adapter is securely connected and the outlet is functional. Try a different outlet. If the battery is completely drained, allow it to charge for at least 30 minutes before attempting to power on.
- Дисплей көйгөйлөрү (сүрөт жок, бүлбүлдөп): Restart the laptop. If an external monitor is connected, try disconnecting it. Check display settings in Windows.
- Wi-Fi туташуу көйгөйлөрү: Ensure Wi-Fi is enabled in Windows settings. Restart your router and modem. Update Wi-Fi drivers if necessary.
- Сенсордук экран жооп бербейт: Restart the laptop. Ensure there are no physical obstructions or dirt on the screen. Check for driver updates.
- Манжа изин окугуч иштебей жатат: Ensure your finger is clean and dry. Re-register your fingerprint in Windows Hello settings.
For more detailed troubleshooting, refer to the Dell support website or contact Dell technical support.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | Latitude 9330 2-in-1 |
| Процессор | Intel Core i7-1260U (12th Gen, 10 Core, Up to 4.70GHz) |
| RAM | 16 ГБ LPDDR5 |
| Сактагыч | 512GB M.2 NVMe SSD |
| Графика | Intel Iris Xe графикасы (интегралдык) |
| Дисплей | 13.3 inch QHD+ (2560 x 1600) Anti-Reflective 500-nits ComfortView Plus Low Blue Light Touch Display |
| Операция системасы | Windows 11 Pro |
| Зымсыз байланыш | Intel Wi-Fi 6E AX211 2x2 802.11ax 160MHz + Bluetooth 5.2 |
| Порттар | Thunderbolt 4 (WLAN Capable), USB 2.0, USB 3.0, Audio Jack |
| Батарея | 3-Cell, 50 WHr Lithium Ion (Express Charge Capable) |
| Камера | FHD IR Camera with Safe Shutter, ExpressSign-In, Intelligent Privacy, Temporal Noise Reduction |
| Салмагы | Болжол менен 2.95 фунт |
| Өлчөмдөрү (LxWxH) | 11.6 x 8.2 x 0.56 дюйм |
Сүрөт: сол жагы view of the laptop, showing available ports.
Сүрөт: оң жак view of the laptop, showing available ports.
Кепилдик жана колдоо
The Dell Latitude 9330 2-in-1 Multi-Touch Laptop includes 3 Years Dell ProSupport (Expires 20 OCT. 2027). This service provides advanced support for hardware and software issues.
For technical assistance, warranty claims, or to access support resources, please visit the official Dell Support website or contact Dell customer service directly. You will typically need your service tag or express service code, which can be found on the bottom of your laptop or in the system information.
