Introduction
Thank you for choosing the Linkind Outdoor Solar Motion Sensor Light. This product is designed to provide efficient and reliable outdoor illumination for your garden, pathway, garage, or porch. Featuring 1000LM brightness, 24 high-power LEDs, dual color temperatures (3000K Warm White & 6500K Cool White), and three intelligent operating modes, these IP67 waterproof lights offer enhanced security and ambiance. Please read this manual carefully before installation and use to ensure optimal performance and longevity.
Image: The Linkind solar light installed, casting a warm glow on a garden path at night.
Коопсуздук маалыматы
- Ensure the solar panel receives direct sunlight for at least 6-8 hours daily for optimal charging.
- Do not install the light near other strong light sources, as this may interfere with the motion sensor or automatic dusk-to-dawn operation.
- Keep the solar panel clean from dust, dirt, and debris to maintain charging efficiency.
- This product is IP67 waterproof, designed to withstand various weather conditions, but avoid submerging it in water.
- Do not attempt to disassemble or modify the product, as this will void the warranty and may cause damage.
- Балдар жетпеген жерде сактаңыз.
Пакеттин мазмуну
Сураныч, бардык компоненттер бар экенин текшерүү үчүн пакетти текшериңиз:
- Linkind Outdoor Solar Motion Sensor Light (x2)
- Жер коюму (x2)
- Wall Mounting Screws and Anchors (x2 sets)
- Колдонуучунун Колдонмосу (бул документ)
Продукт өзгөчөлүктөрү
- Жогорку жарыктык: Equipped with 24 high-power LEDs, delivering up to 1000 lumens of bright illumination.
- Кош түстүү температура: Offers both 3000K Warm White and 6500K Cool White light options to suit different preferences and environments.
- Кыймыл сенсору: Advanced motion detection with a range of 3-8 meters and a 120° detection angle, ensuring light activates when needed.
- Үч иштөө режими: Customizable lighting modes for various scenarios (details in Operating Instructions).
- IP67 суу өткөрбөйт рейтинги: Designed to withstand harsh weather conditions, including rain, snow, and extreme temperatures.
- High Efficiency Solar Panel: Monocrystalline silicon solar panel with a 22% conversion rate for fast and efficient charging.
- 2-бирде орнотуу: Versatile design allows for both ground insertion and wall mounting.
- Жөнгө салынуучу бурч: Light head can be adjusted vertically by 90° and horizontally by 270° for precise lighting direction.
Image: Feature comparison highlighting Linkind's cool & warm white, motion sensor, 1800mAh battery, 1000 lumens, and monocrystalline silicon solar panel.
Image: The solar light demonstrating its IP67 waterproof, frostproof, and heatproof capabilities under a water splash.

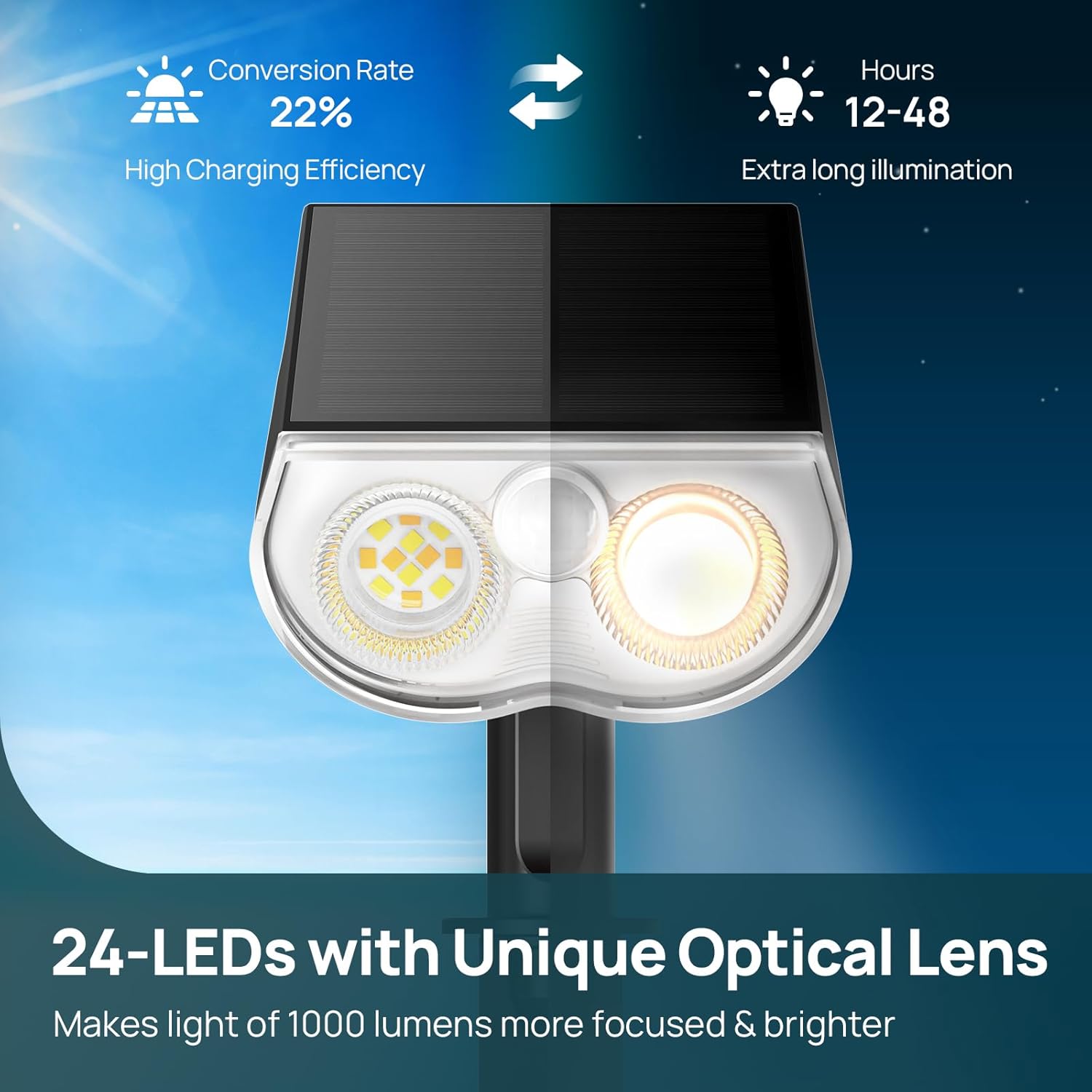

Сүрөт: деталдуу view of the solar light's 24 LEDs and unique optical lens, emphasizing high charging efficiency and long illumination.
Image: A person and their dog walking past the solar light, illustrating its sensitive motion detection with a 3-8m range and 120° angle.
Орнотуу жана орнотуу
The Linkind solar light offers two installation options: ground insertion or wall mounting.
Жерге киргизүү
- Режимди тандаңыз: Before assembly, press the power button on the back of the light to select your desired operating mode (see Operating Instructions for details).
- Кармоочуну чогултуу: Attach the light unit to the top part of the ground stake.
- Тикектерди туташтырыңыз: Connect the two spike sections of the ground stake together.
- Жерге киргизүү: Firmly insert the assembled light and stake into soft ground in a location that receives ampтүз күн нуру.
Дубалга орнотуу
- Режимди тандаңыз: Before assembly, press the power button on the back of the light to select your desired operating mode.
- Кармоочуну оңдоңуз: Use the provided screws and anchors to securely fix the wall mounting bracket to a desired wall or fence.
- Эки бөлүктү туташтырыңыз: Attach the light unit to the wall mounting bracket.
- Бурчту тууралоо: Adjust the angle of the solar panel and light head to ensure optimal sunlight exposure and lighting direction.
Image: Visual instructions for both ground insertion and wall mounting methods.
Иштөө нускамалары
The Linkind solar light features a single button to cycle through its three operating modes and to switch between warm and cool white light.
Түс температурасын өзгөртүү
To switch between 3000K Warm White and 6500K Cool White, кубат баскычын 3 секунд басып туруңуз.
Cycling Through Modes (Short Press)
- 1-режим: Keeps dim light all night. The motion sensor does not react in this mode.
- 2-режим: Dim light when no motion is detected. Switches to full brightness for 20 seconds when motion is detected.
- 3-режим: Light is off when no motion is detected. Switches to full brightness for 20 seconds when motion is detected.
Image: Visual representation of the three lighting modes: always dim, dim with motion-activated bright, and off with motion-activated bright.
Техникалык тейлөө
- Таза күн панели: Дайыма күн панелин жумшак менен сүртүп, гamp чаңды, кирди же карды кетирүү үчүн кездеме. Таза панель максималдуу кубаттоо натыйжалуулугун камсыз кылат.
- Текшерүү жайгаштыруу: Periodically check that the light's location still receives adequate direct sunlight, especially after seasonal changes or new foliage growth.
- Зыянды текшерүү: Occasionally inspect the light for any physical damage or loose connections.
- Батарея: The built-in Lithium-ion battery is designed for long life. Do not attempt to replace it yourself.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түнкүсүн жарык күйбөйт. | Insufficient sunlight exposure during the day. Күн панели кир. Light is in "OFF" mode (Mode 3 without motion). Батарея түгөнүп калды. | Relocate the light to an area with more direct sunlight. Күн панелин тазалаңыз. Press the power button to cycle to Mode 1 or Mode 2. Allow 1-2 sunny days for the battery to fully charge. |
| Жарык жыпылыктайт же жарыктыгы аз. | Partial charge of battery. Solar panel is partially obstructed or dirty. | Ensure full sunlight exposure for several hours. Күн панелин тазалап, бардык тоскоолдуктарды алып салыңыз. |
| Кыймыл сенсор иштебейт. | Light is in Mode 1 (always dim). Сенсор бөгөттөлгөн. External light interference. | Switch to Mode 2 or Mode 3. Clear any debris or objects blocking the sensor. Relocate the light away from other strong light sources. |
| Ачык түс өзгөрбөйт. | Туура эмес баскыч басуу. | Ensure you are long-pressing the power button for 3 seconds to switch between warm and cool white. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Linkind |
| Модель номери | LL1801131 |
| Жарык булагы | 24 LED |
| Жарык агымы | 1000 Lumens |
| Түс температурасы | 3000K жылуу ак жана 6500K муздак ак |
| Motion Sensor Detection Range | 3-8 метр |
| Motion Sensor Detection Angle | 120° |
| IP рейтинги | IP67 |
| Power Source | Күн энергиясы |
| Батарея түрү | 1 Литий-ион (кошулган) |
| Күн панелинин эффективдүүлүгү | 22% Conversion Rate (Monocrystalline Silicon) |
| Материал | Акрилонитрил бутадиен стирол (ABS) |
| Продукциянын өлчөмдөрү (L x W x Y) | 15.4 x 4.8 x 10.1 см (6.06 x 1.89 x 3.98 дюйм) |
| Элемент Салмагы | 600 г (1.32 фунт) |
Image: Detailed diagram illustrating the dimensions, adjustable angle, motion sensor, and PET surface layer of the solar light.
Кепилдик жана колдоо
For warranty information and customer support, please refer to the product packaging or contact Linkind customer service directly through their official website or the retailer where the product was purchased. Please have your model number (LL1801131) and purchase details ready when contacting support.
