1. Киришүү
The Profile Design Supersonic Ergo 50 SLC Aerobar is designed to enhance the aerodynamic efficiency and comfort of your bicycle. By providing an optimized riding position, these aerobars allow cyclists to maintain speed with reduced effort, particularly beneficial for time trials and triathlon events. This manual provides detailed instructions for the proper installation, use, and maintenance of your new aerobars.
Сүрөт 1: Алдыңкы view Проfile Design Supersonic Ergo 50 SLC Aerobar.
2. Камтылган компоненттер
Сураныч, орнотууну баштоодон мурун бардык компоненттер бар экенин текшериңиз:
- Aerobar Extensions (2)
- Armrest Brackets (2)
- Armrest Pads (2) with Velcro attachment
- Рутка Clampс (2)
- Монтаждоочу жабдуулар (бурамалар, шайбалар)
- End Plugs (2)
- Allen Wrenches (for installation)
2-сүрөт: жогорудан ылдыйга view of the aerobar components, including extensions and armrests.
3. Орнотуу жана орнотуу
Туура орнотуу коопсуздук жана аткаруу үчүн абдан маанилүү болуп саналат. Эгер кандайдыр бир кадамга ишенбесеңиз, профессионал велосипед механикке кайрылыңыз.
3.1 Mounting the Clamps
- Identify the desired position on your bicycle's handlebars for the aerobar clamps. Ensure there is sufficient space and that the clamps will not interfere with brake levers or shifters.
- Loosen the bolts on the handlebar clamps using the provided Allen wrench.
- Carefully place each clamp onto the handlebar, ensuring they are symmetrically positioned.
- Lightly tighten the clamp bolts to hold them in place, allowing for minor adjustments. Do not fully tighten at this stage.
3.2 Attaching Extensions and Armrests
- Insert the aerobar extensions into the designated holes on the armrest brackets.
- Attach the armrest brackets to the handlebar clampберилген жабдыктарды колдонуу.
- Adjust the angle and reach of the extensions to your preferred riding position. The extensions feature measurement markings for precise adjustments.
- Once the desired position is achieved, securely tighten all bolts on the handlebar clamps and armrest brackets. Refer to the manufacturer's torque specifications if available, or tighten firmly without over-tightening.
- Affix the armrest pads to the armrest brackets using the Velcro attachments. Ensure they are centered and secure.

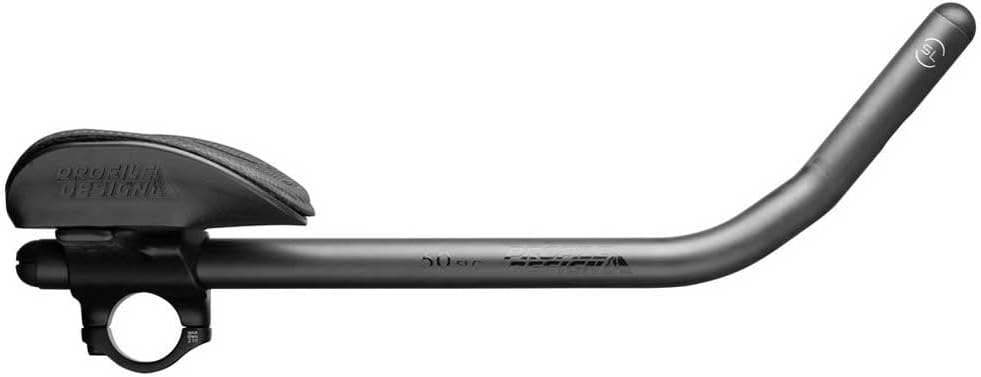

3-сүрөт: Каптал view of the aerobar, showing the extension and armrest assembly.
3.3 Installing End Plugs
- Insert the provided end plugs into the open ends of the aerobar extensions. These plugs are a critical safety feature to prevent injury.
- Ensure the end plugs are firmly seated and secure.
Сүрөт 4: Алдыңкы view of the aerobar, highlighting the end plugs for safety.
4. Operating the Aerobars
The aerobars are designed to provide an aerodynamic tuck position. To use them:
- Place your forearms onto the armrest pads.
- Grip the aerobar extensions with your hands.
- Maintain a stable and controlled position. Practice in a safe, open area before riding in traffic.
- Always be prepared to quickly return your hands to the main handlebars for braking and steering.
5. Техникалык тейлөө
Regular maintenance ensures the longevity and safe operation of your aerobars:
- Тазалоо: Wipe down the aerobars and pads with a damp cloth after each ride. The armrest pads can be removed for more thorough cleaning or replacement.
- Болт текшерүү: Periodically check all mounting bolts for tightness. Vibrations from riding can cause bolts to loosen over time.
- Pad Inspection: Inspect armrest pads for wear and tear. Replace them if they become excessively worn or damaged to maintain comfort and support.
- Структуралык бүтүндүк: Regularly inspect the aerobar extensions and clamps for any signs of cracks, bends, or other damage. Discontinue use and replace damaged components immediately.
6. Кыйынчылыктарды
- Aerobars feel loose: Ensure all mounting bolts are tightened to the correct torque. Check for proper clamp fit on the handlebars.
- Колдонуу учурундагы ыңгайсыздык: Adjust the position of the armrests and extensions. Experiment with different angles and reach to find a comfortable and sustainable aerodynamic position. Ensure armrest pads are correctly installed.
- Difficulty maintaining control: Practice using the aerobars in a safe, controlled environment. Ensure your bike fit is appropriate for aerobar use.
7. Техникалык шарттар
- Бренд: Profile Дизайн
- Модел: Supersonic Ergo 50 SLC Aerobar
- Узундугу: 400мм
- Түсү: Кара
- Элемент Салмагы: 1.67 фунт
- Пакеттин өлчөмдөрү: 18.98 x 12.95 x 7.91 дюйм
- Модель номери: 1037830001
- Өндүрүүчү бөлүгүнүн номери: 1037830001
- OEM бөлүктүн номери: RHCSNC502
- UPC: 723660010683
- Биринчи жеткиликтүү: 15-июнь, 2022-жыл
8. Кепилдик маалыматы
For specific warranty details and terms, please refer to the official Profile Дизайн webсайтка же түздөн-түз кардарларды колдоо менен байланышыңыз. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.
9. Кардарларды колдоо кызматы
If you have any questions, require assistance with installation, or need to report an issue, please visit the official Profile Дизайн webбайланыш маалыматы жана колдоо булактары үчүн сайт.
