Caroma S12 электр скутеринин колдонуу боюнча колдонмосу

1. Киришүү

This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your Caroma S12 Electric Scooter. Please read this manual thoroughly before using the scooter to ensure proper function and safety.

2. Коопсуздук маалыматы

Operating an electric scooter carries inherent risks. Adhere to all local laws and regulations regarding electric scooter use. Always prioritize safety.

• Always wear a helmet and appropriate protective gear, such as knee and elbow pads, when riding.
• Do not ride in wet conditions, heavy rain, or through puddles. The scooter has an IPX4 waterproof rating, meaning it is resistant to splashing water from any direction, but not submersion.
• Ар бир жүрүүнүн алдында бардык компоненттердин бекем бекитилишин текшериңиз.
• Коопсуз ылдамдыкты жана башка унаалардан жана жөө жүргүнчүлөрдөн аралыкты сактаңыз.
• Тегиз эмес беттерде, тик эңкейиштерде же тоскоолдуктардан өтүүдөн алыс болуңуз.
• Каскадёрлорду же капыстан маневрлерди жасабаңыз.
• The maximum load capacity is 220 lbs (100 kg). Do not exceed this limit.
• Балдар скутерди чоңдордун түздөн-түз көзөмөлү астында гана айдашы керек.
• Be aware of your surroundings and avoid distractions while riding.

3. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• 1 × Caroma S12 Electric Scooter
• 1 × Заряддоочу
• 1 × Instruction Manual (this document)
• 1 × Toolkit

4. Продукт бүтүп калдыview

The Caroma S12 Electric Scooter features a lightweight aluminum alloy frame, 6.5-inch solid tires, a 250W motor, and a 36V 5.0Ah lithium battery. It is designed for commuting with safety features like a headlight, brake light, and a digital dashboard.

Сүрөт: алдыңкы жагы view of the Caroma S12 Electric Scooter, showcasing анын конструкциясы жана компоненттери.

4.1 Handlebar and Dashboard Controls

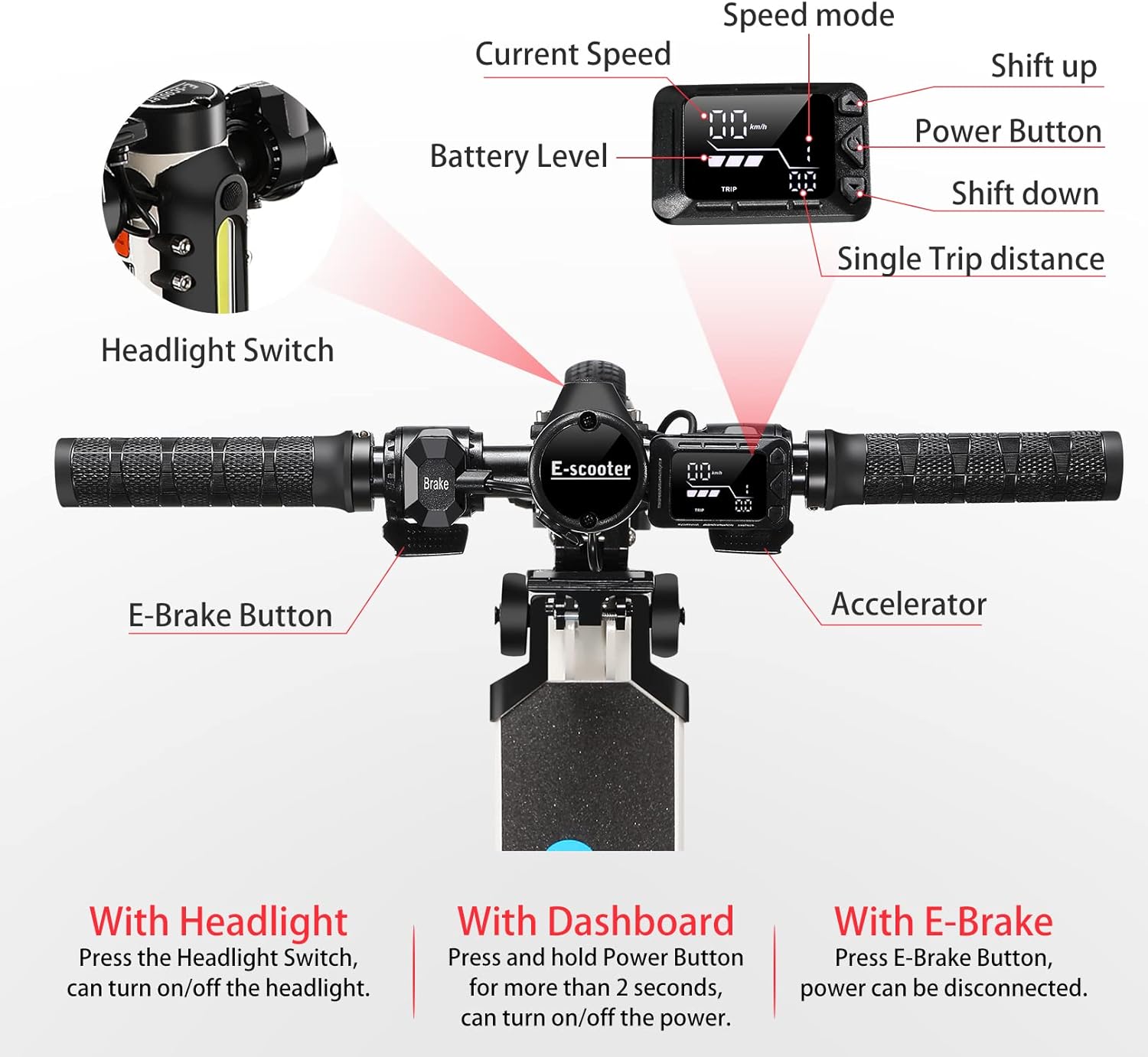

Сүрөт: деталдуу view of the handlebar, digital dashboard, headlight switch, E-Brake button, and accelerator.

• Digital Dashboard: Displays current speed, speed mode, battery level, and single trip distance.
• Кубат баскычы: Press and hold for more than 2 seconds to turn the scooter on/off.
• Фараны которгуч: Activates the front headlight.
• Ылдамдаткыч: Controls the motor speed.
• E-Brake Button: Engages the electronic front wheel brake.

5. Орнотуу жана чогултуу

The Caroma S12 Electric Scooter requires minimal assembly. Follow these steps to prepare your scooter for its first ride:

Image: Visual guide for quick and easy installation, showing unfolding, handlebar attachment, and screw tightening.

1. Скутерди ачуу: Open the folding mechanism and fully unfold the scooter until it locks into place.
2. Руткаларды тиркөө: Tighten the left and right handles onto the handlebars.
3. Коопсуз компоненттер: Use the provided wrench from the toolkit to tighten all handlebar retaining screws, ensuring the brakes and instrument panel are also secure.

Important: Ensure all screws and connections are securely tightened before your first ride.

6. Батареяны заряддоо

Before initial use, fully charge the scooter's battery. A full charge typically takes approximately 3.5 hours.

Image: Illustration highlighting the 36V 5.0Ah lithium battery, 180Wh capacity, 3.5-hour charging time, and 13-mile range.

1. Скутердеги заряддоо портун табыңыз.
2. Заряддагычты заряддоо портуна туташтырыңыз.
3. Заряддагычты стандарттуу электр розеткасына сайыңыз.
4. Заряддоо аяктагандан кийин заряддагычтагы индикатор өзгөрөт (мисалы, кызылдан жашылга).
5. Батарея толук заряддалгандан кийин заряддагычты ажыратыңыз.

Caution: Use only the charger provided with your Caroma S12 Electric Scooter. Do not use damaged chargers or attempt to charge the scooter if it is wet.

7. Пайдалануу боюнча нускамалар

7.1 Starting the Scooter (Non-Zero Startup)

The Caroma S12 Electric Scooter features a non-zero startup mechanism for safety. The motor will not engage from a standstill.

Image: Diagram illustrating the scooter's dimensions and the non-zero startup procedure.

1. Turn on the scooter by pressing and holding the power button on the dashboard for more than 2 seconds.
2. Step onto the deck with one foot.
3. Use your other foot to kick off and propel the scooter forward, reaching a speed greater than 5 km/h (3.1 MPH).
4. Once moving, press the accelerator to engage the motor and maintain speed.

7.2 Ылдамдык режимдери

The scooter offers three speed modes, adjustable via the digital dashboard:

• 1-чи тиштүү: Maximum speed of 10 km/h (6.2 MPH)
• 2-чи тиштүү: Maximum speed of 15 km/h (9.3 MPH)
• 3-тиштүү дөңгөлөк: Maximum speed of 20 km/h (12.4 MPH)

7.3 Тормоздоо системасы

The Caroma S12 is equipped with a dual braking system for effective stopping:

• Electronic Brake (Front Wheel): Activated by the E-Brake button on the handlebar.
• Foot Brake (Rear Wheel): Applied by pressing down on the rear fender with your foot.

For optimal stopping power and safety, use both braking systems simultaneously when necessary. The Anti-lock Braking System (ABS) enhances braking performance.

7.4 Бүктөө жана ачуу

The scooter features a one-step folding system for portability and storage.

Image: Three-step visual guide demonstrating how to fold the scooter in 3 seconds: turn off power, press folding mechanism, depress pole to pedal.

1. Бүктөө үчүн: Turn off the power. Press the folding mechanism lever. Depress the main pole towards the pedal until it locks into the folded position.
2. Ачууга: Release the locking mechanism. Lift the main pole until it clicks securely into the upright riding position. Ensure it is fully locked before use.

8. Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө скутериңиздин узак жана коопсуз иштешин камсыздайт.

• Тазалоо: Скутерди жарнама менен сүртүңүзamp кездеме. Жогорку басымдагы сууну колдонбоңуз же скутерди сууга салбаңыз.
• Шиналар: The scooter uses solid honeycomb tires, which do not require inflation. Regularly inspect them for wear and tear.
• Тормоздор: Periodically check the responsiveness of both the electronic and foot brakes. Adjust or service if necessary.
• Батареяга кам көрүү: Charge the battery regularly, even if not in use, to maintain its health. Avoid completely draining the battery. Store the scooter in a cool, dry place.
• бекиткичтер: Regularly check all screws and bolts for tightness. Tighten any loose fasteners.

9. Кыйынчылыктарды

If you encounter issues with your Caroma S12 Electric Scooter, refer to the following common problems and solutions:

10. Техникалык шарттар

11. Кепилдик жана колдоо

The Caroma S12 Electric Scooter comes with a 6-month supplier warranty. For warranty claims or technical support, please contact the seller or manufacturer directly.

Кепилдик үчүн сатып алуу дүмүрчөгүн сатып алуунун далили катары сактаңыз.
