Karinear Induction Cooktop User Manual

1. Киришүү жана Продукт бүттүview

Thank you for choosing the Karinear 36-inch Built-in Induction Cooktop. This appliance is designed to provide efficient and precise cooking with its advanced features and robust construction. This manual provides essential information for the safe installation, operation, and maintenance of your new induction cooktop.

Key features of your Karinear Induction Cooktop include:

• 5 High-Efficiency Induction Burners
• Flexible Zone for versatile cookware sizes
• 9 Power Levels with Boost Function for rapid heating
• Sensitive Slider Control for precise temperature adjustments
• Integrated Child Safety Lock
• Over-temperature Protection and Automatic Shutdown
• 99-мүнөт таймер

Figure 1.1: Karinear 36-inch Induction Cooktop, showcasing its sleek black glass surface and five induction zones, including a flexible zone on the left.

2. Коопсуздук маалыматы

Орнотуудан жана колдонуудан мурун бардык коопсуздук нускамаларын кылдат окуп чыгыңыз. Бул нускамаларды аткарбоо электр шок, өрт же жеке жаракат алып келиши мүмкүн.

2.1 Электр коопсуздугу

• This appliance operates on AC220-240V / 50-60Hz and requires hardwiring. It does not come with a plug.
• Installation must be performed by a properly qualified and licensed electrician in accordance with all local electrical codes and regulations.
• Орнотуу же техникалык тейлөө иштерин жүргүзүүдөн мурун электр кубатынын өчүрүлгөнүн текшериңиз.
• Do not modify the appliance or attempt repairs yourself. Contact qualified service personnel for assistance.

2.2 Жалпы коопсуздук чаралары

• Бул шайман тиричиликте гана колдонууга арналган.
• Keep children away from the cooktop during operation and when it is cooling down. The cooktop features a Child Safety Lock to prevent accidental activation.
• Бышактын бетине бычак, вилка, кашык же капкак сыяктуу металл буюмдарды койбоңуз, алар ысып кетиши мүмкүн.
• Плитаны нымдуу кол менен иштетпеңиз.
• Ensure proper ventilation around the cooktop during use.
• The cooktop is equipped with Over-temperature Protection and Automatic Shutdown features for enhanced safety.

3. Орнотуу

Proper installation is crucial for the safe and efficient operation of your induction cooktop. It is strongly recommended that installation be carried out by a qualified professional.

3.1 Орнотууга чейинки текшерүүлөр

• Verify that the countertop material is heat-resistant and suitable for built-in appliance installation.
• Ensure the work surface is square and level.
• Confirm that the electrical supply meets the requirements: AC220-240V / 50-60Hz with an installed electric power of 7200W.

3.2 Dimensions and Cut-out Requirements

Accurate measurements are essential for a proper fit. Refer to the diagram below for detailed dimensions.

• StoveTop Size (LxWxH): 35.43" x 20.47" x 2.28" (900 мм x 520 мм x 58 мм)
• Cut-out Size (LxW): 34.25" x 19.29" (870 мм x 490 мм)
• Stove Bottom Size (LxW): 33.86" x 18.98" (860 мм x 482 мм)

Figure 3.1: Product dimensions and electrical wiring diagram for installation. Note the requirement for 220-240V hardwiring.

3.3 Электрдик туташуу

The cooktop requires a 220-240V hardwired connection. Follow the wiring diagram provided in Figure 3.1 and ensure all connections are secure and comply with local electrical codes. If your home has 110V wiring, consult a qualified electrician for proper adaptation.

4. Иштөө нускамалары

Your Karinear Induction Cooktop is designed for intuitive operation. Familiarize yourself with the controls and features for optimal cooking results.

4.1 Sensitive Slider Control

The cooktop features a sensitive touch slider control. To adjust the power level, simply slide your finger along the control bar from left (lower power) to right (higher power). There are 9 power levels available for precise heat regulation.

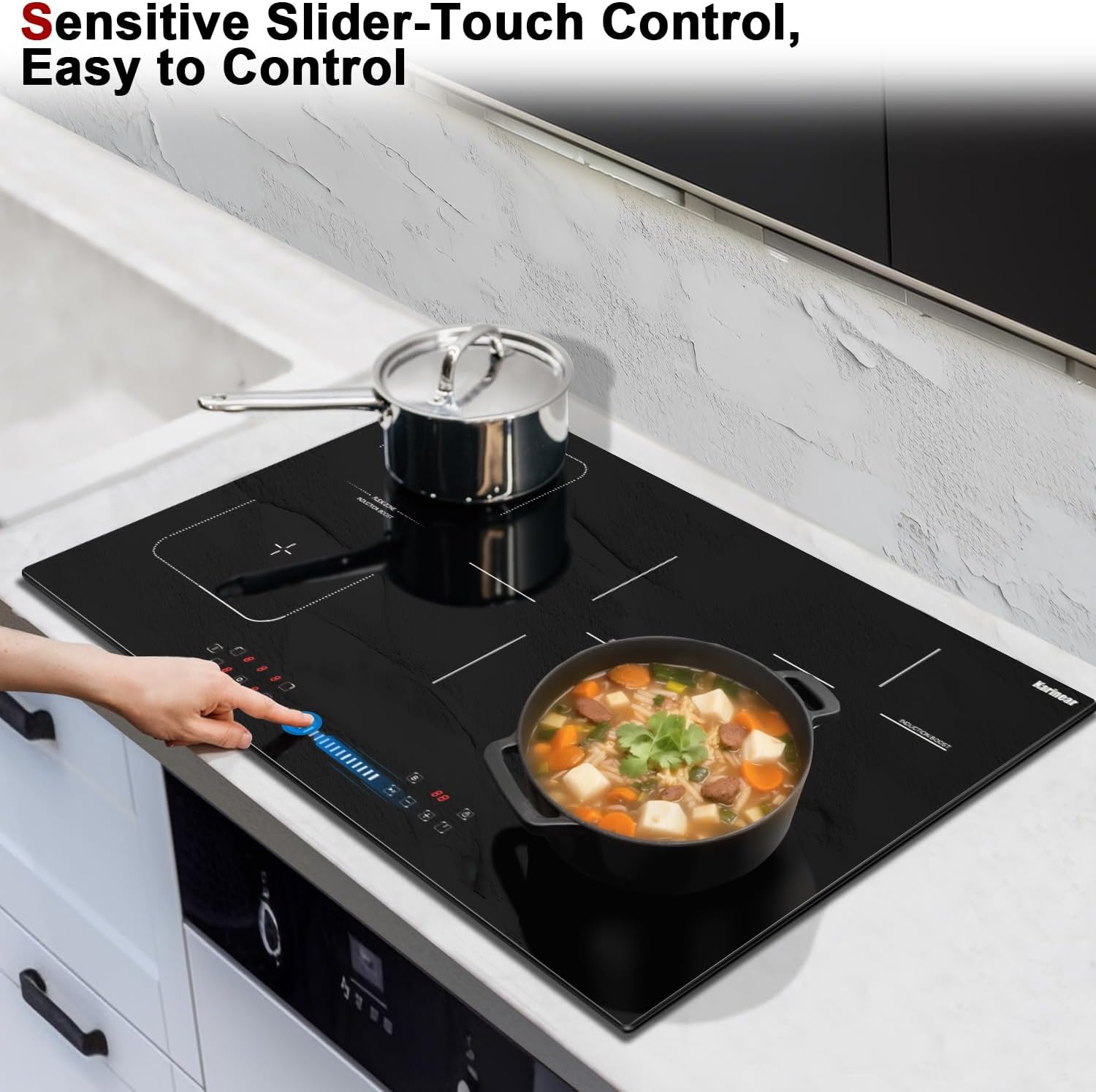

Figure 4.1: Demonstrating the sensitive slider control for easy and precise power adjustment.

4.2 Flex Zone Function

The flexible zone on the left side of the cooktop can be used as a single large cooking area or as two separate burners. This allows for the use of larger or rectangular cookware, such as griddle pans.

Figure 4.2: The flexible zone accommodates larger or uniquely shaped cookware.

4.3 Power Levels and Boost Function

The cooktop offers 9 power levels for each burner. Additionally, a Boost function is available for rapid heating, providing extra power when needed. The power distribution for the burners is as follows:

• Lower left: 1800W / 2100W (Boost)
• Upper left: 1800W / 2100W (Boost)
• Lower right: 1500W / 1800W (Boost)
• Upper right: 2000W / 2500W (Boost)
• Middle: 2300W / 3000W (Boost)
• Flex Zone: 3000W / 3400W (Boost)

Figure 4.3: Power distribution and Boost function for various cooking zones.

4.4 Таймер функциясы

The integrated timer can be set for up to 99 minutes, allowing for precise control over cooking duration. The cooktop will automatically shut off the selected burner(s) once the set time expires.

4.5 Балдардын коопсуздук кулпусу

Activate the child safety lock to prevent accidental operation of the cooktop, especially useful in households with children. Refer to the cooktop's control panel for the specific button and activation sequence.

Figure 4.4: ашыкview of cooktop features, including safety and operational functions.

5. Техникалык тейлөө жана тазалоо

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Karinear Induction Cooktop.

5.1 Плита бетин тазалоо

• The cooktop surface is made of high-quality black glass. Allow the cooktop to cool completely before cleaning.
• For light spills and daily cleaning, wipe the surface with a damp кездеме же губка жана жумшак жуучу каражат.
• For stubborn stains or burnt-on food, use a ceramic cooktop cleaner and the provided scraper. Follow the cleaner manufacturer's instructions.
• Avoid abrasive cleaners, scouring pads, or harsh chemicals that can scratch or damage the glass surface.
• Суу тактары калбаш үчүн тазалоодон кийин бетти жакшылап кургатып алыңыз.

6. Кыйынчылыктарды

This section addresses common issues you might encounter with your induction cooktop. If the problem persists, please contact customer support.

6.1 Идиш идиштеринин шайкештиги

Induction cooktops require specific types of cookware. Only use cookware with a smooth, flat base that is suitable for induction cooking. You can test compatibility by placing a magnet on the base of the cookware; if it sticks, the pan is suitable.

• Ылайыктуу идиш: Iron pots, cast iron cookware, stainless steel cookware with a magnetic base.
• Ылайыктуу эмес идиш: Copper cookware, ceramic cookware, enameled cast iron cookware (if not magnetic), glass cookware.

Figure 6.1: Guide to compatible magnetic induction cookware.

6.2 Flex Zone Not Heating

If the flexible zone is not heating, ensure that your pan is correctly positioned. The pan must be centered on the two areas and cover both crosses in the middle of the zones. If the utensil is not detected, the cooktop will stop heating for safety reasons.

7. Техникалык шарттар

8. Кепилдик жана колдоо

Karinear stands behind the quality of its kitchen stoves with a commitment to excellence that spans 5 years. This warranty covers manufacturing defects and ensures peace of mind regarding the reliability of your cooking experience.

For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Karinear customer support. Refer to the product packaging or the official Karinear webбайланыш маалыматы үчүн сайт.

When contacting support, please have your product model number (KNI-B57228-F1) and purchase details ready.
