1. Продукт бүтүп калдыview
This manual provides essential information for the safe and effective use of your Mellif 6-inch Mini Chainsaw Replacement Chains. These chains are designed for compatibility with various 6-inch mini electric chainsaws, offering reliable cutting performance for pruning, gardening, and light woodcutting tasks.
The package includes two genuine Mellif replacement chains, ensuring you have a spare readily available for continuous operation.
2. Коопсуздук маалыматы
Always prioritize safety when working with chainsaws and their components. Failure to follow these safety guidelines may result in serious injury.
- Read Your Chainsaw Manual: Before installing or using this chain, thoroughly read and understand the instruction manual for your specific mini chainsaw.
- Жеке коргонуу каражаттары (ЖКК): Always wear appropriate PPE, including safety glasses or goggles, hearing protection, gloves, and sturdy footwear.
- Колдонуудан мурун текшерүү: Before each use, inspect the chain for any damage, dullness, or missing links. Never use a damaged chain.
- Туура орнотуу: Ensure the chain is installed correctly and tensioned according to your chainsaw's manufacturer guidelines. An improperly installed chain can derail and cause injury.
- Айкындыгы: A sharp chain is safer and more efficient. A dull chain can kick back or bind.
- Таза кармоо: Maintain a safe distance from the cutting area and ensure no bystanders are nearby.
- Электр энергиясын өчүрүү: Always disconnect the chainsaw's power source (remove battery or unplug) before performing any maintenance, installation, or adjustment on the chain.
3. Пакеттин мазмуну
Your Mellif Chainsaw Chain package contains the following items:
- 2 x Mellif 6-inch Mini Chainsaw Replacement Chains

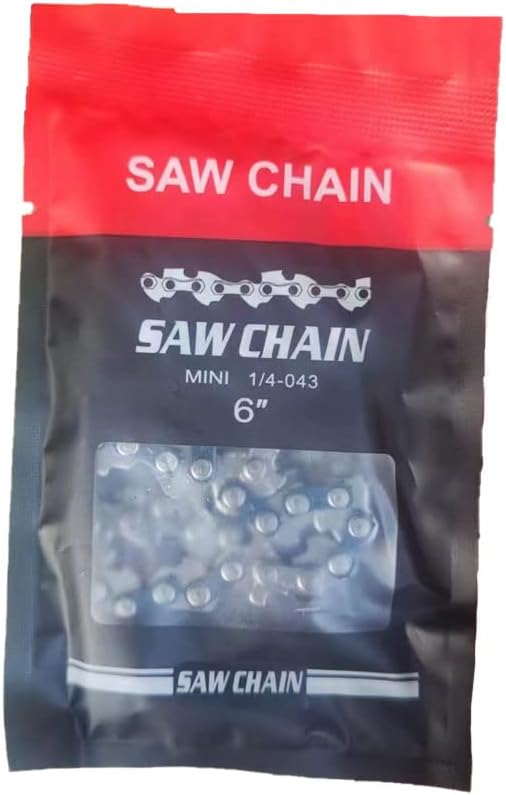

Image 1: The Mellif 6-inch Mini Chainsaw Chain package, showing two chains inside a black and red pouch labeled "SAW CHAIN".
4. Орнотуу жана орнотуу
Follow these general steps to install the replacement chain on your mini chainsaw. Refer to your chainsaw's specific manual for detailed instructions.
- Кубатты өчүрүү: Ensure the chainsaw is turned off and the battery is removed or the power cord is unplugged to prevent accidental startup.
- Бардын капкагын алып салуу: Loosen the nuts or screws holding the guide bar cover in place and remove it.
- Эски чынжырды алып салуу: Эски чынжырды жетектөөчү тилкеден жана жылдызчадан этияттык менен алып салыңыз.
- Таза: Clean any sawdust or debris from the guide bar groove and sprocket area.
- Жаңы чынжырды орнотуу: Place the new Mellif chain around the sprocket and then guide it into the groove of the guide bar. Ensure the cutting teeth are facing the correct direction (usually forward, away from the chainsaw body, on the top side of the bar).
Сүрөт 2: Жакын план view of a chainsaw chain on a guide bar, highlighting the "Correct Installation Direction" of the chain teeth for proper cutting.
- Тилкенин капкагын кайра бекитиңиз: Replace the guide bar cover and loosely tighten the nuts or screws.
- Чынжыр чыңалуусун тууралоо: Adjust the chain tension according to your chainsaw's manual. The chain should be snug but still able to be pulled freely around the guide bar by hand. It should not sag underneath the bar.
- Tighten Nuts/Screws: Fully tighten the guide bar cover nuts or screws.
- Майлоо: Ensure the chainsaw's automatic oiler (if present) is functioning, or manually lubricate the chain and guide bar as recommended by your chainsaw manufacturer.
- Сыноо: Briefly run the chainsaw at low speed to ensure the chain runs smoothly and tension remains correct.
Image 3: A Mellif 6-inch replacement chainsaw chain displayed next to a typical yellow and black mini electric chainsaw, illustrating the product's intended use.
5. Operating Instructions (Chain Use)
Once the chain is properly installed and tensioned, operate your chainsaw according to its manufacturer's instructions. The Mellif chain is designed for efficient cutting of wood.
- Кесүү техникасы: Allow the chain to do the work. Do not force the chainsaw through the material.
- Тоскоолдуктарды болтурбоо: Do not cut into dirt, rocks, metal, or other hard objects, as this will dull or damage the chain.
- чынжырды майлоо: Ensure adequate chain lubrication during operation to reduce friction and heat, prolonging chain life.
6. Техникалык тейлөө
Regular maintenance extends the life of your chainsaw chain and ensures safe operation.
- Курчтоо: Sharpen the chain regularly as it becomes dull. A sharp chain cuts efficiently and safely. Refer to your chainsaw manual or a professional for proper sharpening techniques and file өлчөмдөрү.
- Тазалоо: Ар бир колдонгондон кийин, чынжырды ширеден, таарындыдан жана таштандылардан тазалоо үчүн тазалаңыз.
- Майлоо: Ensure the chain is always well-lubricated during use. When storing, apply a light coat of oil to prevent rust.
- Текшерүү: Periodically inspect the chain for stretched links, cracks, or other damage. Replace damaged chains immediately.
7. Кыйынчылыктарды
If you encounter issues with your chainsaw chain, consider the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Чынжыр натыйжалуу кесилбейт | Dull chain, incorrect chain direction, improper tension | Sharpen chain, check installation direction, adjust tension |
| Чынжыр тез-тез үзүлүп калат | Loose chain tension, worn guide bar, damaged chain | Adjust tension, inspect guide bar for wear, replace damaged chain |
| Чынжыр түтүнү же ысып кетүү | Lack of lubrication, dull chain, improper tension | Check oiler/lubricate, sharpen chain, adjust tension |
8. Техникалык шарттар
Key specifications for the Mellif 6-inch Mini Chainsaw Chain:
- Бренд: Mellif
- Модель номери: MF DB123
- чынжыр узундугу: 6 inches (approximately 15 cm)
- Айлана: Болжол менен 48 см
- Саны: Пакетке 2 даана
- Материал: Premium & Hardened Metal
- UPC: 691303523794
Image 4: Two Mellif 6-inch chainsaw chains laid out, with text indicating a circumference of 48cm and a length of 6 inches.
9. Кепилдик жана колдоо
For warranty information or technical support regarding your Mellif Chainsaw Chains, please contact the retailer or manufacturer directly. Keep your purchase receipt as proof of purchase.
Запастык бөлүктөрдүн бар экендиги жөнүндө маалымат продуктунун мүнөздөмөлөрүндө берилген эмес.
