Gikfun Warning Light LED Soldering Practice DIY Kit EK1983 User Manual

Introduction

This manual provides detailed instructions for assembling and operating your Gikfun Warning Light LED Soldering Practice DIY Kit. Designed for school learning projects and hobbyists, this kit helps improve soldering skills and familiarizes users with electronic components. Once completed, it functions as an attractive decorative item, showcasing a beautiful LED light display.

Коопсуздук чаралары

Always prioritize safety when working with electronics and soldering equipment.

• Көзүңүздү ширетүүчү чачырандылардан же учуучу таштандылардан коргоо үчүн ар дайым коопсуздук көз айнегин тагыныңыз.
• Ensure adequate ventilation in your workspace to avoid inhaling solder fumes. Consider using a fume extractor.
• Use a heat-resistant mat or surface to protect your workbench from accidental burns.
• Be cautious of hot soldering irons and molten solder to prevent skin burns. Allow components to cool before handling.
• Keep all tools and components out of reach of small children and pets.
• Double-check all connections and component polarities before applying power to avoid damage.

Пакеттин мазмуну

Please verify that all components listed below are included in your kit before beginning assembly.

Image: All components included in the Gikfun Warning Light LED Soldering Practice DIY Kit.

• Негизги басылган схема тактасы (PCB)
• Two Arrow-shaped LED PCBs
• LEDs (various colors for the arrows)
• Резисторлор (ар кандай маанилер)
• Конденсаторлор (электролиттик жана керамикалык)
• Diodes (1N4007)
• Transistors (S8050)
• Integrated Circuits (ICs): NE555, CD4017BE
• IC Sockets
• Potentiometer (VR1 100K)
• Power Switch (SW1)
• Battery Holder (for DC 3-6V)
• Зымдарды туташтыруу
• Колдонуучунун Колдонмосу (бул документ)

Монтаждоо көрсөтмөлөрү

Follow these steps carefully to assemble your LED Warning Light Kit. It is recommended to solder components from smallest to largest to ensure easier access to solder pads.

Step 1: Identify Components and PCB Layout

Before starting, familiarize yourself with all the components and their corresponding markings on the Printed Circuit Board (PCB). The PCB has clear labels for each component's placement.

Сүрөт: алдыңкы жана арткы views of the main Printed Circuit Board (PCB) and the two LED arrow PCBs.

Step 2: Solder Resistors and Diodes

Begin by soldering the resistors (R1-R8) and diodes (D1-D6, 1N4007) to their designated positions on the main PCB. Pay close attention to the polarity of the diodes; the band on the diode indicates the cathode, which should align with the corresponding marking on the PCB.

Step 3: Solder Capacitors

Solder the capacitors (C1-C3). Note that electrolytic capacitors (C1, C2) have polarity; ensure the longer lead (positive) matches the '+' marking on the PCB. Ceramic capacitors (C3) do not have polarity.

Step 4: Solder Transistors and IC Sockets

Solder the transistors (Q1-Q5, S8050) and the IC sockets (U1, U2, U3). Ensure the notch on each IC socket aligns with the notch marking on the PCB. Do not insert the actual ICs into the sockets until all soldering is complete.

Step 5: Solder Potentiometer and Switch

Solder the potentiometer (VR1 100K) and the power switch (SW1) into their respective positions on the main PCB.

Step 6: Solder LEDs to Arrow PCBs

Solder the individual LEDs onto the two smaller arrow-shaped PCBs. LEDs are polarized; the longer lead is positive (+), and the shorter lead is negative (-). Ensure correct orientation for each LED.

Step 7: Connect Arrow PCBs to Main PCB

Connect the two LED arrow PCBs to the main PCB using the provided connecting wires. Ensure the positive and negative wires are connected correctly to the respective output terminals (CN1 OUT1+, CN1 OUT1-, CN2 OUT2+, CN2 OUT2-).

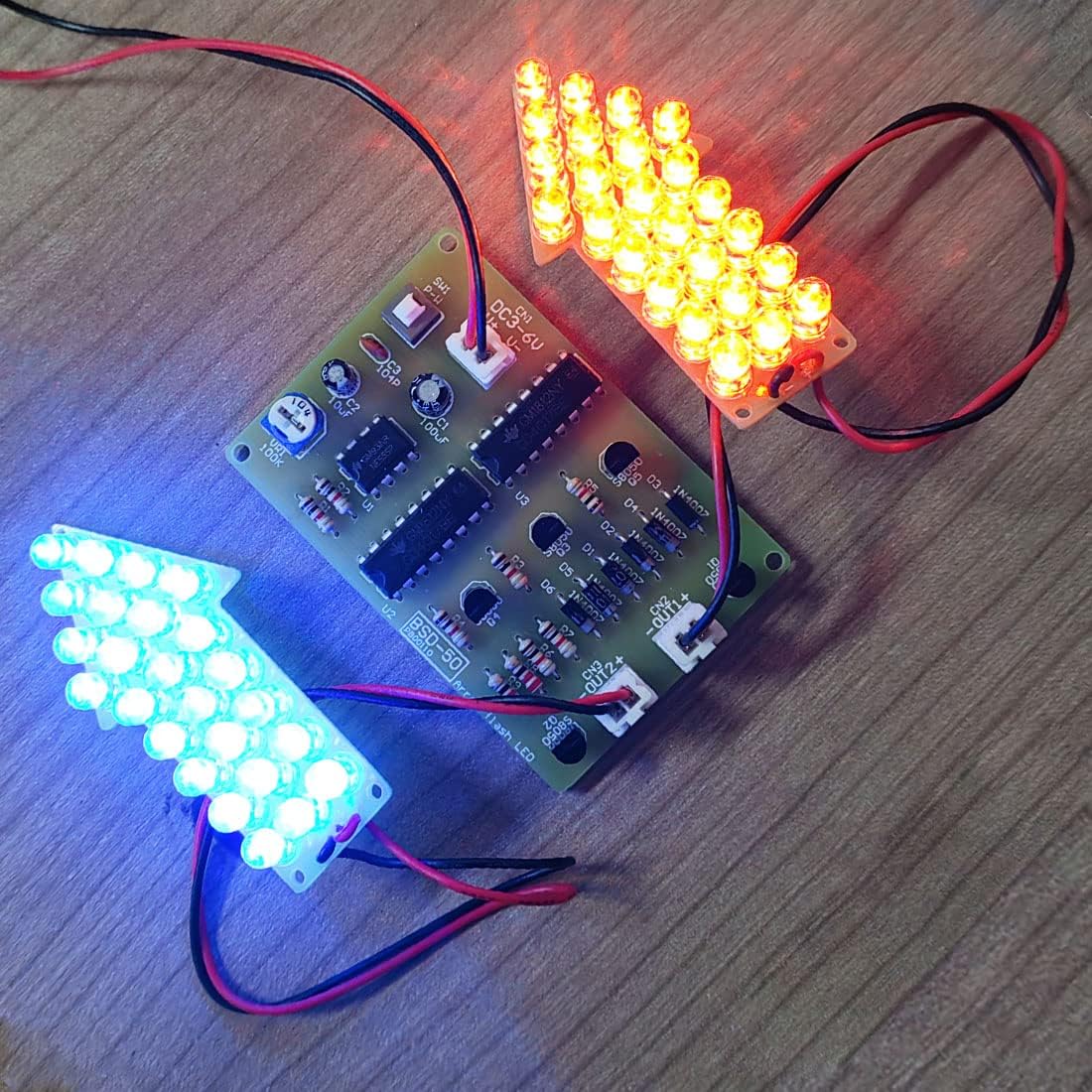

Image: The fully assembled Gikfun Warning Light LED Soldering Practice DIY Kit, demonstrating its flashing functionality.

Step 8: Insert ICs into Sockets

Carefully insert the integrated circuits (NE555, CD4017BE) into their respective sockets (U1, U2, U3). Ensure the notch on each IC aligns with the notch on its socket. Apply gentle, even pressure.

Step 9: Connect Battery Holder

Connect the battery holder to the main PCB's power input (CN1 DC3-6V). The red wire is positive (+), and the black wire is negative (-). Ensure a secure connection.

Image: The fully assembled Gikfun Warning Light LED Soldering Practice DIY Kit, ready for operation.

Иштөө нускамалары

Күйгүзүлүүдө

Insert 2-4 AA batteries (not included) into the battery holder. Flip the power switch (SW1) to the "ON" position. The LEDs on the arrow boards should begin to flash in a sequential pattern.

Adjusting Flash Frequency

Use the potentiometer (VR1 100K) to adjust the flashing speed of the LEDs. Turning the knob clockwise or counter-clockwise will increase or decrease the frequency of the warning light pattern.

Image: Detailed circuit diagram for the Gikfun Warning Light LED Soldering Practice DIY Kit, illustrating component connections.

Функционалдык

The kit utilizes a 555 timer IC (U1) to generate a clock signal, and two 4017 counter/divider ICs (U2, U3) to create various sequential flashing patterns on the LED arrows, simulating a dynamic warning light effect.

Техникалык шарттар

Проблемаларды чечүү

Светодиоддор күйбөй жатат

• Check Battery Connection and Polarity: Ensure batteries are correctly inserted and charged, and the battery holder wires are connected to the PCB with correct polarity.
• Ширетүүчү муундарды текшерүү: Look for any 'cold' (dull, lumpy) solder joints or solder bridges (solder connecting two points that shouldn't be connected). Re-solder as necessary.
• LED Polarity: Confirm all LEDs are inserted with the correct polarity (longer lead positive, shorter lead negative).
• IC Placement: Ensure all Integrated Circuits are correctly seated in their sockets and oriented with the notch matching the PCB marking.
• Кубат которгучу: Verify the power switch (SW1) is in the 'ON' position.

Incorrect Flashing Pattern or No Flashing

• Component Values: Double-check that all resistors and capacitors are of the correct value and soldered in the right place according to the circuit diagram.
• IC Orientation: Recheck the orientation of the 555 timer IC (U1) and 4017 counter ICs (U2, U3).
• Potentiometer Function: Test the potentiometer (VR1) by rotating it to see if it affects the flash rate. If not, check its solder connections.

Техникалык тейлөө

To ensure the longevity and proper functioning of your Gikfun Warning Light LED Soldering Practice DIY Kit, follow these simple maintenance guidelines:

• Тазалоо: Keep the assembled kit clean and free from dust. Use a soft, dry cloth to wipe surfaces. Avoid using liquids directly on the circuit board.
• Сактагыч: Store the kit in a dry environment away from direct sunlight, extreme temperatures, and high humidity to prevent corrosion and component degradation.
• Батареяны алмаштыруу: Replace batteries when the LED brightness diminishes or the flashing pattern becomes inconsistent, indicating low power.
• Колдонуу: Handle the circuit board and components with care to avoid bending leads or damaging solder joints.

Кепилдик жана колдоо

This Gikfun product comes with a 2-year warranty. For technical support, assembly assistance, or any product-related inquiries, please visit the official Gikfun Store on Amazon. Our support team is available to help you with any questions or issues you may encounter.

Gikfun Official Store: https://www.amazon.com/stores/Gikfun/page/E7CD96F4-3C4A-4B3F-A189-B6B2E6C32C35
