1. Киришүү
Thank you for choosing the Cecotec Bolero DressCode 8800 Inverter Steel A 8Kg Washing Machine. This manual provides essential information for the safe and efficient use of your appliance. Please read it thoroughly before installation, operation, or maintenance, and keep it for future reference.

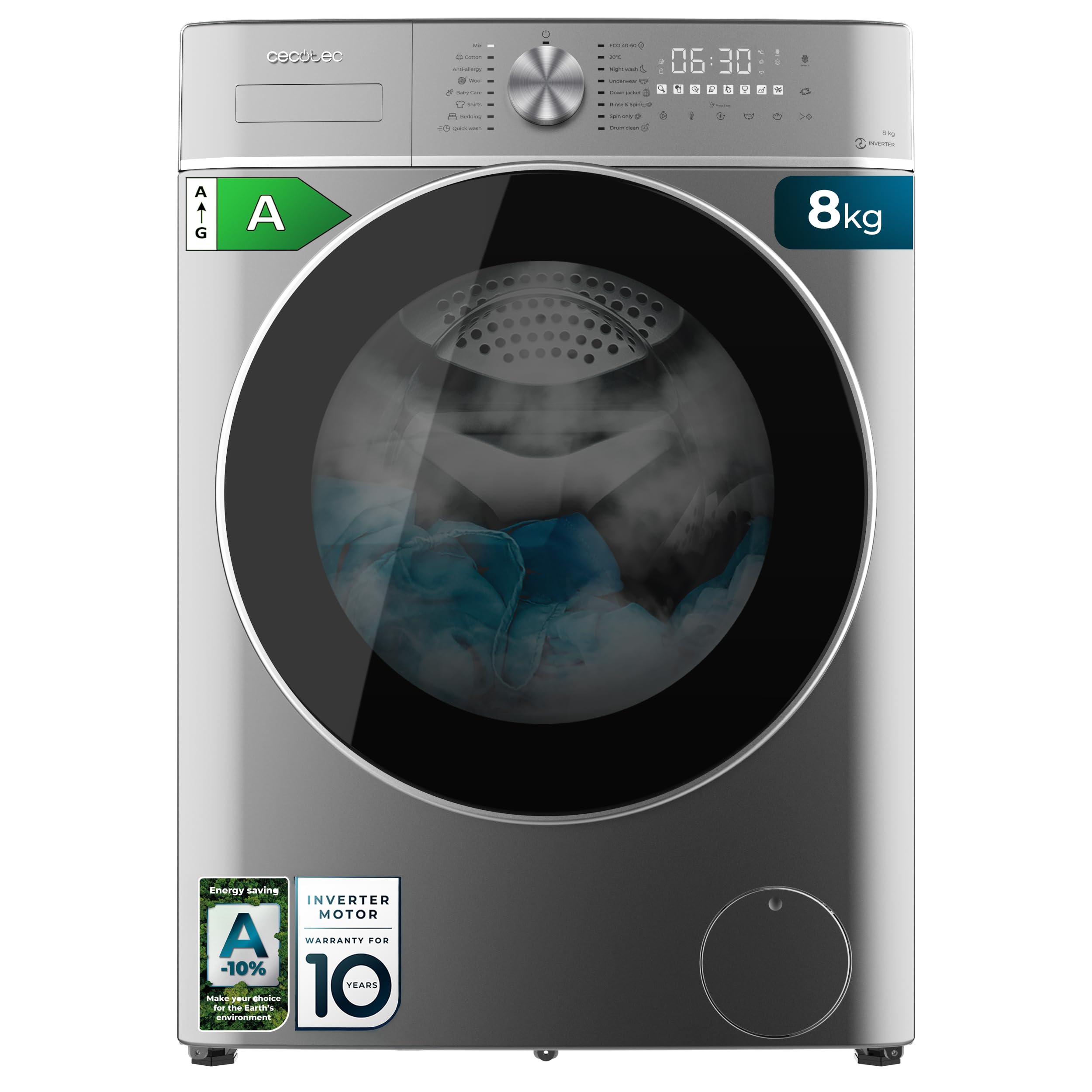

Сүрөт 1.1: Алдыңкы view of the Cecotec Bolero DressCode 8800 Inverter Steel A 8Kg Washing Machine, showcasing its modern design and 8kg capacity.
2. Коопсуздук нускамалары
To prevent injury to yourself and others, or damage to the appliance, please observe the following safety precautions:
- Ensure the washing machine is properly installed and grounded by a qualified technician.
- Балдарга шайман менен ойноого же аны иштетүүгө уруксат бербеңиз.
- Before cleaning or maintenance, always unplug the machine from the power outlet.
- Тез күйүүчү заттар менен булганган нерселерди жуубаңыз.
- Кир жуугуч машинанын айланасын тоскоолдуктардан алыс кармаңыз.
- The appliance is equipped with a KidLock safety lock to prevent accidental operation by children.
3. Продукт бүтүп калдыview
The Cecotec Bolero DressCode 8800 is a front-load washing machine designed for efficient and quiet operation. Key features include:
- Сыйымдуулугу: 8 kg, suitable for various household needs.
- Inverter Plus мотору: Ensures quiet operation and energy efficiency.
- 16 Программа: A wide selection of wash cycles tailored for different fabric types and soil levels.
- XXL Touch Display: Intuitive control panel for easy program selection and monitoring.
- Space Pro Дизайн: Compact and extra-slim design for optimized space utilization.
- Pearl Drum: Special snowflake-shaped drum texture designed to protect garments and improve washing and drying.

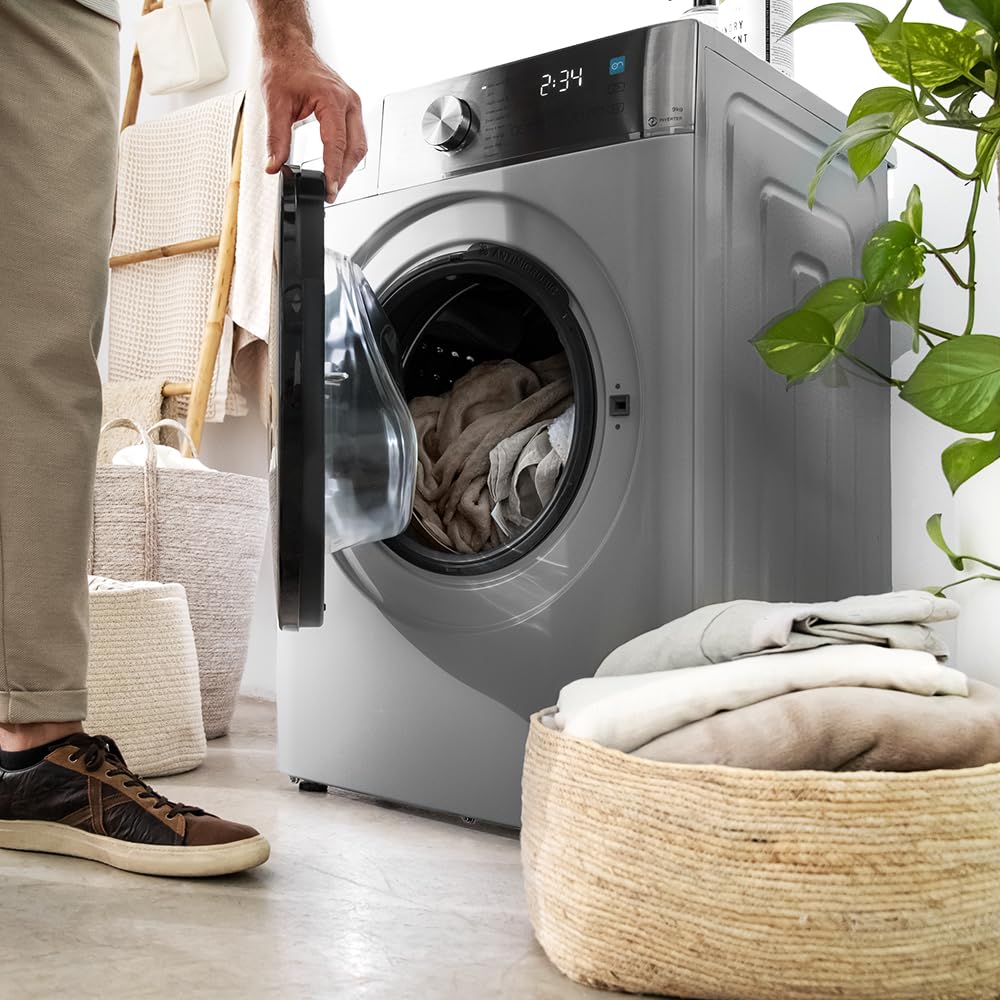

Image 3.1: A person loading laundry into the washing machine, demonstrating the convenient front-load access and ample кубаттуулугу.

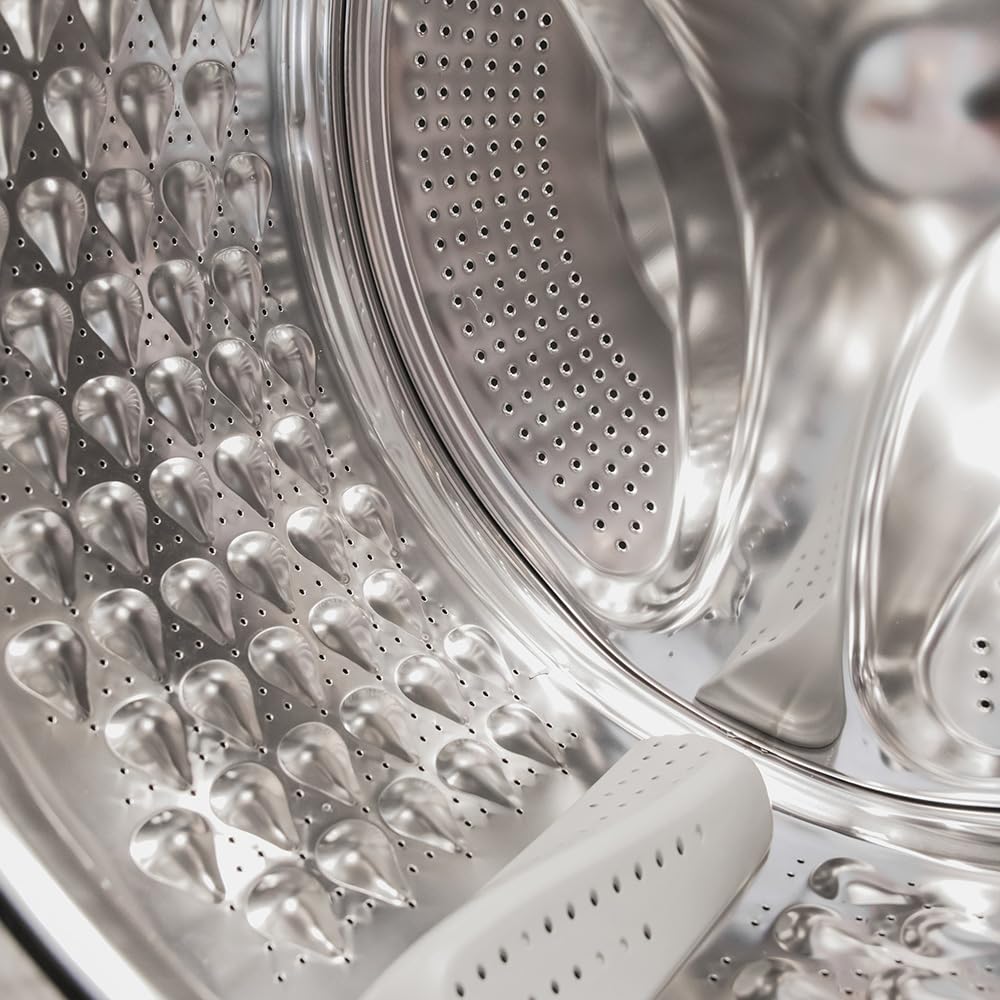

Сүрөт 3.2: деталдуу view of the Pearl Drum interior, showing its unique texture designed for gentle fabric care.
4. Орнотуу жана орнотуу
Proper installation is crucial for the performance and longevity of your washing machine. It is recommended to have the appliance installed by a qualified professional.
4.1 Таңгактан чыгаруу жана ташуучу болтторду алып салуу
Before first use, it is essential to remove the transport bolts located at the rear of the machine. These bolts secure the drum during transit and must be removed to prevent damage during operation. Refer to the diagram in the full manual for exact locations.
4.2 Шайманды тегиздөө
The washing machine must be perfectly level to ensure stable and quiet operation. Adjust the feet at the bottom of the machine until it is stable and does not wobble. Use a spirit level to verify.
4.3 Суу жана электр кубатын туташтыруу
Connect the water inlet hose to a cold water tap and the drain hose to a suitable drain. Ensure all connections are secure to prevent leaks. Plug the power cord into a grounded electrical outlet.
5. Иштөө нускамалары
Your Cecotec Bolero DressCode 8800 offers a variety of programs and functions for optimal washing results.
5.1 Control Panel and Program Selection
The washing machine features an intuitive XXL Touch Display and a central dial for program selection. Turn the dial to choose from the 16 available programs. The display will show the remaining time and selected options.

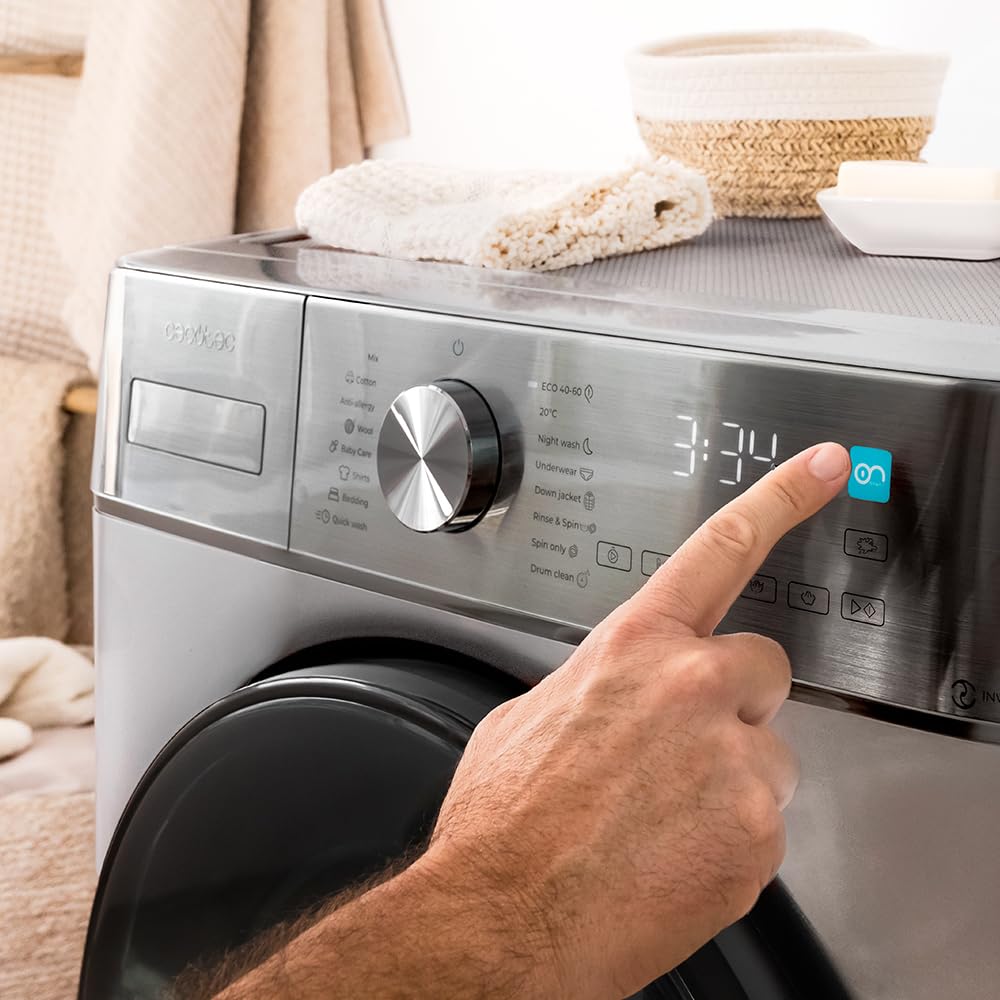

Image 5.1: A hand adjusting the program selection dial on the washing machine's control panel.
Image 5.2: A user interacting with the responsive XXL touch display to select options.
5.2 Атайын функциялар
- OnSmart Function: Press this button to initiate an intelligent wash mode that automatically selects the ideal program without further adjustments.
- DelayStart: Program the washing machine to start between 0 and 24 hours later, allowing you to schedule washes at your convenience.
- Fuzzy Logic: This technology automatically detects the laundry load and optimizes water level and wash time for improved performance and efficiency.
- SteamMax / Spa Care: Before each wash, this function sterilizes clothes using steam, eliminating up to 99.9% of germs and bacteria, particularly effective in cold water washes.
- Stain Match: Select a pre-configured stain type, and the machine will adjust the wash cycle accordingly for effective stain removal.
- Smooth Wash: Utilizing the ESC system, this function adjusts washing and spinning to an ultra-quiet mode, making it suitable for use at any time, even at night.
Image 5.3: Visual representation of Fuzzy Logic technology optimizing water usage based on load size.
Image 5.4: The SteamMax/Spa Care function in action, showing steam sanitizing garments inside the drum.
Image 5.5: A close-up of a stained fabric, demonstrating the target for the Stain Match function.
6. Техникалык тейлөө жана тазалоо
Үзгүлтүксүз тейлөө кир жуугуч машинаңыздын узак иштөөсүн жана оптималдуу иштешин камсыздайт.
6.1 Барабанды тазалоо функциясы
The DrumClean function allows for automatic cleaning of the drum, ensuring total hygiene and preventing odor buildup. It is recommended to use this function periodically.
6.2 Antibacterial Gasket
The washing machine is equipped with an antibacterial gasket around the door, which helps to prevent the growth of mold and bacteria. Wipe the gasket clean after each wash to maintain hygiene.
6.3 Жалпы тазалоо
Машинанын сыртын жумшак менен сүртүңүз, гamp cloth. Do not use abrasive cleaners or solvents. Clean the detergent dispenser drawer regularly to prevent residue buildup.
7. Кыйынчылыктарды
If you encounter issues with your washing machine, refer to the following common troubleshooting steps. For more complex problems, contact customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Машина иштебейт | Электр зымы ажыратылган, эшик жабылган эмес, программа тандалган эмес. | Электр кубатына туташууну текшериңиз, эшик бекем жабылганын текшериңиз, программаны тандап, "старт" баскычын басыңыз. |
| Ашыкча титирөө/ызы -чуу | Транспорт болттору алынбаган, машина түз эмес, жүк бирдей эмес. | Ташуу болтторду алып салыңыз, тегиздөөчү буттарды тууралаңыз, кирлерди барабандын ичине бөлүштүрүңүз. |
| Суунун агып чыгышы | Hose connections loose, drain hose blocked, detergent drawer overflow. | Tighten hose connections, clear drain hose, do not overfill detergent drawer. |
| Кийимдери таза эмес | Ашыкча жүктөө, жуучу каражаттын жетишсиздиги, туура эмес программа. | Reduce load size, use appropriate amount of detergent, select suitable wash program. |
8. Техникалык шарттар
Detailed technical specifications for the Cecotec Bolero DressCode 8800 Inverter Steel A 8Kg Washing Machine:
| Параметр | Нарк |
|---|---|
| Бренд | Cecotec |
| Модель номери | 02796 |
| Кубаттуулугу | 8 килограмм |
| Максималдуу айлануу ылдамдыгы | 1400 об/мин |
| Күч | 2000 Вт |
| Программалардын саны | 16 |
| Энергиянын натыйжалуулугу боюнча класс (жаңы) | A |
| Продукциянын өлчөмдөрү (D x W x Y) | 52 x 60 x 85 см |
| Продукт Салмагы | 65 кг |
| Башкаруу түрү | тийүү |
| Өзгөчөлүктөр | Delayed Start, Hygienic Steam |
| Кирүү түрү | Front Load |
Image 8.1: Dimensional diagram of the washing machine, indicating its height, width, and depth.
Image 8.2: The EU Energy Label for the appliance, detailing its energy efficiency class (A), energy consumption, capacity, program duration, water consumption, and noise level. For more information, visit eprel.ec.europa.eu/qr/1763761.
9. Кепилдик жана колдоо
Your Cecotec Bolero DressCode 8800 Inverter Steel A washing machine comes with a 3 жылдык кепилдик сатып алынган күндөн тартып өндүрүш кемчиликтерин жабуу. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
9.1 Кардарларды колдоо
For technical assistance, warranty claims, or spare parts, please contact Cecotec customer service. Contact details can typically be found on the official Cecotec webсайтында же баштапкы таңгагында сактаңыз.
For additional information and support, you may visit the official Cecotec store on Amazon: Cecotec Amazon Store.
