Strex Cordless Air Duster SP238 User Manual

1. Маанилүү коопсуздук нускамалары

Please read all instructions carefully before using the Strex Cordless Air Duster. Keep this manual for future reference.

• Аппаратты күйүүчү суюктуктардын же газдардын жанында иштетпеңиз.
• Түзмөктү суудан жана нымдуулуктан алыс кармаңыз. Сууга салбаңыз.
• Do not point the air duster directly at people or animals.
• Avoid blocking the air intake or outlet during operation.
• Аппаратты өзүңүз ажыратпаңыз, оңдобоңуз же өзгөртпөңүз. Жардам алуу үчүн квалификациялуу тейлөө кызматкерлерине кайрылыңыз.
• Use only the provided charging cable and a compatible power adapter (not included) for charging.
• Store the device in a cool, dry place, away from direct sunlight and high temperatures.
• Балдар жетпеген жерде сактаңыз.
• The battery is rechargeable. Do not expose to fire or extreme heat.

2. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• Strex Cordless Air Duster Unit
• Various Nozzles and Brushes (5 pieces)
• USB заряддоо кабели
• User Manual

Image: Contents of the Strex Air Duster package, showing the main unit, multiple attachments, and the user manual.

3. Продукт бүтүп калдыview

The Strex Cordless Air Duster is designed for efficient and convenient cleaning of electronics, keyboards, car interiors, and other delicate surfaces. It features a powerful motor, a long-lasting rechargeable battery, and multiple speed settings.

Image: Strex Cordless Air Duster highlighting its key features such as adjustable power, high RPM, and battery life.

4. Орнотуу

4.1 Аппаратты заряддоо

Before first use, fully charge the air duster. The device is equipped with a 6000mAh rechargeable lithium battery.

1. Connect the provided USB charging cable to the charging port on the air duster.
2. Connect the other end of the USB cable to a compatible USB power source (e.g., computer, wall adapter, car charger, power bank).
3. Заряддоо индикатору заряддоо учурунда күйөт.
4. A full charge typically takes approximately 2 hours. The indicator light will change or turn off once charging is complete.

Image: Charging the Strex Air Duster, illustrating various compatible charging methods and battery specifications.

4.2 Соплолорду бекитүү

The air duster comes with multiple nozzles for different cleaning tasks.

1. Тазалоо муктаждыктарыңыз үчүн ылайыктуу саптаманы тандаңыз.
2. Саптаманы чаң соргучтун аба чыгуучу тешигине тууралаңыз.
3. Gently push and twist the nozzle until it is securely attached.
4. Чыгаруу үчүн, бурап, саптаманы тартыңыз.

5. Иштөө нускамалары

5.1 Күйгүзүү/өчүрүү

• To turn on the device, press and hold the power button for a few seconds until the motor starts.
• To turn off the device, press and hold the power button again until the motor stops.

5.2 Ылдамдыкты жөндөө

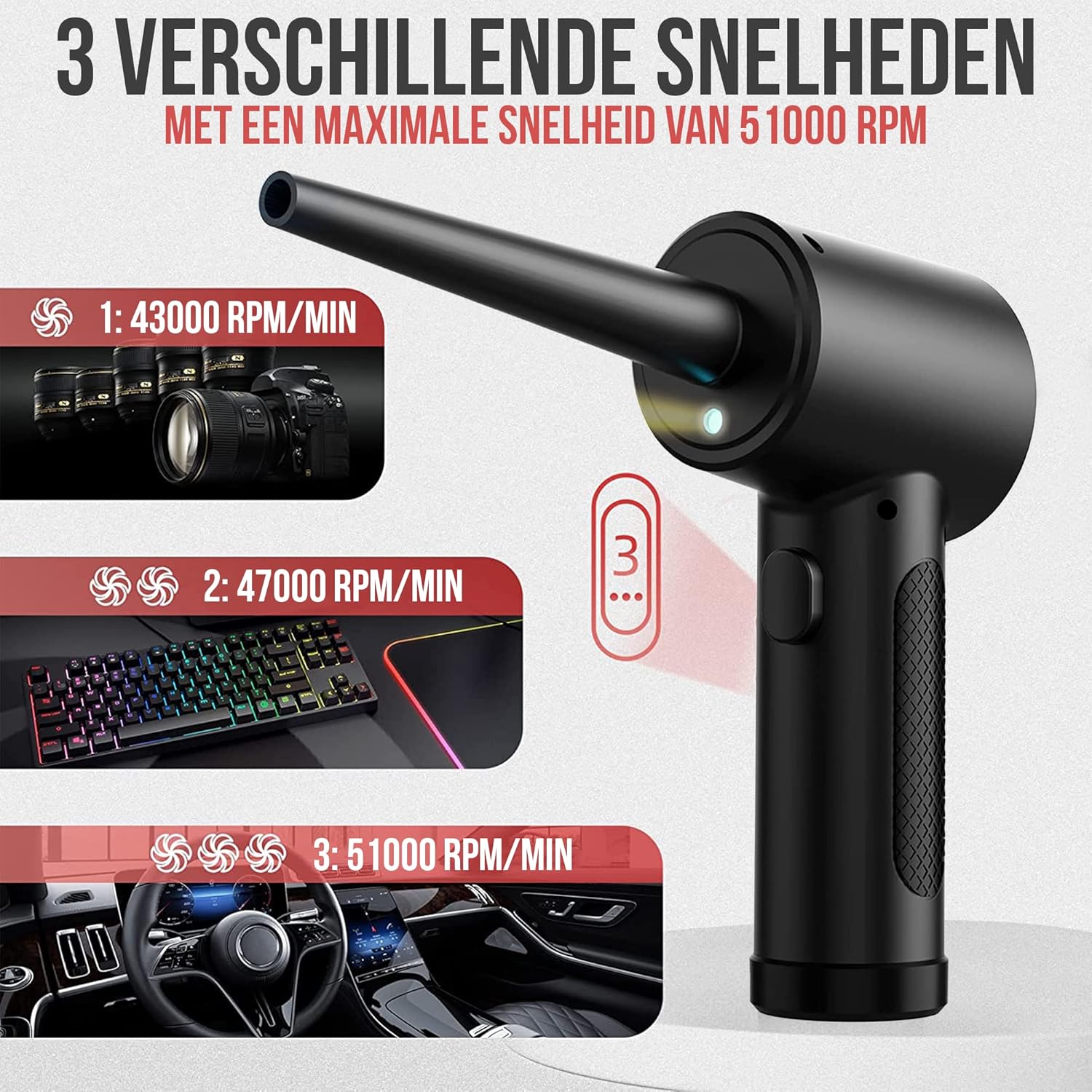

The Strex Air Duster features three adjustable speed settings:

• Speed 1 (43000 RPM): Ideal for sensitive electronics and light dust.
• Speed 2 (47000 RPM): Suitable for general cleaning, such as laptop keyboards.
• Speed 3 (51000 RPM): For stubborn dirt and heavier debris.

To cycle through the speeds, short press the power button while the device is on. The indicator light may change to show the current speed setting.

Image: Illustration of the three speed settings and their recommended uses for the Strex Air Duster.

5.3 LED жарыгын колдонуу

The integrated LED light illuminates dark areas, ensuring thorough cleaning.

• The LED light typically activates automatically when the duster is turned on.
• Use the light to clearly see dust and debris in crevices and hard-to-reach spots.

Image: The integrated LED light in action, providing visibility for cleaning in various dark or confined spaces.

5.4 Колдонмо Examples

The Strex Air Duster is versatile and can be used for:

• Cleaning computer keyboards, cases, and components.
• Dusting office equipment like printers and copiers.
• Detailing car interiors, vents, and dashboards.
• Removing dust from household items, plants, and furniture.
• Cleaning pet hair from surfaces.

Сүрөт: Мисamples of the Strex Air Duster's multi-purpose applications across different environments.

6. Техникалык тейлөө

To ensure optimal performance and longevity of your Strex Air Duster, follow these maintenance guidelines:

• Тышкы тазалоо: Аппараттын сыртын жумшак, кургак чүпүрөк менен сүртүңүз. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• Соплолорду тазалоо: Detach nozzles and clean them with a soft brush or cloth if they become clogged with debris. Ensure they are dry before reattaching.
• Сактагыч: When not in use, store the air duster in a clean, dry place at room temperature.
• Батареяга кам көрүү: For long-term storage, it is recommended to charge the battery to about 50% every few months to maintain battery health.

7. Кыйынчылыктарды

If you encounter issues with your Strex Cordless Air Duster, refer to the following common problems and solutions:

Бул чечимдерди колдонуп көргөндөн кийин көйгөй чечилбесе, кардарларды колдоо менен байланышыңыз.

8. Техникалык шарттар

• Модель номери: SP238
• Мотор ылдамдыгы: 43000 - 47000 - 51000 RPM (3 speeds)
• Батарея сыйымдуулугу: 6000 мАч
• Иштөө убактысы: Up to 60 minutes (on lowest speed)
• Заряддоо убактысы: Болжол менен 2 саат
• Өлчөмдөрү (L x W x Y): 9 x 9 x 6.5 см
• Салмагы: 335 грамм
• Материал: ABS + PP
• Киргизүү: USB (charging cable included)

9. Кепилдик маалыматы

Strex products are manufactured to high-quality standards. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accident, unauthorized modification, or normal wear and tear.

10. Кардарларды колдоо кызматы

For any questions, technical support, or warranty inquiries regarding your Strex Cordless Air Duster SP238, please contact our customer service team. Refer to the contact information provided on the product packaging or the official Strex webсайт.
