Clorox CloroxPro Turbo Power Sprayer

CloroxPro Turbo Power Sprayer and Disinfectant Cleaner User Manual

Model: CloroxPro Turbo Power Sprayer

Introduction

The CloroxPro Turbo Power Sprayer is designed for efficient application of disinfectant to high-touch surfaces in various environments, including healthcare, industrial, and commercial settings. This bundle includes the power sprayer and specially formulated Clorox Turbo Disinfectant Cleaner. The system allows for quick and effective disinfection without the need for wiping, covering both small and large areas.

The disinfectant cleaner is a bleach-free formula that kills 99.9% of germs, viruses, and bacteria, including SARS-CoV-2 (COVID-19), on hard, non-porous surfaces. It is also safe for use on soft surfaces like linens and upholstery. For food contact surfaces, a water rinse is required after application.

CloroxPro Turbo Power Sprayer being used to disinfect chairs in a cafe setting.

Image: A person using the CloroxPro Turbo Power Sprayer to mist disinfectant onto chairs in a cafe, demonstrating its use in high-touch areas.

Продукт компоненттери

The CloroxPro Turbo Power Sprayer features a lightweight design with an adjustable spray nozzle, a 2-finger trigger, adjustable flow control, and a 20 oz removable reservoir.

Diagram of CloroxPro Turbo Power Sprayer with labels for adjustable spray nozzle, 2-finger trigger, 20 oz reservoir, lightweight design, and adjustable flow control.

Сүрөт: деталдуу view of the CloroxPro Turbo Power Sprayer highlighting its key components: adjustable spray nozzle, 2-finger trigger, 20 oz reservoir, lightweight design, and adjustable flow control.

Орнотуу нускамалары

Follow these steps to set up your CloroxPro Turbo Power Sprayer for first use or after cleaning.

  1. Чачыраткычты чогултуу: Align the arrow on the sprayer head with the arrow on the motor unit. Twist the motor into place until it locks securely.
  2. Чөйчөктү алып салыңыз: Unscrew and remove the liquid reservoir cup from the sprayer.
  3. Суу сактагычты толтуруңуз: Fill the cup with Clorox Turbo Disinfectant Cleaner up to the indicated fill line.
  4. Reattach the Cup: Screw the cup firmly back into the sprayer until secure.
  5. Туташуу кубаты: Plug the unit into a GFCI outlet or adapter.

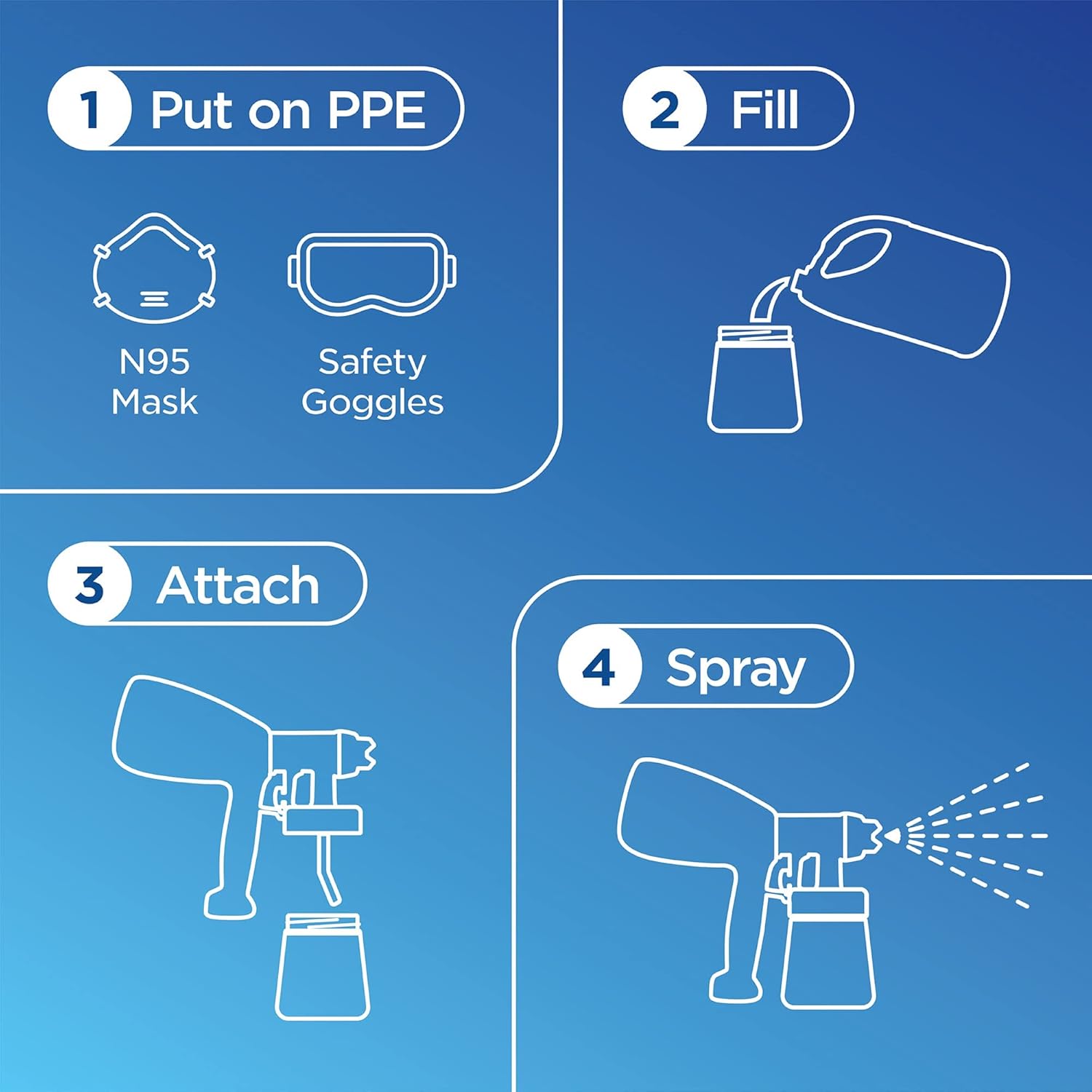

Four-step visual guide for setting up the CloroxPro Turbo Power Sprayer: 1. Put on PPE (N95 Mask, Safety Goggles), 2. Fill the reservoir, 3. Attach the reservoir, 4. Spray.

Image: A visual guide illustrating the four main steps for setting up the sprayer: donning PPE, filling the reservoir, attaching the reservoir, and beginning to spray.

Видеону орнотуу

Video: A step-by-step guide on how to set up the Clorox Turbo Power Sprayer, including assembling components and filling the reservoir.

Иштөө нускамалары

The CloroxPro Turbo Power Sprayer is designed for ease of use with adjustable settings for various applications.

Чачыратуучу схеманы жөндөө

The precision mist nozzle can be adjusted to control the spray pattern:

  • Rotate the nozzle to achieve a horizontal stream for spraying up and down.
  • Rotate the nozzle to achieve a vertical stream for spraying left and right.
  • Rotate the nozzle to achieve a diagonal stream for spraying smaller, more focused areas.

Adjusting Flow Control

The flow control knob allows you to adjust the volume of disinfectant being sprayed:

  • Turn clockwise for more volume.
  • Turn counter-clockwise for less volume.

Чачыруу техникасы

Hold the sprayer 2-3 feet away from the surface. Pull the trigger to begin spraying. Ensure even coverage. Allow the surface to air dry completely. No wiping is required for most surfaces; however, food contact surfaces require a water rinse after disinfection.

A person wearing a mask and safety glasses using the CloroxPro Turbo Power Sprayer to disinfect a treadmill in a gym.

Image: A person disinfecting a treadmill in a gym with the CloroxPro Turbo Power Sprayer, illustrating proper distance and mist application.

Spraying Video Guide

Video: Demonstrates how to effectively spray with the Clorox Turbo Power Sprayer, including adjusting spray patterns and maintaining proper distance from surfaces.

Тейлөө жана тазалоо

Regular cleaning of your sprayer ensures optimal performance and longevity. Always flush the unit when changing cleaning products.

  1. Агрегатты сууруп алыңыз: Always unplug the sprayer from the power source before cleaning. Ensure the cord is always plugged into a GFCI outlet or adapter during use.
  2. Drain Liquid: Loosen the reservoir cup but do not remove it completely. Pull the trigger to drain any remaining liquid from the sprayer.
  3. Empty and Rinse Cup: Remove the cup and dispose of any remaining liquid according to local regulations. Fill the cup halfway with clean water.
  4. Суу менен жуу: Reattach the cup firmly. Plug in the unit and spray the clean water into a safe area until the cup is empty.
  5. Unplug Again: Unplug the unit once flushing is complete.

Тазалоо боюнча видео колдонмо

Video: Instructions on how to clean the Clorox Turbo Power Sprayer, including draining liquid, rinsing the cup, and flushing the system with water.

Проблемаларды чечүү

If you encounter issues with your CloroxPro Turbo Power Sprayer, refer to the following common solutions:

  • No Spray/Weak Spray:
    • Ensure the reservoir cup is securely attached and contains enough liquid.
    • Check if the nozzle is clogged. Clean the nozzle thoroughly.
    • Verify the unit is properly plugged into a functional GFCI outlet.
    • Adjust the flow control knob to increase volume.
  • Тегиз эмес спрей үлгүсү:
    • Adjust the spray nozzle to the desired pattern (horizontal, vertical, diagonal).
    • Clean the nozzle to remove any blockages affecting the spray.
  • агып жатат:
    • Ensure the reservoir cup is tightened securely.
    • Check for any cracks or damage to the cup or sprayer body.

For persistent issues, contact Clorox customer support.

Техникалык шарттар

ӨзгөчөлүкДеталь
Элемент Салмагы4 фунт
БрендClorox
Элемент формасыSpray
жытЖыты жок
Продукт үчүн атайын колдонууUpholstery, Hard Surfaces, General Disinfection
Материалдык өзгөчөлүкДезинфекциялоочу каражат
ӨндүрүүчүClorox Professional Products компаниясы

Коопсуздук маалыматы

Always refer to the use and safety instructions on the Clorox Turbo Disinfectant Cleaner product label before using this product. Wear appropriate Personal Protective Equipment (PPE) such as an N95 mask and safety goggles during operation.

Маанилүү: For all food contact surfaces, a water rinse is required after disinfection with the Clorox Turbo Disinfectant Cleaner.

Электр шоктон коргоо: Ensure the cord is always plugged into a GFCI outlet or adapter to prevent electrical hazards.

Типтүү колдонмолор

The CloroxPro Turbo Power Sprayer and Disinfectant Cleaner bundle is suitable for disinfecting high-touch areas in a variety of facilities, including but not limited to:

  • Kitchens (food-contact surfaces require water rinse)
  • Кеңселер
  • Дааратканалар
  • Салондор
  • Restaurants (food-contact surfaces require water rinse)
  • Спорт залдары
  • Locker Rooms
  • Клиникалар
Collage of images showing the CloroxPro Turbo Power Sprayer being used in various settings: kitchens, offices, restrooms, salons, restaurants, and gyms.

Image: A visual representation of different environments where the CloroxPro Turbo Power Sprayer can be effectively used, such as kitchens, offices, restrooms, salons, restaurants, and gyms.
