1. Продукт бүтүп калдыview
The Reality Leuchten Atria R67042832 is an LED ceiling light designed for modern indoor spaces. It features a plastic white/black finish with a starlight effect and a diameter of 27 cm. This light includes an energy-saving 10.5 watt LED, providing up to 1080 lumens for optimal illumination. It offers dimmable brightness and adjustable light color, ranging from 3000 Kelvin (warm white) to 6000 Kelvin (cold white), all controllable via the included remote control.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- Integrated 10.5 Watt LED with 1080 lumens.
- Dimmable brightness via remote control.
- Adjustable color temperature (3000K - 6000K).
- Starlight effect for ambient lighting.
- Night light function.

Сүрөт 1.1: Алдыңкы view of the Reality Leuchten Atria R67042832 LED Ceiling Light.
2. Коопсуздук нускамалары
Please read these safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or other injuries.
- Электр коопсуздугу: Installation must be performed by a qualified electrician or in accordance with local electrical codes. Always disconnect power at the main circuit breaker before installation, maintenance, or cleaning.
- Колдонуу: Handle the light fixture with care to avoid damage. Do not drop or subject it to strong impacts.
- Курчап турган чөйрө: This product is designed for indoor use only. Do not expose to moisture, extreme temperatures, or corrosive environments.
- Тазалоо: Тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Жарык булагы: LED жарык булагы орнотулган жана колдонуучу тарабынан алмаштырылбайт. LED модулун бөлүктөргө ажыратууга аракет кылбаңыз.
- Жоюу: This product contains a light source of energy efficiency class F. Dispose of the product responsibly at the end of its life cycle, in accordance with local regulations for electronic waste.
3. Пакеттин мазмуну
Орнотууну улантуудан мурун бардык компоненттер бар экенин жана бузулбаганын текшериңиз.
- 1 x Reality Leuchten Atria R67042832 LED Ceiling Light Fixture
- 1 x Алыстан башкаруу
- Монтаждоочу жабдуулар (буроолор, дубал анкерлери)
- 1 х Колдонуучунун колдонмосу (бул документ)
4. Орнотуу жана орнотуу
Шып чырактарын коопсуз жана туура орнотуу үчүн бул кадамдарды аткарыңыз.
- Орнотууга даярданыңыз:
- Орнотуу аймагына электр энергиясы негизги өчүргүчтөн өчүрүлгөнүн текшериңиз.
- Gather necessary tools: screwdriver, drill (if needed), wire strippers, ladder.
- Кронштейнди орнотуу:
- шыпта монтаждоо ордун аныктоо.
- Attach the mounting bracket securely to the ceiling using the provided screws and wall anchors. Ensure it is firmly fixed to a joist or suitable ceiling support.
- Электр байланышы:
- Connect the household electrical wires to the corresponding wires on the light fixture. Typically, this involves connecting live (L), neutral (N), and ground (GND) wires. Refer to local wiring color codes.
- Бардык байланыштар коопсуз жана изоляцияланганын текшериңиз.
- Жарык берүүчү лампаны орнотуу:
- Carefully align the light fixture with the mounted bracket and secure it in place.
- The large lamp cover/shade can be detached and reattached with a simple twisting motion for easier installation and cleaning.
- Күчтү калыбына келтирүү:
- Жарык бекем орнотулуп, зымдар туташтырылгандан кийин, негизги автоматтык өчүргүчтөгү кубаттуулукту калыбына келтириңиз.
- Test the light using the remote control.

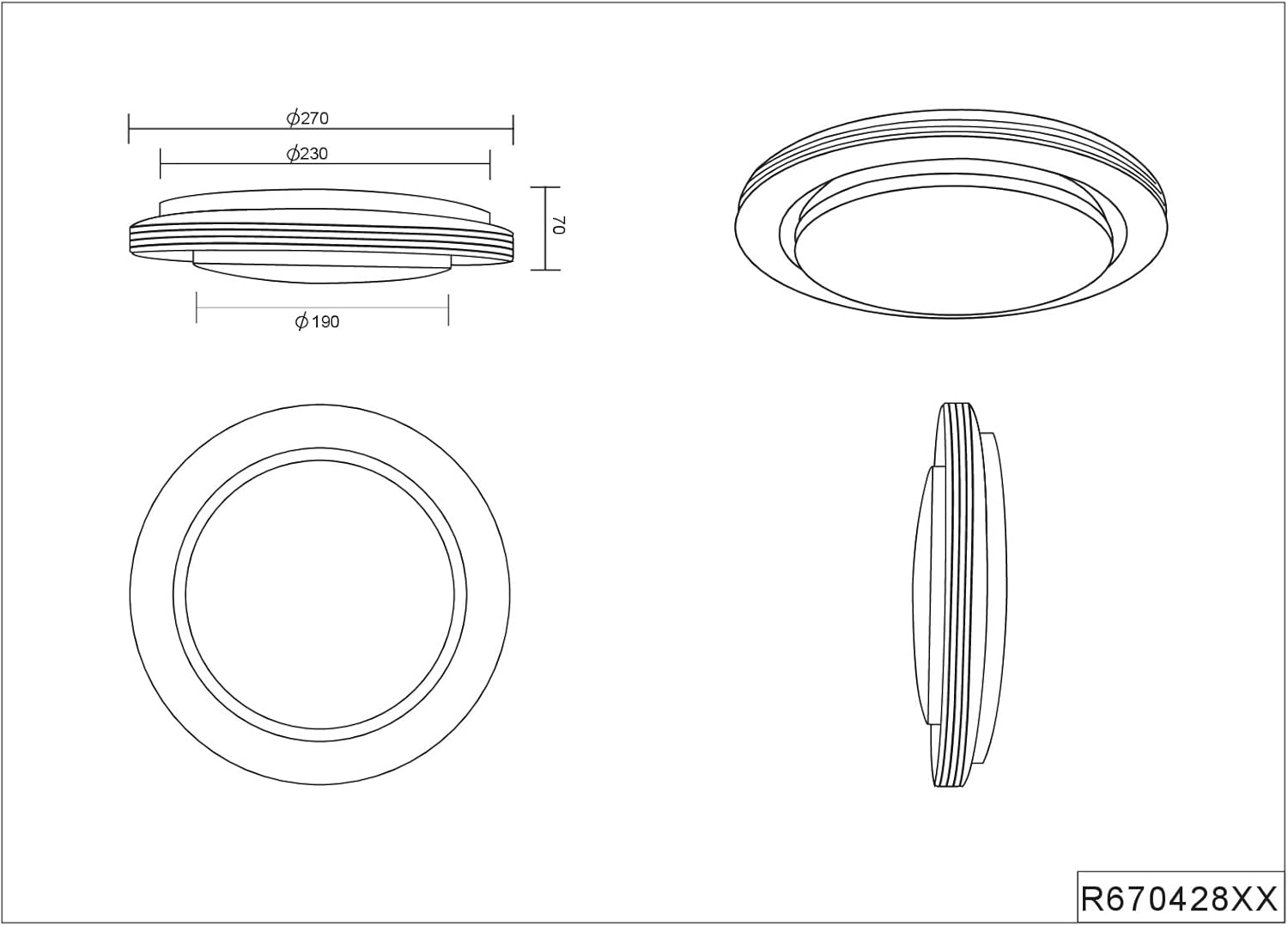

Image 4.1: Technical drawing showing dimensions (Diameter 270mm, Height 70mm) for installation planning.
5. Иштөө нускамалары
Your Reality Leuchten Atria ceiling light comes with a remote control for convenient operation of its various functions.

Image 5.1: Visual representation of key features: Remote control, dimming, color temperature adjustment, night light, and starlight effect.
- Күйгүзүү/өчүрүү: Use the dedicated power button on the remote control to turn the light on or off.
- Жарыктыкты жөндөө (караңгылык): The brightness can be freely adjusted from 100% down to a low level using the dimming buttons or slider on the remote control.


Image 5.2: The light can be adjusted from warm white (left) to cool white (right).
- Түс температурасын жөндөө: The light color can be freely adjusted from 3000 Kelvin (warm white) to 6000 Kelvin (cold white) using the corresponding buttons or slider on the remote control.
- Starlight Effect: Activate the starlight effect for a subtle, sparkling ambiance. This feature creates small, twinkling points of light.

Image 5.3: The ceiling light displaying its starlight effect.
- Түнкү жарык функциясы: Press the night light button. If the main lighting was on, it will slowly dim and turn off. Pressing the button again will turn the light completely off. This function is ideal for low-light situations.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your LED ceiling light.
- Тазалоо:
- Before cleaning, ensure the light is turned off and has cooled down.
- Wipe the surface of the light fixture with a soft, dry, lint-free cloth.
- өжөр белгилери үчүн, бир аз гamp cloth can be used, followed by a dry cloth. Do not use harsh chemicals, abrasive cleaners, or sprays directly on the fixture.
- The large lamp cover/shade can be easily removed by a simple twisting motion for thorough cleaning.
- LED Узак мөөнөттүү: The integrated LED has an average service life of 30,000 hours. No replacement of the light source is necessary under normal operating conditions.
7. Кыйынчылыктарды
If you encounter issues with your ceiling light, refer to the following common problems and solutions.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | No power supply; loose wiring; remote control battery depleted. | Check circuit breaker. Ensure wiring connections are secure (power off first!). Replace remote control batteries. |
| Пульт иштебей жатат. | Batteries depleted or incorrectly inserted; remote not paired (if applicable); obstruction. | Replace batteries, ensuring correct polarity. Ensure no obstructions between remote and light. Refer to remote pairing instructions (if provided with remote). |
| Жарык күтүлбөгөн жерден бүлбүлдөп же өчүп калат. | Unstable power supply; loose connection; incompatible dimmer (not applicable as it uses its own remote). | Электр менен камсыздоонун туруктуулугун текшерүү. Зымдарды байланыштарды текшериңиз. |
| Color temperature or brightness cannot be adjusted. | Remote control issue; internal malfunction. | Ensure remote control batteries are fresh. If problem persists, contact customer support. |
Бул чечимдерди колдонуу аракетинен кийин көйгөй чечилбесе, кардарларды колдоо кызматына кайрылыңыз.
8. Техникалык шарттар
| Атрибут | Деталь |
|---|---|
| Модель номери | R67042832 |
| Бренд | RL ЖАРЫГЫҢЫЗ МЕНЕН ЖАШАҢЫЗ |
| Өндүрүүчү | Reality Leuchten |
| Продукциянын өлчөмдөрү | 27 x 27 x 7 см (Диаметр x Диаметр x Бийиктик) |
| Салмагы | 385 г |
| Материал | Пластик |
| Түс | White/Black (Ring Black) |
| Жарык булагы | Интегралдык LED |
| Ватtage | 10.5 Ватт |
| Lumen Output | Макс. 1080 люмен |
| Түс температурасы | 3000 Kelvin (warm white) to 6000 Kelvin (cold white) |
| Dimmable | Yes, via included remote control |
| Кызматтын орточо узактыгы | 30,000 саат |
| Энергия эффективдүүлүгү классы | F |
| Ички/тышкы колдонуу | Indoor |
| Power Source | AC |
9. Кепилдик жана колдоо
For warranty information, please refer to the specific terms and conditions provided by Reality Leuchten or your point of purchase. Typically, products are covered against manufacturing defects for a specified period.
If you require technical assistance, have questions about your product, or need to report a defect, please contact the manufacturer or your retailer. Keep your proof of purchase handy when contacting support.
Өндүрүүчү: Reality Leuchten
Webсайт: www.reality-leuchten.de (Эскертүү: Бул жалпы орун басары website for the manufacturer, actual support contact may vary by region.)
