Introduction
Thank you for choosing the EFFYDESK GrinChair Ergonomic Office Chair. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure you get the most out of your new chair. Designed for comfort and support, the GrinChair features a breathable mesh backrest, adjustable lumbar support, 4D armrests, and a height-adjustable gas lift mechanism to promote proper posture and enhance your workspace experience.
Коопсуздук маалыматы
Маанилүү коопсуздук чаралары:
- Always assemble the chair strictly according to the provided instructions.
- Exercise caution when moving the chair, especially on uneven surfaces, to prevent instability and potential tipping.
- Стулга турбаңыз.
- Эгерде кандайдыр бир тетиктери бузулган же жок болсо, отургучту колдонбоңуз. Алмаштыруучу тетиктер үчүн кардарларды тейлөө кызматына кайрылыңыз.
- Keep children away from the chair during assembly and operation.
Пакеттин мазмуну
Please verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact EFFYDESK customer support.
- Арка жамааты
- Отуруучу жаздыктын жыйындысы
- Колтуктар (2)
- Кресло базасы
- Дөңгөлөктөр (5)
- Газ көтөрүүчү баллон
- Газ көтөргүч капкагы
- Механизм плитасы
- Аппараттык комплект (бурамалар, шайбалар, алты бурчтуу ачкыч)
- Instruction Manual
Орнотуу жана чогултуу
Assembly typically takes 10-20 minutes. For visual guidance, refer to the included installation instructions and any available assembly videos from EFFYDESK.
- Дөңгөлөктөрдү базага тиркөө: Insert each of the five casters into the holes at the end of each leg of the chair base until they click securely into place.
- Газ лифтин киргизүү: Place the gas lift cylinder into the center hole of the chair base. Cover the gas lift with the telescopic cover.
- Механизмдин пластинасын отургучка бекитүү: Align the mechanism plate with the pre-drilled holes on the underside of the seat cushion. Secure it using the provided screws and Allen wrench. Ensure the front of the mechanism faces the front of the seat.
- Колтук таянычтарын отургучка бекитүү: Secure the armrests to the sides of the seat cushion using the designated screws. Ensure they are firmly attached.
- Аркасын отургучка бекитүү: Align the backrest with the mounting points on the seat mechanism. Secure it with the remaining screws.
- Отургучту газ лифтине туташтырыңыз: Чогултулган отургучту жана аркалыкты газ көтөргүч цилиндрге этияттык менен орнотуңуз, механизм плитасынын борбордук тешиги газ көтөргүчтүн үстүнкү бөлүгү менен дал келишин камсыз кылыңыз. Бекитүү үчүн бекем басыңыз.
Иштөө нускамалары
The GrinChair offers multiple adjustment options to customize your seating experience for optimal comfort and ergonomic support.
1. Орундуктун бийиктигин жөндөө
To adjust the seat height, locate the lever on the right side, beneath the seat. While seated, pull the lever upwards to lower the seat. To raise the seat, stand up and pull the lever upwards. Release the lever at your desired height.
2. Tilt and Recline Adjustment
The chair features EFFY Sychron-tilt Technology for adjustable and lockable recline. Locate the lever on the left side, beneath the seat.
- Жаталуу үчүн: Pull the lever outwards to unlock the tilt mechanism. Lean back to your desired angle.
- To Lock Tilt: Push the lever inwards to lock the backrest in an upright or reclined position.
- Эңкейүү чыңалуусу: A knob located at the front-center under the seat adjusts the tension of the recline. Turn clockwise to increase tension (making it harder to recline) or counter-clockwise to decrease tension (making it easier to recline).
3. 4D кол таянгычты тууралоо
The 4D armrests can be adjusted in four directions to provide optimal support for your arms and wrists.
- Бийиктигин тууралоо: Press the button on the side of the armrest support and move the armrest up or down. Release the button to lock.
- Алдыга артка: Кол таянгычты алдыга же артка жылдырыңыз.
- Pivot/Swivel: Rotate the armrest pad inwards or outwards.
- Капталдан: Колдук таянгычты солго же оңго жылдырыңыз.
4. Белди колдоо
The GrinChair features built-in lumbar support designed to maintain the natural curve of your spine. While the lumbar support is integrated into the backrest design, some models may offer minor depth adjustments by applying pressure to the backrest. Adjust your seating position to find the most comfortable and supportive alignment.
Техникалык тейлөө
Regular maintenance will help prolong the life and appearance of your EFFYDESK GrinChair.
- Тазалоо: Жалпы тазалоо үчүн жумшак, d колдонуңузamp cloth to wipe down surfaces. For spills or stains, spot clean immediately with a mild soap solution and a clean cloth. Avoid harsh chemicals or abrasive cleaners.
- Торго кам көрүү: The breathable mesh backrest can be gently vacuumed to remove dust and debris.
- Роликтер: Periodically check casters for hair or debris that may impede smooth movement. Clean as necessary.
- Аппараттык камсыздоо: Маал-маалы менен бардык бурамалар менен болттордун бекемдигин текшерип туруңуз. Керек болсо кайра тартыңыз.
Проблемаларды чечүү
If you encounter any issues with your GrinChair, refer to the following common problems and solutions.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кресло бийиктигин тууралабайт | Gas lift cylinder not properly installed or faulty. | Ensure the gas lift is fully inserted into the base and mechanism. If the issue persists, the gas lift may need replacement. Contact support. |
| Отургуч чайпалып же туруксуз | Бурамалар бошоп калган же тегиз эмес чогултулган. | Check all screws and bolts, especially those connecting the seat, backrest, and mechanism, and tighten them securely. Ensure the chair is on a flat surface. |
| Дөңгөлөктөр тегиз жылбайт | Debris caught in casters or casters not fully inserted. | Remove any hair or debris from the caster wheels. Ensure each caster is fully inserted into the chair base. |
| Арткы таянгыч жөлөнбөйт же бекитилбейт | Tilt mechanism locked or tension too high. | Ensure the tilt lock lever is disengaged (pulled outwards). Adjust the tilt tension knob counter-clockwise to reduce tension. |
If you cannot resolve the issue using the above solutions, please contact EFFYDESK customer support for further assistance.
Техникалык шарттар
| Бренд | EFFYDESK |
| Модель номери | BGRIN-GRIN |
| Түс | Көмүр кара |

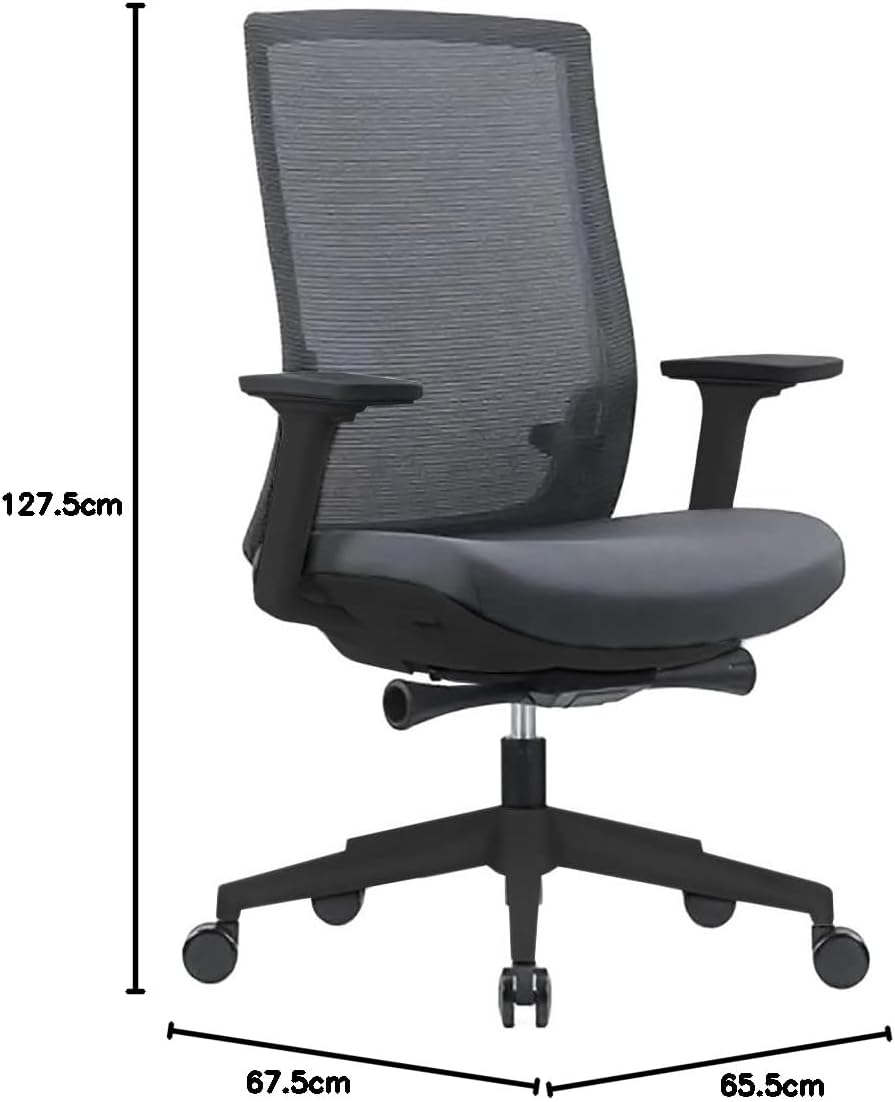

| Продукциянын өлчөмдөрү (L x W x Y) | 67.5 x 65.5 x 127.5 см (26.6 x 25.8 x 50.2 дюйм) |
| Элемент Салмагы | 19.1 кг (42 фунт) |
| Материал | Mesh, Metal, Nylon |
| Өзгөчөлүктөр | Adjustable Armrests, Cushion Availability, Ergonomic Design, Adjustable Height, Lockable Tilt/Recline |
| Артка стили | Mesh Back |
| Frame Material | Металл |
| Продукцияга кам көрүү боюнча нускамалар | Spot Clean, Wipe Clean |
Кепилдик маалымат
EFFYDESK products are designed for quality and durability. For specific warranty terms and conditions applicable to your GrinChair, please refer to the warranty card included with your purchase or visit the official EFFYDESK webсайт. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.
Кардарларды колдоо
Should you require assistance, have questions, or need to report a missing or damaged part, please contact EFFYDESK customer support:
- Электрондук почта: team@effydesk.ca
- Телефон: 604-715-7577
- Webсайт: Visit the official EFFYDESK webКөп берилүүчү суроолор жана кошумча ресурстар үчүн сайт.
Please have your model number (BGRIN-GRIN) and purchase information ready when contacting support.
