ABCCANOPY 10x10 Premium боз түстөгү катуу үстүнкү беседка колдонуучунун колдонмосу

1. Киришүү

Thank you for choosing the ABCCANOPY 10x10 Premium Gray Hardtop Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. Please read these instructions thoroughly before beginning assembly and retain them for future reference.

Image 1.1: The ABCCANOPY 10x10 Premium Gray Hardtop Gazebo providing shade next to a pool.

2. Коопсуздук маалыматы

ЭСКЕРТҮҮ: Бул коопсуздук нускамаларын аткарбоо олуттуу жаракатка же материалдык зыянга алып келиши мүмкүн.

• Туура орнотуу: Ensure the gazebo is installed correctly and securely anchored to a flat, stable surface. Use the provided expansion screws for additional stability.
• Аба ырайы шарттары: This gazebo is designed to withstand various weather conditions, including wind, rain, and snow. However, during extreme weather events (e.g., severe storms, heavy snowfall), it is recommended to take additional precautions, such as removing curtains and netting, and ensuring all components are tightly secured.
• Ассамблеянын кызматкерлери: Assembly typically requires at least two adults. Do not attempt to assemble alone.
• Балдар жана үй жаныбарлары: Кырсыктарды болтурбоо үчүн балдарды жана үй жаныбарларын чогулган жерден алыс кармаңыз.
• Үстүнөн клиринг: Be aware of overhead power lines and other obstructions during assembly and placement.
• Салмак сыйымдуулугу: Do not hang excessively heavy items from the ceiling hook. Refer to specifications for maximum weight.

Ensure proper installation and securing of the gazebo, especially during strong rainy and windy days, for user safety.

3. Пакеттин мазмуну

Before beginning assembly, verify that all parts listed in your specific product's parts list (usually found in the packaging) are present and undamaged. If any parts are missing or damaged, contact customer service immediately.

Типтүү компоненттерге төмөнкүлөр кирет:

• Aluminum Frame Components (posts, beams, connectors)
• Гальванизацияланган болоттон жасалган чатыр панелдери
• Торлор жана пардалар
• Hardware Kit (screws, bolts, washers, nuts, wrenches)
• Assembly Tools (basic wrenches, Allen keys)

4. Орнотуу жана чогултуу

Assembly of the ABCCANOPY Hardtop Gazebo requires careful attention to detail and the assistance of at least one other person. Follow the step-by-step instructions provided in your specific assembly guide. The following are general guidelines and important tips:

4.1 Сайтты даярдоо

1. Choose a level and stable area for installation.
2. Аймакты ар кандай таштандылардан же тоскоолдуктардан тазалаңыз.
3. Ensure adequate clearance around the gazebo for safe use and maintenance.

4.2 Рамка монтажы

1. Unpack all components and lay them out according to the parts list.
2. Begin by assembling the main posts and horizontal beams. It is crucial to install all fasteners эркин at first. This allows for flexibility to align components correctly.
3. Once the basic frame is standing, use a square to check that legs are perpendicular to the beams and that the beams are square to each other.
4. Only after verifying alignment, gradually tighten all screws and bolts. An impact driver with a hex bit can expedite this process, but use caution to avoid overtightening.

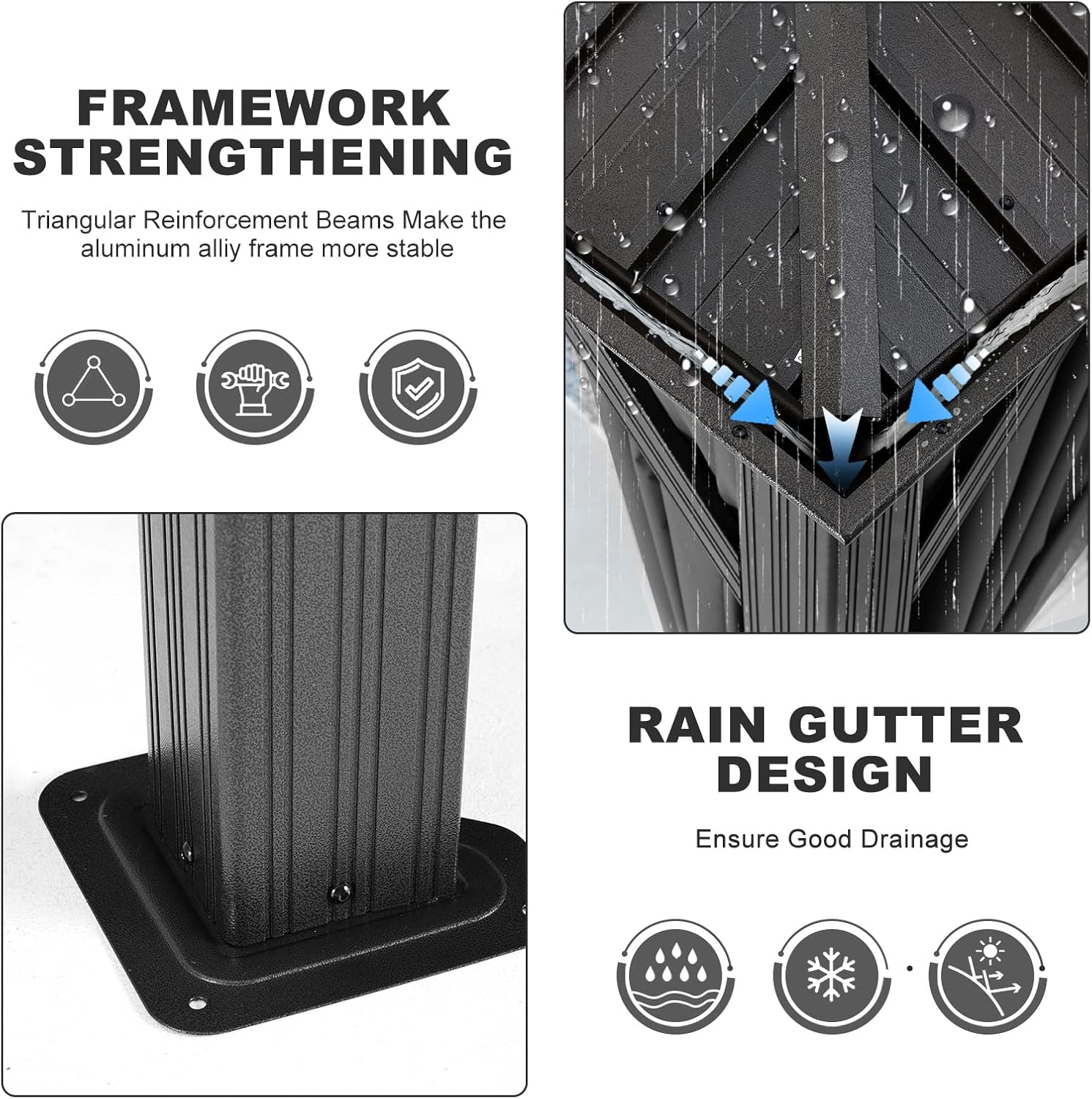

Image 4.1: Detail of the reinforced aluminum frame, water drainage system, and secure post base.

4.3 Чатыр панелдерин орнотуу

1. Carefully attach the galvanized steel roof panels to the assembled frame. Ensure panels overlap correctly to prevent leaks.
2. For the roof cap, it is advisable to install the hooks only partially (e.g., 1/4 inch) initially. This allows the cap to be lifted slightly to facilitate the installation of the O2/O3 roof panels. Once all panels are in place, apply upward pressure to each panel overlap, then fully tighten the bolts and screws, followed by the roof cap's screws and hooks.

Image 4.2: The galvanized steel roof provides protection against sun, rain, and snow.

4.4 Netting and Curtain Attachment

1. Utilize the dual-track system to hang the netting and curtains.
2. The built-in hooks and positioning holes on the posts help secure the curtains and netting, preventing them from blowing in the wind.

Image 4.3: Features for attaching and securing the netting and curtains.

4.5 Анкерлөө

It is essential to anchor the gazebo securely to the ground using the pre-drilled post bases and expansion screws. This provides additional stability and safety, especially in windy conditions.

5. Иштөө нускамалары

5.1 Using Netting and Curtains

The gazebo features a dual-track system, allowing you to adjust the netting and curtains independently. The netting provides protection from insects, while the curtains offer privacy and additional shade. Use the built-in hooks and positioning holes to secure them as desired.

5.2 Ceiling Hook

A hook is located at the center of the roof structure. This hook is designed for hanging lightweight items such as decorative lights or a small fan to enhance your outdoor experience. Do not exceed the specified weight limit for the hook.

Image 5.1: The J-shaped hook for hanging accessories.

5.3 Water Drainage System

The unique water gutter design of the hardtop roof directs rainwater to the edges and down through the aluminum posts. This system helps prevent water accumulation on the roof and ensures efficient drainage during rainy seasons.

6. Техникалык тейлөө

Regular maintenance will prolong the life and appearance of your ABCCANOPY Hardtop Gazebo.

• Чатырды тазалоо: Periodically clean the galvanized steel roof panels with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the coating.
• кадр тазалоо: Жарнама менен алюминий алкагын сүртүңүзamp cloth to remove dirt and dust. The powder coating helps prevent rust and corrosion.
• Кездемеге кам көрүү: The netting and curtains can be spot cleaned with mild soap and water. Ensure they are completely dry before storing or retracting to prevent mildew.
• Аппараттык камсыздоону текшерүү: Annually inspect all bolts and screws to ensure they remain tight. Re-tighten as necessary.
• Сезондук текшерүү: Before and after seasons with heavy weather (e.g., winter, hurricane season), inspect the entire structure for any signs of wear, damage, or loose connections.

7. Кыйынчылыктарды

Бул бөлүмдө беседкаңыз менен кездешиши мүмкүн болгон жалпы көйгөйлөр каралат.

• Жок же бузулган бөлүктөр: If you discover any missing or damaged parts upon unpacking, do not proceed with assembly. Contact ABCCANOPY customer service immediately with your invoice number and details of the missing/damaged parts.
• Difficulty Aligning Frame Components: Ensure all bolts and screws are installed loosely during initial assembly. This allows for minor adjustments to align parts correctly. Once aligned, gradually tighten all fasteners.
• Чатырда суунун топтолушу: Verify that roof panels are correctly overlapped and secured. Check the water gutters for any blockages from leaves or debris and clear them if necessary.
• Газебо туруксуздугу: Ensure the gazebo is anchored firmly to a level surface using all provided expansion screws. In areas prone to high winds, consider additional anchoring methods.
• Curtains/Netting Not Moving Smoothly: Check the dual tracks for any obstructions or debris. Ensure the hooks are properly seated in the tracks.

8. Техникалык шарттар

Image 8.1: Key dimensions of the ABCCANOPY 10x10 Hardtop Gazebo.

9. Кепилдик жана колдоо

9.1 Кепилдик маалыматы

Your ABCCANOPY Hardtop Gazebo comes with the following warranty:

• Металл конструкциясы: 1 жылдык кепилдик.
• Пардалар жана торлор: 6 ай кепилдик.

Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.

9.2 Кардарларды колдоо

If you have any questions, concerns, or require assistance with assembly or parts, please do not hesitate to contact ABCCANOPY customer service. Provide your model number and purchase details for efficient support.

Кошумча жардам алуу үчүн, сураныч, баш багыңыз ABCCANOPY Store on Amazon.
