1. Киришүү
Thank you for choosing the Ledvion 10x LED Batten T8 Tube. This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of your new LED lighting fixtures. Please read this manual thoroughly before installation and retain it for future reference.
2. Коопсуздук маалыматы
Травмалардын же зыяндын алдын алуу үчүн ар дайым төмөнкү коопсуздук эрежелерин сактаңыз:
- Электр коопсуздугу: Installation must be performed by a qualified electrician or competent person in accordance with local electrical codes and regulations. Ensure the power supply is disconnected before any installation, maintenance, or cleaning.
- Тtage: камсыз кылуу том экенин текшериңизtage томуна дал келетtage продуктунун этикеткасында көрсөтүлгөн (230 Вольт).
- Колдонуу: Handle the LED battens with care to avoid damage. Do not bend or twist the fixture excessively.
- Курчап турган чөйрө: These fixtures are designed for indoor use in dry locations. Do not expose to water or high humidity unless specifically rated for such conditions.
- Жылуулук: Although LED lights produce less heat than traditional bulbs, ensure adequate ventilation around the fixture. Do not cover the fixture with insulating material.
- Жоюу: Dispose of the product and its components responsibly, following local waste disposal regulations for electronic waste.
3. Пакеттин мазмуну
The Ledvion 10x LED Batten T8 Tube package (Model LV40003-10pack) includes the following items:

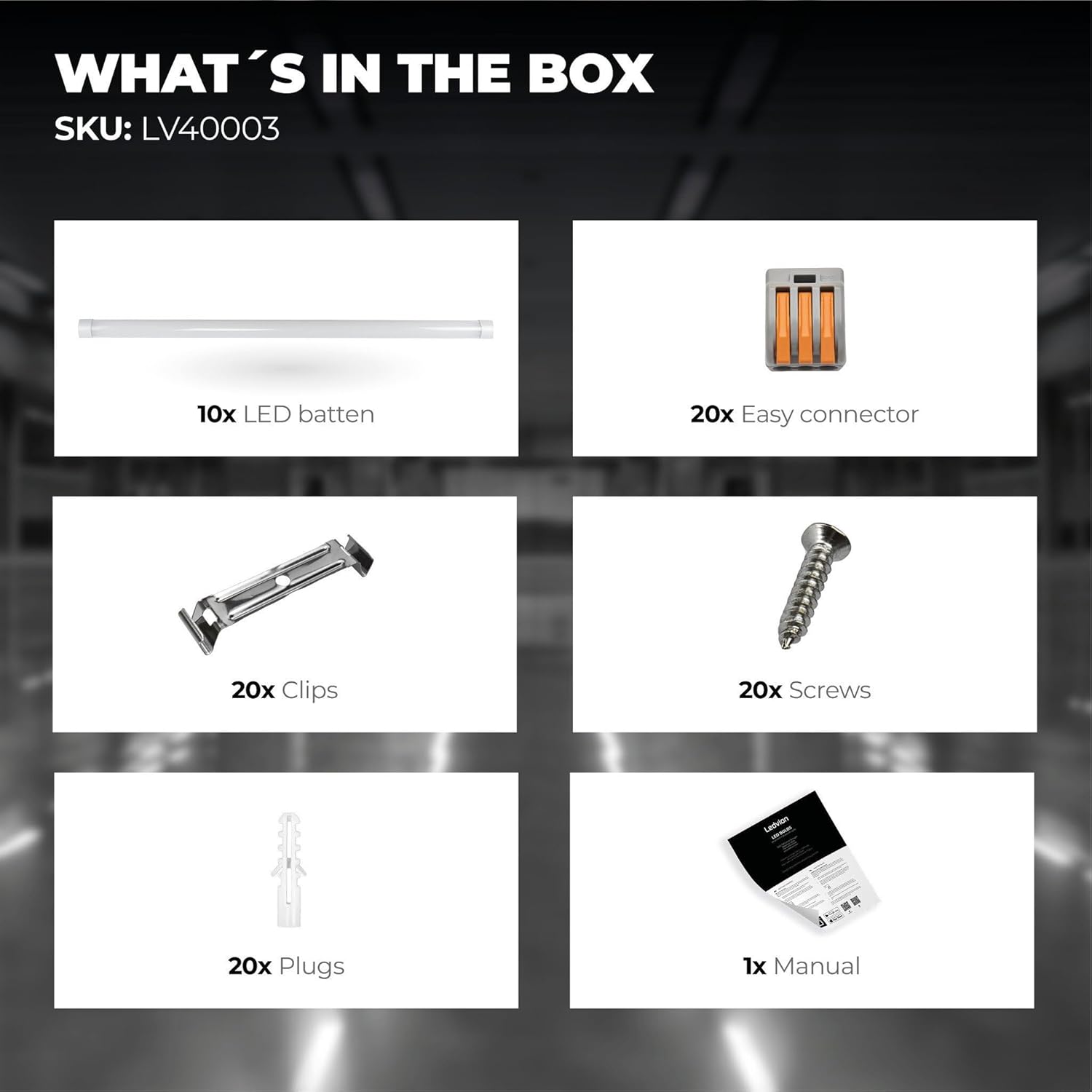

An organized display of the package contents: 10 LED battens, 20 easy connectors, 20 clips, 20 screws, 20 plugs, and 1 manual.
- 10x LED Batten T8 Tubes (150cm, 40W, 4000K)
- 20x Easy Connectors
- 20x Монтаждык клиптер
- 20x бурамалар
- 20x дубал сайгычтары
- 1x Instruction Manual
4. Продукт бүтүп калдыview
The Ledvion LED Batten T8 Tube is an energy-efficient lighting solution designed for various applications, including garages, workshops, and retail spaces. It features an ultra-slim profile and integrated LED technology for optimal performance.

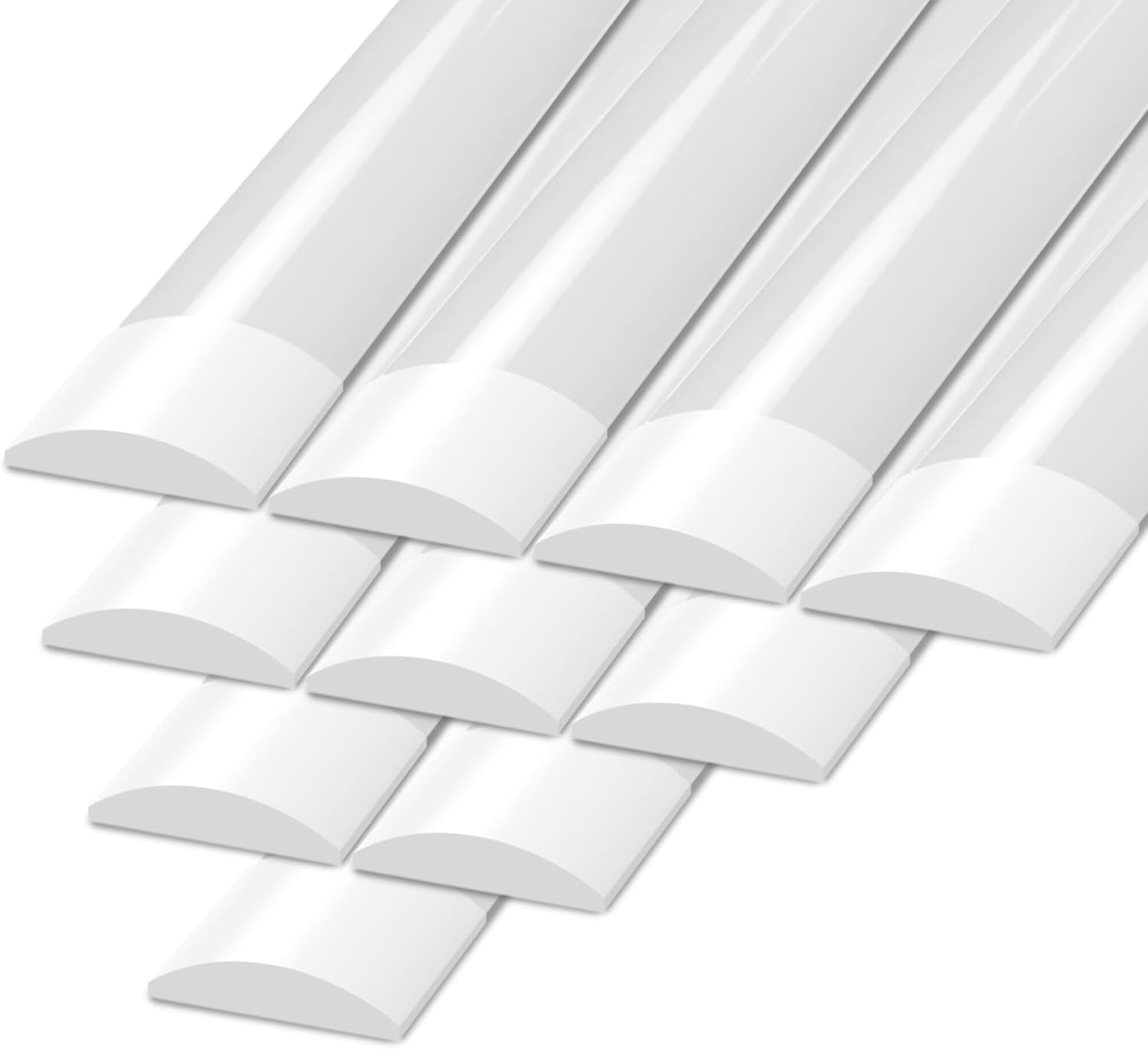

A set of ten Ledvion LED Batten T8 Tubes, each 150cm long, designed for efficient lighting.
Негизги өзгөчөлүктөрү:
- Integrated LED System: The light source is built directly into the fixture, ensuring a sleek design and easy installation.
- Жогорку сапаттагы LED чиптери: Equipped with advanced Samsung LED chips for exceptional brightness and durability, offering a long lifespan of 30,000 hours.
- Энергия үнөмдүүлүгү: With a power consumption of 40W and a light output of 5600 lumens, it achieves 140 lumens per Watt, contributing to significant energy savings.
- Жаркылдоосуз: Provides consistent and comfortable illumination without noticeable flicker.
- Ultra-Slim дизайн: Features an ultra-thin height of only 2.4 cm (25mm), allowing for discreet installation.
- Нейтралдуу ак жарык: Emits a 4000K color temperature, providing a balanced and clear light suitable for various environments.
Detail shot emphasizing the high-performance Samsung LED chips within the Ledvion LED Batten, along with a 'Warranty 5 Years' label.
A view of the ultra-thin design (25mm height) of the Ledvion LED Batten, noting available wattages (15/30/40W), color temperatures (4000/6500K), and a 120-degree beam angle.
5. Орнотуу жана орнотуу
Follow these steps for proper installation of the LED Batten T8 Tube:
- Биринчи коопсуздук: Before starting any installation, ensure the main power supply to the installation area is switched off at the circuit breaker.
- Белгилөө: Determine the desired mounting location for the LED batten. Use the batten itself or measure the distance between the mounting holes to mark the drilling points on the ceiling or wall.
- Бургулоо: Drill holes at the marked points. Insert the provided wall plugs into the drilled holes.
- Монтаждык клиптер: Secure the mounting clips to the wall or ceiling using the provided screws. Ensure the clips are firmly attached.
- Зымдар: Connect the electrical wires to the easy connector. The easy connector allows for a toolless setup. Ensure correct polarity (Live, Neutral, Earth) according to local wiring standards.
A quick connector device, indicating toolless setup for easy installation of the LED Batten to the main power supply.
- Attach Batten: Carefully align the LED batten with the mounted clips and snap it into place. Ensure it is securely fastened.
- Күйгүзүү: Once the batten is securely installed and wired, restore power to the circuit.
- Сыноо: Туура иштешин текшерүү үчүн жарык өчүргүчтү күйгүзүңүз.
Illustration of two Ledvion LED Batten T8 Tubes installed in a garage, providing bright and uniform illumination.
Мурункуample of Ledvion LED Batten T8 Tubes used as overhead lighting in a modern retail store setting.
6. Иштөө нускамалары
The Ledvion LED Batten T8 Tube operates via a standard wall switch connected to its power supply. Simply toggle the switch to turn the light fixture on or off.
7. Техникалык тейлөө
Minimal maintenance is required for the Ledvion LED Batten T8 Tube:
- Тазалоо: Тазалоодон мурун электр кубаты өчүрүлгөнүн текшериңиз. жумшак, кургак же бир аз колдонуу damp арматуранын бетин сүртүүчү чүпүрөк. Абразивдүү тазалагычтарды, эриткичтерди же катуу химиялык заттарды колдонбоңуз, анткени алар финишке же электрдик тетиктерге зыян келтириши мүмкүн.
- Текшерүү: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified technician.
- Колдонуучу тейлей турган бөлүктөр жок: The LED light source is integrated and not designed to be replaced by the user. Attempting to open or modify the fixture will void the warranty.
8. Кыйынчылыктарды
If you encounter issues with your Ledvion LED Batten, refer to the following troubleshooting guide:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт | Электр энергиясы жок Бошоң зымдар байланышы Бузулган которгуч | Ажыраткычты жана дубалды өчүргүчтү текшериңиз. Электр энергиясы калыбына келтирилгенин камсыз кылыңыз. Verify all wiring connections are secure (with power off). Test the switch with another device or consult an electrician. |
| Жарык күңүрт же бүлбүлдөп турат | Туура эмес томtage Бошоң байланыш Продукциянын кемчилиги | Берүүнү ырастоо томtage matches product specifications. Зымдардын туташуусун текшериңиз (электр өчүрүлгөн учурда). Эгер көйгөйлөр чечилбесе, кардарларды колдоо кызматына кайрылыңыз. |
| Физикалык зыян | Impact during installation or use | Do not attempt to repair. Disconnect power and replace the damaged unit. |
If the problem cannot be resolved using the above steps, please contact Ledvion customer support.
9. Техникалык шарттар
Detailed technical specifications for the Ledvion LED Batten T8 Tube (Model LV40003-10pack):

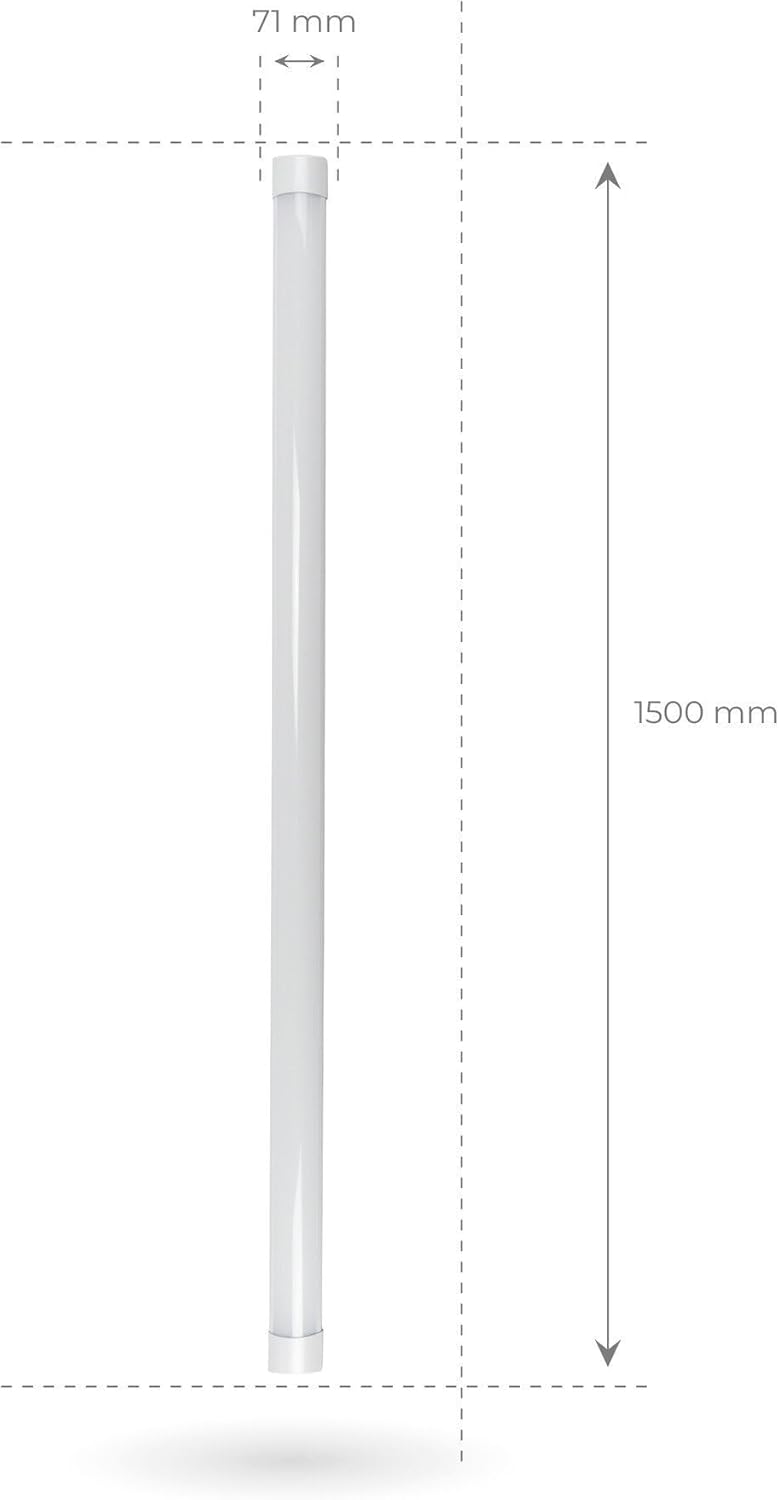

A diagram illustrating the physical dimensions of the 1500mm long Ledvion LED Batten, including its 71mm width.
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Ледвион |
| Модель номери | LV40003-10pack |
| Өлчөмдөрү (L x W x Y) | 153 x 30 x 15 cm (individual batten: 1500mm x 71mm x 25mm) |
| Салмагы (бир нерсеге) | Approx. 0.64 kg (6.4 kg for 10-pack) |
| Энергияны керектөө | 40 Ватт |
| Жарык агымы | 5600 люмен |
| Жарык эффективдүүлүгү | 140 люмен/Вт |
| Түс температурасы | 4000 Кельвин (нейтралдуу ак) |
| Орточо жашоо | 30,000 саат |
| Тtage | 230 вольт |
| Материал | Пластик |
| Beam Angle | 120 градус |
| Энергия эффективдүүлүгү классы | E |
| Энергия керектөө | 40 кВт/саат/1000 саат |
| Келип чыккан өлкө | Кытай |
The EU energy label for the Ledvion LV40003 LED Batten, indicating an energy efficiency class of E and 40 kWh/1000h consumption. For more details, visit the EPREL маалымат базасы.
10. Кепилдик жана колдоо
Ledvion provides a 5 жылдык кепилдик for this product, covering defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Ledvion customer support through your retailer or the official Ledvion webсайт.
