HBTower 5-Step Folding Ladder with Handrails and Tool Tray User Manual

1. Коопсуздук боюнча маанилүү маалымат

Please read and understand all safety instructions before using the HBTower 5-Step Folding Ladder. Failure to follow these instructions may result in serious injury or property damage.

• Always ensure the ladder is fully open and the safety locking mechanism is engaged before climbing.
• Жүк көтөрүмдүүлүгү 330 фунттан ашпашы керек.
• Place the ladder on a firm, level surface. Avoid slippery or uneven ground.
• Maintain three points of contact (two hands and one foot, or two feet and one hand) when climbing or descending.
• Do not stand on the top step or the tool tray.
• Keep your body centered between the side rails. Do not overreach.
• Inspect the ladder for any damage or loose parts before each use. Do not use a damaged ladder.
• Keep children and pets away from the ladder during use.

2. Продукт бүтүп калдыview

The HBTower 5-Step Folding Ladder is designed for household and office tasks, providing a stable and convenient platform for reaching elevated areas. It features a robust steel frame, wide anti-slip pedals, sponge-covered handrails, and a practical tool tray.

Figure 2.1: HBTower 5-Step Folding Ladder in its fully open position, showcasing анын дизайны.

Негизги өзгөчөлүктөрү:

• 5 Wide Anti-Slip Steps: Provides secure footing and comfort.
• Sponge-Covered Handrails: Offers comfortable and stable support, especially beneficial for seniors.
• Integrated Tool Tray: Conveniently holds tools and supplies, reducing the need to climb up and down.
• Коопсуздук кулпусунун дизайны: Ensures the ladder is securely locked in the open position.
• Strengthened Triangle Joint: Enhances stability and durability.
• Тайгаланбаган резина буттары: Provides firm contact with the ground and protects floors from scratches.
• Бүктөлүүчү Дизайн: Allows for easy storage and portability.

3. Орнотуу нускамалары

The HBTower 5-Step Folding Ladder requires minimal assembly for its first use. All necessary tools are included in the package.

3.1 Unfolding the Ladder:

1. Place the folded ladder on a flat, stable surface.
2. Grasp the top section of the ladder and gently pull the front and back legs apart until the ladder is fully extended.
3. Push down on the top pedal until you hear a 'click' sound, indicating that the safety locking mechanism is automatically engaged. Verify the ladder is stable before proceeding.

Figure 3.1: The folding mechanism of the HBTower 5-Step Ladder, showing how to open and unlock for folding.

3.2 Attaching Handrails and Tool Tray (First-Time Assembly):

The handrails and tool tray are attached using the provided screws and Allen wrench.

1. Identify the left and right handrails. They may be marked.
2. Align the holes on the handrails with the corresponding holes on the ladder frame.
3. Insert the provided screws and tighten them securely with the Allen wrench. Ensure all screws are fully tightened for stability.
4. Attach the tool tray to the designated slots at the top of the ladder frame, ensuring it clicks into place or is secured with screws as per the detailed instructions in the included manual.

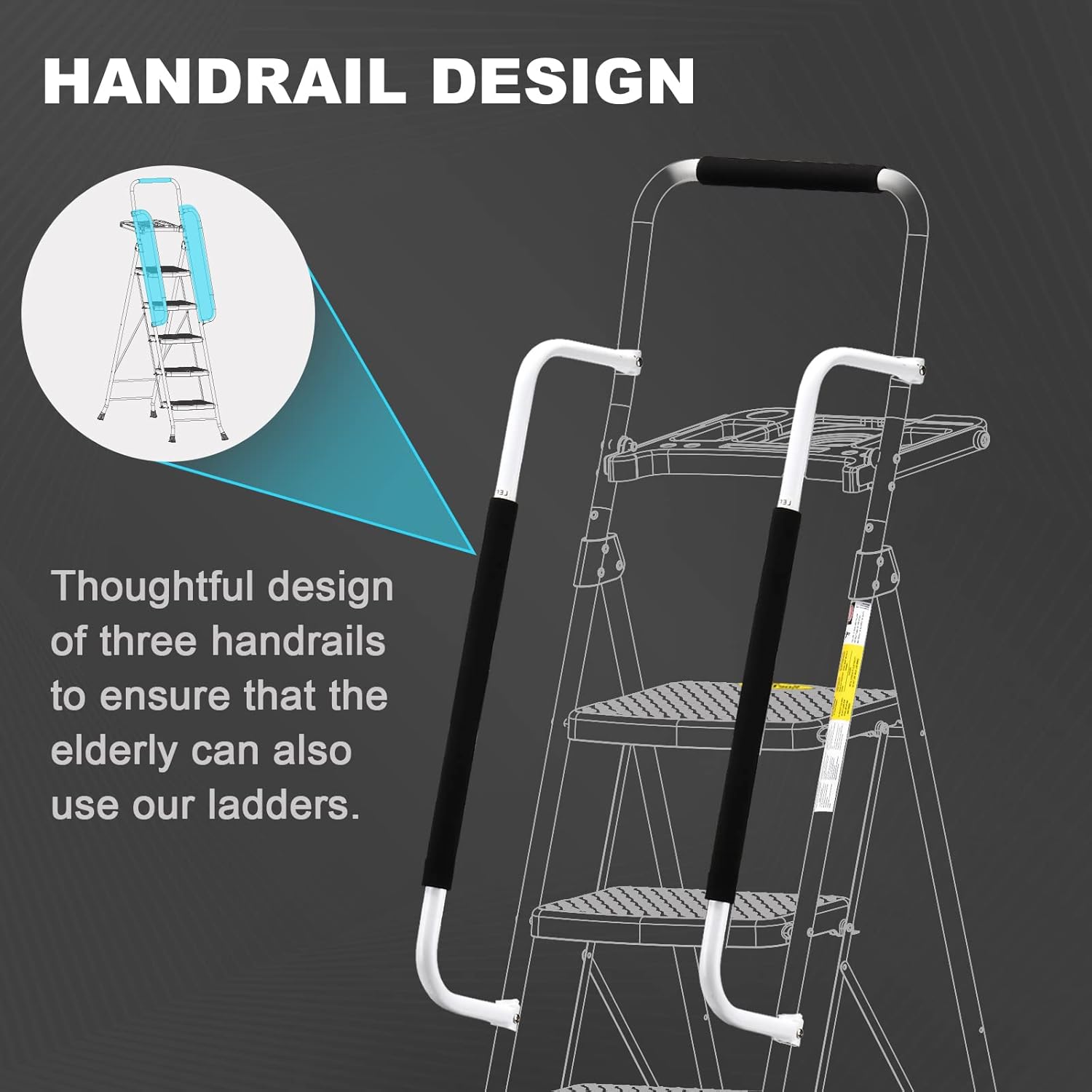

3.2-сүрөт: Детальдуу view of the handrail design, highlighting the soft sponge covering for comfort and stability.

Figure 3.3: The strengthened triangle joint design, providing enhanced stability compared to traditional designs.

4. Иштөө нускамалары

4.1 Using the Ladder:

1. Ensure the ladder is fully open and locked.
2. Use the handrails for support as you climb each step.
3. Place your entire foot on the wide anti-slip pedals for maximum stability.
4. When working at height, utilize the tool tray to keep necessary items within easy reach, minimizing movement up and down the ladder.
5. Descend the ladder facing the steps, maintaining three points of contact.

Figure 4.1: The integrated tool tray of the HBTower 5-Step Ladder, shown holding an electric drill, gloves, paint bucket, and saw combination.

4.2-сүрөт: Детальдуу view of the ladder's safety features, including anti-slip pedals, convenient handgrip, wide pedals, and non-slip foot covers.

4.2 Folding for Storage:

1. Ensure no items are left on the tool tray or steps.
2. Lift the safety locking mechanism (usually a yellow tab under the top pedal) to release the lock.
3. Gently push the front and back sections of the ladder together until it is fully folded.
4. Store the folded ladder in a dry, secure location, away from high traffic areas.

5. Техникалык тейлөө

Regular maintenance ensures the longevity and safe operation of your HBTower ladder.

• Тазалоо: Wipe down the ladder with a damp cloth to remove dust and debris. Avoid abrasive cleaners that could damage the finish or anti-slip surfaces.
• Текшерүү: Periodically check all bolts, screws, and joints to ensure they are tight and secure. Inspect the anti-slip pedals and rubber feet for wear or damage. Replace any worn or damaged parts immediately.
• Сактагыч: Store the ladder in a dry place to prevent rust. Keep it away from extreme temperatures.

6. Кыйынчылыктарды

If you encounter any issues with your HBTower ladder, refer to the following common problems and solutions:

• Тепкич туруксуз сезилет: Ensure the ladder is fully unfolded and the safety locking mechanism is engaged. Check that all four rubber feet are making firm contact with a level surface.
• Бүктөө/ачуу кыйынчылыгы: Ensure the safety locking mechanism is properly disengaged before folding. Check for any obstructions in the hinge areas. Do not force the mechanism.
• Loose handrails/tool tray: Re-tighten all screws securing the handrails and tool tray. If screws are stripped or missing, contact customer support for replacements.

7. Техникалык шарттар

Figure 7.1: Dimensions of the HBTower 5-Step Ladder in both open and folded configurations.

8. Кепилдик жана колдоо

HBTower is committed to providing high-quality products and excellent customer service. We welcome your suggestions and questions, as your feedback is an integral part of our journey to enhance our products and services.

For any inquiries, assistance with assembly, troubleshooting, or warranty claims, please contact our customer support team. Refer to the contact information provided in your product packaging or visit the official HBTower webкошумча маалымат алуу үчүн сайт.
