Greesum 12'x16' Hardtop Metal Gazebo Instruction Manual

1. Киришүү

This manual provides detailed instructions for the assembly, operation, and maintenance of your Greesum 12'x16' Hardtop Metal Gazebo. Please read this manual thoroughly before beginning assembly or use to ensure proper installation and safe operation.

1.1 Продукт бүттүview

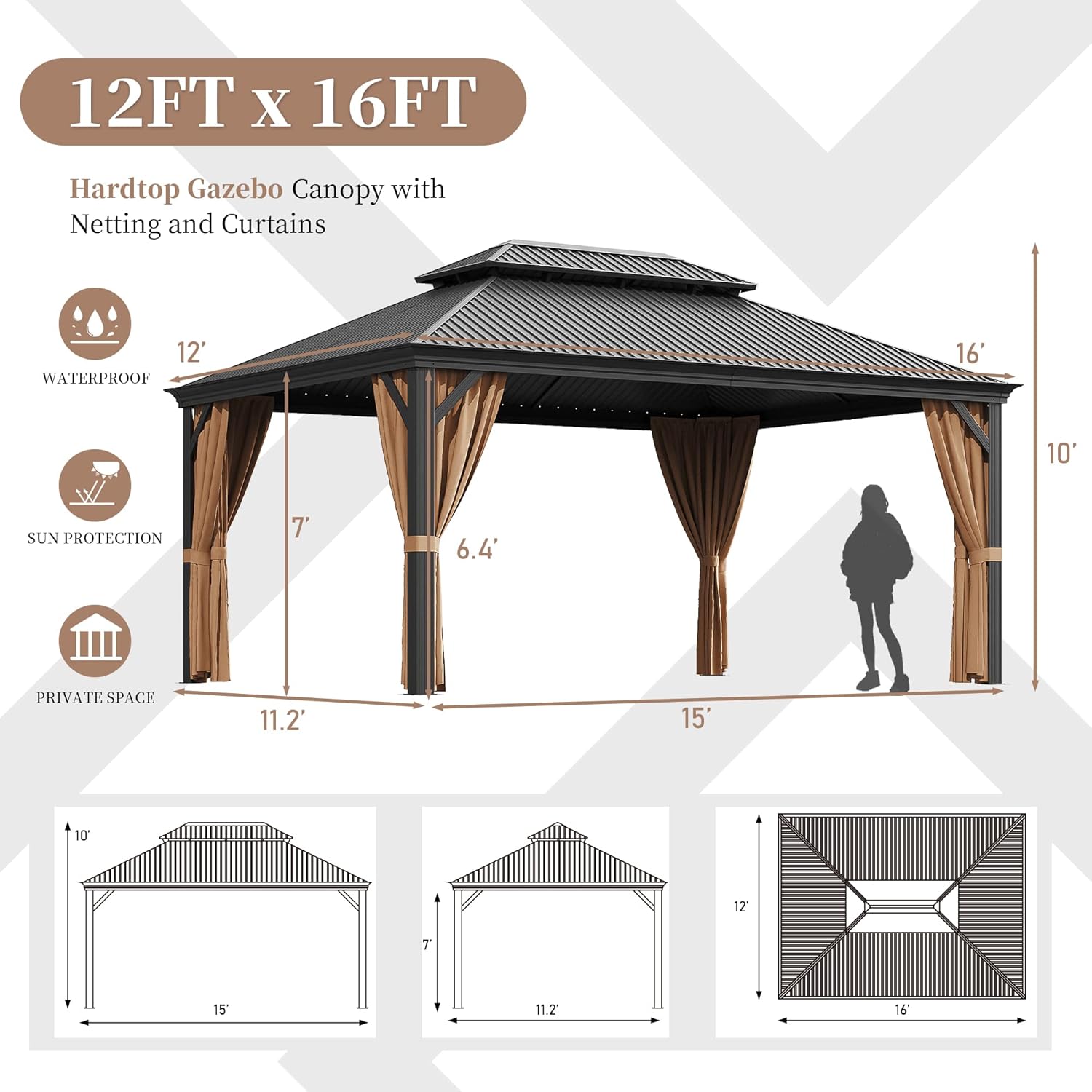

The Greesum 12'x16' Hardtop Metal Gazebo is designed to provide a durable and comfortable outdoor living space. It features a galvanized steel double roof, an aluminum frame, and includes netting and curtains for enhanced usability and privacy.

1.2 Коопсуздук маалыматы

• Always anchor the gazebo securely to the ground to prevent damage from wind or other weather conditions. Failure to do so may result in structural failure and injury.
• Колдонуудан мурун бардык бөлүктөр туура чогулганын жана бекемделгенин текшериңиз.
• Do not hang excessively heavy items from the roof hooks.
• In areas prone to heavy snowfall, it is recommended to clear snow from the roof to prevent collapse.
• Орнотуу учурунда балдарды жана үй жаныбарларын чогултуу жайынан алыс кармаңыз.

2. Орнотуу жана чогултуу

Assembly of this gazebo requires careful attention to detail. It is recommended that 3-4 people work together to complete the assembly, which typically takes approximately 4 hours.

2.1 Пакеттин мазмуну

Your Greesum Gazebo package includes:

• Metal Gazebo components (frame, roof panels, connectors, hardware)
• Торлор жана пардалар
• Installation and Usage Manual (this document)

Note: The product is shipped in multiple packages (typically 3). Ensure all packages have arrived before starting assembly.

2.2 Талап кылынган куралдар (кошумча эмес)

• Шаты
• Жөнгө салынуучу ачкыч же розетка топтому
• Бурагыч (Phillips баш)
• Өлчөө лентасы
• Коопсуздук мээлейлери

2.3 Чогултуу кадамдары

Follow the detailed diagrams provided in the included assembly guide. Pay close attention to part numbers and orientations. Below are general guidelines:

1. Бөлүктөрдү таңгактан чыгаруу жана аныктоо: Carefully unpack all components and verify against the parts list in your assembly guide. Organize parts by type and label.
2. Негизги алкакты чогултуу: Connect the horizontal and vertical frame components to form the base structure. Ensure all connections are secure but do not fully tighten bolts until the entire frame is assembled.
3. Колдоо билдирүүлөрүн орнотуу: Attach the main support posts to the base frame.
4. Чатырдын рамкасын куруу: Assemble the upper roof frame structure. This often involves multiple smaller components.
5. Чатыр панелдерин тиркөө: Carefully install the galvanized steel roof panels onto the roof frame. Ensure panels overlap correctly for water drainage. Note: Some users have reported difficulty aligning holes for roof panels; ensure the roof frame is correctly oriented before attaching panels.
6. Торлорду жана пардаларды орнотуу: Attach the netting and curtains to the designated tracks on the gazebo frame.
7. Акыркы бекемдөө жана бекитүү: Once all components are in place and aligned, fully tighten all bolts. Securely anchor the gazebo to the ground using the pre-drilled base and appropriate ground stakes or anchors (not always included, may need to be purchased separately depending on surface).

3. Иштөө өзгөчөлүктөрү

3.1 Double Roof Design and Ventilation

The gazebo features a double-tier galvanized steel roof designed to reduce air pressure and promote air circulation, ensuring a comfortable environment. This design also enhances stability against wind.

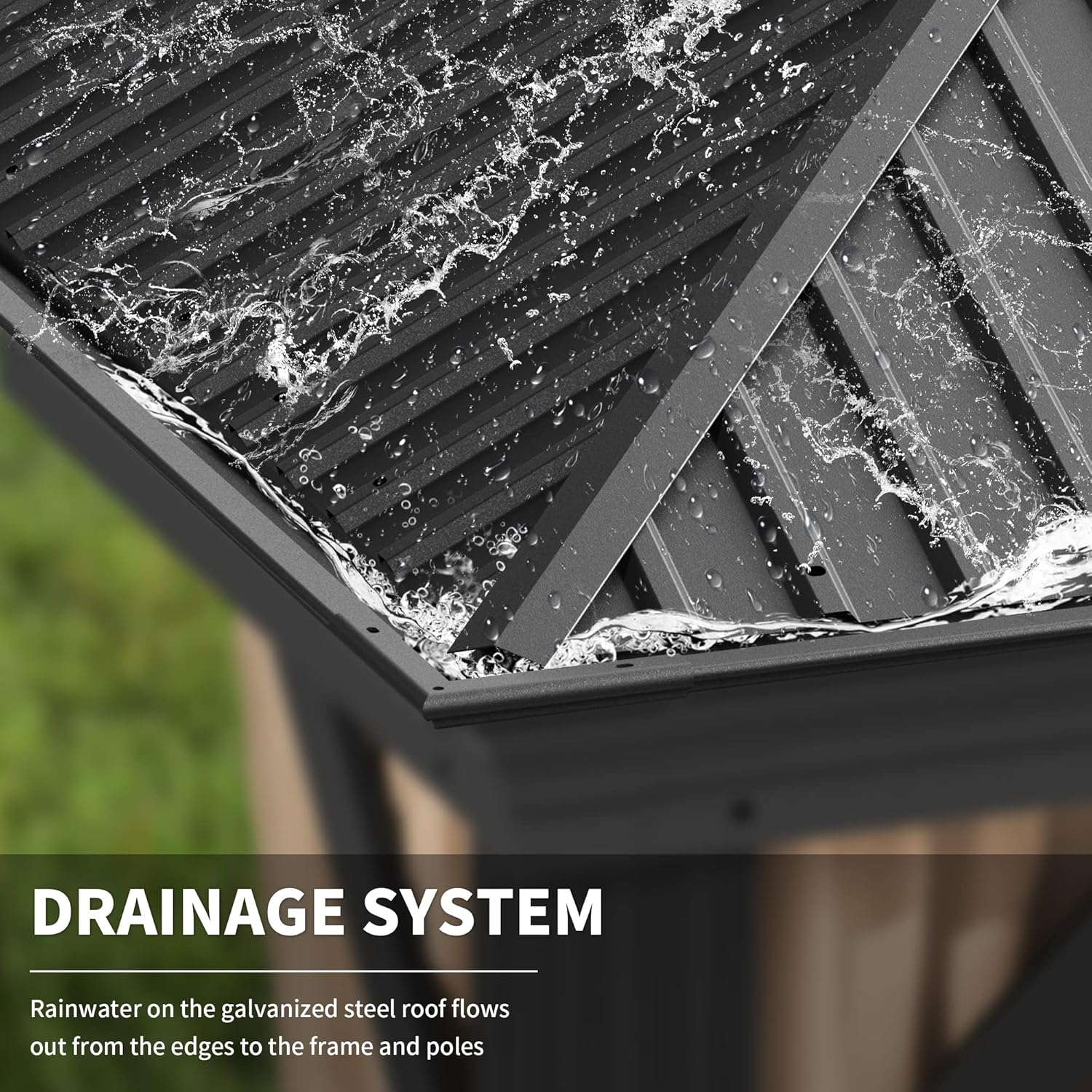

3.2 Дренаж системасы

The galvanized steel roof is equipped with a drainage system that directs rainwater away from the interior. Water flows from the edges of the roof to the frame and poles, preventing accumulation.

3.3 Netting and Curtains

The gazebo includes a fully enclosed zippered double side wall system with netting and privacy curtains. These can be easily opened or closed using the two-rail system. The mesh netting provides protection from insects while allowing airflow, and the polyester privacy curtains offer shade and privacy.

3.4 Интеграцияланган илгичтер

A "U"-shaped hook is located in the center of the steel roof. This hook can be used to hang lightweight items such as lamps or fans.

4. Техникалык тейлөө

4.1 Жалпы кам көрүү

• Regularly inspect all bolts and connections to ensure they remain tight. Re-tighten as necessary.
• Check the ground anchors periodically to ensure the gazebo remains securely fastened.
• Inspect the roof panels for any signs of damage or loose connections, especially after strong winds or storms.

4.2 Тазалоо

• кадр: Clean the aluminum frame with a mild soap and water solution. Rinse thoroughly with clean water and dry with a soft cloth. Avoid abrasive cleaners or harsh chemicals.
• Чатыр панелдери: The galvanized steel roof can be cleaned with a soft brush or cloth and mild soapy water. Rinse well.
• Торлор жана пардалар: These can typically be spot cleaned with mild soap and water. For deeper cleaning, refer to any specific care labels if available. Ensure they are completely dry before storing or closing for extended periods to prevent mildew.

5. Кыйынчылыктарды

5.1 Чогултуудагы кыйынчылыктар

• Parts not fitting/aligning: Double-check the assembly diagrams for correct orientation of parts. Ensure all bolts are only hand-tightened until the entire section is assembled, then fully tighten. If parts are bent or damaged upon arrival, contact customer support.
• Жабдуулар жетишпейт: Verify against the parts list. If hardware is missing, contact customer support for replacements.

5.2 Суунун агып кетиши

• Roof leaks: Ensure all roof panels are correctly overlapped and securely fastened. Check for any gaps or improperly sealed areas. Applying a weather-resistant sealant to bolt holes or seams may help if minor leaks persist.
• Дренаж маселелери: Ensure the drainage channels are clear of debris.

5.3 Туруктуулукка байланыштуу көйгөйлөр

• Gazebo movement: Re-check all ground anchors and ensure they are firmly secured. Consider using heavier-duty anchors if the gazebo is installed in a windy area or on a soft surface.
• Snow load: The gazebo is designed for general outdoor use. In regions with heavy snowfall, it is crucial to regularly clear snow from the roof to prevent structural damage or collapse. The roof is not designed to withstand significant snow accumulation.

6. Техникалык шарттар

7. Кепилдик маалыматы

Specific warranty details for the Greesum 12'x16' Hardtop Metal Gazebo are not provided in this manual. Please refer to your purchase documentation or contact Greesum customer support for information regarding warranty coverage and terms.

8. Кардарларды колдоо кызматы

If you encounter any issues during assembly or use, or if you have questions regarding your Greesum gazebo, please contact Greesum customer support. Contact information can typically be found on the packaging, your purchase receipt, or the official Greesum webсайт.

When contacting support, please have your model number (GS-GZB-0079-16BK) and purchase date available.
