1. Киришүү
This manual provides essential information for the safe and efficient operation of your new Candy RapidO 9 kg Front Loading Washing Machine, model RO1496DWMCT. Please read these instructions carefully before using the appliance and keep them for future reference. This washing machine is designed for domestic use only.
Key features of your appliance include a 9 kg capacity, 1400 rpm spin speed, and an energy efficiency class A rating. It offers 16 wash cycles, including 9 rapid cycles, and features a Smart Touch panel with a Smart Text display for easy control. Connectivity via the hOn app provides additional functionalities such as machine check-ups, cycle downloads, voice assistant activation, and delayed start via smartphone.
2. Коопсуздук маалыматы
Always adhere to the following safety precautions to prevent electric shock, fire, or injury.
- Электр коопсуздугу: Ensure the appliance is connected to a properly grounded electrical outlet. Do not use extension cords or adapters. Disconnect the power supply before any cleaning or maintenance.
- Суу коопсуздугу: Ensure water inlet and drain hoses are correctly installed to prevent leaks. Do not operate the machine if there is a water leak.
- Балдардын коопсуздугу: Keep children and pets away from the appliance during operation. Do not allow children to play with the controls.
- Орнотуу: Шайман катуу, тегиз бетке орнотулушу керек. Машинанын айланасында жетиштүү желдетүүнү камсыз кылыңыз.
- Колдонуу: Do not overload the machine. Only use detergents and additives suitable for washing machines.
3. Орнотуу жана орнотуу
Кир жуугуч машинаңыздын иштеши жана узак иштөөсү үчүн туура орнотуу абдан маанилүү.
3.1 Пакеттен чыгаруу
Carefully remove all packaging materials. Inspect the appliance for any damage. Remove all transit bolts from the rear of the machine before use. Keep packaging materials out of reach of children.
3.2 Позициялоо жана тегиздөө
Place the washing machine on a flat, stable floor. Adjust the leveling feet to ensure the appliance is perfectly level and stable. This prevents excessive vibration and noise during operation.
Сүрөт 3.1: Алдыңкы view of the Candy RapidO washing machine, showing its compact design suitable for under-counter installation.
3.3 Суу туташтыруу
Connect the water inlet hose to a cold water tap with a 3/4" thread. Ensure the connection is tight to prevent leaks. The machine requires a water pressure between 0.05 MPa and 0.8 MPa.
3.4 Дренажды туташтыруу
Insert the drain hose into a standpipe or secure it over the edge of a sink. Ensure the drain hose is not kinked or obstructed. The drain hose should be positioned at a height between 60 cm and 100 cm from the floor.
3.5 Электрдик туташуу
Plug the power cord into a grounded electrical outlet. The appliance operates on 230 Volts and has a power consumption of 1600 Watts. Ensure the electrical supply matches the requirements stated on the rating plate of the machine.
4. Иштөө нускамалары
Familiarize yourself with the control panel and washing programs for optimal performance.
4.1 Башкаруу панелинин үстүнөview
Figure 4.1: The Smart Touch control panel and Smart Text display, located above the door for ergonomic access, showing various program options and settings.
The control panel features a Smart Text display and touch-sensitive buttons for program selection, spin speed, temperature, delay start, and special functions. The main dial allows for easy selection of the 16 available wash cycles.
4.2 Жуучу каражат тараткыч
Figure 4.2: The detergent dispenser drawer, clearly labeled for pre-wash, main wash, and fabric softener compartments.
Open the detergent dispenser drawer and add the appropriate amount of detergent and fabric softener to the designated compartments. Refer to your detergent packaging for recommended dosages.
4.3 Кирди жүктөө
Open the washing machine door and load your laundry, ensuring not to exceed the 9 kg capacity. Close the door firmly until it clicks.
Figure 4.3: The washing machine with its large front-loading door open, providing easy access to the drum for loading and unloading laundry.
4.4 Программаны тандоо
Turn the program dial to select one of the 16 available wash cycles. The Smart Text display will show information about the selected program. The machine includes 9 rapid cycles such as Special 39', Color and Mixed 59', Hygiene Plus 59', and Quick 14', 30', and 44'.
4.5 Циклды баштоо
Press the 'Start/Pause' button to begin the selected wash cycle. You can also use the delay start function (up to 24 hours) or activate the cycle via the hOn app if connected.
4.6 hOn колдонмо туташуусу
The hOn app allows you to connect your smartphone to the washing machine via Wi-Fi and Bluetooth. This enables features such as machine check-ups, downloading additional wash cycles, activating a voice assistant, and remote control of the appliance.
5. Техникалык тейлөө жана тазалоо
Үзгүлтүксүз тейлөө кир жуугуч машинаңыздын узак иштөөсүн жана натыйжалуулугун камсыздайт.
5.1 Сырты тазалоо
Сырткы беттерин жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
5.2 Жуучу каражат тараткычты тазалоо
Periodically remove the detergent dispenser drawer and rinse it under running water to remove any detergent residue. Clean the housing of the dispenser with a brush.
5.3 Барабанды тазалоо
Run a maintenance wash cycle (e.g., a hot wash with no laundry and a descaling agent) periodically to clean the drum and remove any build-up.
5.4 Фильтрди тазалоо
Figure 5.1: The drain pump filter compartment, located at the bottom front of the machine, with the filter removed for cleaning.
The drain pump filter should be cleaned regularly to prevent blockages. Open the small cover at the bottom front of the machine, unscrew the filter, and remove any lint or foreign objects. Replace the filter and close the cover securely.
6. Кыйынчылыктарды
Кызматка кайрылуудан мурун жалпы маселелер жана аларды чечүү жолдору үчүн төмөнкү таблицаны караңыз.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Машина иштебейт | Электр энергиясы жок; эшик туура жабылбаган; Программа тандалган жок. | Check power plug and fuse; Ensure door is firmly closed; Select a program and press 'Start'. |
| Суу толбой жатат | Water tap closed; Inlet hose kinked or blocked. | Open water tap; Straighten hose; Clean filter in inlet hose. |
| Суу агып кетпейт | Дренаждык шланг ийилген же бөгөттөлгөн; Дренаждык насостун чыпкасы бөгөттөлгөн. | Straighten hose; Clean drain pump filter (refer to Section 5.4). |
| Ашыкча титирөө/ызы -чуу | Транзиттик болттар алынган эмес; Машина деңгээл эмес; Ашыкча жүктөлгөн же тең салмактуу эмес жүк. | Remove transit bolts; Adjust leveling feet; Redistribute laundry evenly. |
| Диспенсердеги жуугучтун калдыктары | Too much detergent; Low water pressure; Dispenser blocked. | Reduce detergent amount; Check water supply; Clean dispenser (refer to Section 5.2). |
Бул чечимдерди колдонуу аракетинен кийин маселе чечилбесе, квалификациялуу тейлөө кызматкерлерине кайрылыңыз.
7. Техникалык шарттар
Detailed technical specifications for the Candy RapidO Washing Machine.
| Спецификация | Нарк |
|---|---|
| Бренд | Кенди |
| Модель номери | RO1496DWMCT (31018841) |
| Кубаттуулугу | 9 килограмм |
| Айландыруу ылдамдыгы | 1400 об/мин |
| Энергия эффективдүүлүгү классы | A |
| Жылдык энергия керектөө | 100 циклге 49 киловатт-саат |
| Ызы-чуу деңгээли (Айлануу) | 76 дБ |
| Өлчөмдөрү (H x W x D) | 85 x 60 x 53 см |
| Салмагы | 63 килограмм |
| Тtage | 230 вольт |
| Күч | 1600 Ватт |
| Материал | Болот |
| Түс | Ак |
| Башкаруу түрү | Тактиль |
| Өзгөчөлүктөр | 16 programs, Easy Iron, Inverter Speed Driver Motor, Quick & Clean, Wi-Fi + Bluetooth |
Figure 7.1: Energy label indicating the appliance's energy efficiency class A, 9.0 kg capacity, 49 kWh/100 cycles energy consumption, and 76 dB spin noise level.

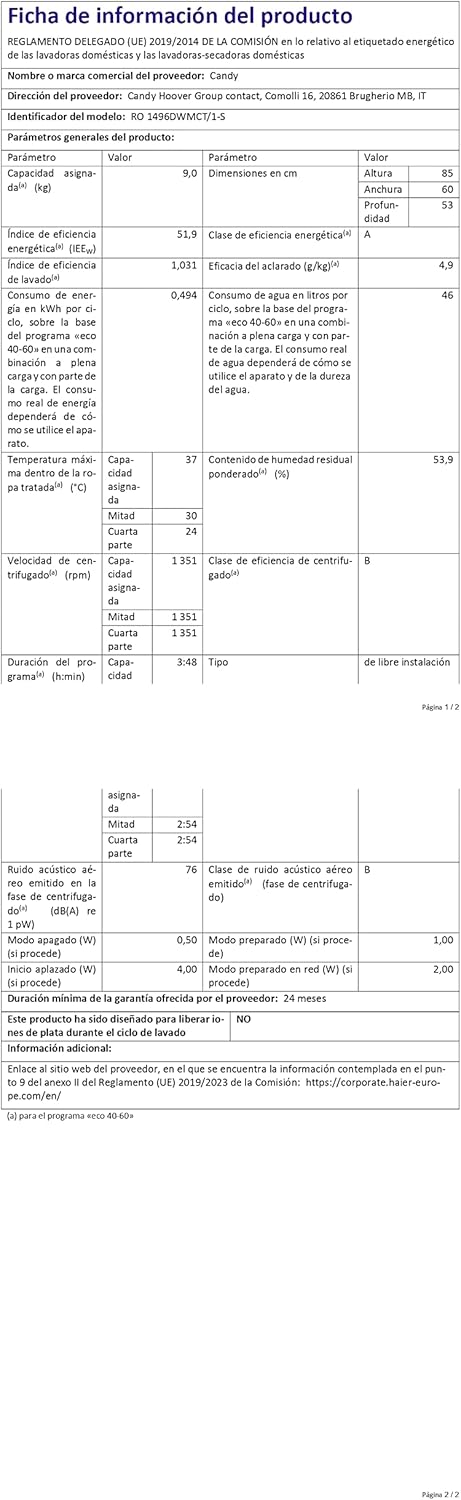

Figure 7.2: Detailed product information sheet providing comprehensive technical data and compliance details.
Көбүрөөк маалымат алуу үчүн EPREL маалымат базасын караңыз: https://eprel.ec.europa.eu/qr/1183031
8. Кепилдик жана колдоо
Your Candy RapidO washing machine comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the duration and coverage.
For technical assistance, spare parts, or service requests, please contact your local authorized Candy service center. Information regarding spare parts availability is currently unavailable through general product data.
When contacting support, please have your model number (RO1496DWMCT) and serial number ready. The serial number is typically located on a label inside the door or on the back of the appliance.
